Wireless Tracker V2 ESP32-S3 GPS LoRa Node
Wireless Tracker V2 ESP32-S3 GPS LoRa Node 28dBm for Meshtastic MeshCore LoRaWAN
Product introduction
What’s this?
Wireless Tracker V2 powered by ESP32-S3FN8, integrates SX1262 and UC6580 to support WiFi, Bluetooth, LoRa, and GNSS. With a built-in PA, it delivers a transmit power of 28±1 dBm.
Summary The Wireless Tracker V2 is built around the ESP32-S3FN8 and integrates the SX1262 LoRa chip along with the UC6580 GNSS chip. This new generation Wireless Tracker V2 incorporates a power amplifier, achieving a maximum transmission power of up to 28±1dBm. The LNA can be bypassed without affecting reception performance. The Wireless Tracker V2 features LDS antennas for both GNSS and 2.4G, significantly reducing the device’s size. It is widely used in fields such as personnel positioning, asset tracking, LoRaWAN, Meshtastic, and MeshCore.
Summary •The Wireless Tracker V2 is built around the ESP32-S3FN8 and integrates the SX1262 LoRa chip along with the UC6580 GNSS chip. •This new generation Wireless Tracker V2 incorporates a power amplifier, achieving a maximum transmission power of up to 28±1dBm. The LNA can be bypassed without affecting reception performance. •The Wireless Tracker V2 features LDS antennas for both GNSS and 2.4G, significantly reducing the device’s size. •It is widely used in fields such as personnel positioning, asset tracking, LoRaWAN, Meshtastic, and MeshCore.

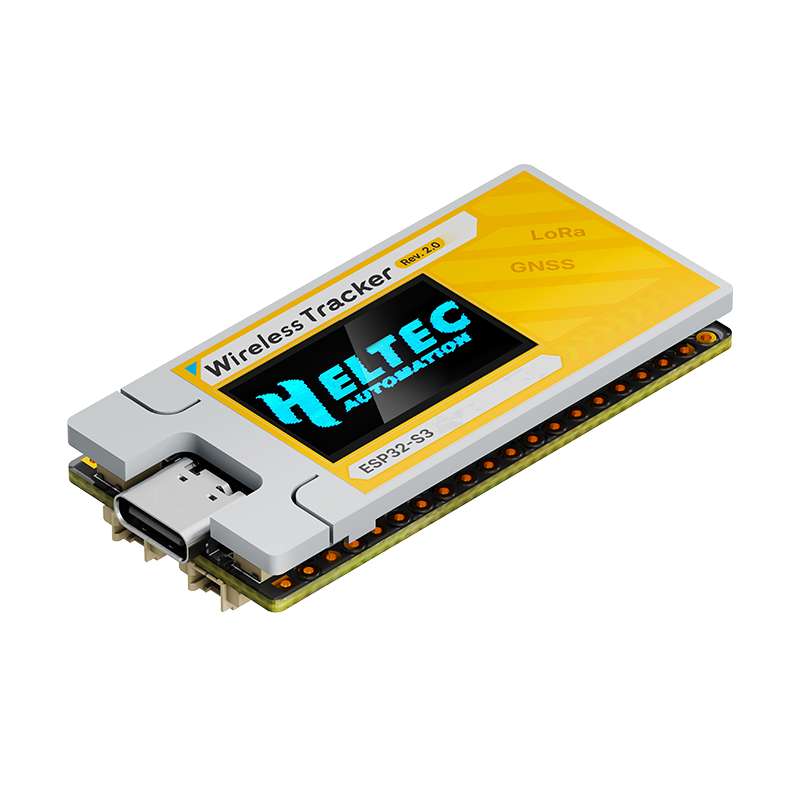

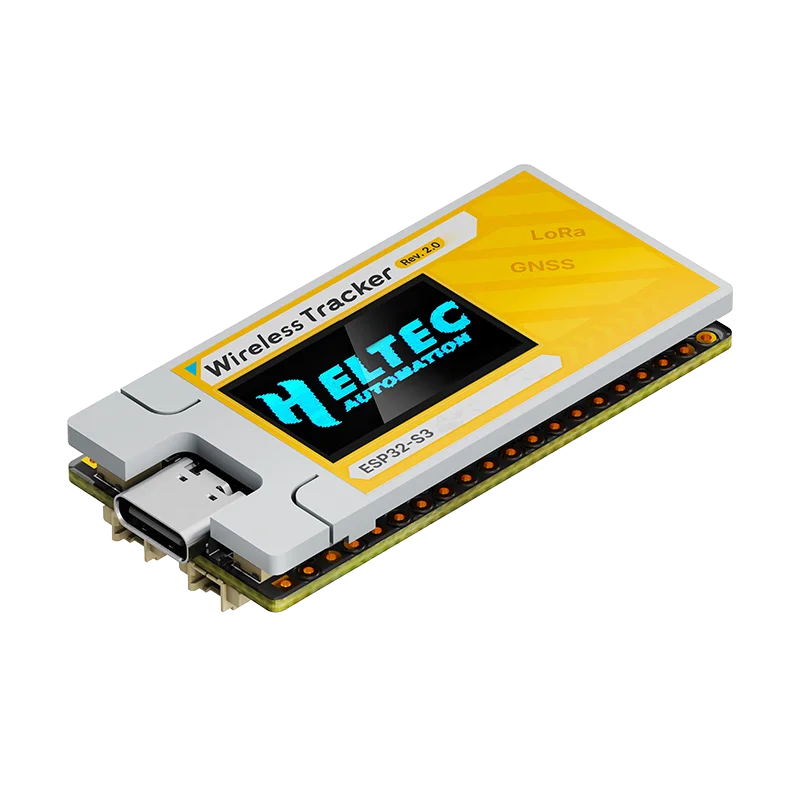

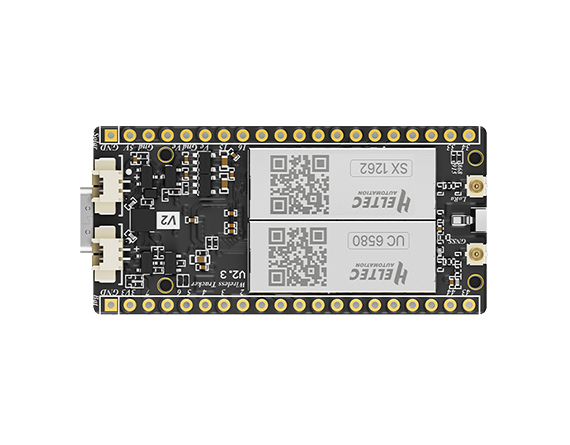

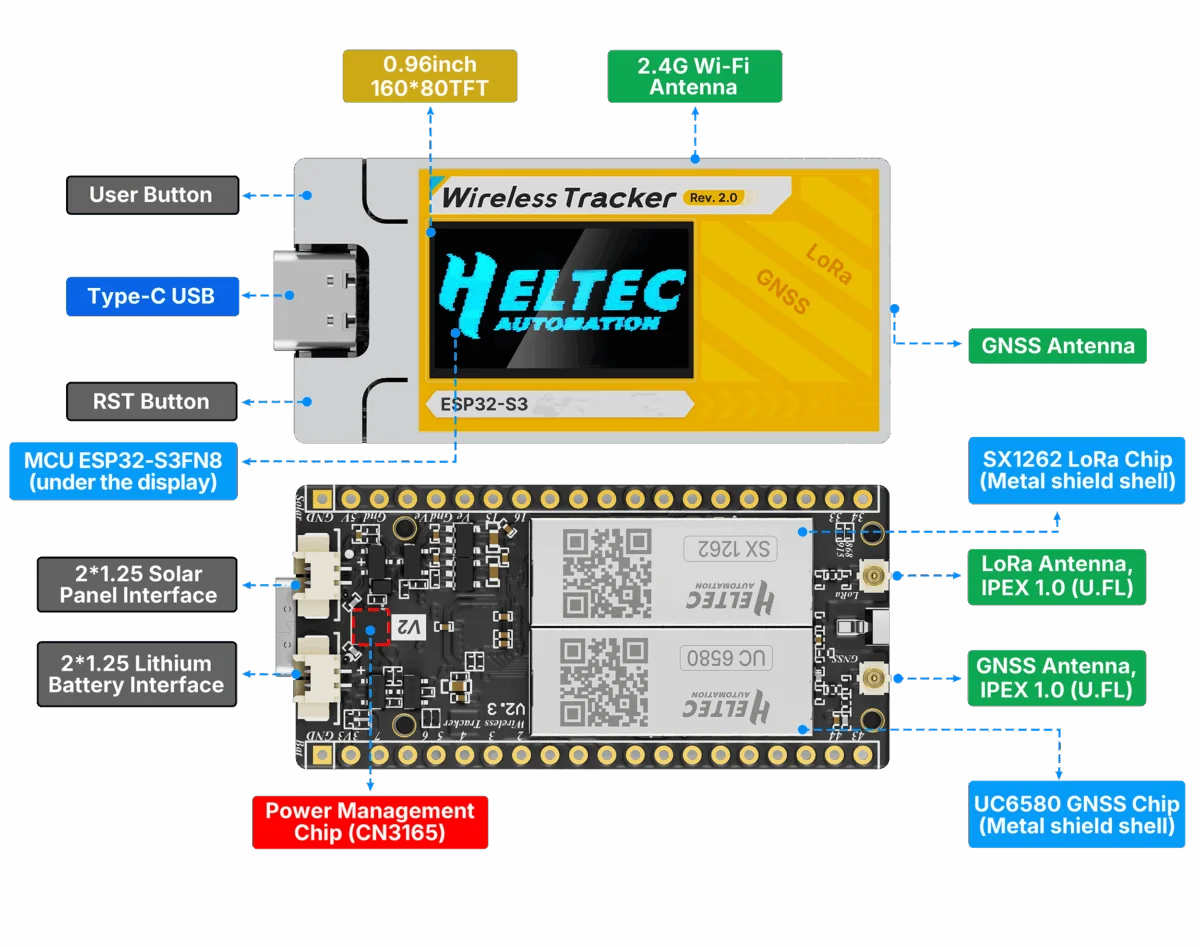

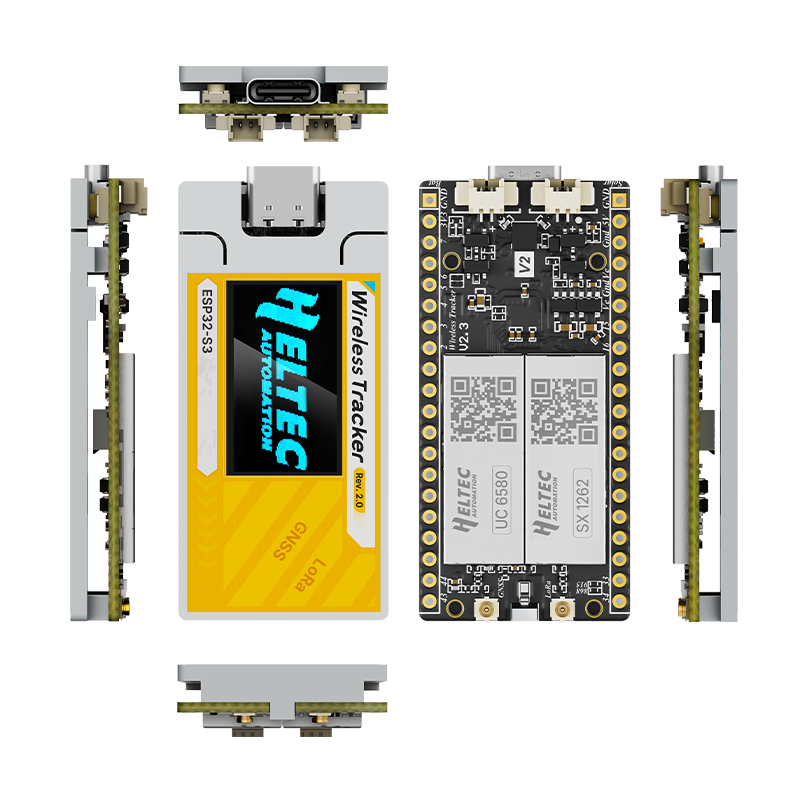

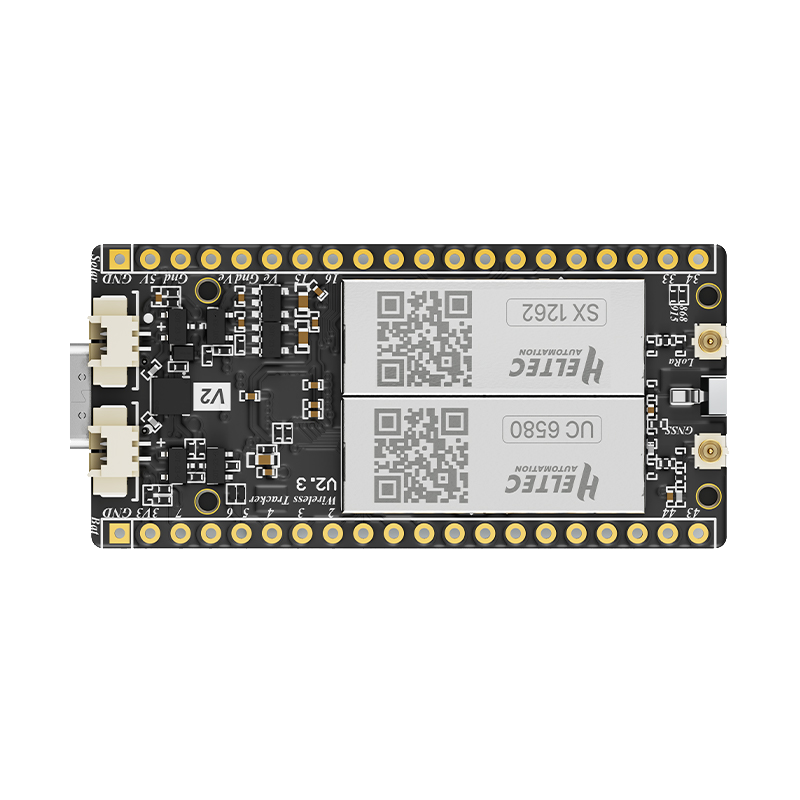

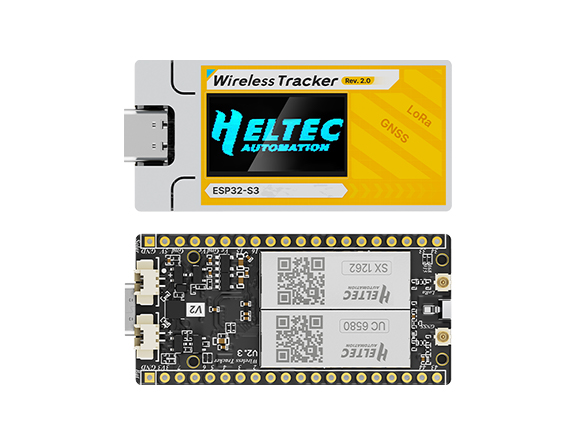

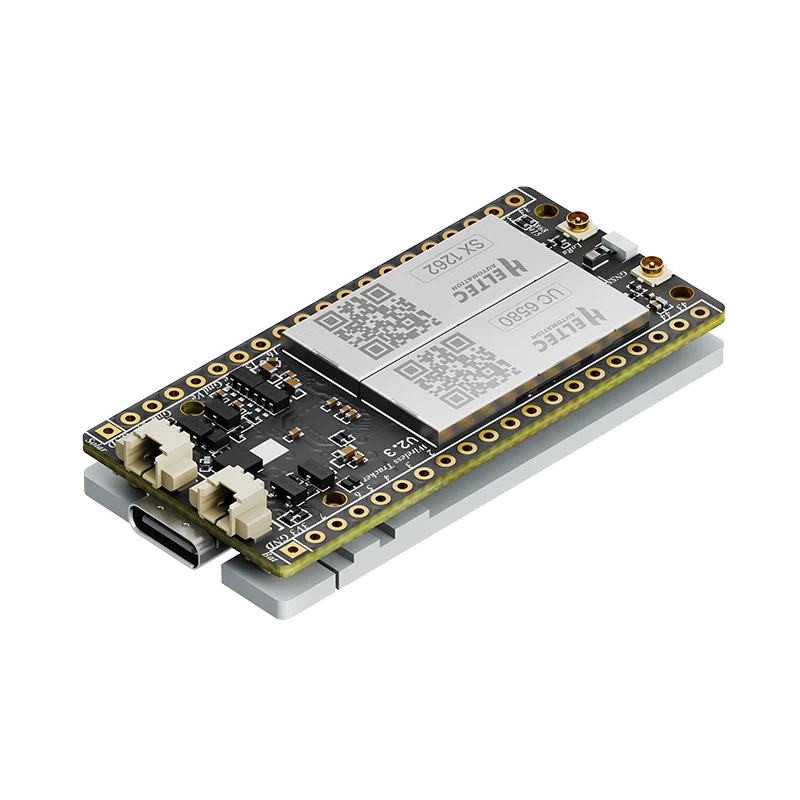

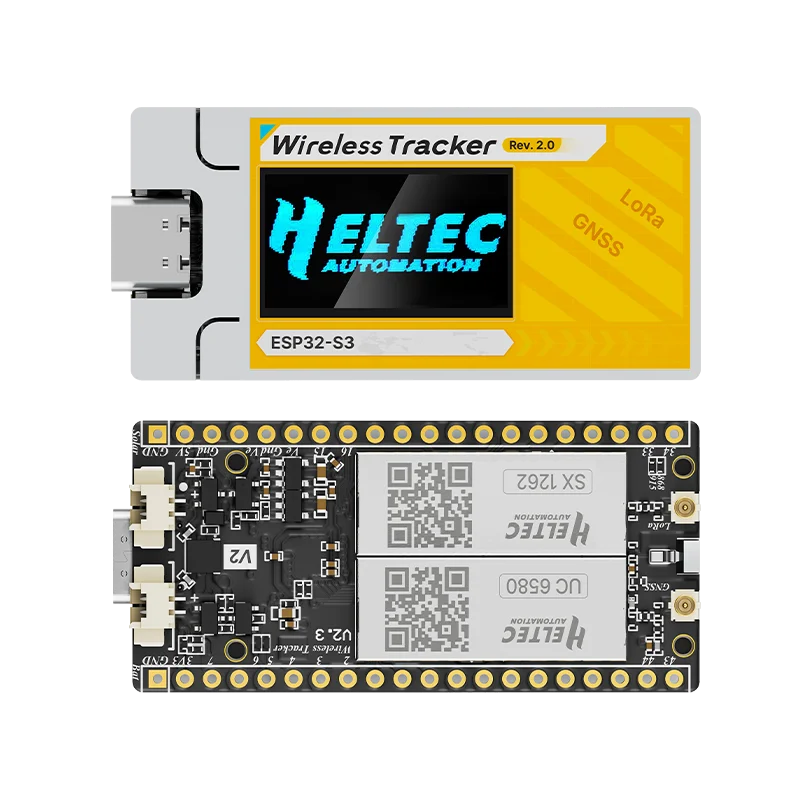

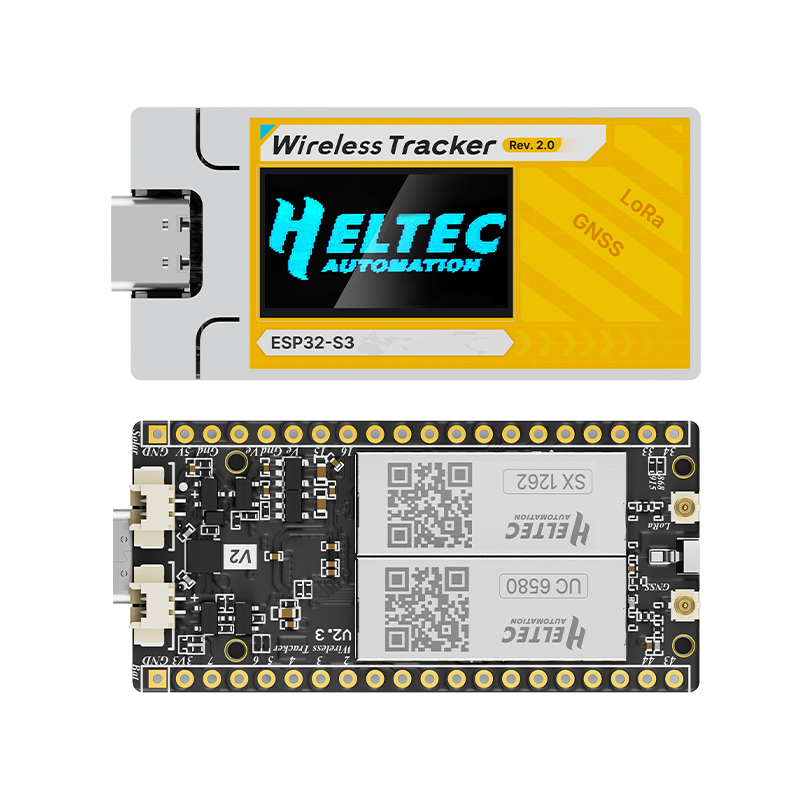

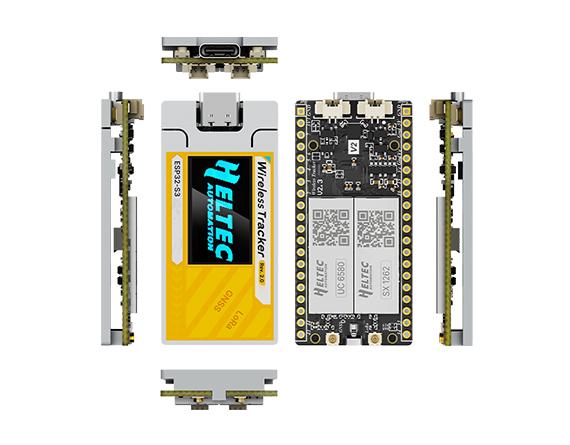

Layout

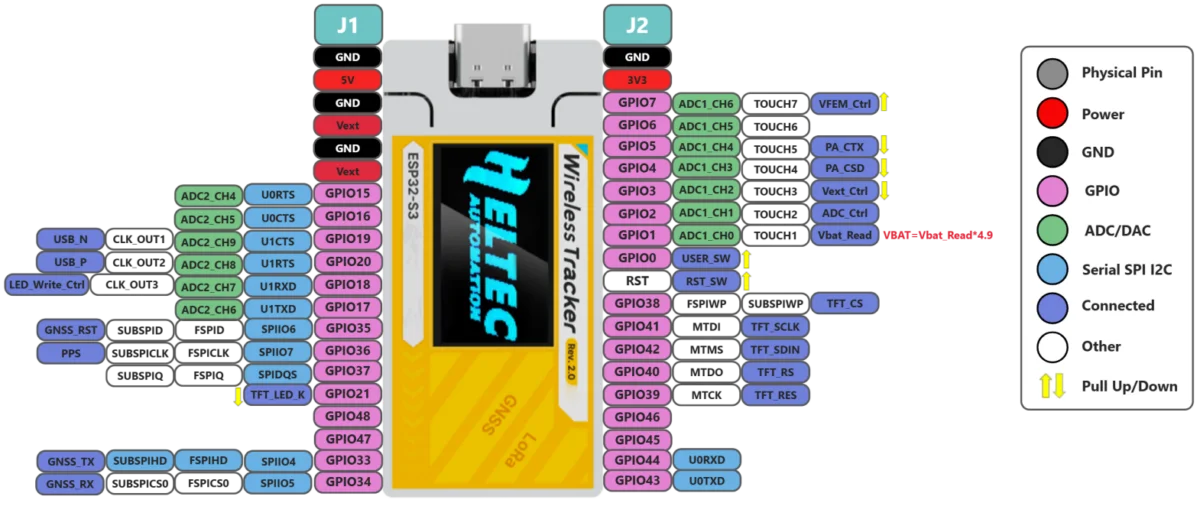

Pin Map

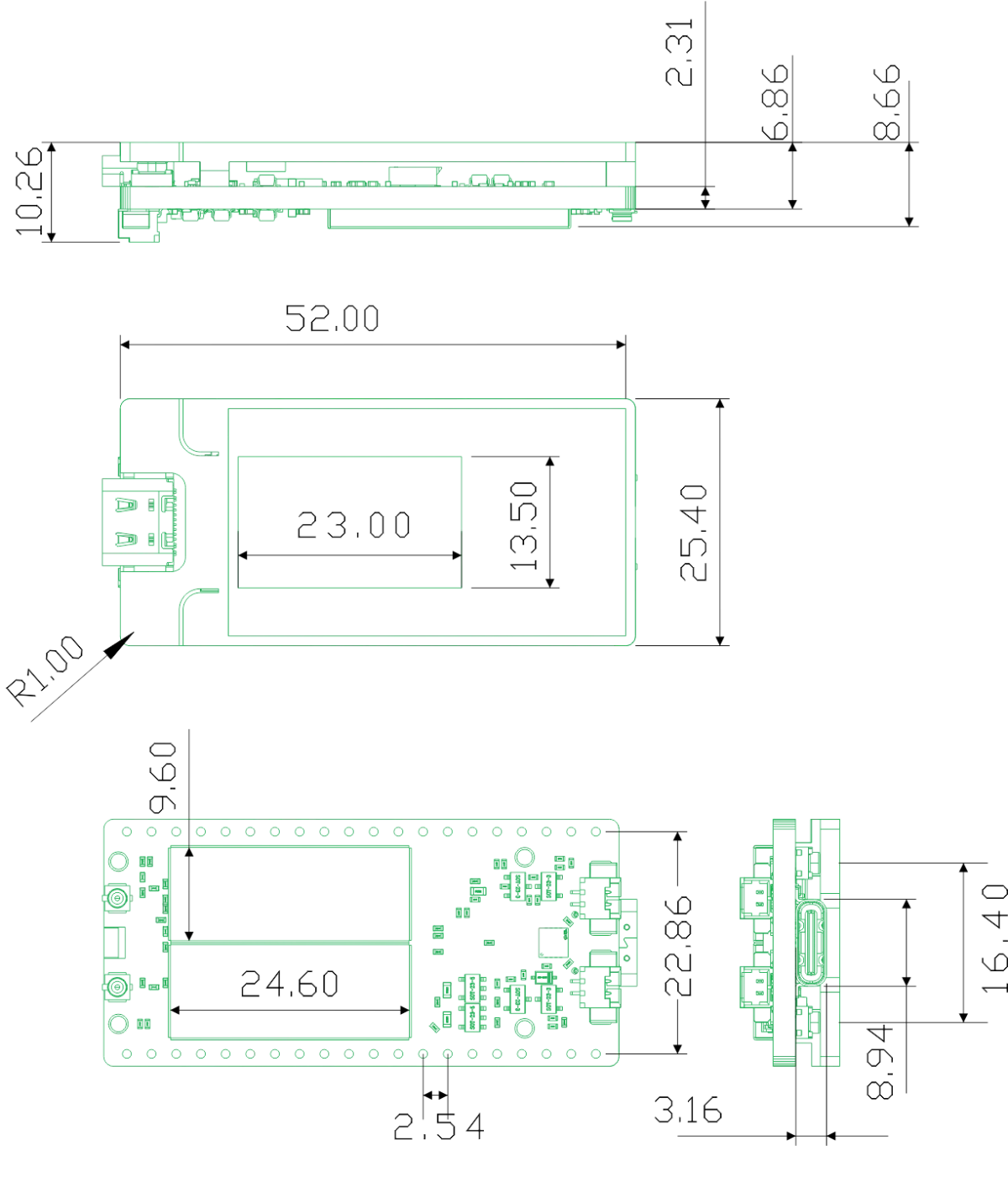

Dimension
Rich Ecosystem
♦Supports open-source projects such as Meshtastic and MeshCore.
♦Provides an Arduino-based SDK with examples for LoRa/LoRaWAN, GNSS, and more.
♦Compatible with platforms like ESP32-IDF, PlatformIO, and MicroPython.

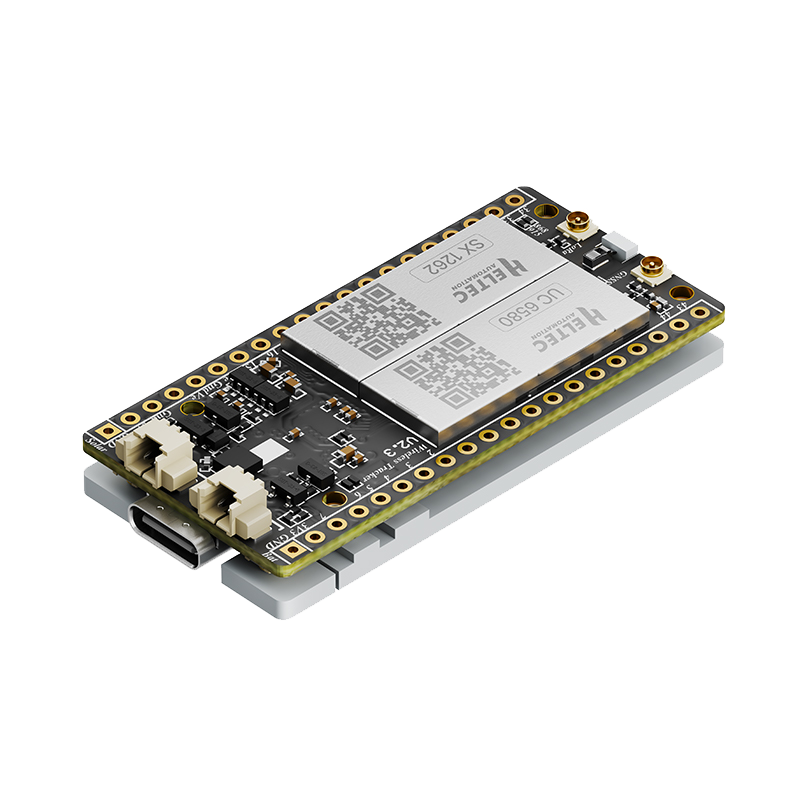

Rich Interfaces
– USB-C interface with comprehensive voltage regulation, ESD protection, short circuit protection, and RF shielding.
– Onboard 1.25-2P lithium battery interface
– 2×20 pins with gold immersion process.
– Added 1.25-2P solar panel interface.
LDS Antenna
The 2.4G and GNSS antennas default to LDS antennas, significantly reducing the device size.
Product Description
What’s this?
5W Solar Development Kit, 3.7V Output,1.25-2P Interface. Directly compatible with all development boards such as Heltec V3, V4, Mesh Node T114, Wireless Tracker and more. Supports 1–4 18650 batteries. Perfect for installing outdoor LoRa nodes like Meshtastic and MeshCore.
Note This product is compatible with all Heltec development boards, but its default bracket only includes the WiFi LoRa 32 V3, WiFi LoRa 32 V4, and Mesh Node T114. Note This product does not include batteries. Batteries must be installed by the customer.
Development board bracket
Applicable to various development boards The kit provides 3.7V output and a 1.25-2P interface, compatible with all Heltec development boards.
Freedom to configure 1-4 batteries The battery count can be freely configured, with the batteries arranged in parallel, suitable for 18650-type lithium batteries.
Read More
Specification
- Tab1
|
Parameters
|
Description
|
|
MCU
|
ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
|
|
LoRa Chip
|
SX1262
|
|
GNSS Chip
|
UC6580
|
|
Frequency
|
863~928MHz
|
|
Max. TX Power
|
28±1dBm
|
|
Max. Receiving Sensitivity
|
-134dBm
|
|
Wi-Fi
|
802.11 b/g/n, up to 150Mbps
|
|
Bluetooth LE
|
Bluetooth 5,
|
|
Bluetooth mesh
|
|
|
Hardware Resource
|
7*ADC1 + 2*ADC2; 7*Touch;
|
|
3*UART;
|
|
|
2*I2C; 2*SPI; etc.
|
|
|
Interface
|
Type-C USB;
|
|
2*1.25 lithium battery interface;
|
|
|
2*1.25 solar panel interface;
|
|
|
LoRa ANT(IPEX1.0);
|
|
|
GNSS ANT(IPEX1.0);
|
|
|
2*18*2.54 Header Pin
|
|
|
Battery
|
3.7V(3V-4.2V) lithium battery power supply and charging
|
|
Operating Temperature
|
-20 ~ 70 ℃
|
|
Dimensions
|
52.00*25.40*10.26 mm
|
