HT-M7603
Heltec LoRaWAN HT-M7603 Indoor Hotspot Supports standards LoRaWAN and customMQTT
* MT7628 MCU, SX1303 + SX1250 Chip
* Wi-Fi and Ethernet supported
* Maximum output: 27 ± 2dBm
* The power supply voltage:5V
* Support LoRaWAN Class A, Class C, custom MQTT protocols
Product introduction
What’s this?
The HT-M7603 is an affordable, eight-channel indoor LoRa gateway that supports both standard LoRaWAN and private MQTT protocols.
The HT-M7603 is a highly cost-effective indoor LoRaWAN gateway that can be used independently or as a blind filling gateway. With a straightforward configuration process, it seamlessly bridges LoRa wireless networks to IP networks and different servers via Wi-Fi or Ethernet. Featuring a sleek and modern design, this wall-mounted gateway can be easily installed anywhere indoors to ensure optimal signal coverage.
Specification
- Tab1
|
Model Number
|
HT-M7603
|
|
Place of Origin
|
sichuan
|
|
Brand Name
|
heltec
|
|
Chipset
|
sx1230+sx1250
|
|
Application
|
IoT
|
|
CPU
|
MT7628 MIPS24KEc@580MHz
|
|
RAM
|
128MB DDR2
|
|
FLASH
|
32MB
|
|
LoRa baseband
|
SX1303 + SX1250 chipset
|
|
Ethernet
|
10/100M
|
|
Wi-Fi
|
IEEE 802.11 b/g/n 2.4GHz with internal antenna
|
|
Button
|
System config
|
Product Description
Supports standards LoRaWAN and customMQTT

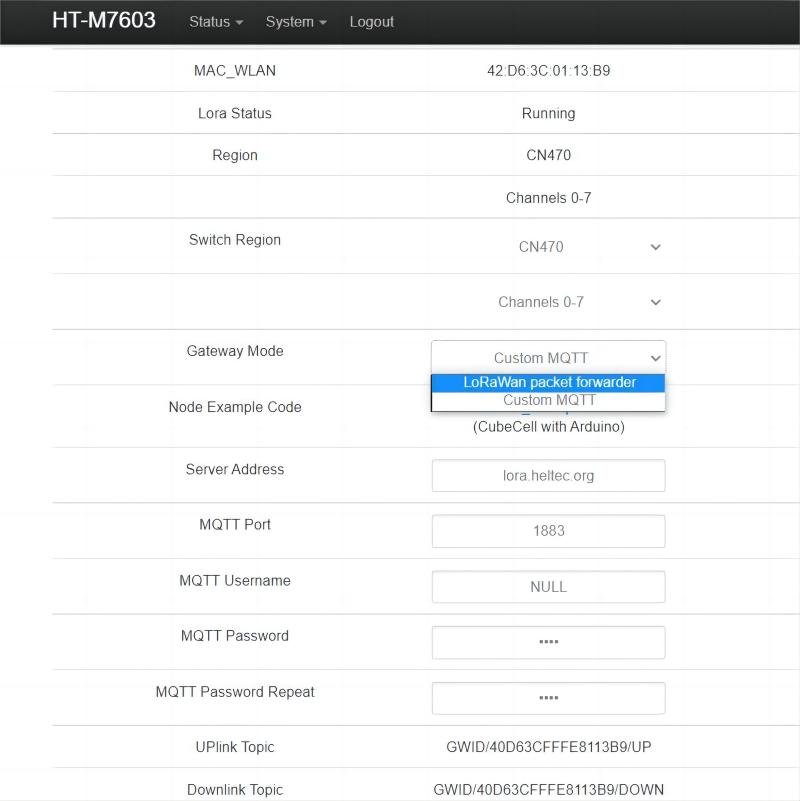

By selecting Gateway Mode, the M7603 can switch working modes, supporting both LoRaWAN and custom MQTT.
Supports built-in server
Provide sufficient computing power and can directlyinstall LoRa Network Servers such as TTS and ChirpStack on it, serving as a hub for LAN loT solutions.

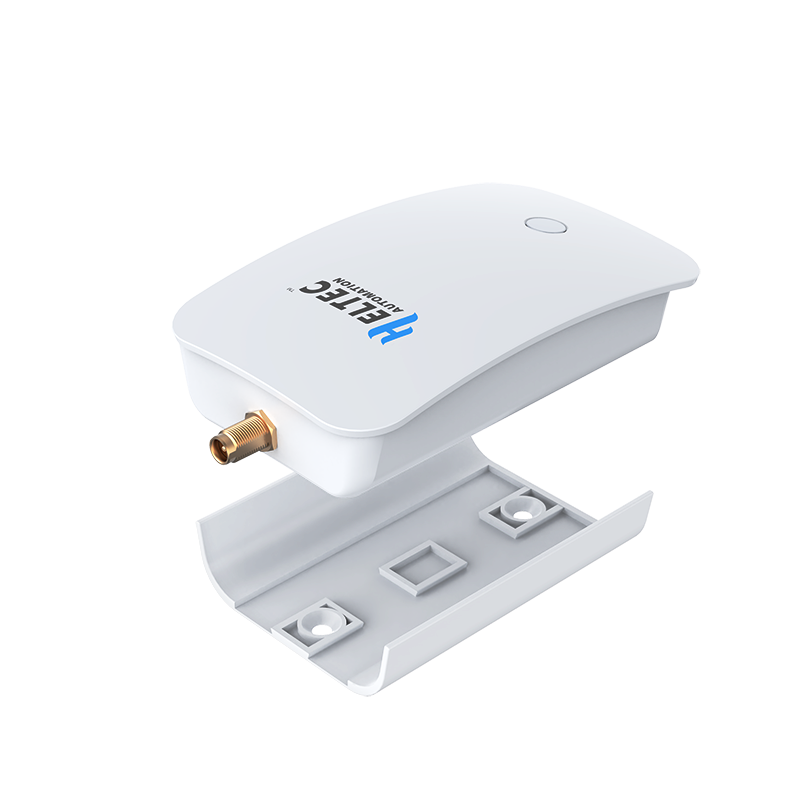

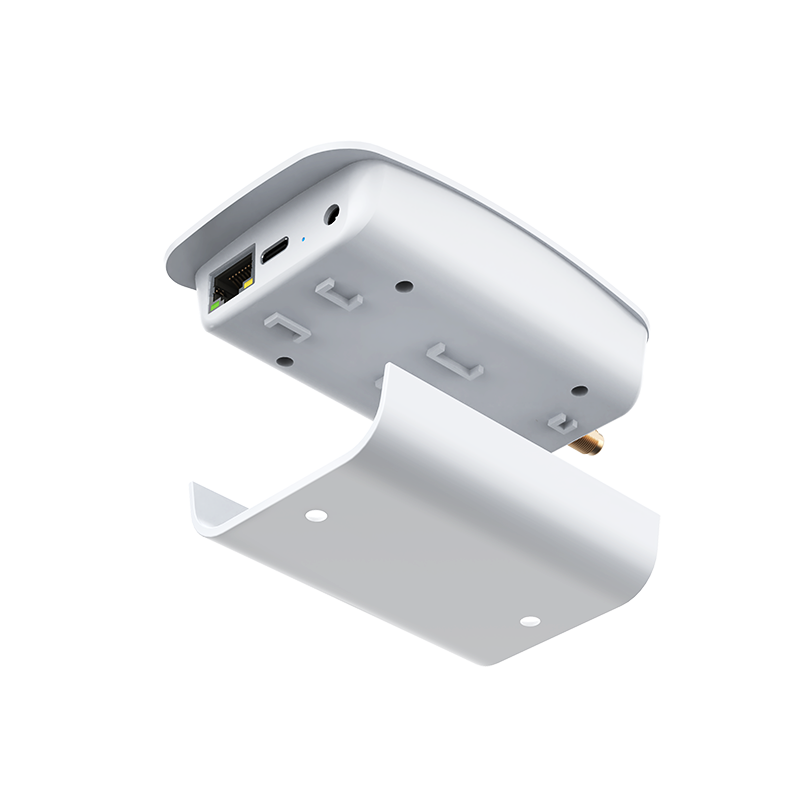

Wall fixing
With the wall fixing kit, the equipment can be easily fixed to the wall
Low cost blind filling gateway
With its low cost and compact size, the HT-M7603 can be installed anywheredindoors and can be used independently or as a blind filling gateway
Picture display
