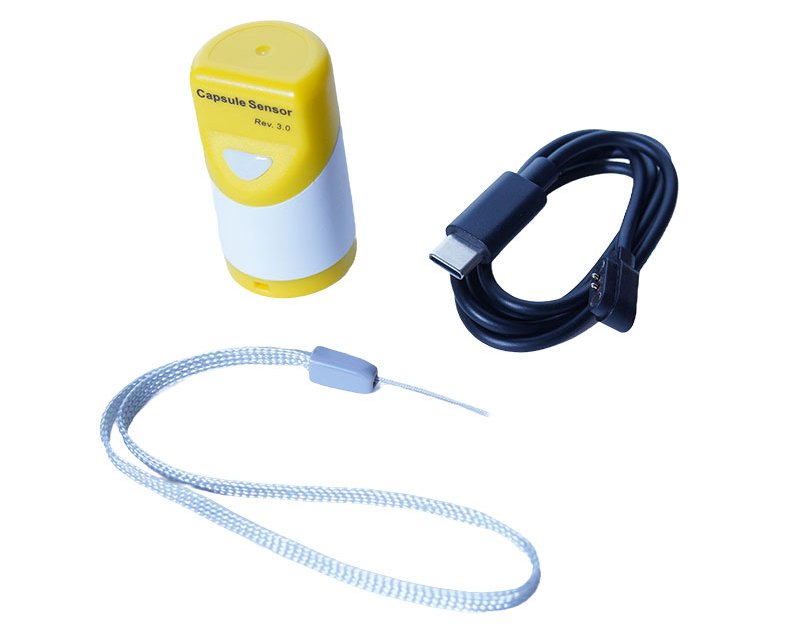

It weighs 23g, tiny in size. Placing your Capsule Sensor inside your favorite places is now easier than ever with the lanyard loop string.

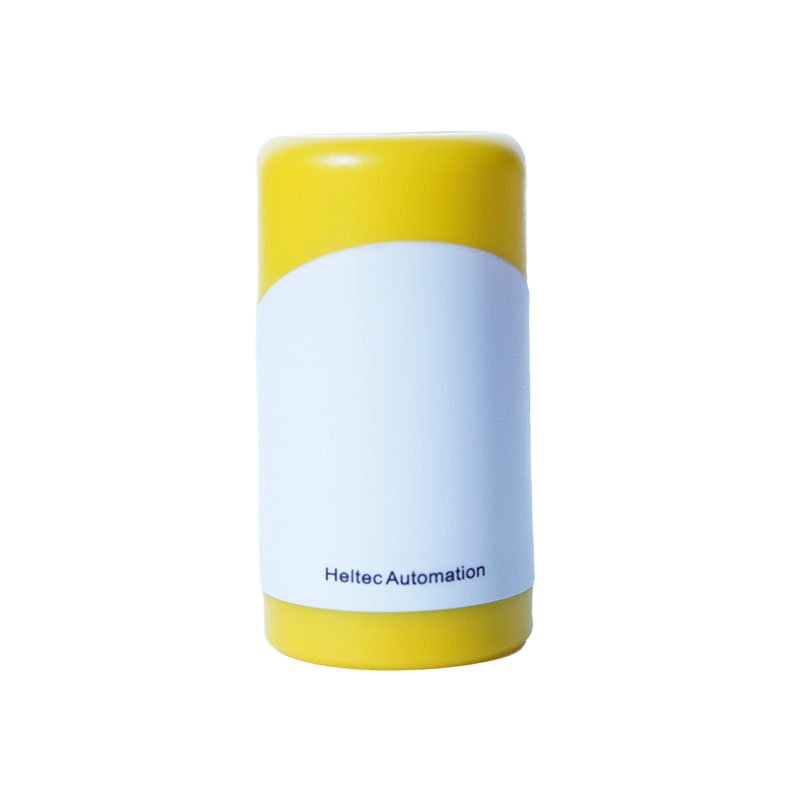

Heltec Capsule Sensor V3
Heltec Capsule Sensors V3 is a LoRa/LoRaWAN device that utilizes the ESP32-S3 and SX1262 to measure temperature and humidity
* ESP32-S3 + SX1262.
* LED indicator light.
* Meshtastic project compatible(It is recommended to use with power bank or mobile phone).
* High strength plastic, IP65 waterproof.
* Wireless communication method include Wi-Fi, Bluetooth and LoRa.
* Built in 250mAh rechargeable battery, magnetic suction charging port.
* Built in LoRa and Wi-Fi/BLE antennas, stylish appearance, compact and light.
* Re-development can be done through Arduino, PlatformIO, etc.
* Support Heltec Wireless Boot system, download firmware, exchange information, and print logs through Wi-Fi.
* Modular design, with a BTB interface reserved at the bottom, capable of connecting and replacing different sensors.
Product introduction
What’s this?
The Capsule Sensor V3 is a portable LoRa/LoRaWAN device that utilizes the ESP32-S3 and SX1262. Its modular design allows for compatibility with various sensors and it is also compatible with Meshtatic.
Main Features
The Capsule Sensor V3 is a compact, portable LoRa/LoRaWAN device that utilizes the ESP32-S3 and SX1262. Its modular design enables seamless integration with various sensors, allowing for the development of IoT applications without requiring expertise in the field. Thanks to the WirelessBoot technology, Capsule Sensor V3 is compact, stylish, waterproof, and equipped with a 250mA rechargeable battery, making it well-suited for challenging environments. Whether you are developing your own applications or utilizing open-source programs such as Meshtastic, Capsule Sensor V3 is an excellent option. The Capsule Sensor provides comprehensive monitoring for a wide range of items, such as guitars, pianos, other musical instruments, cigar humidors, wine cellars, incubators, greenhouses, art pieces, family heirlooms, refrigerators and freezers. This meticulous and precise monitoring ensures the safety and security of your belongings.
Specification
- Tab1
|
Parameters
|
Description
|
|
MCU
|
ESP32-S3FN8
|
|
LoRa Chip
|
SX1262
|
|
WiFi
|
IEEE 802.11 b/g/n 2.4GHz
|
|
Bluetooth
|
Bluetooth LE， Bluetooth 5， Bluetooth mesh
|
|
LoRa Frequency
|
863～870MHz,
|
|
902～928MHz,
|
|
|
470～510MHz
|
|
|
Operating Temperature
|
-20~60℃
|
|
Max. Receiving. sensitivity
|
-135dBm
|
|
Power Supply
|
3.7V lithium battery, 250mAh
|
|
Battery life (typical conditions)
|
Over 1 Year
|
|
Charging
|
5V, Magnetic suction 2P-2.54mm
|
|
Operating Humidity
|
10%~90%RH(Non Condensing)
|
|
Max. LoRa TX Power
|
21± 1dBm
|
|
Protection grade
|
IP65
|
|
Wireless Range (line of sight, ideal conditions)
|
Over 6 KM
|
Product Description

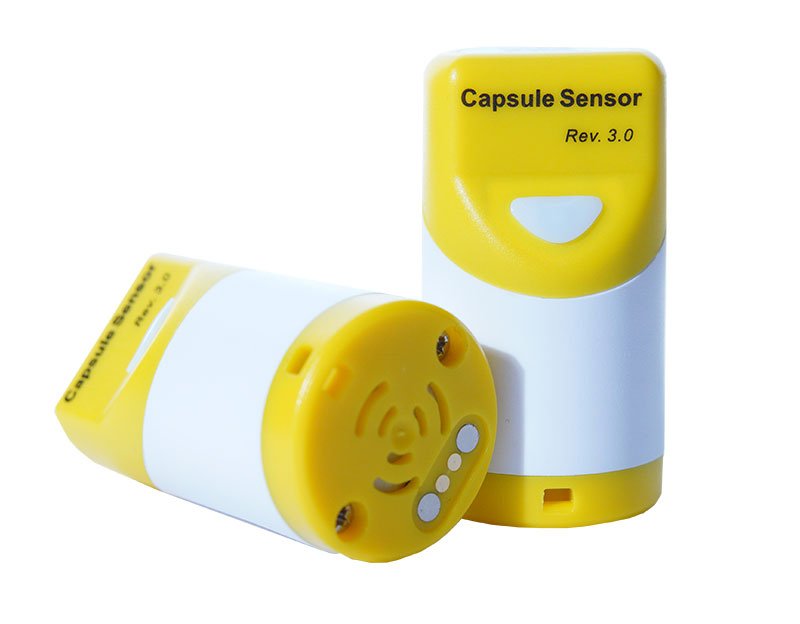

Magnetic suction charging
●Built in 250mAh rechargeable battery
●Magnetic suction charging port.
Strong extensibility
Various applications such as Meshtastick, child education, asset tracking, environmental monitoring, etc. can be implemented by replacing modules.
Stylish and lightweight
