Wall mounted or rail mounted.

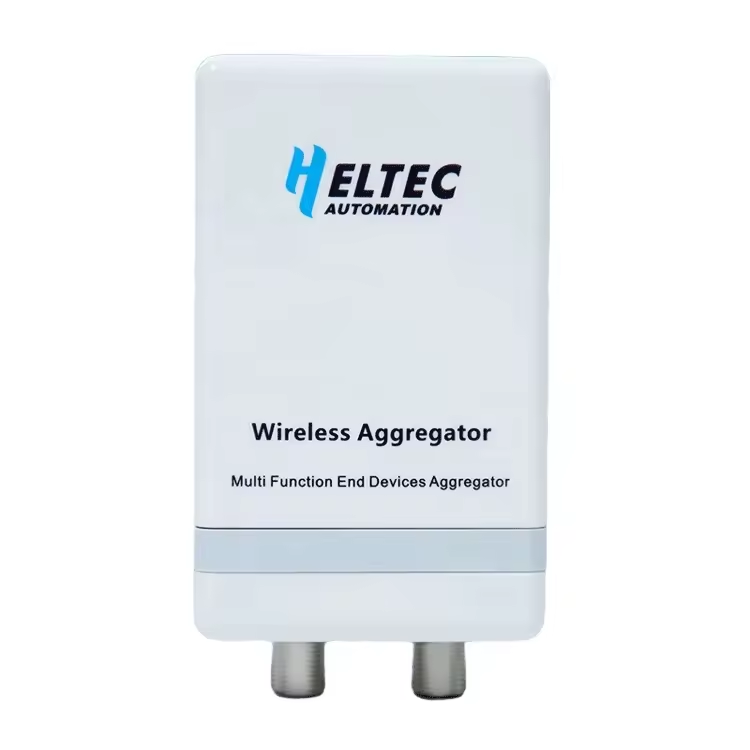

Wireless Aggregator — Bus Transformer
Heltec Greenhouse Temperature And Humidity Sensor IP67 LoRaWan
● Industrial grade protection structure, IP66 protection grade, Lightning protection design, ESD protection and isolation.
●Ultra-low power consumption design.
●With special junction box, interface compatibility is strong.
●Built-in 2000mAh x4 rechargeable battery, can be charged by DC and solar energy.
●Wireless data transmission communication radius up to 5km.
●Working condition: -40~80°C, Working humidity: ≤90% (non-condensing).
●Power supply mode: built-in battery or external 5~24V DC powersupply.
Product introduction
What’s this?
The Bus Transformer is a LoRa/LoRaWAN device designed for outdoor applications. It can communicate with other devices and sensors via the RS485 interface. Equipped with four built-in 2000 mAh batteries and an advanced battery management system, the device can be conveniently charged using a solar panel.
Summary
The HRI-3632 is part of the Sensor Hub outdoor series, designed as a LoRaWAN converter for driving various third-party sensors. We’ve enhanced it with four additional GPIOs and included a junction box to ensure compatibility with different interfaces. Thanks to its IP66 protection rating and high-strength plastic construction, the HRI-3632 is well-suited for various challenging outdoor environments. This device stands out for its low power consumption and extended transmission range. It also features a built-in, large-capacity rechargeable battery that can be charged via a DC power source or solar interface, ensuring stable and long-term operation.
Specification
- Tab1
|
Temperature
|
-40 ~ 80 ° C
|
|
Humidity
|
0 ~ 90% RH (non condensing)
|
|
Interface
|
Flange seat
|
|
External Power Supply and Charging Voltage
|
5~24V
|
|
Power Out
|
3.3V/5V/9V/12V
|
|
Max. Receiving sensitivity
|
-135dBm@SF12 BW=125KHz
|
|
Max. TX Power
|
+20± 2dBm
|
|
Signal Range
|
1.5~5km (depending on gateway antenna and environments)
|
|
IP Rating
|
IP66
|
|
Battery Capacity
|
2000mAh x4
|
Product Description
Easy Installation
Picture display
