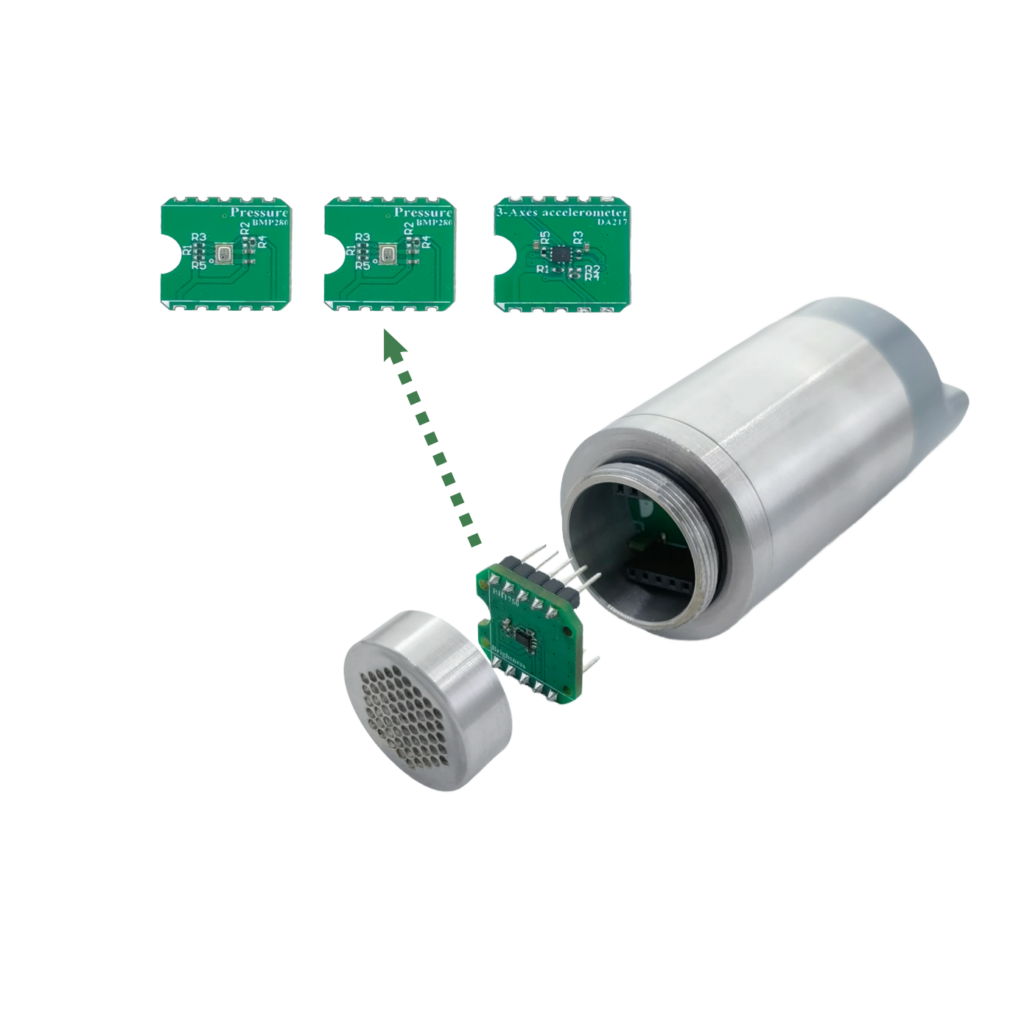

The sensor probe can be changed according to different scenes, and the sensor can be customized.
Sensor Hub
Heltec Greenhouse Temperature And Humidity Sensor IP67 LoRaWan
*Built in Python engine, users can write their own Python scripts to implement some logical functions or condition judgments without affecting the core functions of the entire device
* One key register via APP and Heltec Snap Emu IoT Platform.
*Ultra-low power consumption design, built-in 1100mAh 18350 rechargeable battery and magnetic charging interface.
*Custom LoRa / LoRaWAN compatible。
*OTA firmware upgrade.
*Allow users modify the basic information of the device through the Wi-Fi configuration page to facilitate access to other platforms
*Compatible with wall fixing, cylinder fixing or track installation.
Product introduction
What’s this?
Sensor Hub is a ready-to-use LoRa/LoRaWAN sensor for indoor (industrial) applications, with an excellent protective structure, modular design, built-in battery and sensor.
Summary
Sensor Hub is a ready-to-use LoRa/LoRaWAN sensor for indoor (industrial) applications. Modular design allows for the replacement of sensor probes to adjust different projects. The device can be registered by one click via APP and Heltec Snap Emu IoT Platform.
Sensor Hub for Industry has excellent low power consumption characteristics and LoRa provides Long-distance transmission capability. It comes with a built-in 1100mAh rechargeable battery and magnetic charging interface. The stainless-steel shell and high-strength plastic provide an IP66 protection level, allowing it to perform stably and excellently in complex industrial environments.
Specification
- Tab1
| Parameters | Description |
| Product Main Model | HRI-3621 |
| LoRa Node Chip | SX1262 |
| LoRaWAN | LoRaWAN 1.0.2 Rev. B, Class A/C, OTAA/ABP |
| Max. TX Power | +20 ± 2 dBm |
| Receiving Sensitivity | -136dBm@SF12 BW=125KHz |
| IP Rating | IP66 |
| Operating Temperature | -20 ~ 60 ℃ |
| Operating Humidity | 0 ~ 90%, no-condensing |
| Battery Capacity | 1100mAh |
| Battery Type | 18350 rechargeable Li-On battery |
| Charging Interface | Magnetic charging interface |
| Device Register Method | QR code scan by APP, or Manual registration |
| Device Parameters Change Method | Web page via Wi-Fi, or Bluetooth via APP |
Product Description
Strong Expansibility
Picture display
