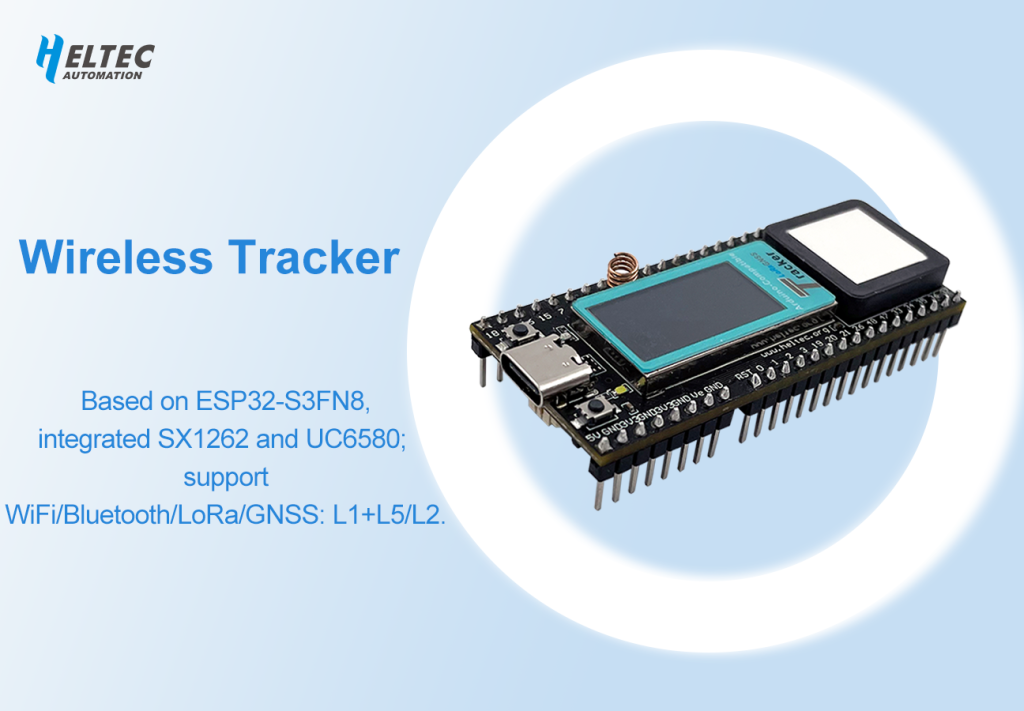

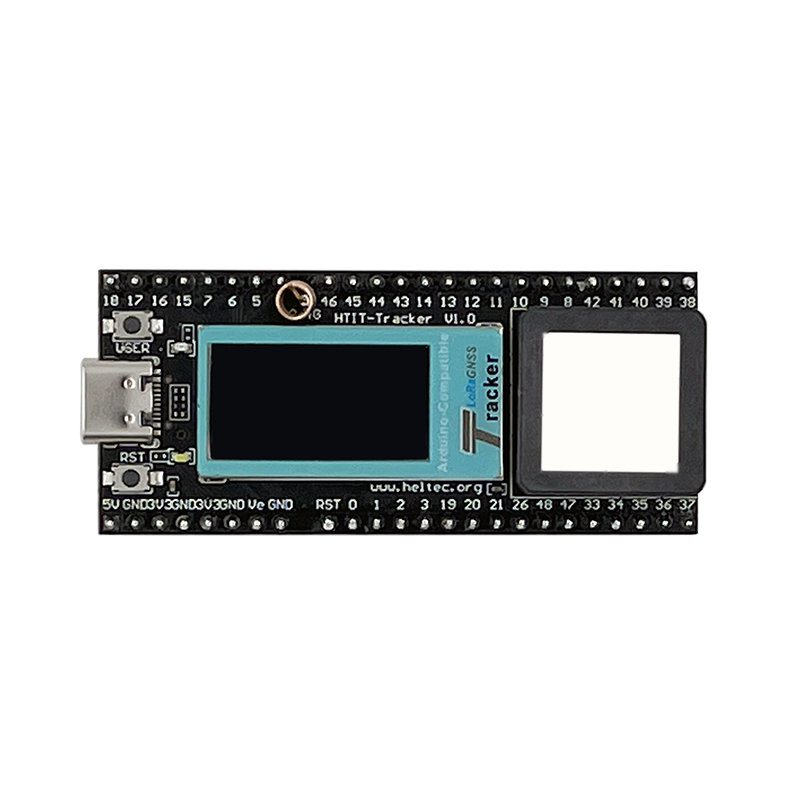

Wireless Tracker ESP32+GNSS Development Board
Wireless Tracker ESP32+GNSS Development Board ESP32-S3FN8+SX1262+UC6580 chipset, supports Wi-Fi, LoRa, Bluetooth, and GNSS
●ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS.
●Low power design of dual-frequency multi-system based on 22nm technology.
●Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
●Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
●Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
●Onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use.
●Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information.
●Support the Arduino development environment.
Product introduction
Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa, and has been widely used in Meshtastick.
Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.
Specification
- Tab1
|
Parameters
|
Description
|
|
Master Chip
|
ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
|
|
LoRa Chipset
|
SX1262
|
|
GNSS Chipset
|
UC6580
|
|
Frequency
|
470~510MHz,
863~928MHz |
|
Max. TX Power
|
21±1dBm
|
|
Max. Receiving Sensitivity
|
-134dBm
|
|
Wi-Fi
|
802.11 b/g/n, up to 150Mbps
|
|
Bluetooth LE
|
Bluetooth 5,
Bluetooth mesh |
|
Hardware Resource |
7*ADC1 + 2*ADC2; 7*Touch;
3*UART; 2*I2C; 2*SPI; etc. |
|
Interface |
Type-C USB;
2*1.25 lithium battery interface; LoRa ANT(IPEX1.0); 2*18*2.54 Header Pin |
|
Battery
|
3.7V lithium battery power supply and charging
|
|
Operating Temperature
|
-20 ~ 70 ℃
|
|
Dimensions
|
65.48 * 28.06* 13.52mm
|
Product Description
Meshtastic network support
Complete Meshtastic network support.
USB Type C
The power supply, firmware download, and debugging interfaces adopt a more universal USB Type C interface, making development work
more convenient.
Intergrated UC6580 GNSS chip and antenna
UC6580 is a L1 + L2/L5 GNSS chip, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
Picture display
