Wireless Temperature Measuring Rod
HRU-1001 Wireless Temperature Measuring Rod utilizes LoRa wireless transmission technology and is employed in diverse industrial settings
●Temperature measuring range -9.9~99℃, accuracy ±1℃.
●Support LoRaWAN.
●Support multi-node measurement.
●Recommened working condition: humidity: ≤90% (non-condensing).
●Wireless data transmission communication radius up to 3km (no occlusion).
●Built-in 5000mAh rechargeable lithium battery, up to 3 yearsin continuous work.
●Special handle, easy to install.
●Stainless steel probe and high strength plastic for a variety of scenarios.
Product introduction
HRU-1001 is a rod type wireless thermoprobe integrated with LoRa wireless transmission technology, which collect the data of different positions of the rod to display on the built-in screen or upload it to LoraWAN network. It has the characteristics of high precision, long transmission distance and low power consumption. HRU-1001 is integrated with 5000mAh rechargeable battery. Benefits from the IP66 protection provided by high-strength plastics and stainless steel, it has performed steadily and well in various industrial situations, especially in fermentation scene.
Specification
- Tab1
|
Parameters
|
Description
|
|
Temperature Measuring Range
|
-9.9~ 99°C
|
|
Display
|
37x27mm LCD
|
|
LoRa Distance
|
1.5~3km (depending on gateway antenna and environments)
|
|
Measuring Nodes
|
2（default, support customization，up to 5 nodes ）
|
|
Period of Transmission
|
60 minutes
|
|
IP Rating
|
IP66
|
|
Dimension
|
L: 1100mm（3600mm optional）
|
|
Operating Humidity
|
10% ~ 100%, no-condensing
|
|
Battery Capacity
|
5000mAh
|
|
Charging Voltage
|
2.5mm-2P Magnetic to USB 5V
|
Product Description
Wireless transmission
Adopting LoRaWAN standard protocol, strong adaptability.

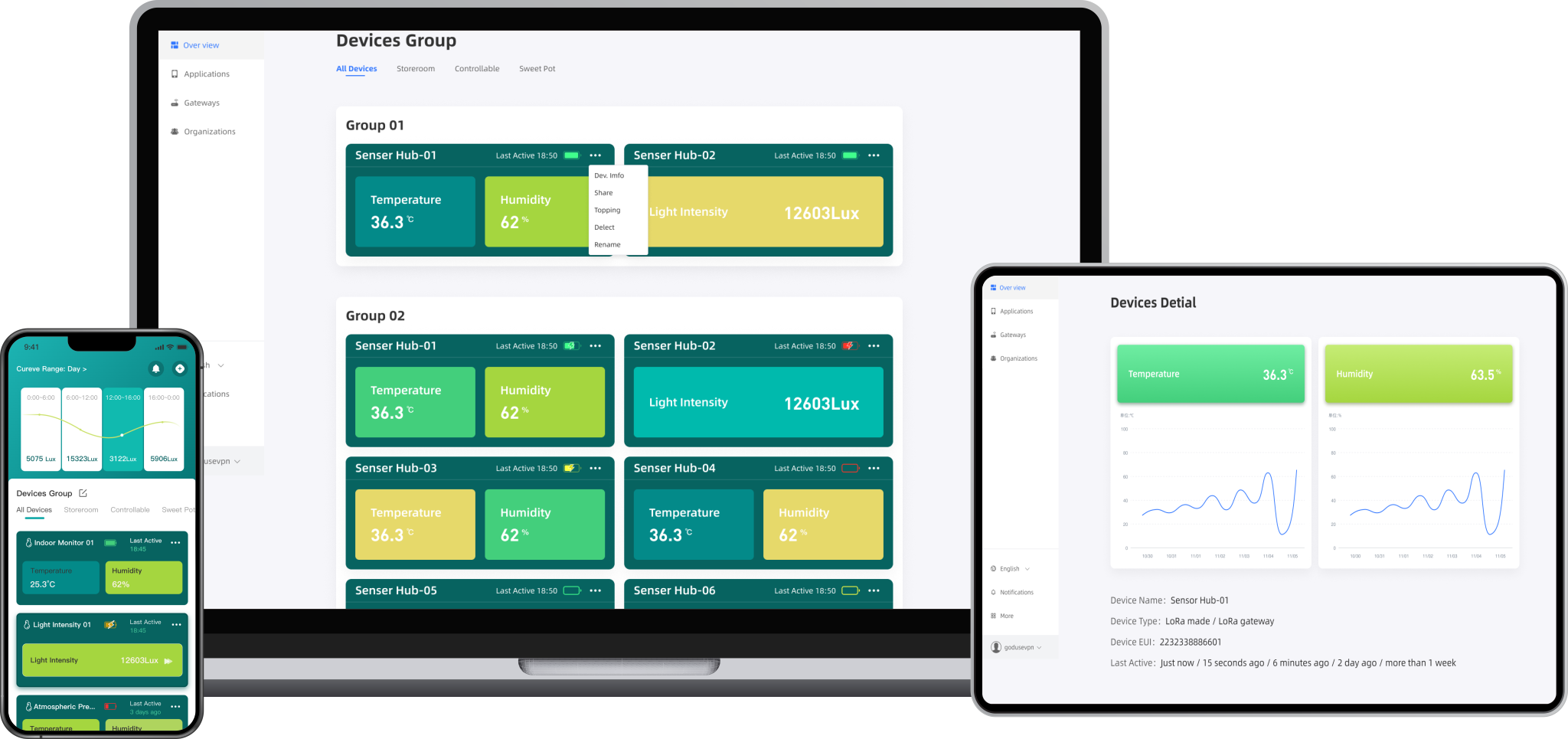

One key registration
Scan QR code to register through Apps and SnapEmu platform.
Picture display
