Wireless Stick
Heltec Meshtastic Supported ESP32 LoRa V3 Series Combined Dev-board with SX1262 Chip Bluetooth WiFi, LoRa GPS Connection
* No phone required for mesh communication Excellent battery life
* interactive operation between the phone and the device Excellent battery life
* LoRa radios as a long range off-grid communication platform Excellent battery life
* Decentralized communication – no dedicated router required Excellent battery life
* Send and receive text messages between members of the mesh Excellent battery life
Product introduction
What’s this?
The Heltec ESP32 LoRa Series is now fully compatible with Meshtastic, which means that our customers can choose from this option and benefit from the open source Mesh network. Meshtastic is a community-driven and open-source project that allows the use of affordable LoRa radios for long-range off-grid communication in areas without any existing or reliable communication infrastructure.
Main Features
HTIT-WSL is a cutting-edge development board designed for seamless integration of Wi-Fi, Bluetooth, and LoRa technologies. In response to customer feedback indicating a lack of necessity for an OLED screen when utilizing WiFi Lora32, we have proudly introduced this innovative product to meet their specific needs.
Specification
- Tab1
|
Master Chip
|
ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
|
|
LoRa Chipset
|
SX1262
|
|
USB to Serial Chip
|
CP2102
|
|
Frequency
|
470~510MHz,
|
|
863~928MHz
|
|
|
Max. TX Power
|
21d B ± 1d B
|
|
Max. Receiving sensitivity
|
-134dBm
|
|
Wi-Fi
|
802.11 b/g/n, up to 150Mbps
|
|
Bluetooth LE
|
Bluetooth 5, Bluetooth mesh
|
|
Hardware Resource
|
7*ADC1 + 9*ADC2;
|
|
8*Touch;
|
|
|
3*UART;
|
|
|
2*I2C;
|
|
|
2*SPI; etc.
|
|
|
Memory
|
384KB ROM;
|
|
512KB SRAM;
|
|
|
16KB RTC SRAM;
|
|
|
8MB SiP Flash
|
|
|
Battery
|
3.7V lithium battery power supply and charging
|
|
Operating temperature
|
-20 ~ 70 ℃
|
|
Dimensions
|
58.08 * 22.6* 8.2 mm
|
|

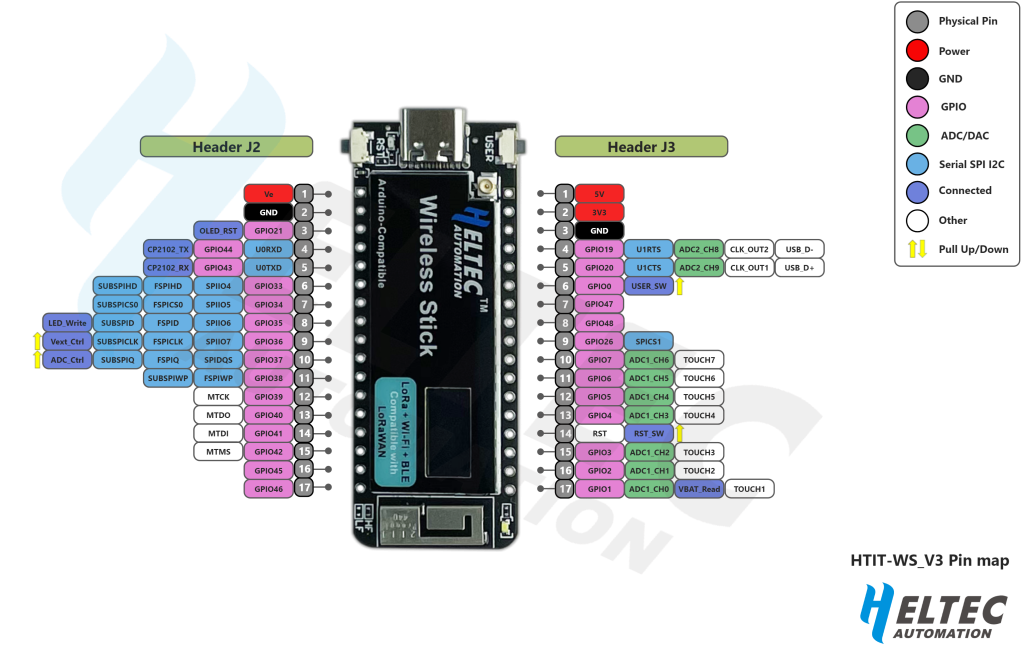

Interface
|
Type-C USB;
|
|
2*1.25 lithium battery interface;
|
|
|
LoRa ANT(IPEX1.0);
|
|
|
2.4G ANT(IPEX1.0);
|
|
|
2*20*2.54 Header Pin
|
Arduino-Compatible
We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably.
USB Type C
The power supply, firmware download, and debugging interfaces adopt a more universal USB Type C interface, making development work
more convenient.

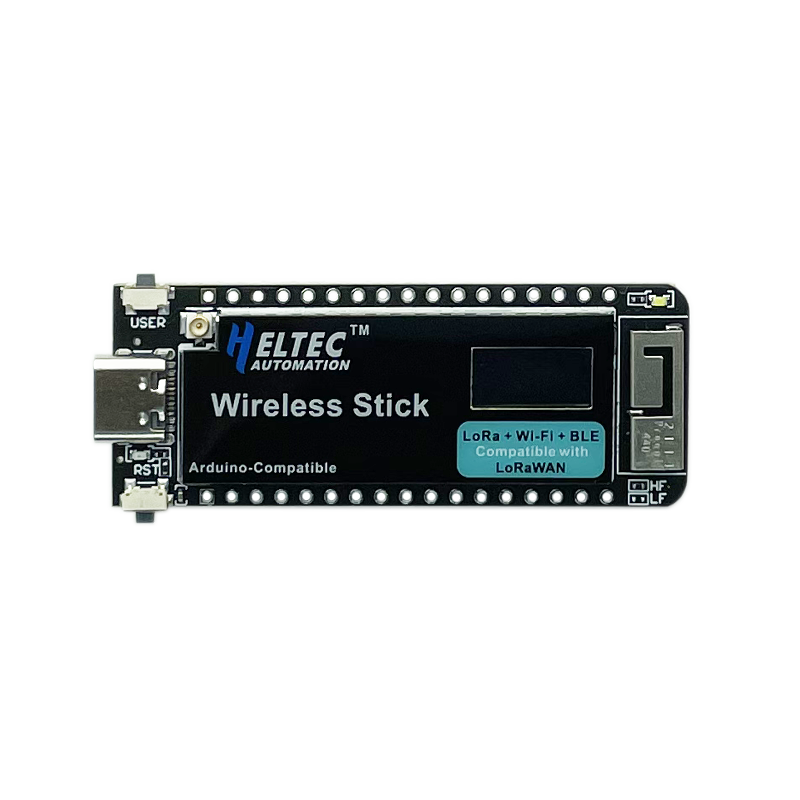

Picture display
