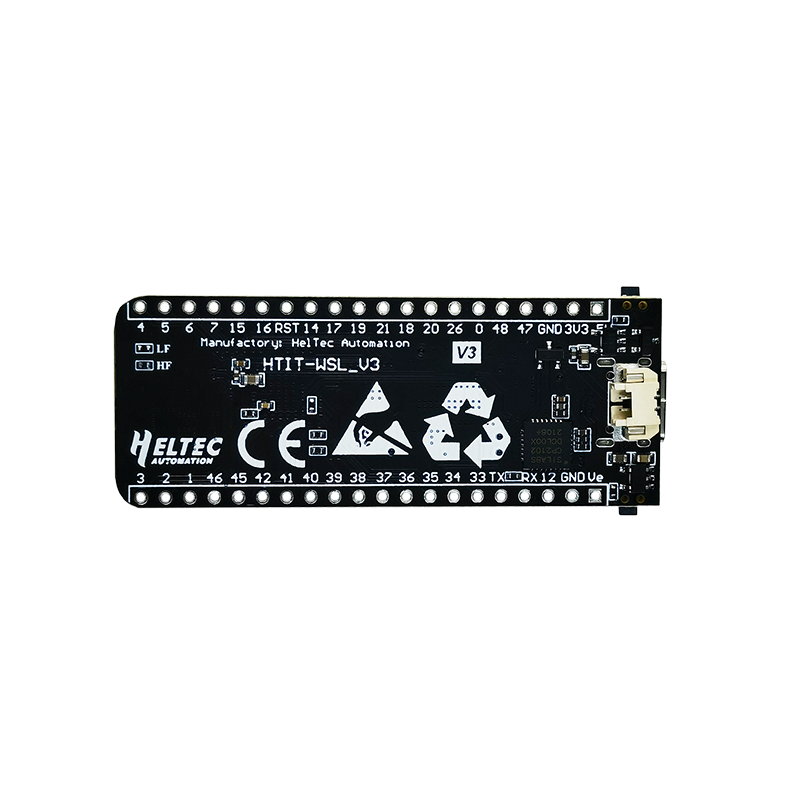

Wireless Stick Lite (V3) Development Board
Wireless Stick Lite (V3) development board SX1262LoRa Chipset can communicate with any LoRa gateway running the LoRaWAN protocol
●Microprocessor: ESP32-S3FN8 (Xtensa® 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240MHz).
●SX1262 LoRa node chip.
●Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection
●Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
●Integrated WiFi, LoRa, Bluetooth three network connections, onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa
●Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing.
●Support the Arduino development environment;
●With good RF circuit design and basic low-power design (sleep current ≤800uA), it is convenient for IoT application vendors to quickly verify solutions and deploy applications;
Product introduction
HTIT-WSL is a development board for Wi-Fi, Bluetooth and LoRa. Because some customers do not need OLED screen when using WiFi Lora32, we launched this product.
The HTIT-WSL is composed up of an MCU (ESP32-S3FN8) and Semtech LoRa Transceivers (SX1262), perfectly support Arduino®. Users can easily carry out secondary development and application.
Specification
- Tab1
|
Master Chip
|
ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
|
|
LoRa Chipset
|
SX1262
|
|
USB to Serial Chip
|
CP2102
|
|
Frequency
|
470~510MHz,
|
|
863~928MHz
|
|
|
Max. TX Power
|
21d B ± 1d B
|
|
Max. Receiving sensitivity
|
-134dBm
|
|
Wi-Fi
|
802.11 b/g/n, up to 150Mbps
|
|
Bluetooth LE
|
Bluetooth 5, Bluetooth mesh
|
|
Hardware Resource
|
7*ADC1 + 9*ADC2;
|
|
8*Touch;
|
|
|
3*UART;
|
|
|
2*I2C;
|
|
|
2*SPI; etc.
|
|
|
Memory
|
384KB ROM;
|
|
512KB SRAM;
|
|
|
16KB RTC SRAM;
|
|
|
8MB SiP Flash
|
|
|
Battery
|
3.7V lithium battery power supply and charging
|
|
Operating temperature
|
-20 ~ 70 ℃
|
|
Dimensions
|
58.08 * 22.6* 8.2 mm
|
|
Interface
|
Type-C USB;
|
|
2*1.25 lithium battery interface;
|
|
|
LoRa ANT(IPEX1.0);
|
|
|
2.4G ANT(IPEX1.0);
|
|
|
2*20*2.54 Header Pin
|
Product Description
Arduino-Compatible
We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably.
USB Type C
The power supply, firmware download, and debugging interfaces adopt a more universal USB Type C interface, making development work
more convenient.
