Wireless Shell (V3) Modules
Heltec LoRa node module Wireless Shell(V3) MCU (ESP32-S3FN8) and Semtech LoRa transceiver(SX1262)WIFI BLE Arduino-Compatible
●CE Certificate;
●Microprocessor:ESP32-S3FN8 (Xtensa ® 32-bit LX7 dual core processor, five stage pipeline rack Structure, main frequency up to 240 MHz), with LoRa node chip SX1262;
●RF shielding (contain a shield shell) and other protection measures;
●Integrated WiFi, LoRa, Bluetooth network connections, both of them are IPEX socket;
●Support the Arduino development environment;
●(Exclusive) Supports the Arduino version of the ESP32 + LoRaWAN protocol routine provided by Heltec. This is a standard LoRaWAN protocol that can communicate with any gateway/base station running the LoRaWAN protocol (requires serial number activation, only the development of the company) The board is available, the serial number can be queried onthis page);
●With good RF circuit design and basic low-power design (sleep current: 9uA theoretically), it is convenient for IoT application vendors to quickly verify solutions and deploy applications.
Product introduction

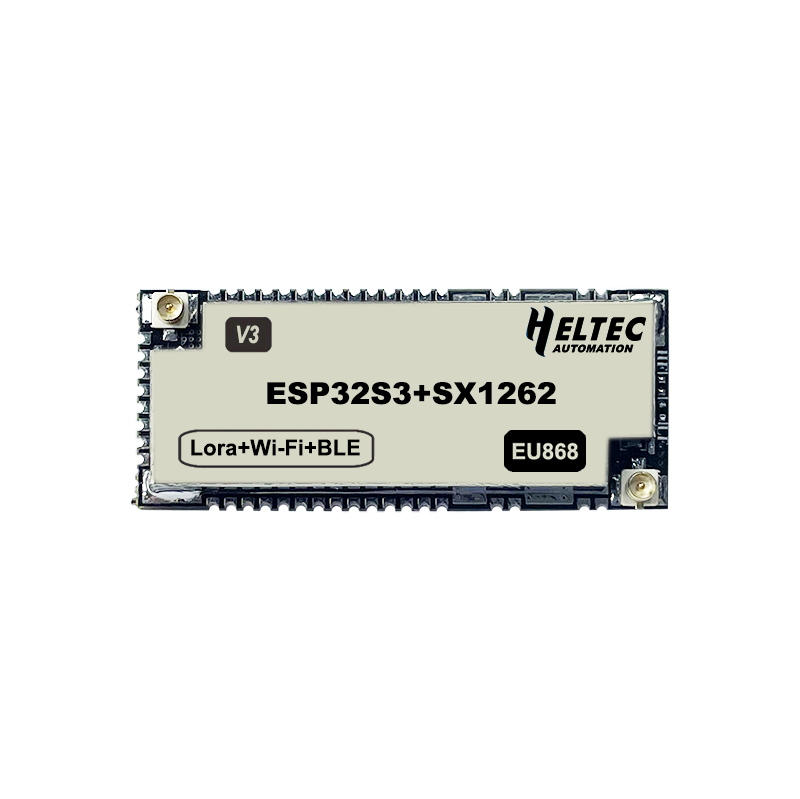

The HTIT-Wsh (Wireless shell) is a cutting-edge LoRa node module, boasting an extensive communication range, exceptional receive sensitivity, ultra-low power consumption (9uA), and cost-effectiveness. This advanced module features an MCU (ESP32-S3FN8) and Semtech LoRa Transceivers (SX1262), all neatly packaged in a compact 38.4 x 16.1 x 3.2(mm) size with 1.27mm stamp holes for easy integration into your PCB or products.
Specification
- Tab1
|
Item
|
Wireless Shell (V2)
|
Wireless Shell (V3)
|
|
MCU
|
ESP32-D0
|
ESP32-S3
|
|
LoRa Node Chip
|
SX1276
|
SX1262
|
|
USB Socket
|
Micro USB
|
USB Type C
|
|
Crystal Oscillator
|
Ordinary crystal oscillator
|
High precision temperature compensated crystal oscillator
|
|
Low Power Features in Deep Sleep
|
30uA
|
<10uA
|
|
Other Update
|
Better impedance matching of RF circuits.
|
Product Description
Stamp edge design

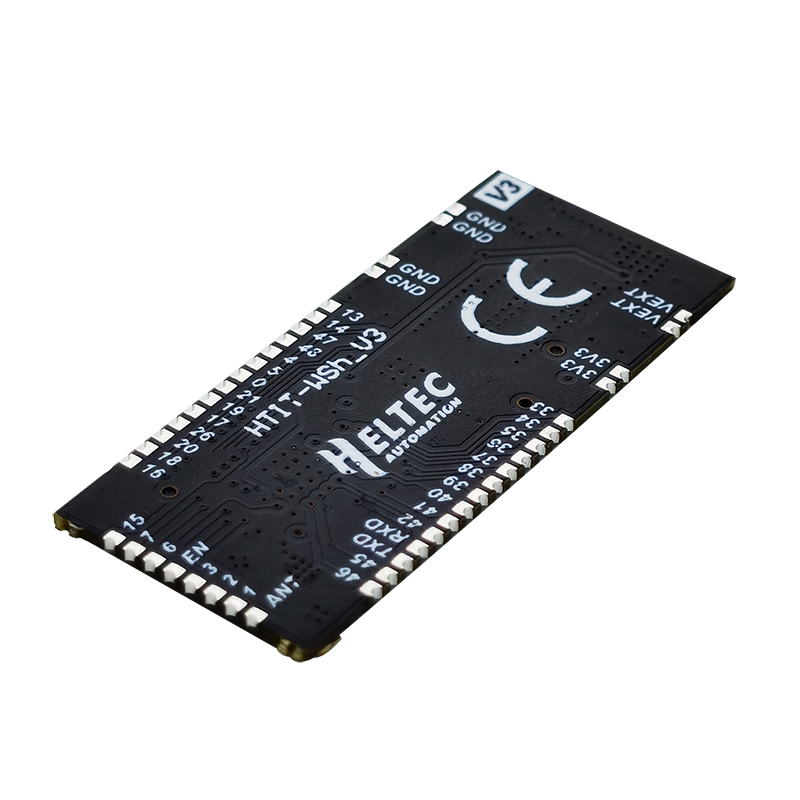

1.27 stamp edge design, can be directly integrated into the application circuit
Arduino-Compatible
We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably.
