Wireless Aggregator-Sensor Docker
Heltec LoRa/LoRaWAN HRI-3631 Wireless Aggregator Sensor Docker features an ultra-low power design and IP66 protection level, making it suitable for outdoor use
●Industrial grade protection structure, IP66 protection grade, Lightning protection design, ESD protection and isolatio.
●Ultra-low power consumption design, built-in 1900 mAh rechargeable lithium battery x 4, can be connected to a solar charging panel.
●Wireless data transmission communication radius up to 1.5~5km (noocclusion).
●Working condition: -40~80°C,Working humidity: ≤90% (non-condensing).
●Easy configure via Wi-Fi, supports OTA update.
Product introduction
Wireless Aggregator — Sensor Docker (HRI-3631) is a LoRa/LoRaWAN device for outdoor applications, It has a standard interface that can integrate most of the Heltec Fast Link series of sensors. Built-in 4 x 2000 mAh batteries and battery management system, allow it to be charged directly via a solar panel.
HRI-3631 has the characteristics of ultra-low power consumption and long-distance transmission. Benefits from its high-strength plastic and large-capacity rechargeable battery, it can perform well in a variety of complex outdoor environments for a long time.
Specification
- Tab1
|
Max. Receiving Sensitivity
|
-136dBm@SF12 BW=125KHz
|
|
Max. TX Power
|
+20 ± 2 dBm
|
|
Communication Distance
|
2 to 6km (depending on gateway antenna and environments)
|
|
IP Rating
|
IP66
|
|
Operating Temperature
|
-40 ~ 80 ℃
|
|
Operating Humidity
|
10% ~ 100%, no-condensing
|
|
Battery Capacity
|
2000mAh x4
|
|
Battery Type
|
18650
|
Product Description

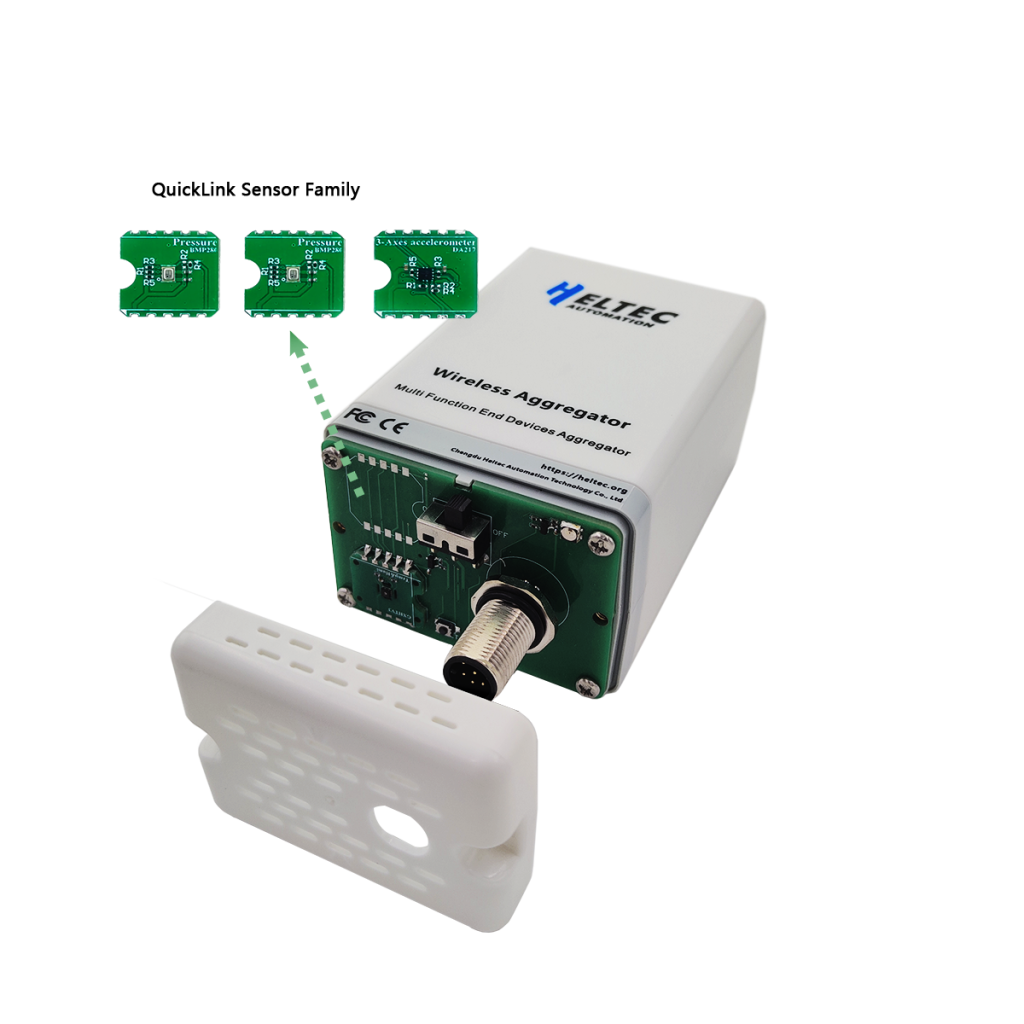

Strong Expansibility
Sensors can be replaced according to different needs, we offer a wide variety of sensors for you to choose from and support sensor customization.
High Capacity Battery
4x2000mA rechargeable battery, supporting external power supply, cooperate with solar panels and outdoor batteries to facilitate the use of outdoor projects.

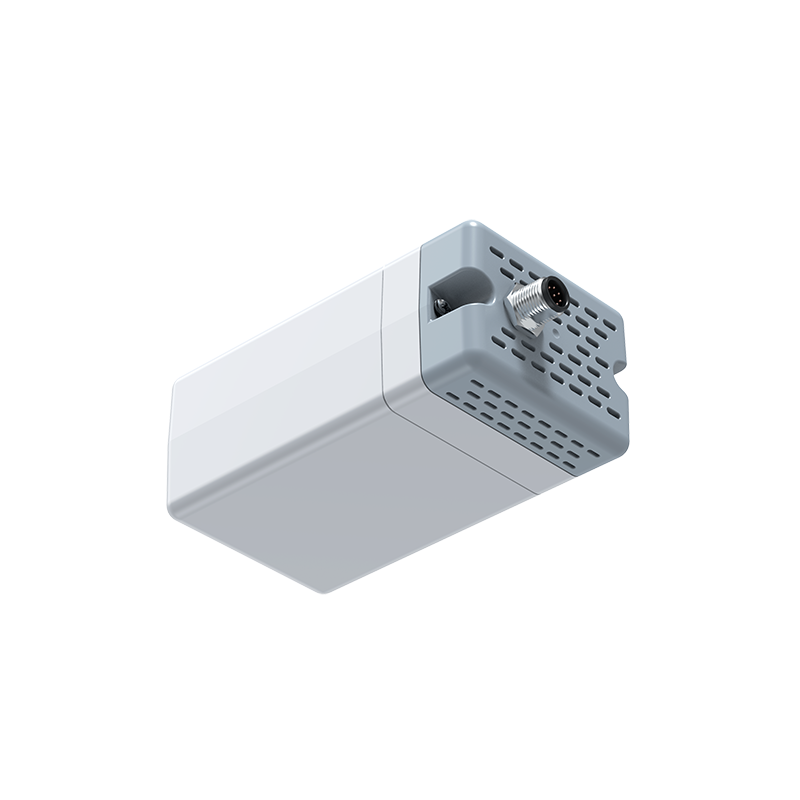

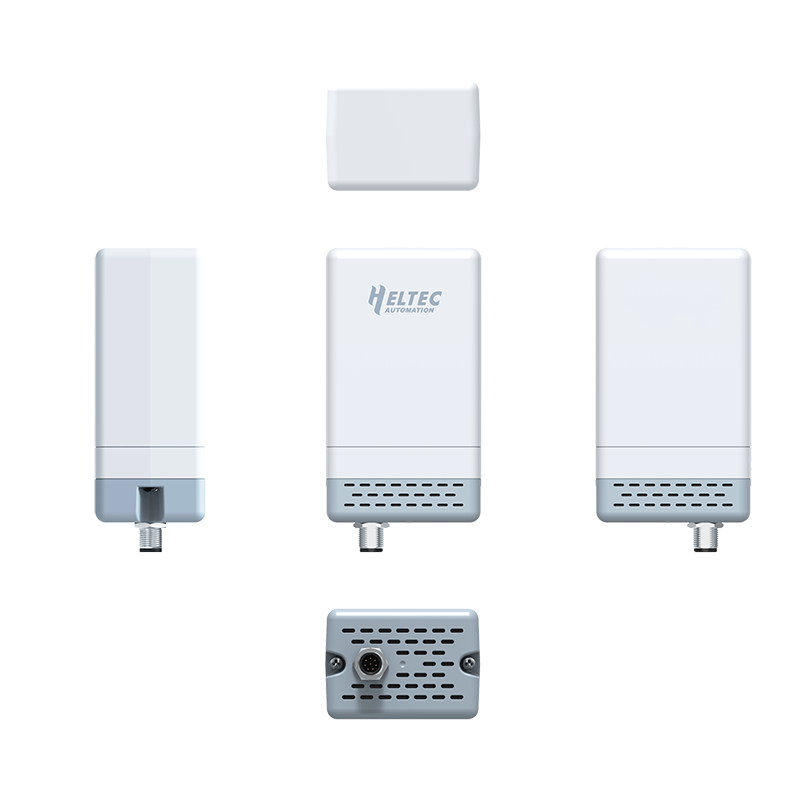

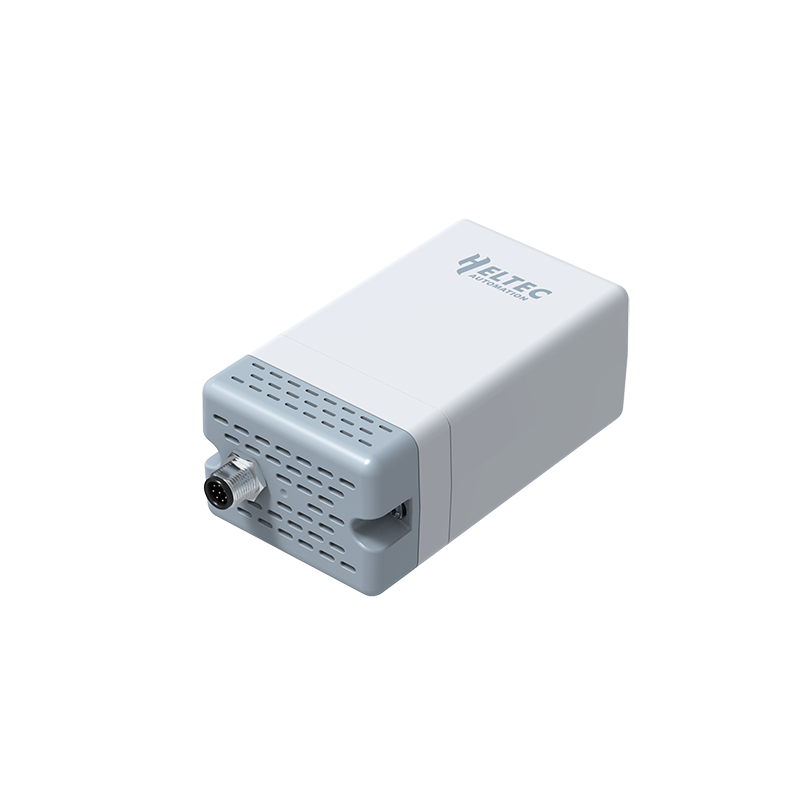

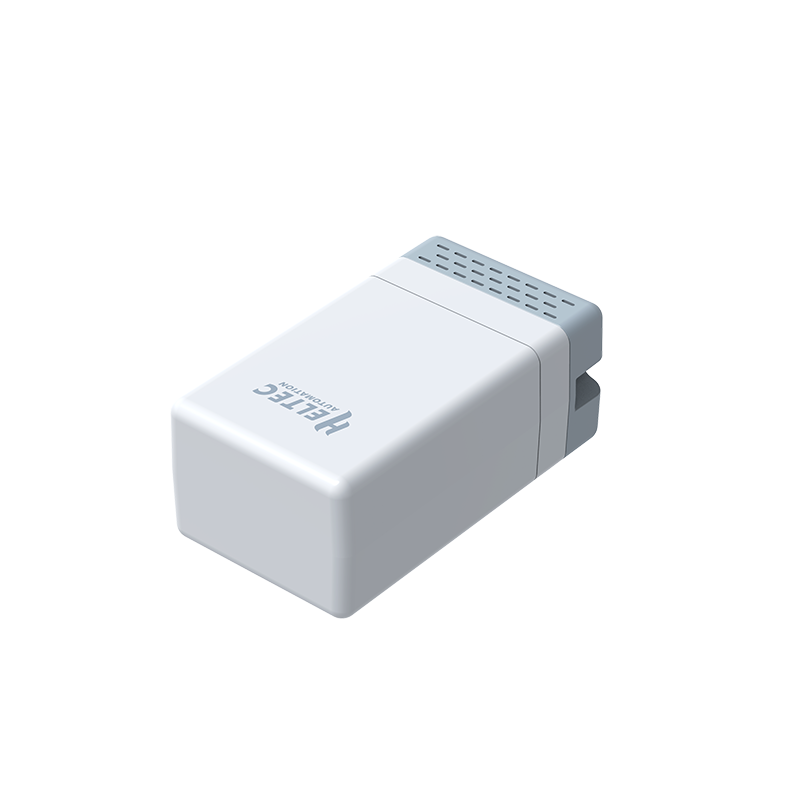

Picture display
