WiFi HaLow Module Mini PCIe Interface
WiFi HaLow Module Mini PCIe Interface which operates in 902 – 928MHz
- Long-range transmission, up to 1km or and further within the visual distance.
- Channel bandwidth options of 1/2/4/8 MHz.
- Support Sub-1 GHz frequency bands: 902~928 MHz.
- Max output power:21dBm.
- Hibernate mode (internal / external wake).
- 802. 11ah OFDM PHY supporting WFA HaLow certification.
- 802. 11ah MAC supporting WFA HaLow certification.
- High data rate, single-stream max. data rate of 32.5 Mbps @ 8 MHz or 15 Mbps @ 4 MHz channel.
- Wide spectrum of security features.
Product introduction
What’s this?

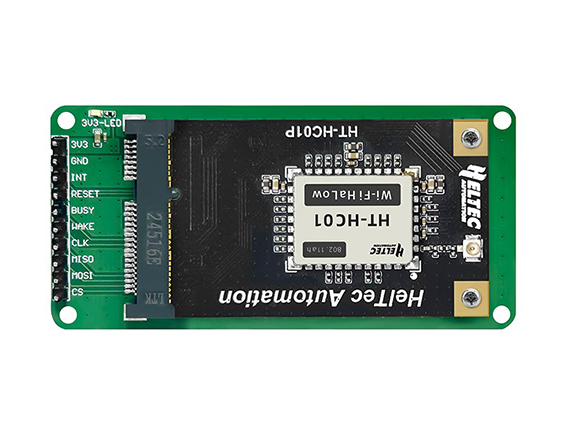

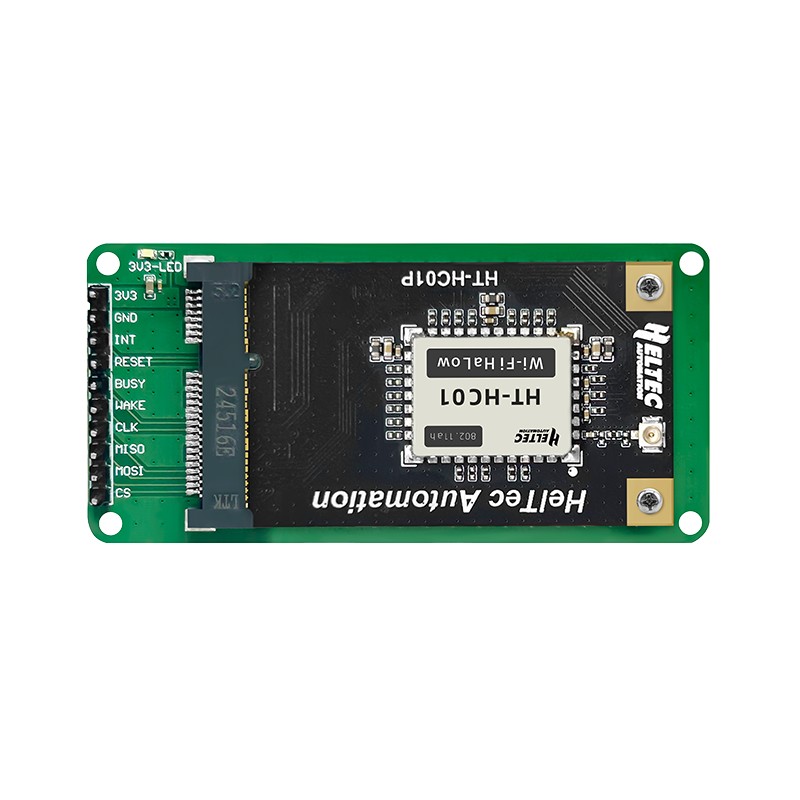

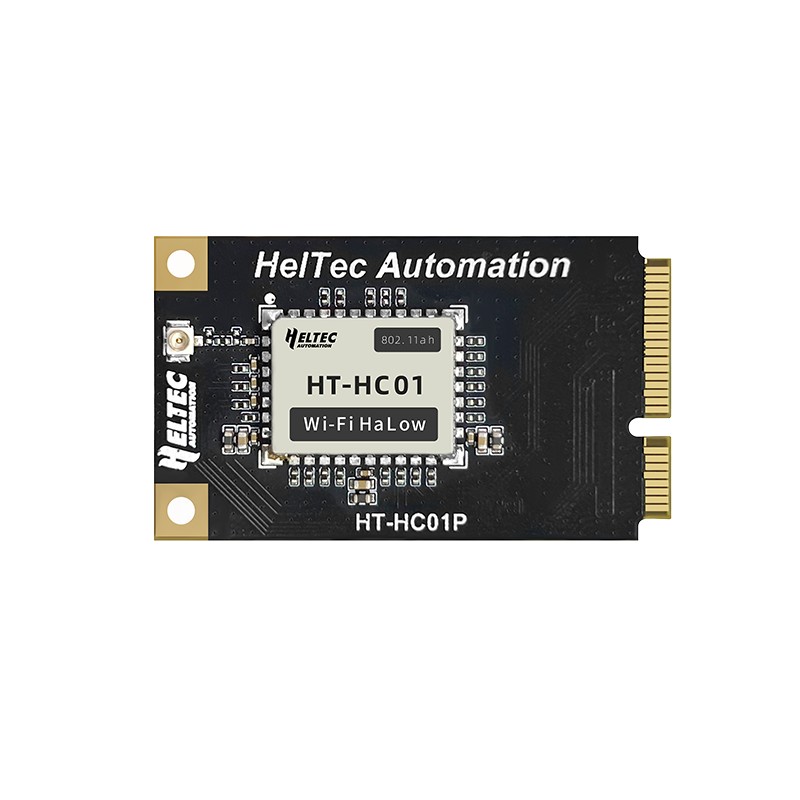

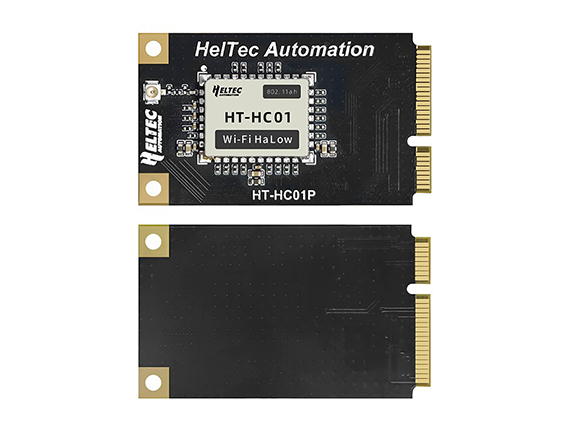

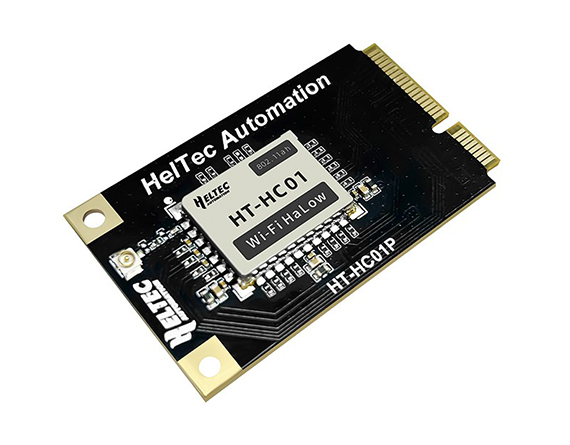

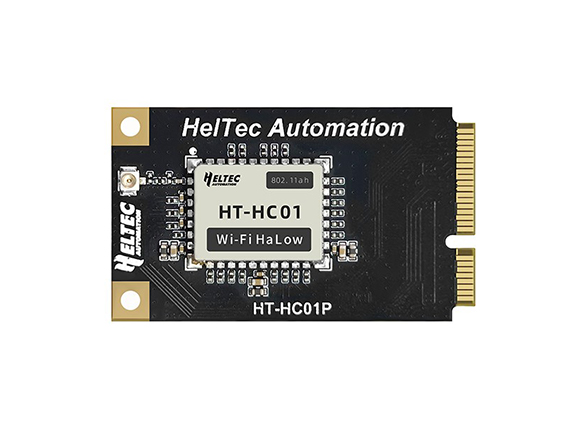

HT-HC01P is a Wi-Fi HaLow module with mini PCIe interface.
Summary
HT-HC01P is a Wi-Fi HaLow module with mini PCIe interface, which operates in 902 – 928MHz, with maximum data rates of 32.5Mbps and up to 1-2km transmission range. It meets IEEE 802.11ah standard, which is specifically designed for battery-operated devices, allowing them to remain in longer sleep and idle states without frequent wake-ups. This significantly reduces power consumption and extends the device’s battery life.
Specification
- Tab1
| Parameters | Description |
|---|---|
| Main Chip | MM6108IQ |
| Power Supply | 3.3V |
| HaLow Standard | IEEE 802.11ah |
| Band Width | 1/2/4/8MHz |
| Interface | Mini PCIe |
| Operating temperature | -40 ~ 85℃ |
| Operating humidity | 10%～90%, no-condensing |

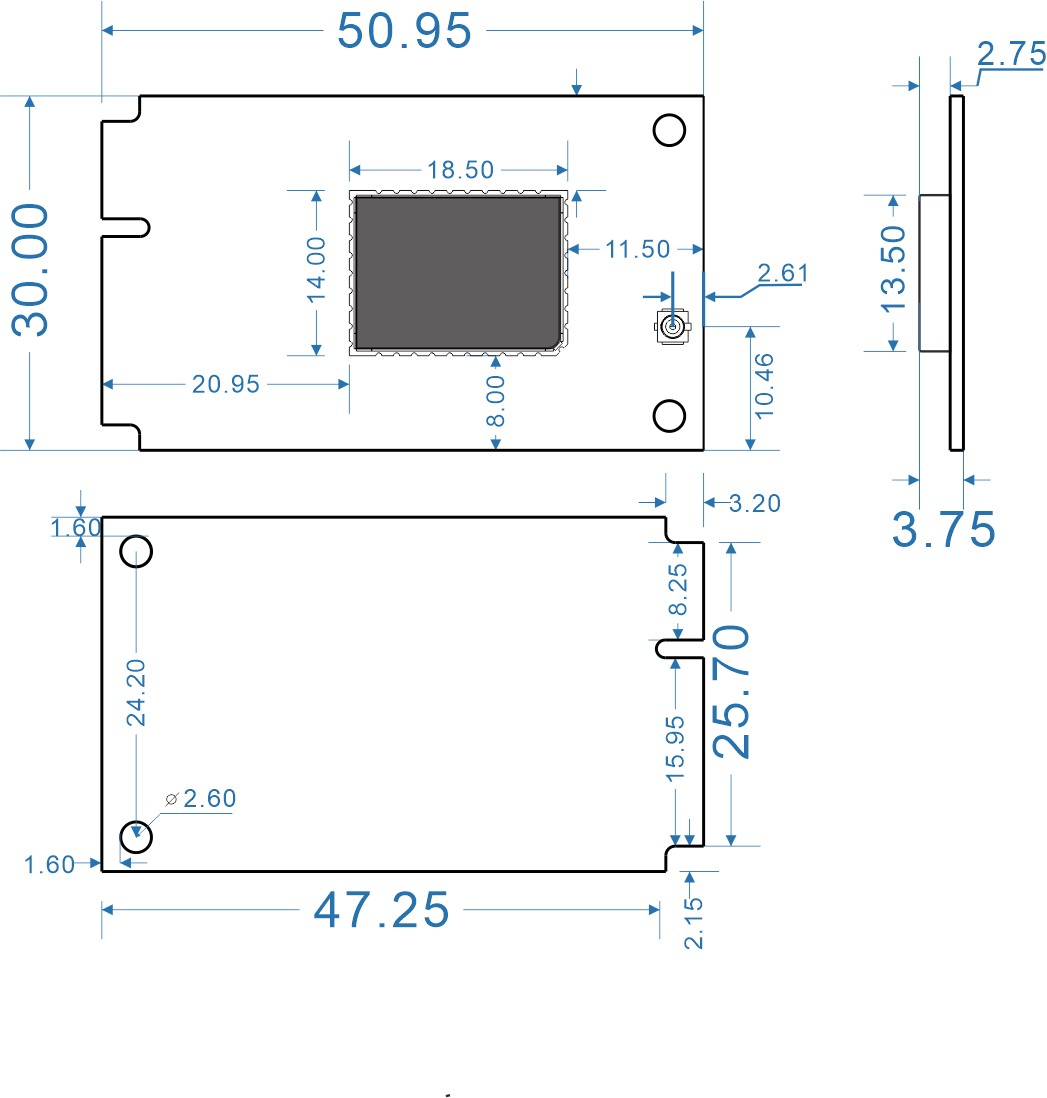

| Dimensions | 50.95*30.00*3.75 mm |
| Max. Data Rate | 32.5 Mbps |
Picture display
