Wi-Fi HaLow Dongle V2
Wi-Fi HaLow Dongle V2 1-2km Long-Range Adapter 27dB RF 902-928MHz IoT Protocol LAN Network Extender
* Factory matching, plug and play.
* You can connect your device to the Dongle through three methods: USB Type C, Ethernet, and 2.4GHz Wi Fi.
* Long transmission range.
* It can be seamlessly connected to traditional networks.
* Large capacity allows access to a large number of devices simultaneously.
* Low power consumption design with high penetration.
* High transmission rate, 32.5Mbps@8MHz.
* Support Sub-1 GHz frequency bands, frequency range: 902~928 MHz.
* It offers four bandwidth modes 1/2/4/8MHz.
* Lightweight and easy to deploy.
* Rich in features and strong in extensibility.
* You can connect your device to the Dongle through three methods: USB Type C, Ethernet, and 2.4GHz Wi Fi.
* Long transmission range.
* It can be seamlessly connected to traditional networks.
* Large capacity allows access to a large number of devices simultaneously.
* Low power consumption design with high penetration.
* High transmission rate, 32.5Mbps@8MHz.
* Support Sub-1 GHz frequency bands, frequency range: 902~928 MHz.
* It offers four bandwidth modes 1/2/4/8MHz.
* Lightweight and easy to deploy.
* Rich in features and strong in extensibility.
Product introduction
What’s this?
Wi-Fi HaLow Dongle V2 is a long-range communicator based on Wi-Fi HaLow, the communication range is 1–2 km, with 27dB high RF output power, operating at a frequency of 902-928MHz. It can be used to extend the coverage of traditional networks through bridging, to set up LAN, or to serve as an IoT protocol. Pair two devices for use, or work with the HaLow gateway.
Specification
- Tab1
| Parameters | Description |
|---|---|
| MCU | MT7628 |
| Wi-Fi | IEEE 802.11b/g/n |
| Wi-Fi HaLow | IEEE 802.11ah Frequency: 902-928MHz Max. TX power: 21±1 dBm(V1),27±1dBm(V2) Bandwidth: 1/2/4/8 MHz Max Data Rate: 32.5 Mbps @ 8 MHz |
| ANT Interface | SMA female socket |
| Ethernet | RJ45(10/100M)，USB-C |
| Operating Condition | Temperature: -20 ~ +70℃ Humidity: 10%～90%( no-condensing) |
| Power | USB-C, 5V |
| Consumption | 300mA(Typical) |
| Ingress Protection | Without waterproof treatment |
| Shell material | Aluminum Alloy, Plastic |
| Weight | 53.5g (Antenna included),40g(Antenna excluded) |
| Dimensions | 87.5*32.5*20mm(Antennaexcluded) |
Plug&play

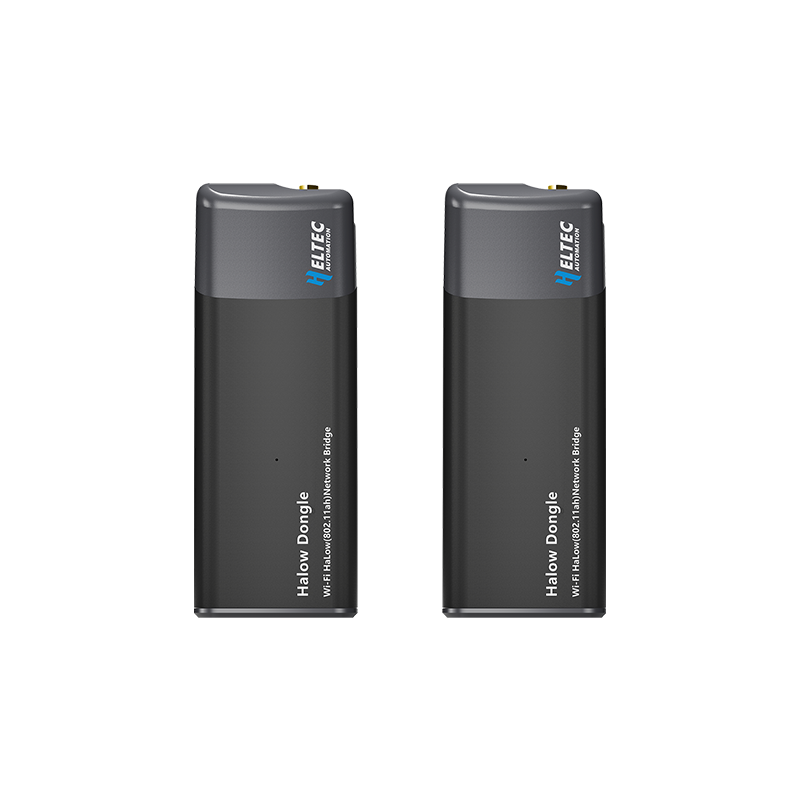

●If you purchase in pairs, they will come with factory matching,
plug and play.
●You can connect your device to the Dongle through three methods:
● USB Type C.
●Ethernet.
●2.4GHz Wi Fi.
long-range and high-speed
●Long transmission range up to 1km, and even fartherwithin the visual distance.
●Greatly expand the transmission range of traditional Wi Fi and Ethernet, with higher penetration rate.
Multiple pairing modes
●When AP is paired with STA, it can be used one-on-one or multiple STAs can be paired with one AP.
●Cooperate with HT-H7608 HaLow router to achieve star networking.

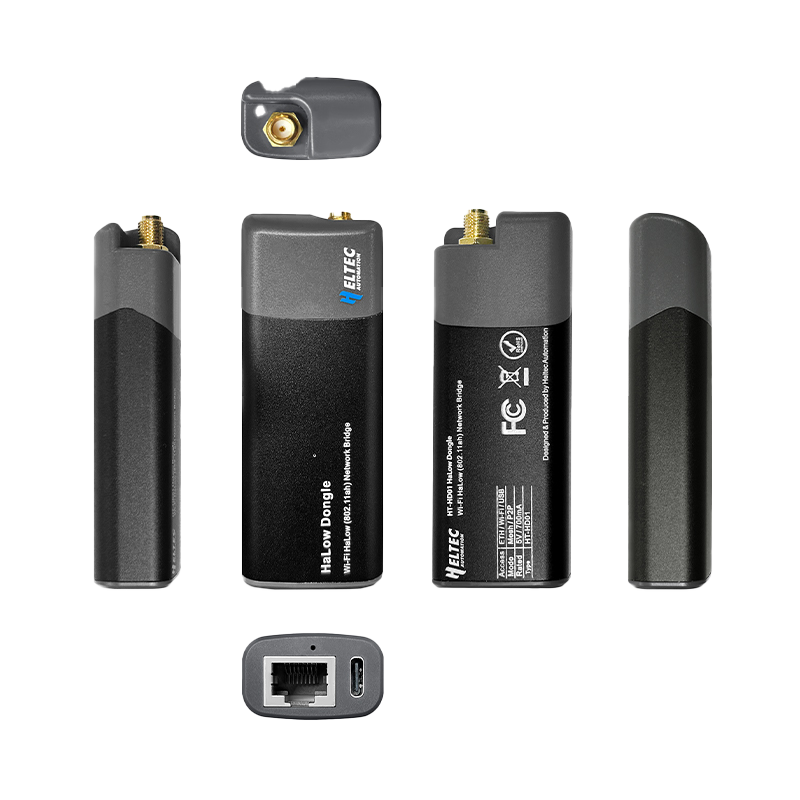

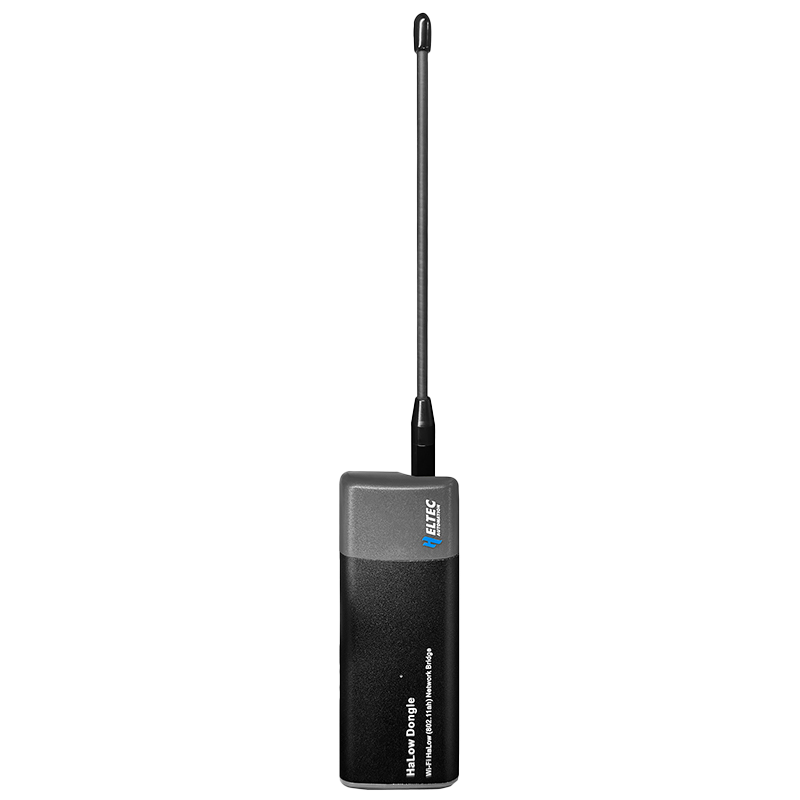

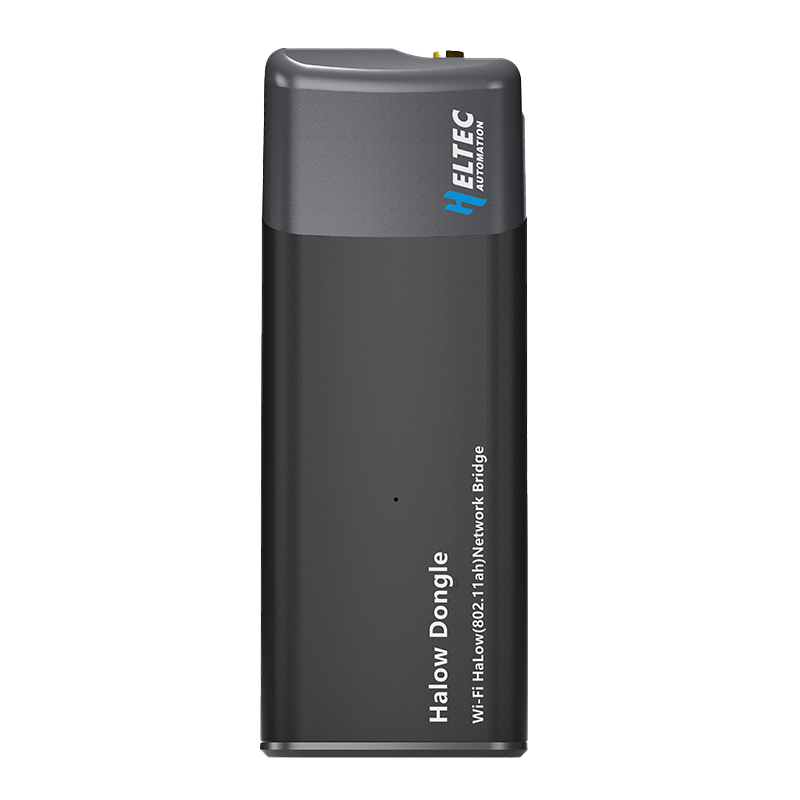

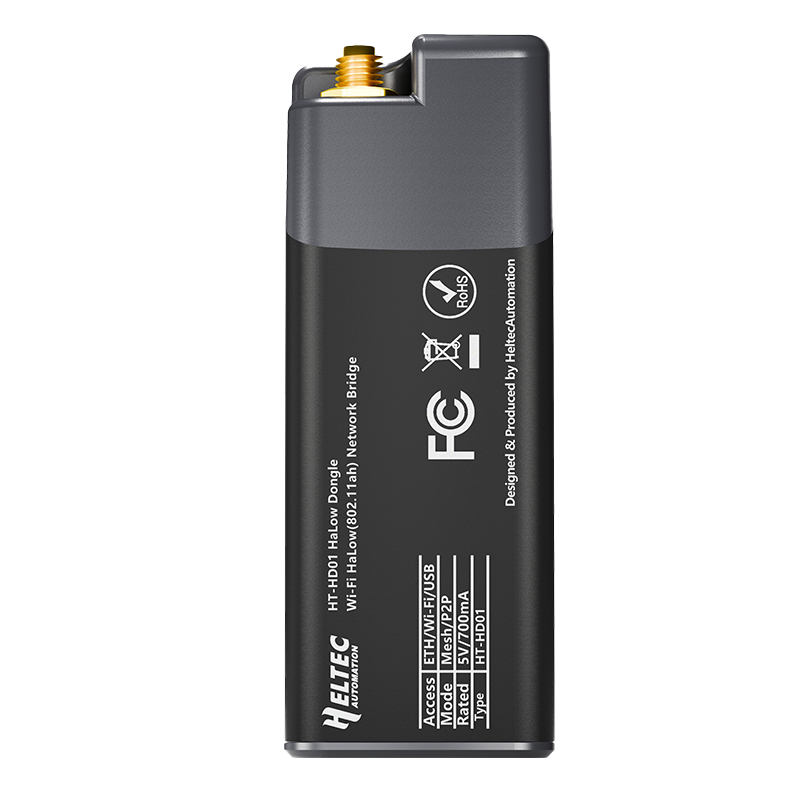

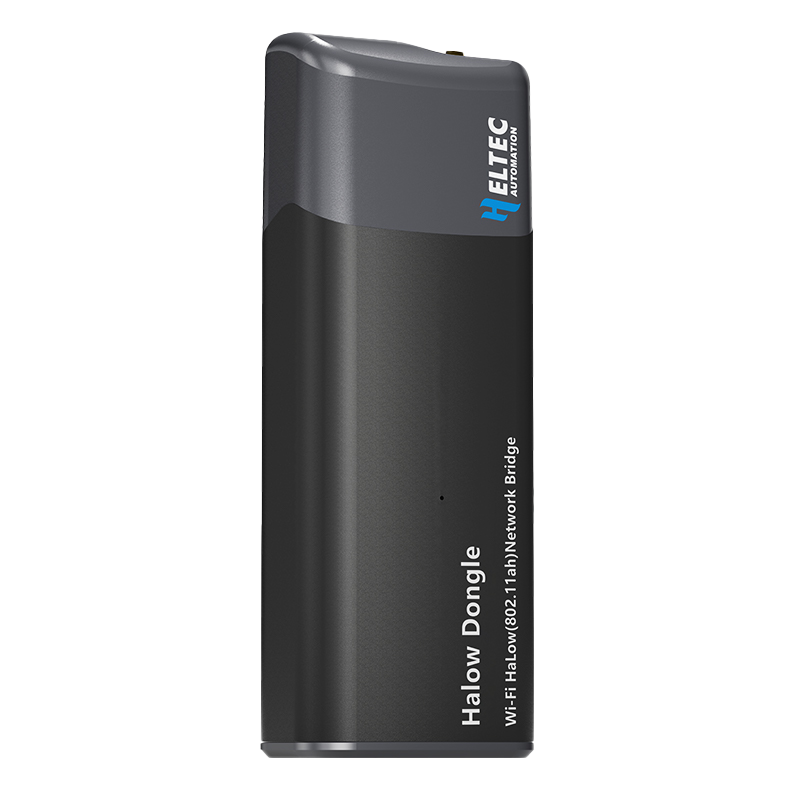

Picture display
