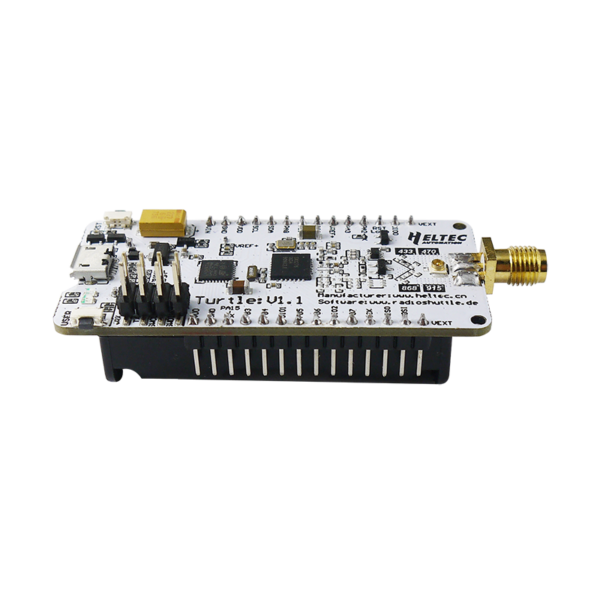

Turtle Board
Heltec Turtle Board STM32 development board with SX1276 Support LoRaWAN Communication RF circuit and low power design
●CE Certificate;
●Microprocessor: STM32L432KC (32-bit ultra-low power MCU) with LoRa node chip SX1276;
●Micro USB interface with complete protection measures such as voltage regulation, ESD protection, and short circuit protection;
●Onboard AAA x 2 battery holder, USB / battery power automatically switch;
●Reserve IPEX and SMA antenna interfaces for LoRa use;
●Programming and debugging interface can be combined with our downloader
●Support DFU protocol, which can be downloaded conveniently via USB (combined with “RadioShuttle STM32 Utility”)
●Professional software support (ARM Mbed IDE);
●Provide Standard LoRaWAN protocol routines;
●Good RF circuit design and perfect low-power design (sleep current: 4uA), which is convenient for IoT application vendors to quickly verify solutions and deploy applications;
Product introduction
What’s this?
The turnkey Turtle board solution is ready for immediate use, supporting both the standard LoRaWAN protocol and RadioShuttle protocol.
Main Features
The turnkey Turtle board solution is capable of immediate use and supports the standard LoRaWAN protocol as well as the RadioShuttle protocol. The included RadioShuttle radio protocol software enables node-to-node communication without the need for additional routers and servers. The Turtle LoRa board by HelTec Automation can operate for 10 years on AAA batteries (standard or rechargeable NiMH) using the “RadioShuttle” LoRa wireless low-energy protocol software.
Specification
- Tab1
|
Parameters
|
Description
|
|
Master Chip
|
STM32L432KC(Ultra-low-power 32-bit MCU+FPU ARM® Cortex®-M4)
|
|
LoRa Chipset
|
SX1276
|
|
Frequency
|
470~510MHz, 863~928MHz
|
|
Max. TX Power
|
19 ± 1dBm
|
|
Max. Receiving sensitivity
|
-135dBm
|
|
Operating temperature
|
-20 ~ 70 ℃
|
|
Dimensions
|
73.5 x 31.5 x 24 mm
|
|
Interface
|
Micro USB x 1; LoRa Antenna interface(SMA) x 1; 14 x 2.54 pin x 2+4 x 2.54 pin x 2(Debug interface)
|
|
Hardware Resource
|
USART x 3; SPI x 2; I2C x 2; SAI x 1; 12-bits ADC input x 1; 12-bits DAC output x 2; GPIO x 18
|
|
Memory
|
256KB internal FLASH; 64KB internal SRAM
|
|
Battery
|
AAA Lithium x 2
|
Product Description
LoRaWAN with AT command supported
The HT-AT62 is composed of an MCU (32-bit T-Head Microsystems) andSemtech LoRa Transceivers (SX1262).Regarding the software side,it already integrated LoRaWAN 1.0.2 protocol with AT command support.
Picture display
