Sufficient LoT Hub Linux
Heltec LoRaWAN Dev-board Sufficient IoT Hub Linux with dual-core 64-bit ARM A7 processor
●CE & RoHS Certified
●CPU: Dual-Core ARM CortexTM-A7; 32 KB L1 I-cache + 32 KB L1 D-cache per core, and 256 KB L2 cache.
●RAM: 128 MB DDR3.
●ROM: SD3.0 (8/16G).
●Operation system: Like a computer, the Sufficient IoT Hub has an operating system, which by default uses the open source, free Linux operating system, currently supported by Debain 10.
●Ethernet(Default): 10/100Mbps.
●Wi-Fi(Default): IEEE 802.11 b/g/n.
●LTE (Optional): Cat. 1.
●Compatible with the HT-1303 module, to be used as a LoRa Gateway.
●4G(LTE) communication optional when no Wi-Fi&Ethernet.
●Multi-interface (I2C, SPI, Ethernet, ADC, PWM, USB Host).
●The standard mode has the basic function of LoRa and ETH connection, the optional functions are available to select with one or more features according to your needs.
Product introduction
Specification
- Tab1
|
Parameters
|
Description
|
|
MCU
|
Dual-Core ARM CortexTM-A7 CPU, 800MHz.
|
|
LoRa Chip
|
SX1262
|
|
WiFi
|
802.11 b/g/n
|
|
LoRa Frequency
|
863～870MHz,
|
|
902～928MHz,
|
|
|
470～510MHz
|
|
|
LoRa Max. TX Power
|
21 ± 1 dBm
|
|
Supply voltage
|
+5V, +3.3V
|
|
Power Consumption
|
Max. ≈ 150mA, standby ≈ 100mA
|
|
Power Consumption
|
Deep Sleep 10uA
|
|
Operating Temperature
|
-40~85℃
|
|
Dimensions
|
90 x 41 x 11 mm
|
Product Description
Strong extensibility
It can, for instance, be used to read sensor data from I2C and transmit it via LoRaWAN, as an MQTT broker, as a LoRa Server in a local area network, or even as a LoRa gateway via an expansion panel.
Acrylic protective plate
We provide acrylic protection boards that bypass all pins to make your project more safe and beautiful.
Linux system-in-package
The Sufficient loT Hub is a Linux system-in-package with a dual-core 64-bitARM A7 processor running at 1GHz and 128MB of DDR3.

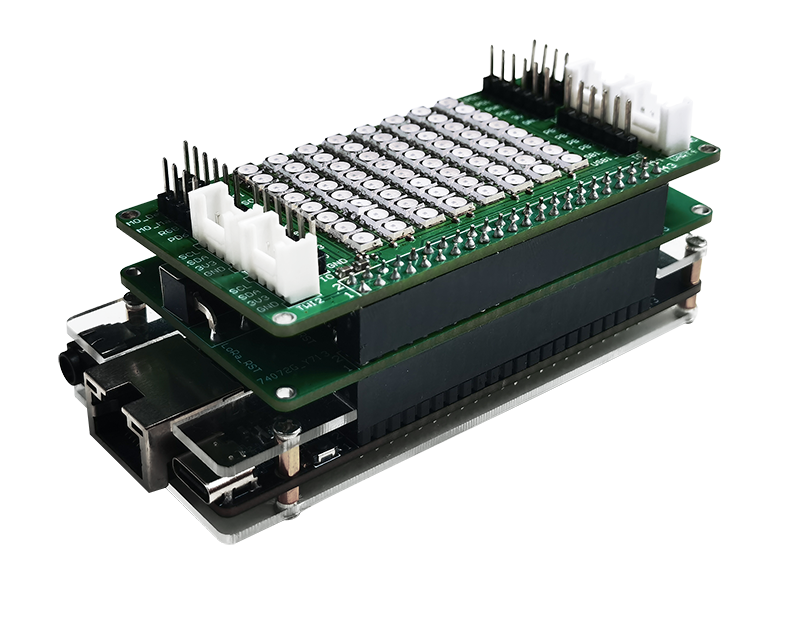

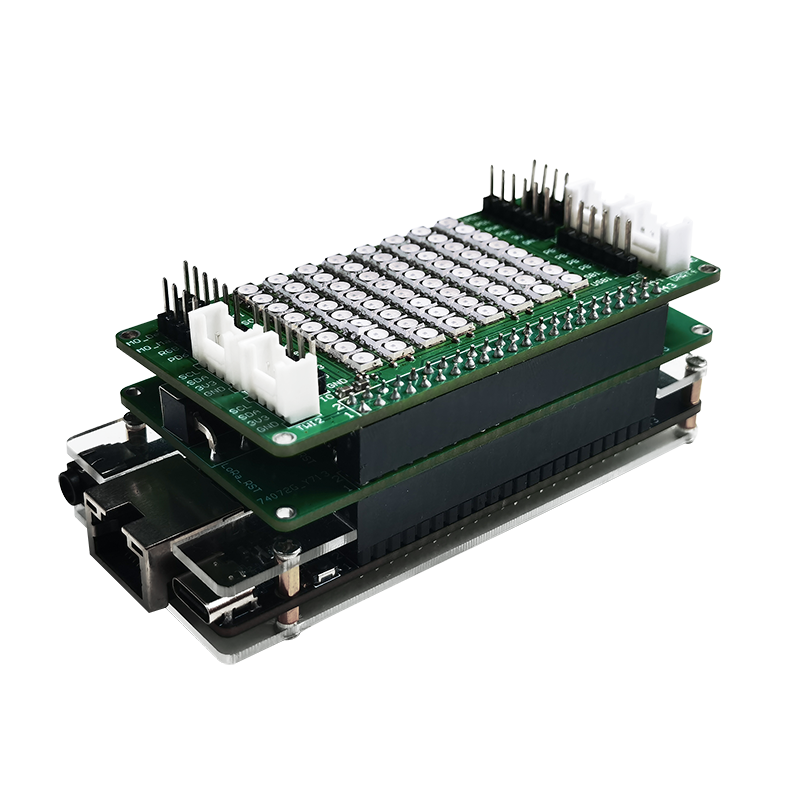

Picture display
