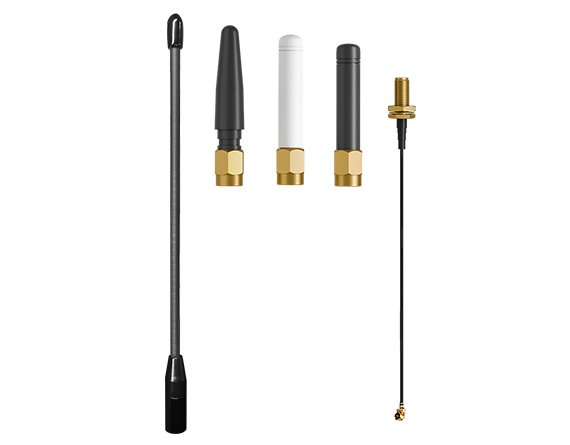

Product introduction

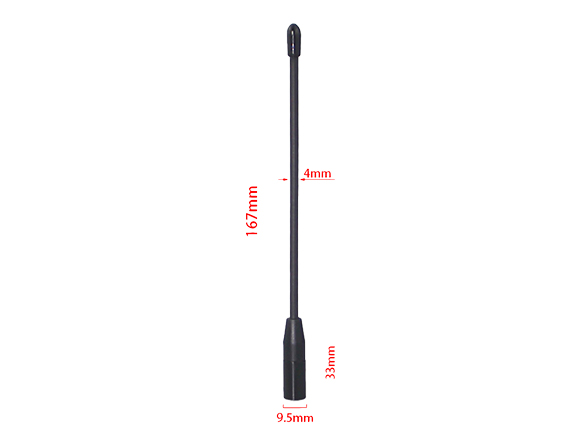

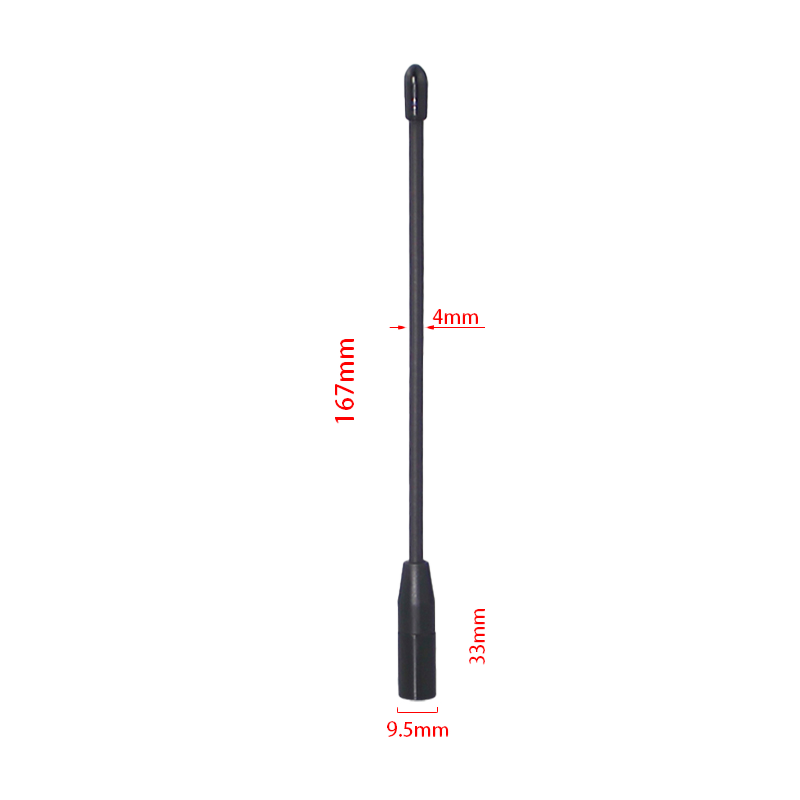

GT-800 Whip Antenna Specifications
|
Parameters
|
Description
|
|
FreqRange
|
902-928MHz
|
|
Antenna Gain
|
4 dBi
|
|
VSWR
|
≤1.5
|
|
Impedance
|
50 Ohm
|
|
Max. Power
|
10W
|
|
Lightning Protection
|
DC Ground
|
|
ovality
|
≤2dB
|
|
Operation Temperature
|
– 40 °C ~ + 55 °C
|
|
Weight
|
14g
|
Glue rod Antenna Specifications
|
Parameters
|
Description
|
|
S.W.R.
|
<= 2.0
|
|
Antenna Gain
|
3 dBi
|
|
Polarization
|
Linear
|
|
Impedance
|
50 Ohm
|
|
Material of Radiator
|
Cu
|
|
Material of Plastic
|
Body: PC+ABS
|
|
Connector Pull Test
|
>= 2 Kg
|
|
Operation Temperature
|
– 40 °C ~ + 65 °C
|
|
Storage Temperature
|
– 40 °C ~ + 80 °C
|
2.4G WiFi Antenna Specifications
|
Parameters
|
Description
|
|
Impedance
|
50Ω
|
|
Antenna Gain
|
1-3 dBi
|
|
Shell material
|
Environmentally friendly TPEE
|
|
VSWR
|
≤1.92
|
|
Interface type
|
SMA internal needle
|
4G WiFi Antenna Specifications
|
Parameters
|
Description
|
|
Impedance
|
50Ω
|
|
Antenna Gain
|
3.5dBi
|
|
polarization
|
vertical
|
|
VSWR
|
≤1.5(SMA)
|
|
Maximum Power
|
50W
|
|
Operation temperature
|
– 40 °C ~ + 85 °C
|
- Tab1
