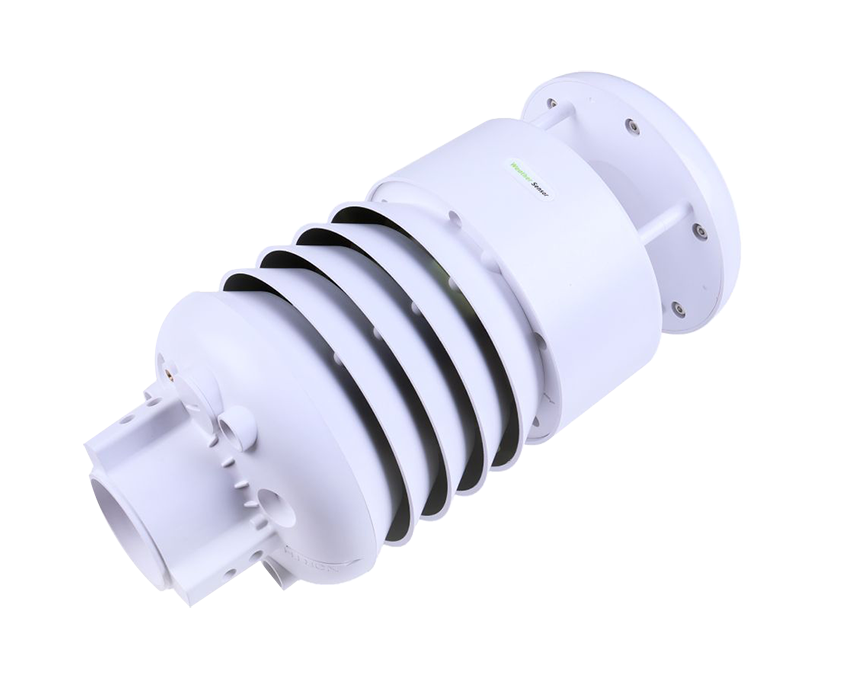

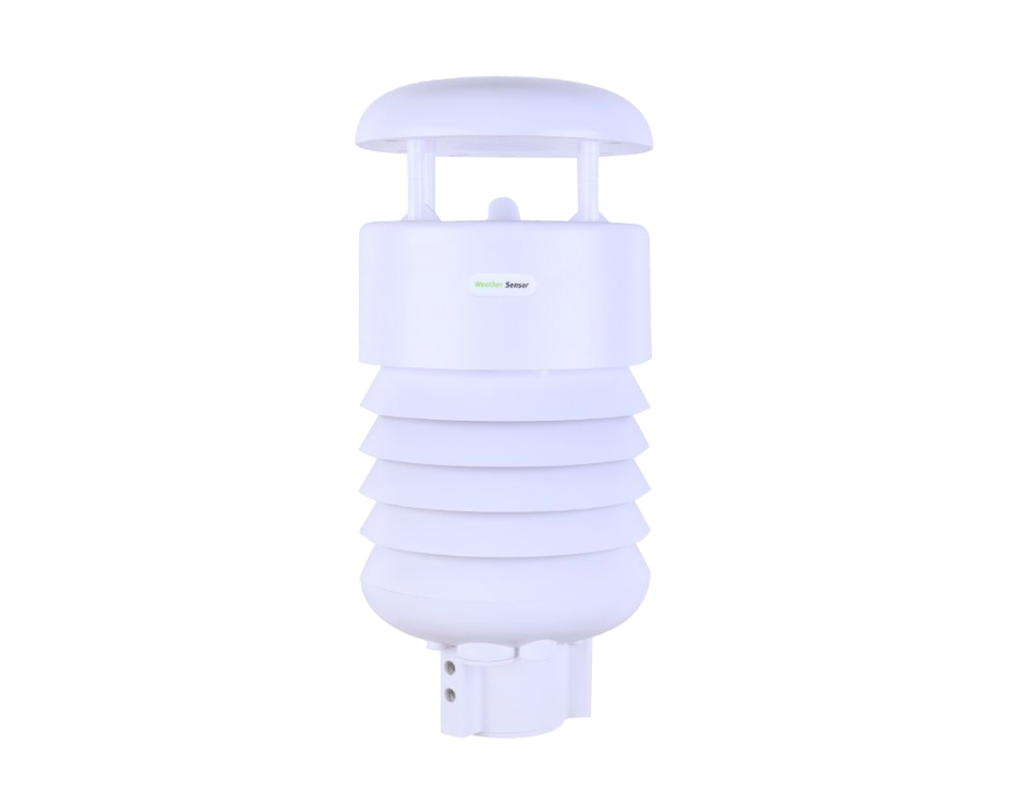

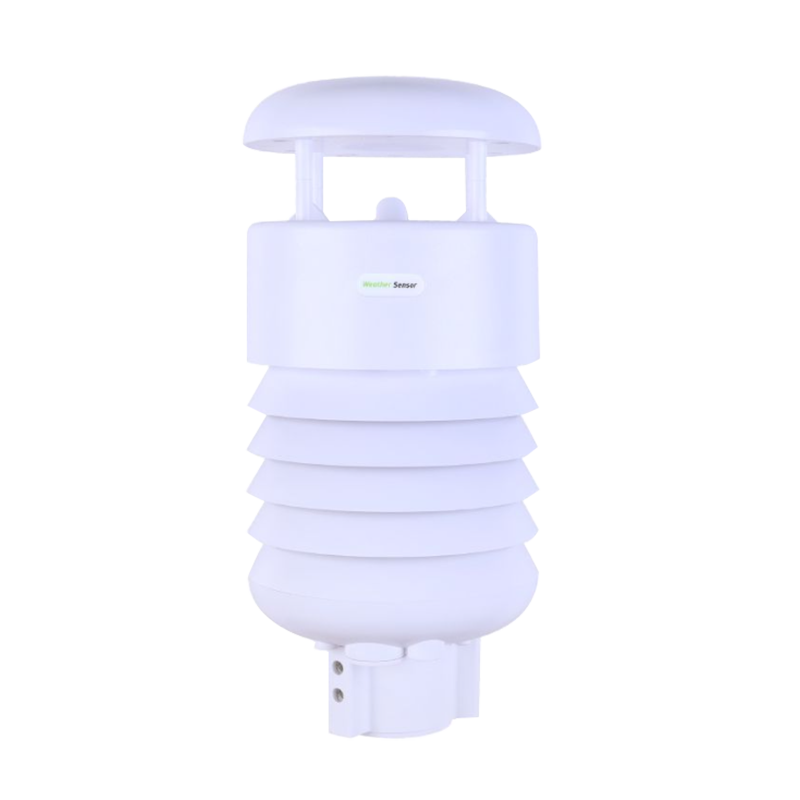

S500 V2 5-in-1 Compact Weather Sensor

S500 V2 5-in-1 Weather Sensor measures air temperature relative humidity barometric pressure wind speed and wind direction

* 5 parameters measurement: Measures air temperature, relative humidity, barometric pressure, wind speed, and wind direction in 1
single sensor
* Industrial-level design: -40°C to +85°C operating temperature, IP66 rated: waterproof, and dustproof, suitable for outdoor
scenarios
* Output interface: RS485 (MODBUS-RTU) / SDI-12
* Thermostatically-controlled heating system: Independent heating power supply for use in extremely cold environments
* Powerful Components Included: A 3m cable for the pole mount; radiation shields are equipped to ensure accurate ambient
measurement; ultrasonic wind speed & direction sensors without moving parts

PRODUCT DETAILS

Send Your Inquiry

Section1
Section2
Section3
Section4
Top

Product introduction

What’s this?

The S500 5-in-1 Weather Sensor is capable of measuring air temperature, relative humidity, barometric pressure, wind speed, and wind direction (ultrasonic).

Main Features

The S500 5-in-1 Weather Sensor is a versatile device specifically designed for the measurement of air temperature, relative humidity, barometric pressure, wind speed, and wind direction using ultrasonic technology. This sensor is well-suited for deployment in challenging outdoor environments such as agriculture or urban settings. The sensor’s advanced technology ensures reliable and accurate readings, making it a valuable tool for a wide range of applications. With its rugged construction, the S500 is capable of withstanding harsh weather conditions and maintaining peak performance over extended periods. The S500 provides a reliable and accurate solution for monitoring weather conditions in various settings, including farming operations, research projects, and smart city systems. Its compact design and easy installation make it a practical choice, while its dependable performance ensures informed decision-making based on precise data.

Specification

Tab1

Parameters	Description
Parameters Measured	air temperature, relative humidity, barometric pressure, wind speed and wind direction
Protocol	RS485 (MODBUS-RTU) / SDI-12
Power Supply	12V~24V 24V(Heating power supply)
Cable Length	3m
Operating Temperature & Humidity	-40 °C ~ + 85 °C, 0 ~ 100%RH
IP Rating	IP66
Device Weight	2kg
Parameter for Air Temperature
Parameters	Description
Range	-40~86℃
Accuracy	± 0.1℃
Resolution	0.01 ℃
Parameter for Air Humidity
Parameters	Description
Range	0 ~ 100% RH
Accuracy	± 1.5% RH
Resolution	0.01% RH
Parameter for Air Humidity
Parameters	Description
Range	300 ~ 1250 hPa
Accuracy	± 50 Pa
Resolution	10 Pa
Parameter for Wind Speed
Parameters	Description
Range	0~60 m/s standard range
	0~75m/s extended range
	Up to 80m/s withstand range
Accuracy	±0.3m/s(≤10m/s);
	±3% (10m/s ~ 50m/s)
	±5% (>50m/s)
Resolution	0.01 m/s
Parameter for Wind Direction
Parameters	Description
Range	0~360°
Accuracy	± 3.0°
Resolution	0.1°

Convenient outdoor deployment

In order to optimize the performance of outdoor projects, it is recommended to collaborate with solar panels and outdoor batteries. By doing so, the efficiency of the projects can be enhanced while minimizing energy costs, thereby yielding a more sustainable and cost-effective solution.

Compatible with Multiple Functions

This apparatus has been specifically developed to accurately determine both wind speed and direction. It is designed to provide precise measurements, and as such, it is an invaluable tool for businesses and academic institutions. The data obtained from this device can be relied upon for scientific research, meteorological applications, and a range of other purposes. The accuracy and reliability of this tool are unparalleled, making it a valuable addition to any professional setting.
