RS-485 TO UART Transceivers
RS-485 to UART Transceivers MAX3485 chip stamp hole packaging (LGA) with the Grove socket through the PH2.0 x 4 interface
* With unified packaging, stamp hole packaging (LGA) that can be directly soldered onto the circuit.
* Compatible with Grove socket through the PH2.0 x 4 interface.
* Strong structure and high sensitivity
Product introduction
What’s this?
The RS-485 to UART Transceivers, which are based on the MAX3485 chip, are part of the Heltec Quick Link Series. The module features stamp hole packaging (LGA) for direct soldering onto the circuit or compatibility with the Grove socket through the PH2.0 x 4 interface.
Main Features
The Heltec QuickLink Series element offers a diverse range of sensors and actuators. With a standardized packaging size and interface, the stamp hole allows for direct soldering onto your board like most modules. Additionally, it can be optionally equipped with a PH2.0 x 4 interface to ensure compatibility with the Grove Socket. The MAX3485 is a 3.3V, low-power transceiver designed for RS-485 communication, with each part containing one driver and one receiver. The MAX3485 is capable of transmitting at speeds of up to 10Mbps.
Specification
- Tab1
|
Parameters
|
Description
|
|
Supply Voltage
|
7V
|
|
Supply Current
|
1.1mA
|
|
Operating Temperature
|
-40~85℃
|
|
Storage Temperature Range
|
-65~160℃
|
|
Interfaces
|
I2C on PH2.0 x 4
|
|
I2C and SPI on LGA (2.54 stamp home)
|
|
|
Dimension
|
15*15*10mm(including Quick Link Socket)
|
|
15*15*2mm(excluding Quick Link Socket)
|

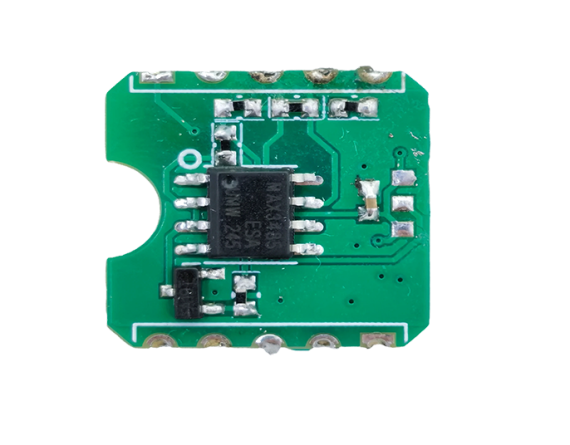

Picture display
