OLED Display(Module)

1.3 OLED display module with I2C interface SH1106 driver chip, internal or external charge pump optional, elliptical fixed hole

* Display Resolution: 128 x 64;
* Onboard power-on reset circuit；
* I2C (2.54 x 4) or SPI (2.54 x 6) interface optional;
* 1.0 x 4 FFC footprint (I2C only);
* Default I2C address: 0x3C, for some MCU with 8-bit I2C register, the I2C address should be 0x78 (0x3C << 1).

PRODUCT DETAILS

Send Your Inquiry

Section1
Section2
Section3
Section4
Top

Product introduction

What’s this?

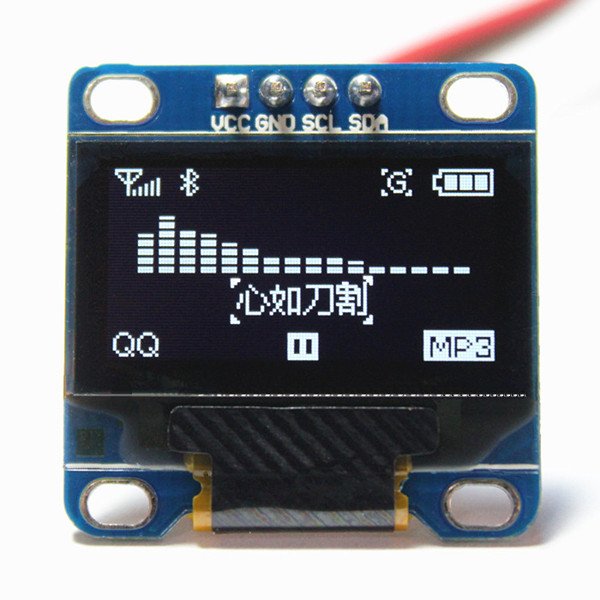

1.3″ OLED display module featuring an I2C (or SPI) interface, with a built-in 10K pull-up resistance in the I2C bus. Equipped with an SH1106 driver chip and the option for internal or external charge pump. The module also includes an elliptical fixed hole designed to fit an M2 screw.

Main Features

OLED display modules with various specifications and driver circuits can be interfaced with your circuit through the IIC or SPI bus. The drive board includes an integrated auto reset circuit, IIC bus pull-up resistor, boost charge pump, and other functional units to ensure long-term stable operation of the module.

Specification

Tab1

Source	Description
Driver Chip	SH1106 — 1.3″
	SSD1306 — 0.49″,0.91″,0.96″
	SPD0301 — 1.54″, 2.4″
Working Temperature	-20 ~ 60 ℃
Color	White, Blue, Yellow & Blue optional.
Power Supply	1.7 ~ 5.5V
Interface	SPI and IIC optional.

Product Description

Flexible installation

4 elliptical fixed holes (fit M2 screw), makes it can flexibly fit to your product shell.

External charge pump

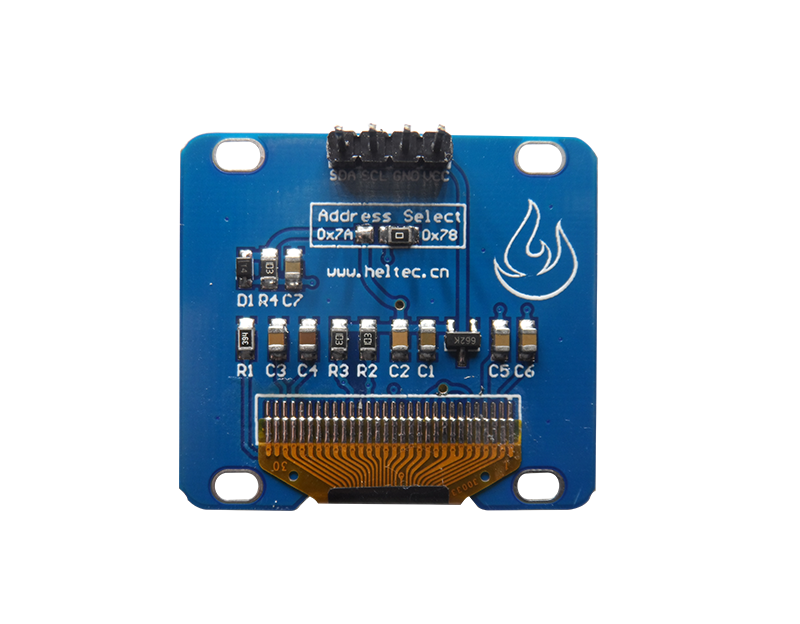

The 1.3 ” IIC comes with an external charge pump version to ensure sufficientpower supply for the LCD panel and more stable modules,

Organic electroluminescence display

Compared to traditional LCDs, the pixel units of OLED displays are self illuminating and no longer use backlight, which makes their imaging performance better, especially in strong light environments such as direct sunlight, where the display effect is much better than LCD displays.
