NRF52840 + SX1262 Mesh Node N5262M Module
NRF52840 + SX1262 Mesh Node N5262M Module, Meshtastic Compatible Low-cost Module Based on Mesh Node T11
•Supports both Wi-Fi and Ethernet with a dual-band design for Wi-Fi HaLow and 2.4GHz.
•Offers versatile networking options, including AP, STA, and Mesh modes.
•Simple setup and OTA upgrades via an intuitive Web UI.
•Operates reliably in temperatures ranging from -20°C to 70°C.
•Lightweight and stylish wall-mounted design for easy installation.
•Long-range transmission capability, reaching up to 1km or more in clear line-of-sight conditions.
•Accommodates a significantly higher number of devices—over four times that of traditional Wi-Fi access points.
•Delivers high-speed data transmission, maintaining 150Kbps at maximum range and up to 32Mbps at close distances.
Product introduction
The HT-HC01 is a high-performance Wi-Fi HaLow module that operates in the 902-928MHz frequency band. It delivers exceptional RF performance, supporting a maximum data rate of 32.5Mbps and a transmission range of up to 1-2 km.
The HT-HC01 is a Wi-Fi HaLow module offering outstanding RF performance, operating in the 902–928MHz frequency band with maximum data rates of 32.5Mbps and a transmission range of up to 1-2 km.
Designed for easy integration, it features an LLC package, compact size, and a rich set of pins, making it highly adaptable for various PCB designs. The module includes an ultra-long-range PA, high-linearity LNA, T/R switching, and a 32 MHz crystal oscillator, streamlining Wi-Fi HaLow connectivity for external host applications.
Compliant with the IEEE 802.11ah standard, the HT-HC01 is optimized for battery-powered devices, enabling extended sleep and idle states with minimal wake-ups. This design greatly reduces power consumption and enhances battery life, making it ideal for energy-efficient IoT applications.
Specification
- Tab1
|
Parameters
|
Description
|
|
MCU
|
nRF52840
|
|
LoRa Chip
|
SX1262
|
|
Memory
|
1M ROM; 256kB SRAM
|
|
Bluetooth
|
Bluetooth 5, Bluetooth mesh, BLE.
|
|
Operating temperature
|
-40~85℃
|
|
Operating Humidity
|
90%(No condensing)
|
|
Power Supply
|
3.3V
|
|
Hardware Resource
|
3*SPI, 2*I2C, 2*UART, 4*PWM, QPSI, I2S, PDM, QDEC, Etc
|
|
Interface
|
2*ANT (IPEX1.0)), 54*1.27 stamp hole pin headers
|
|
Dimensions
|
30*20*3.2 m3
|

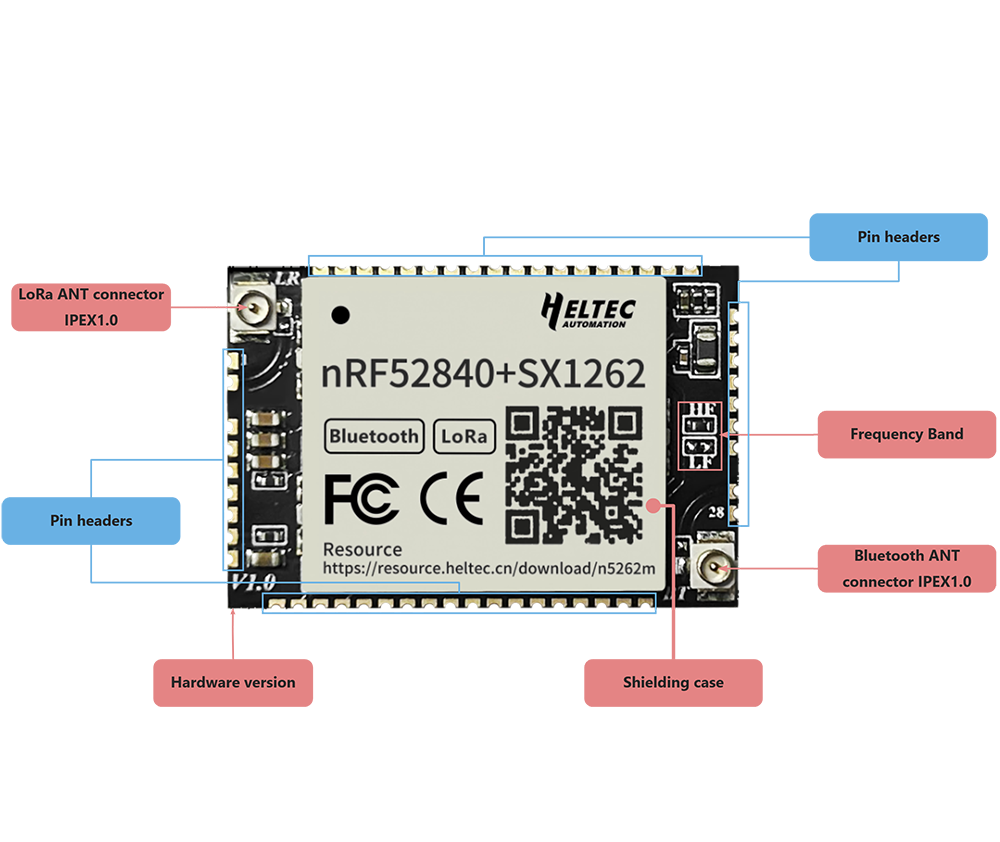

Powerful communication capability
based on the nRF52840 and SX1262.
supports LoRa and Bluetooth.

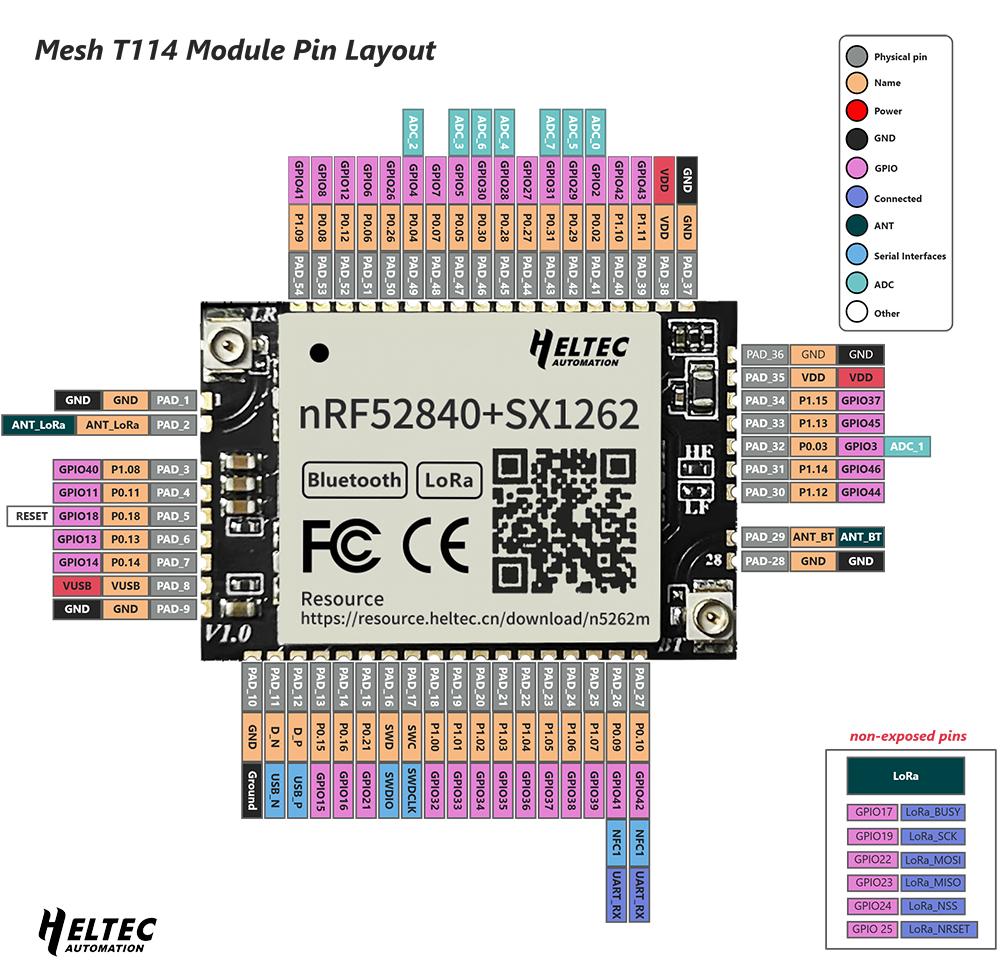

Powerful hardware support
offers a rich set of pins and interfaces.
featuring a 1.27mm pitch stamp hole design, making itcompact and easy to integrate into your PCB.

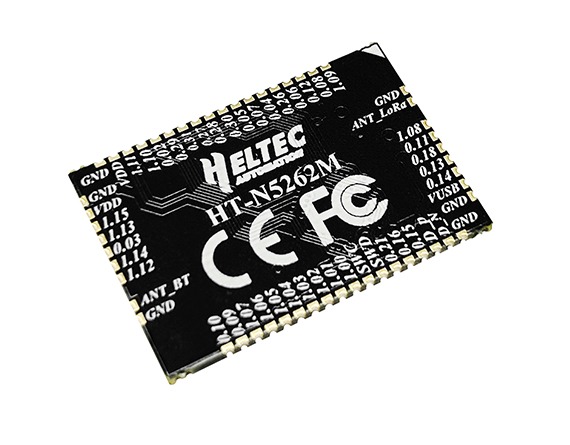

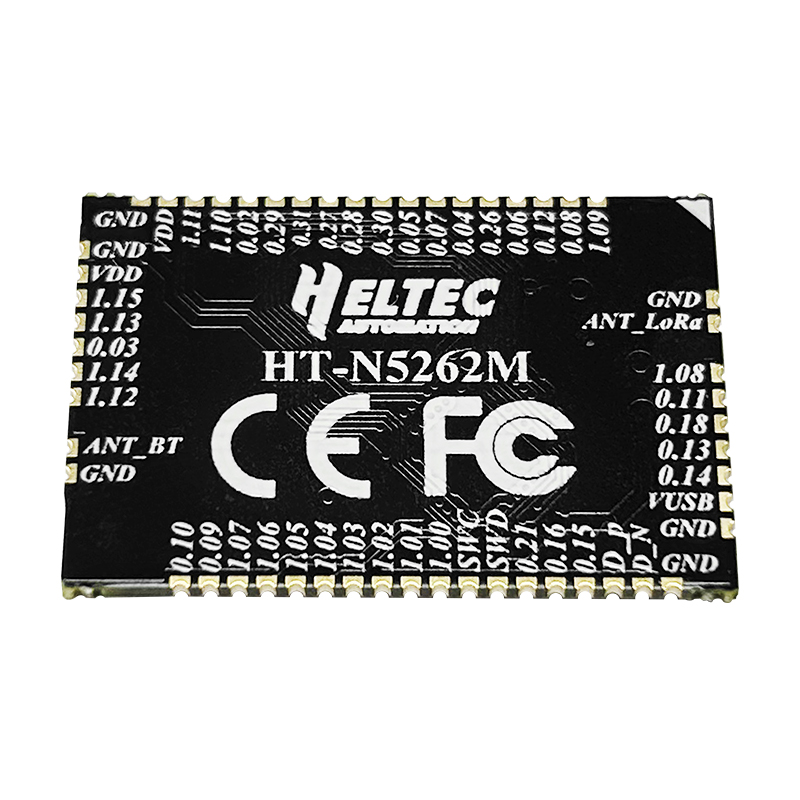

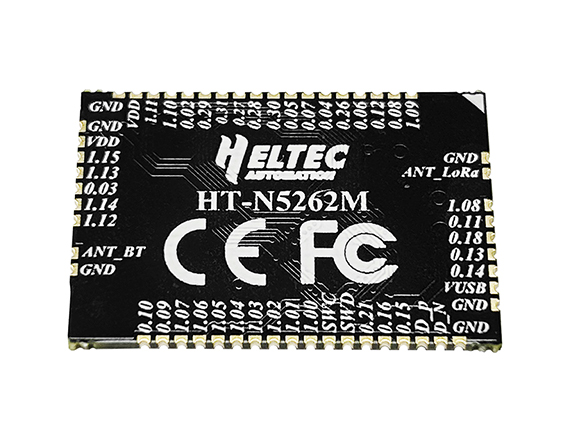

Picture display
