Product introduction
NMAxe is based on Bitaxe project, use the BM1366 ASIC chip, it’s an open-source project specialized for solo miner.
Summary
NMAxe is a NMMiner Offical development board, with BM1366 ASIC, Wi-Fi, and Bluetooth. It’s an ASIC solo lottery Miner. Perfect for solo miners aiming to strike a Bitcoin block, the NMAxe is your golden ticket to potentially earning the 3.125 Bitcoin block reward. This high-efficiency, rewarding experience makes it the ultimate lottery miner on the market.
Goals
- Standalone: You can mine directly to the pools over WiFi. No External computer is needed.
- Embedded: low cost, low maintenance, high availability, high reliability, low power( less than 15W).
- ASIC: based on the very, very efficient BM1366 from Bitmain.
BM1366
- The BM1366 is an undocumented SHA256d mining ASIC from Bitmain.
- It’s used in the Antminer S19XP and the S19k Pro.
- Bitmain claims the BM1366 has 0.021J/GH efficiency.
The software ESP-Miner-NMAxe is fully open-source, fored from bitaxe and optimised for NMAxe.
It’s from the open-source project:
Read More
Specification
- Tab1
|
Origin
|
Mainland China
|
|
Integrated Feature
|
WiFi 802.11b/g/n, BLE
|
|
Device management
|
Web service Axe OS/NMController
|
|
Master Chip
|
ESP32-S3FN8, Xtensa32 dual core processor
|
|
ASIC
|
BM1366
|
|
HashRate
|
500 ~ 550 GH/s
|
|
Wi-Fi
|
802.11 b/g/n, up to 150Mbps
|
|
Power supply range
|
9/2.5A~12V /2A
|
|
Display
|
1.14 inch TFT-LCD display 135*240, 262k colors
|
|
Supply mode
|
DC\PD3.0 DC adapter and PD charger are supported
|
|
Memory
|
384KB ROM; 512KB SRAM; 16MB SPI Flash
|
|
Power Interface
|
Type-C USB\DC2.0
|
|
Power Consumption
|
15~20W
|
|
Operating temperature
|
-20 ~ 70 ℃
|

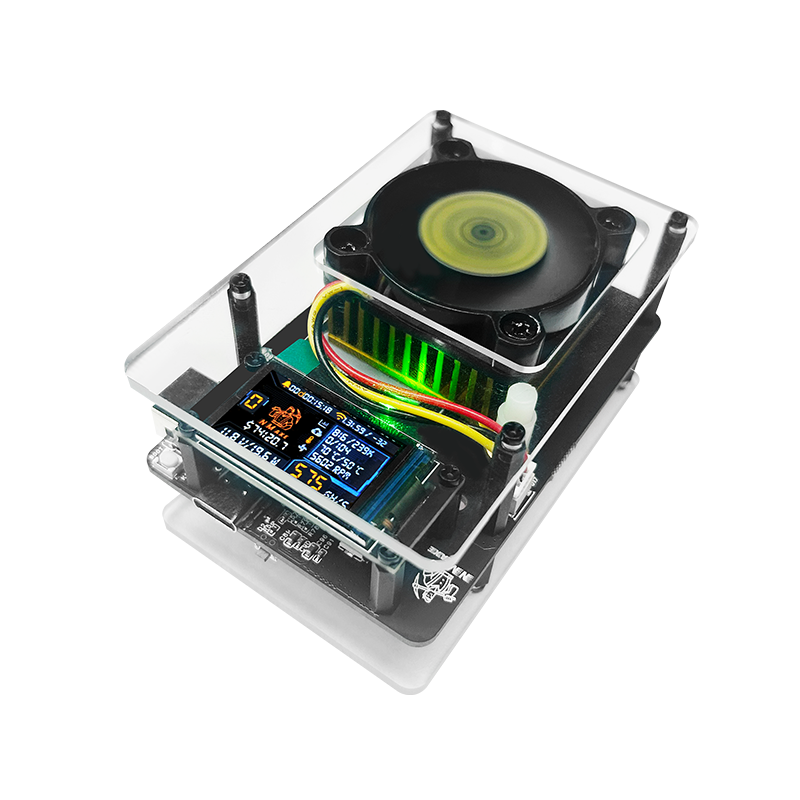

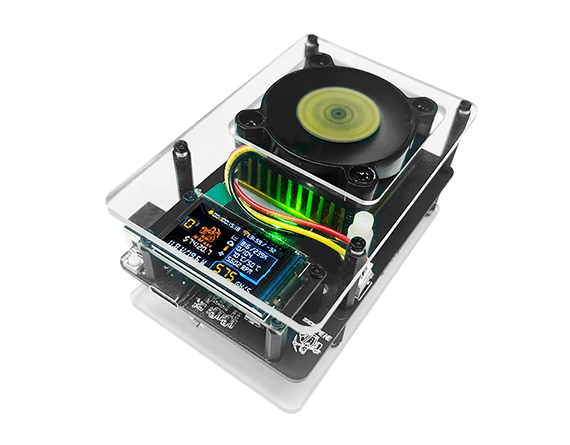

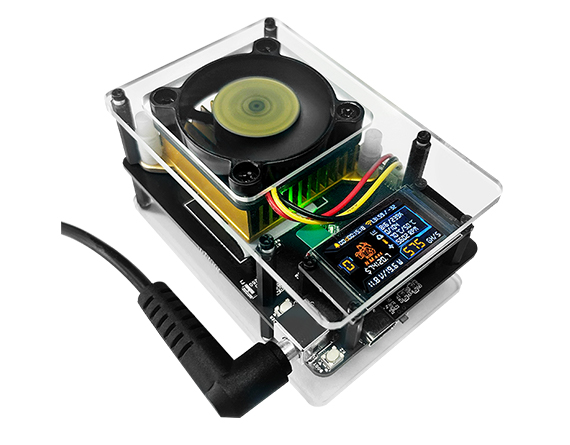

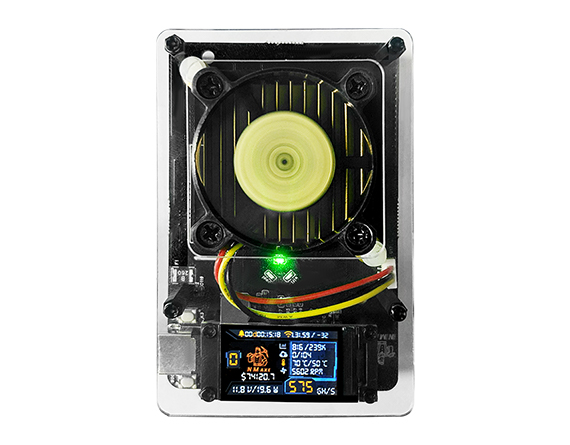

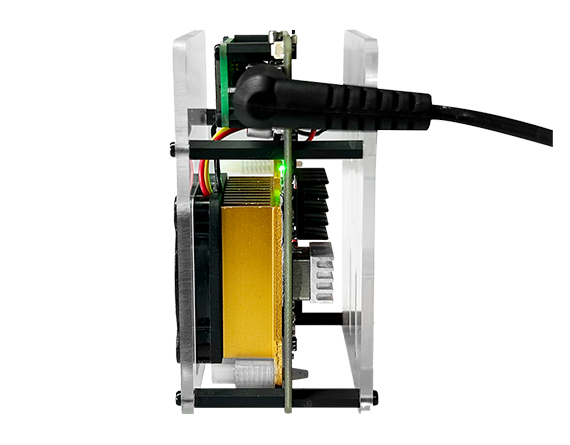

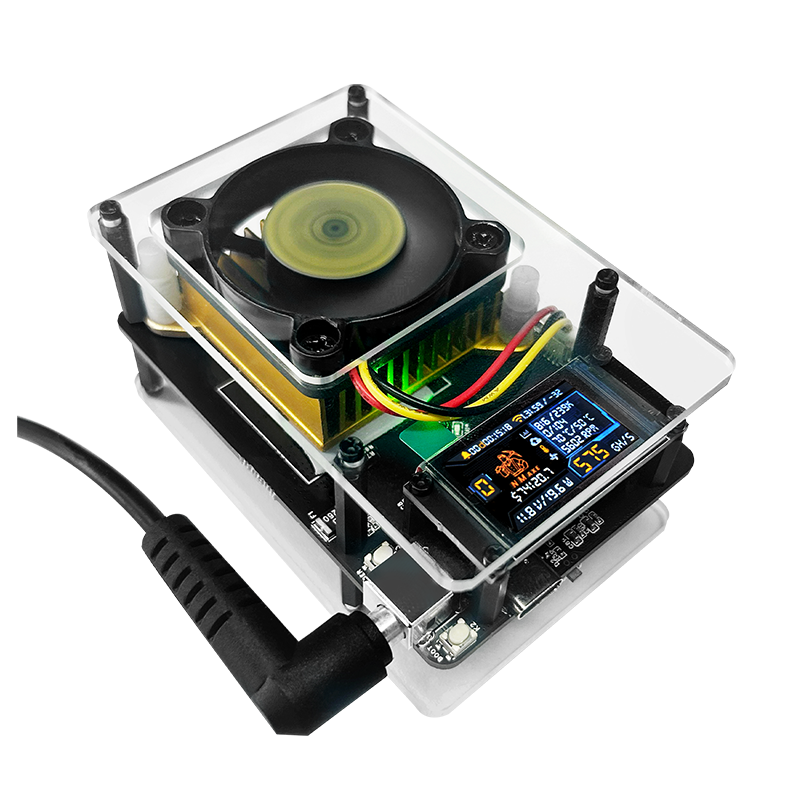

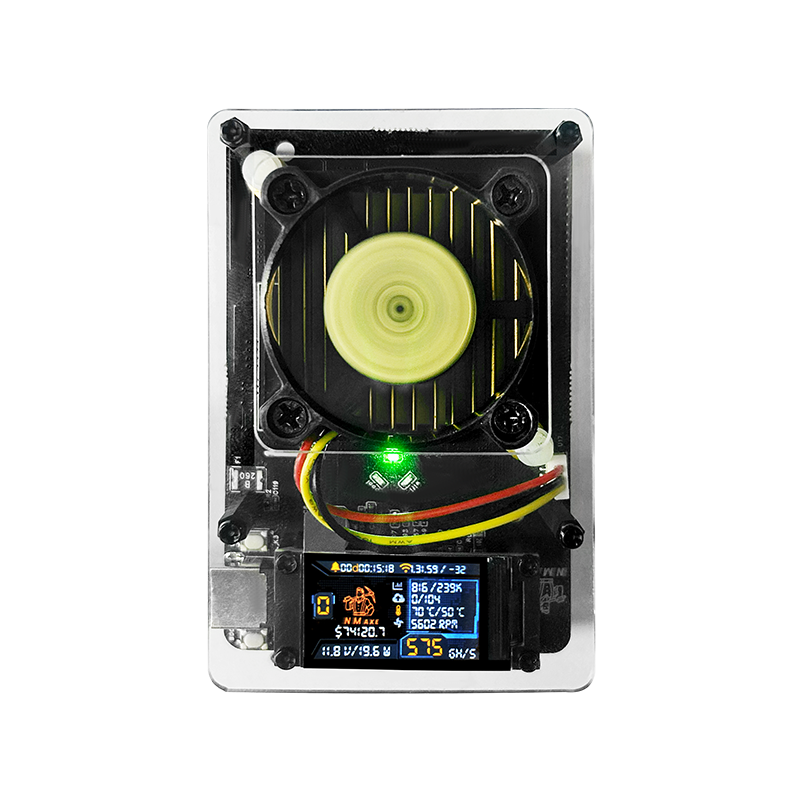

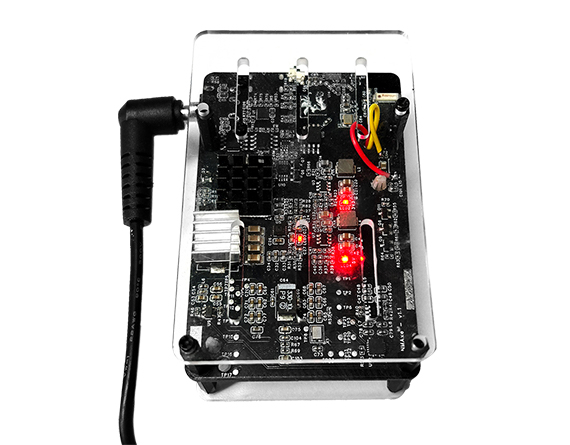

Picture display
