NMAxe-Gamma
NMAxe Gamma Use the BM1370 ASIC Chip 1.2TH/s Connect Directly Via Wi-Fi
Goals
Standalone: Connect directly via Wi-Fi, eliminating the need for an external computer.
Embedded: low cost, low maintenance, high availability, high reliability, low power( about 20W). Same power consumption with the NMAxe, but more energy-efficient. ASIC: based on the very, very efficient BM1370 from Bitmain.
Software
The software ESP-Miner-NMAxe is fully open-source.
It’s from the open-source project: ESP-Miner, which has been adapted for the BM1366 and the NMAxe hardware; BM1370 and the NMAxe-gamma hardware.
Product introduction
What’s this?
NMAxe noctua is based on Bitaxe-gamma (bitaxe-601) project, use the BM1370 ASIC chip, Wi-Fi, and Bluetooth,the hashrate increased from 500GH/s( NMAxe) to 1.2 TH/s,2.4 times of NMAxe’s 500GH/s.
Specification
- Tab1
|
Parameters
|
Description
|
|
Origin
|
Mainland China
|
|
ASIC
|
BM1370
|
|
Master Chip
|
ESP32-S3R8, Xtensa32 dual core processor
|
|
Hash Rate
|
1000 ~ 1200 GH/s
|
|
Wi-Fi
|
802.11 b/g/n, up to 150Mbps
|
|
Device management
|
Web service Axe OS/NMController
|
|
Power Interface
|
Type-C USB\DC2.0
|
|
Supply mode
|
DC\PD3.0 DC adapter and PD charger are supported
|
|
Power Supply
|
12V / 3A (recommend)
|
|
Power Consumption
|
20~36W
|
|
Display
|
1.14 inch TFT-LCD ; 135*240;Full-color
|
|
Fan
|
DC 5V/Dual bearing brushless Fan
|
|
Heat sink
|
40*40*30mm
|
|
Memory
|
512KB SRAM; 8MB PSRAM; 384KB ROM; 16MB SPI Flash
|
|
Dimensions
|
85*56*70mm
|
|
Operating temperature
|
-20 ~ 70 ℃
|

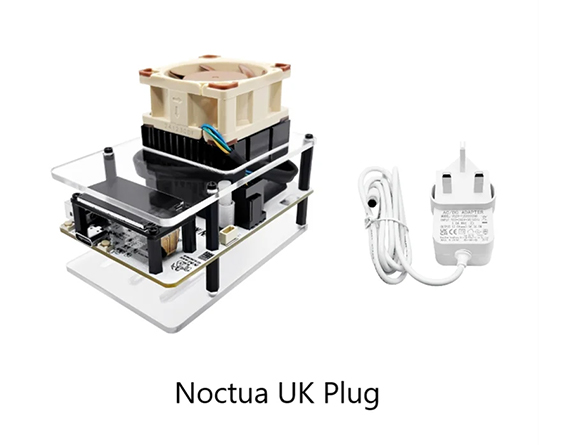

Picture display
