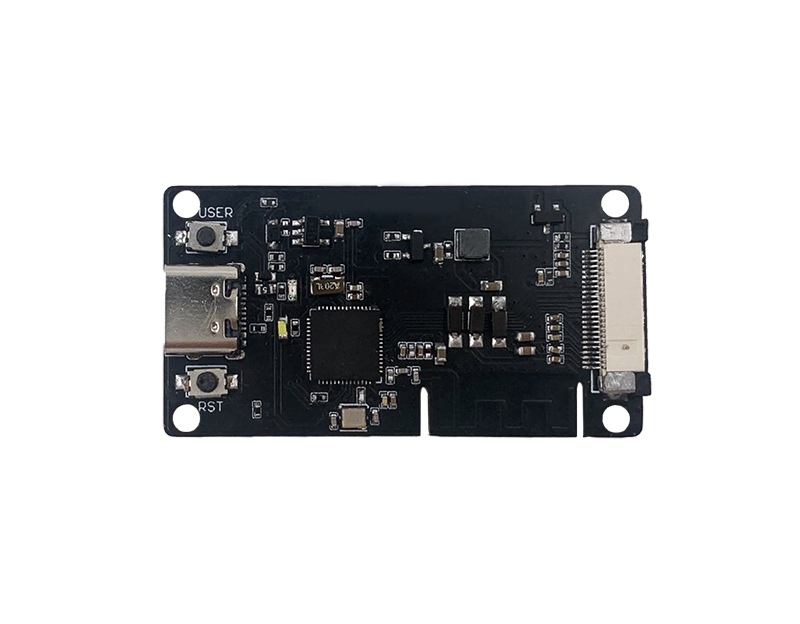

Multi Size E-ink Drive Board
It is e-ink driveboard, the accessory of E-ink display
* The MCU uses ESP32-S3FN8, supports Wi-Fi and BLE.
* Integrated USB to serial chip, facilitate user secondary development.
* Supports Arduino.
* Provides a development environment and sample code.
* Storage temperature range: -40 ~ 85℃
* Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
Product introduction
It is also used as an Arduino development board, We provide the development environment and sample code, So that you can do the corresponding development work.
Specification
- Tab1
| Parameters | Description |
| MCU | ESP32-S3FN8(Xtensa® 32, dual-core processor, 240MHz) |
| UART Chip | CP2102 |
| Storage Temperature | -40~85℃ |
| Recommended Operating Temperature | -10~55℃ |
| Power Supply | SH1.25-2 lithium battery |
| USB Type-C 5V | |
| Wi-Fi Protocol | IEEE 802.11b/g/n |
| BLE | Bluetooth 5; Bluetooth mesh |
| E-Ink Interface | Interface 24 pin FFC |
| Communication Mode | Wi-Fi, Bluetooth |
| Dimensions | 49mmx25mm |
Product Description

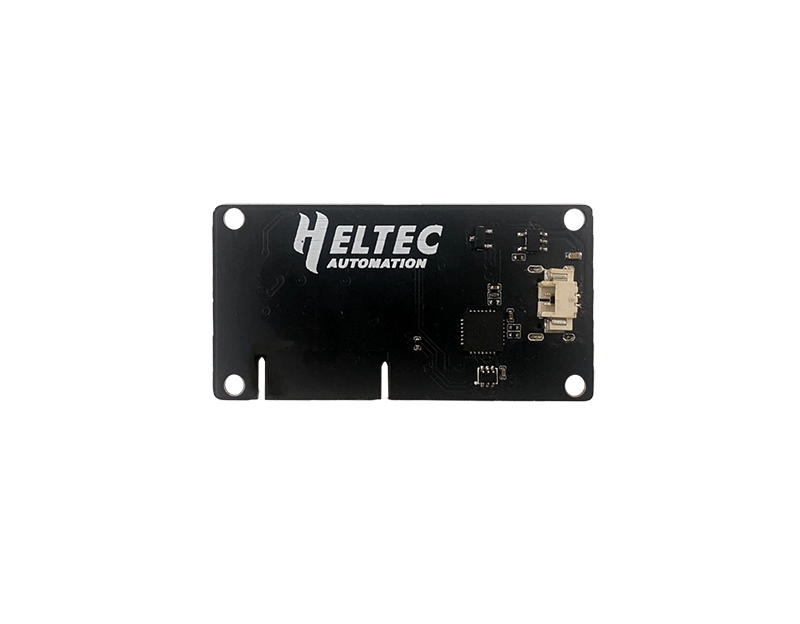

SH1.25-2 battery interface
SH1.25-2 battery interface has an integrated lithium battery management system that includes charge and discharge management, overcharge protection, battery power detection, and automatic switching between USB and battery power.
The board is designed to be compatible with the majority of Heltec's e-ink displays.
Our product is designed to work seamlessly with the majority of Heltec E-ink displays available in the market.
Product's interface is intuitively designed to ensure ease of use
Integrated USB to serial chip, facilitate user secondary development.
