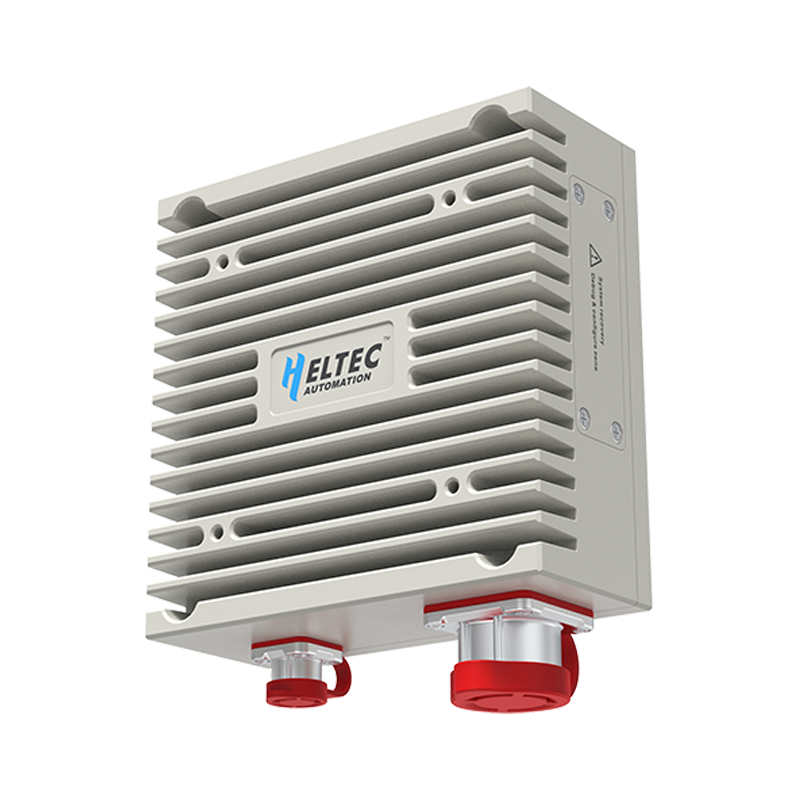

HT-M02 Edge LoRa Gateway (V2)

Heltec HT-M02 V2 LoRaWAN Gateway with LTE WiFi PoE for agriculture industrial smart city IOT



● Water and dust proof: IP66.

Pre-installed Docker. Users can easily deploy various applications

All aluminum casing ensures that the entire equipment not only takes into account heat dissipation characteristics, but also has good mechanical strength

Local web configuration page.

Can connect to various network servers such as Heltec SnapEmu IoT Hub, TTN, ChirpStack, etc;

Product introduction

What’s this?
The edge computing LoRa gateway, equipped with Wi-Fi, PoE, and LTE capabilities, is designed with robust protection features,making it suitable for a wide range of application scenarios.
Main Features

In real-world applications, equipment often operates in environments that deviate from expected conditions, sometimes facing unfavorable factors. Industrial settings, for instance, can subject equipment to intense vibration, noise, dust, and high temperatures. Similarly, in urban areas, devices might endure exposure to sunlight, rain, as well as extreme winter cold and summer heat.

The HT-M02 (V2) is an edge computing LoRaWAN® gateway preloaded with the Linux (4.19.219 Kernel, aarch64) Debian 10 operating system. Encased in an IP66-rated waterproof aluminum shell, this gateway delivers extensive coverage and powerful signal output. It also supports connections to multiple network servers, making it an ideal choice for a wide range of LoRaWAN® applications, including smart buildings, smart agriculture, industrial information systems, and environmental monitoring.

Specification

Hardware
Resources
CPU
ROCKCHIP Quad-core Cortex-A55 64-bit 1.8GHz processor.
RAM
2G DDR4
ROM
32G eMMC 5.1 (available to customize to 8/16/64/128G)
LoRa Baseband
SX1303 + SX1250 chipset;
LoRa TX Power
Up to 26±1dBm
LoRa RX Sensitivity
-125dBm @125KHz/SF7
-139dBm @125KHz/SF12
Operation system
Pre-loaded with Linux (4.19.219 Kernel, aarch 64) Debian 10
Interface
DC Input, UART debug Header, ETH interface, SIM card slot, SMA antenna socket*3 (LoRa, 4G, Wi-Fi 2.4GHz)
Ethernet (Default)
100/1000M.
LTE (Optional)
Cat. 1 / Cat. 4.
Wi-Fi (Optional)
IEEE 802.11 b/g/n
PoE (Optional)
IEEE802.3af
Power supply
4.5~17V DC interface.
Size
125 (+40) * 125 * 52 mm.
Operating temperature
–40 ~ 85 °C

Product Description

HT-M02

Edge computing ability

The A55 CPU of HT-M02 can provide sufficient computing power and can directly install LoRa Network Servers such as TTS and ChirpStack on it, serving as a hub for LAN IoT solutions.

Wall fixing

deploymentCooperate with solar panels and outdoor batteries to facilitate the use of outdoor projects

HT-M02
HT-M02

Convenient outdoor

deploymentCooperate with solar panels and outdoor batteries to facilitate the use of outdoor projects
