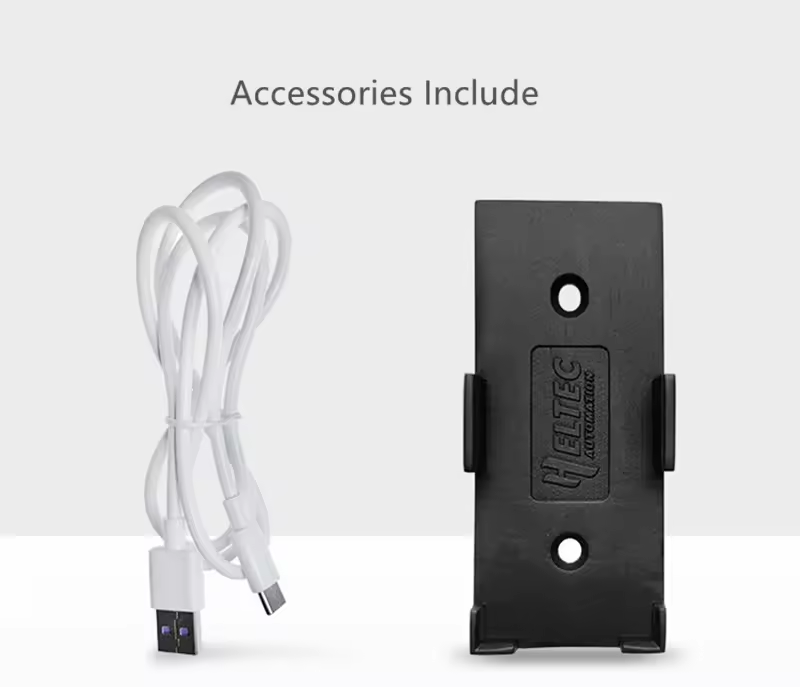

With the wall fixing kit, the equipment can be easily fixed to the wall
HT-M01S Indoor LoRa Gateway

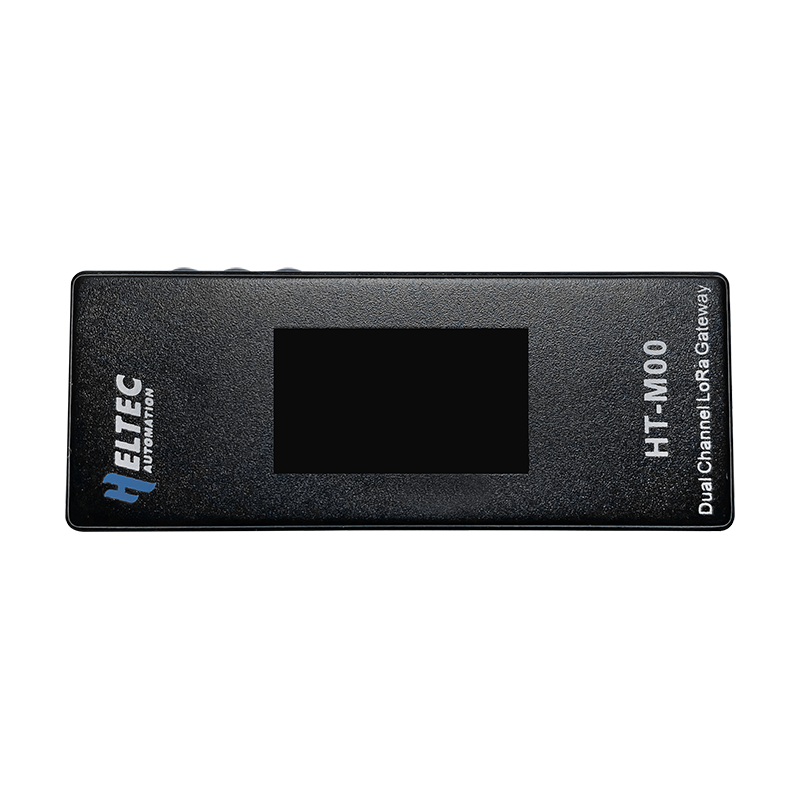

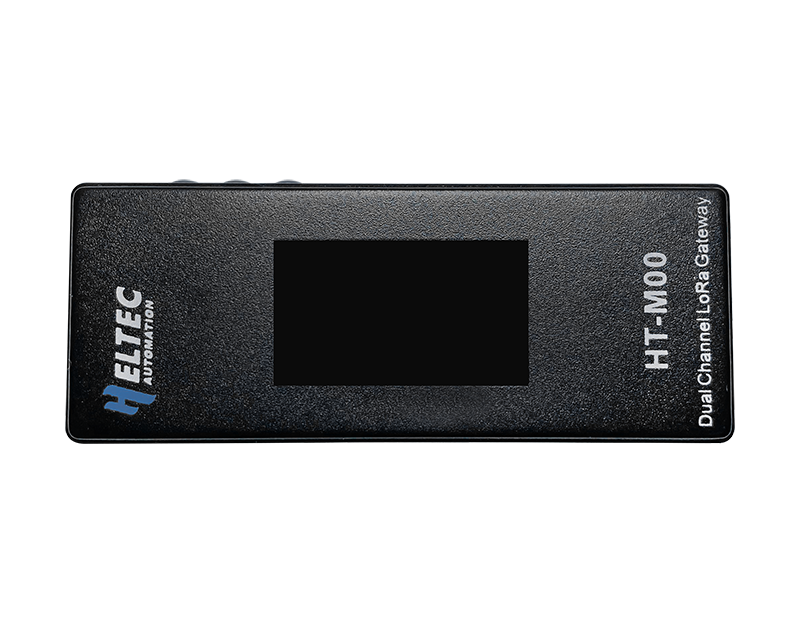

Heltec HT-M00 Dual Channel LoRa Gateway supports Standard LoRaWAN/ESP32 and operates as a 2-channel gateway for LoRa communication
* CE Certificate
* ESP32 + SX1276
* Emulates LoRa demodulators
* Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional
* Maximum output: 18 ± 1dBm
* Communication interface Type-C USB
* The power supply voltage:5V
* Support for LoRaWAN Class A, Class C protocol
Product introduction
What’s this?
The M00 is an affordable gateway designed for testing LoRaWAN systems, ideal for private networks set up by individuals, though not suited for public networks like TTN. This low-cost, dual-channel gateway is perfect for smart family LoRa applications, supporting up to 30 LoRa nodes. It operates on two SX1276 chips controlled by an ESP32 microcontroller.
Main Features
The HT-M00 is a dual-channel gateway meticulously designed with cost-efficiency in mind. It’s particularly tailored for smart family LoRa applications that manage up to 30 LoRa nodes. At the heart of this gateway are two SX1276 chips, expertly driven by an ESP32 processor. To facilitate monitoring of the 125KHz SF7~SF12 spreading factors, a software mixer, commonly known as a baseband simulation program, has been developed.
The software mixer is a critical component that enables the HT-M00 gateway to operate with high efficiency. It is designed to simulate baseband signals, which are then mixed with the radio frequency signals to produce the desired output. The software mixer has been developed with great care and precision, and has undergone rigorous testing to ensure that it is capable of delivering accurate and reliable results. In conclusion, the HT-M00 gateway is a well-designed, cost-effective solution that is ideally suited for smart family LoRa applications. The inclusion of the software mixer adds an extra layer of functionality, making it possible to monitor 125KHz SF7~SF12 spreading factor with ease. With its reliable performance and advanced features, the HT-M00 is a gateway that is sure to meet the needs of professionals and businesses alike.
Specification
- Tab1
|
Model Number
|
HT-M00
|
|
Place of Origin
|
China
|
|
Sichuan
|
|
|
Brand Name
|
Heltec
|
|
Chipset
|
SX1276
|
|
Supplier Type
|
factory
|
|
Application
|
IoT
|
|
Product name
|
LoRa Gateway HT-M00
|
|
Certification
|
CE
|
|
Interface
|
Type-C USB
|
|
Maximum output
|
18 ± 1dBm
|
|
Frequency
|
433MHz,470-510MHz,863-870MHz,902-928MHz
|
|
Protocol
|
LoRaWAN Class A, Class C
|
|
Application
|
IOT smart family LoRa applications
|
Product Description
Low Cost
Built-in Display

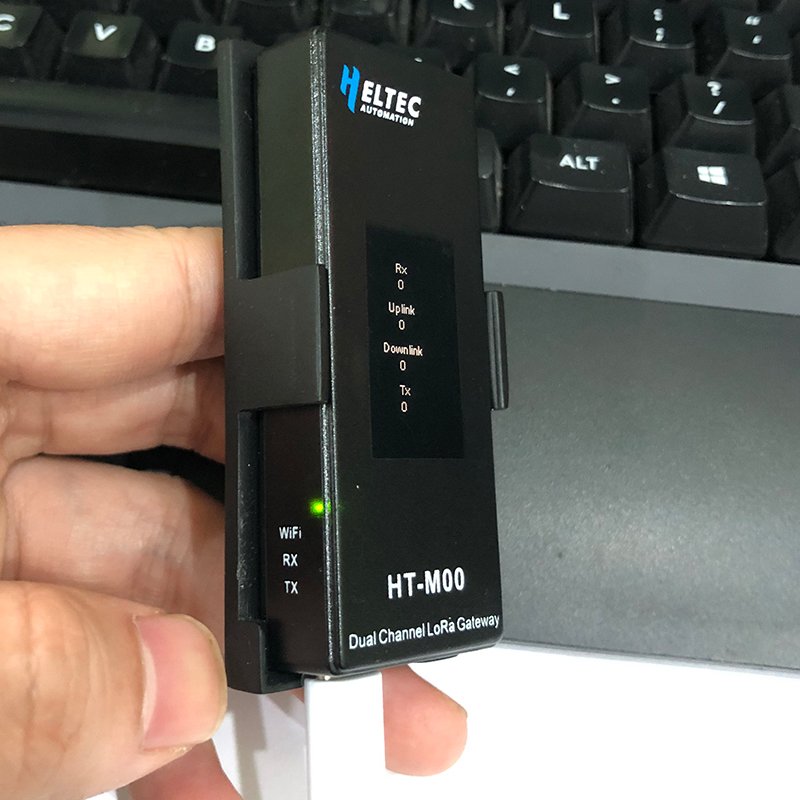

Built-in display screen can display upstream and downstream in real time
