HT-HC01 WiFi HaLow Module
HT-HC01 Wi-Fi HaLow Module with Excellent RF Performance Operating at 902-928MHz Transmission Distance of up to 1-2km
•Supports both Wi-Fi and Ethernet with a dual-band design for Wi-Fi HaLow and 2.4GHz.
•Offers versatile networking options, including AP, STA, and Mesh modes.
•Simple setup and OTA upgrades via an intuitive Web UI.
•Operates reliably in temperatures ranging from -20°C to 70°C.
•Lightweight and stylish wall-mounted design for easy installation.
•Long-range transmission capability, reaching up to 1km or more in clear line-of-sight conditions.
•Accommodates a significantly higher number of devices—over four times that of traditional Wi-Fi access points.
•Delivers high-speed data transmission, maintaining 150Kbps at maximum range and up to 32Mbps at close distances.
Product introduction

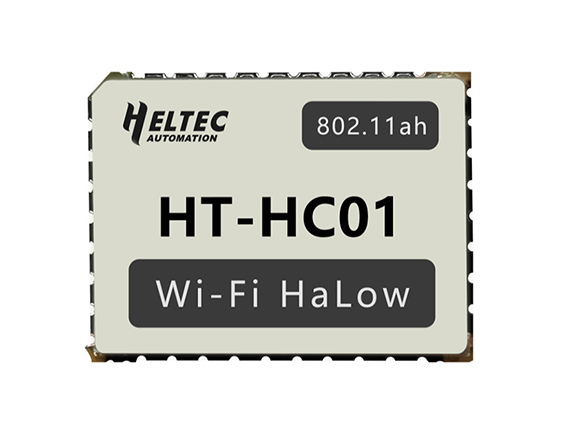

The HT-HC01 is a high-performance Wi-Fi HaLow module that operates in the 902-928MHz frequency band. It delivers exceptional RF performance, supporting a maximum data rate of 32.5Mbps and a transmission range of up to 1-2 km.
The HT-HC01 is a Wi-Fi HaLow module offering outstanding RF performance, operating in the 902–928MHz frequency band with maximum data rates of 32.5Mbps and a transmission range of up to 1-2 km.
Designed for easy integration, it features an LLC package, compact size, and a rich set of pins, making it highly adaptable for various PCB designs. The module includes an ultra-long-range PA, high-linearity LNA, T/R switching, and a 32 MHz crystal oscillator, streamlining Wi-Fi HaLow connectivity for external host applications.
Compliant with the IEEE 802.11ah standard, the HT-HC01 is optimized for battery-powered devices, enabling extended sleep and idle states with minimal wake-ups. This design greatly reduces power consumption and enhances battery life, making it ideal for energy-efficient IoT applications.
Specification
- Tab1
|
Parameters
|
Description
|
|
Main Chip
|
MM6108IQ
|
|
Power Supply
|
3.0~3.6V
|
|
HaLow Standard
|
IEEE 802.11ah
|
|
Band Width
|
1/2/4/8MHz
|
|
Interface
|
38 Header Pins
|
|
Pin Package
|
LLC
|
|
Operating temperature
|
-40 ~ 85℃
|
|
Operating humidity
|
10%～90%, no-condensing
|
|
Dimensions
|
18.5*14*26mm
|
|
Data Rate
|
32.5 Mbps @ 8 MHz
|
|
Display
|
onboard 1.14 inch TFT-LCD display
|
LLC Encapsulation
small size and rich pin, can be very convenient to integrate in a variety of PCB
simplify Wi-Fi HaLow connectivity to external hosts for applications
Long-range transmission
up to 1km or and further within the visual distance
High data rate, single-stream max. data rate of 32.5 Mbps @8 MHz or 15 Mbps @4 MHz channel
powerful hardware
Support for various interface options, include SDIO 2.0, 2* UART
Integrated DC-DC converter supporting a voltage supply from 3.0V to 3.6V
