GPS-Display Expansion Board
GPS-Display Expansion Board Built-in L76 GNSS Module Supports Three Types of Display Interfaces of Application Scenarios
Product introduction
What’s this?

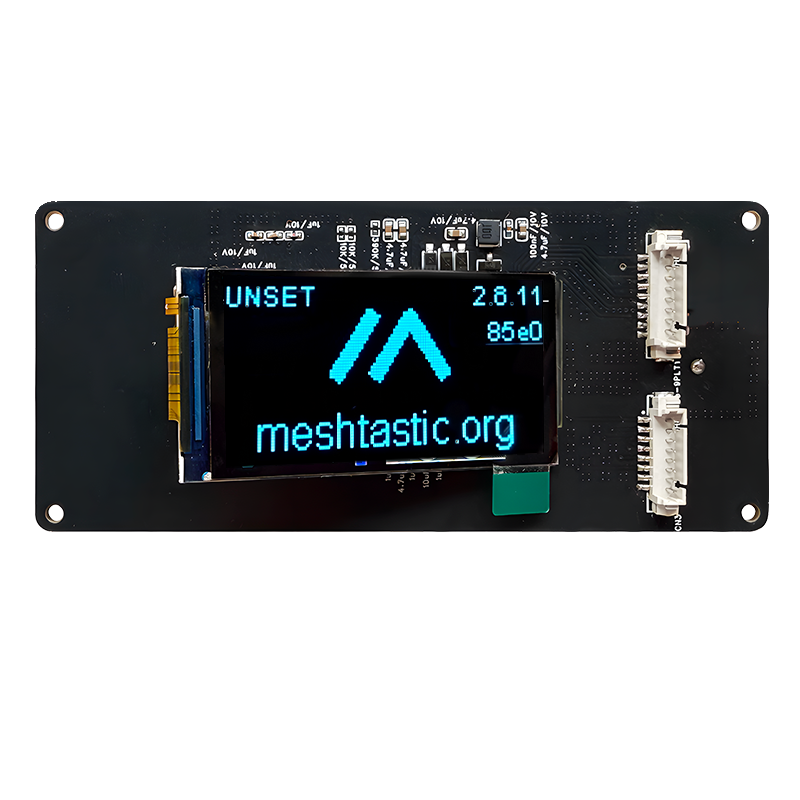

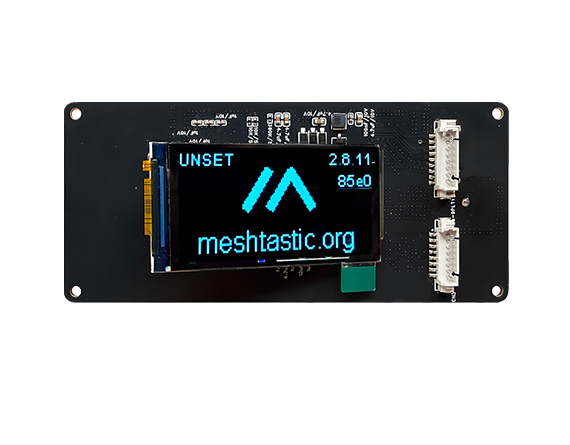

GPS-Display Expansion Board features a built-in L76 GNSS module and supports three types of display interfaces, making it adaptable for a variety of application scenarios.
Specification
- Tab1
|
1.90 TFT LCD Screen Specifications
|
|
|
Parameters
|
Description
|
|
Resolution
|
170*320
|
|
Interface type
|
4-SPI/8-bit parallel port
|
|
Chip
|
ST7789V3
|
|
Display area
|
22.695 * 42.72(mm)
|
|
Pixel size
|
0.135*0.135(mm)
|
|
Brightness
|
350(TYP)
|
|
Operation temperature
|
-20~70℃
|
|
Panel Size
|
Rubber frame backlight：25.8*49.72*1.43（T)(mm) Integrated rubber and iron: 25*49.32*1.43（T)(mm)
|
|
Number of pins
|
30pin 0.5mm distance plug-in type
|
|

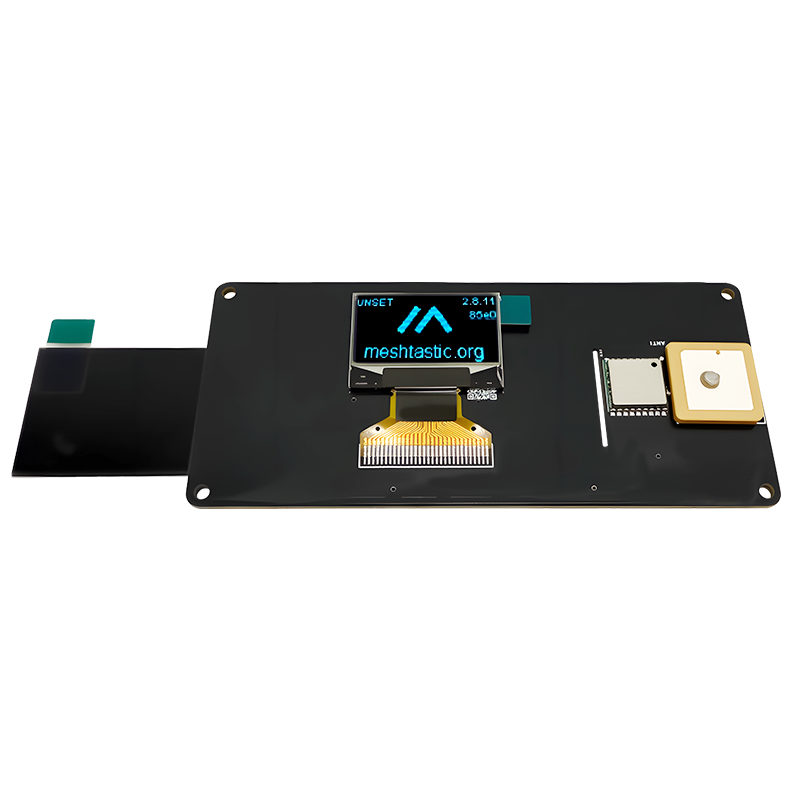

0.96 OLED Screen Specifications
|
|
|
Parameters
|
Description
|
|
Resolution
|
128*64
|
|
Interface type
|
4-wire SPI I2C
|
|
Chip
|
SSD1315
|
|
Display area
|
21.744*10.864(mm)
|
|
Pixel size
|
0.15*0.15(mm)
|
|
Operation temperature
|
-40~70℃
|
|
Panel Size
|
24.74*16.9*1.40(mm)
|
|
Number of pins
|
30pin 0.7mm distance plug-in type
|
|

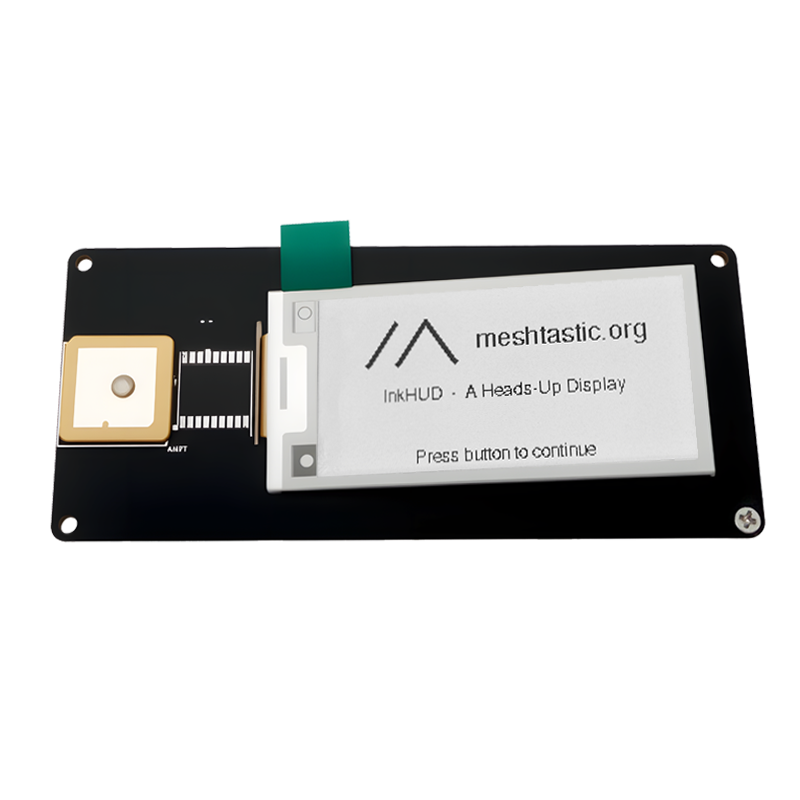

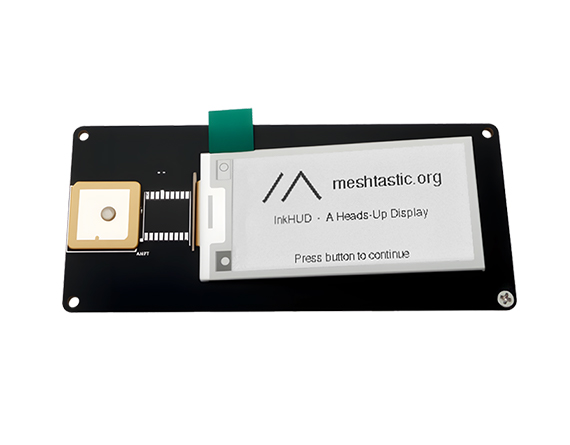

2.13-inch Electronic Paper ink Screen Specifications
|
|
|
Parameters
|
Description
|
|
Resolution
|
122*250
|
|
Color
|
Black & White
|
|
Interface type
|
3-/4-wire SPI
|
|
Chip
|
SSD1680Z/JD79661
|
|
Display area
|
23.7046*48.55(mm)
|
|
Pixel size
|
0.1943*0.1942
|
|
Operation temperature
|
0~40℃
|
|
Storage temperature
|
-25~70℃
|
|
Panel Size
|
29.2(H)*59.2(V)*1.0(D)(mm)
|
|
Number of pins
|
24Pin 0.5mm Spacing plug-in connector
|
|
L76 GNSS Specifications
|
|
|
Parameters
|
Description
|
|
UART
|
Adjustable 4800~115200bps
|
|
Update rate
|
1Hz (default), up to 10Hz
|
|
Power supply
|
2.8V~4.3V
|
|
I/O Voltage
|
2.7V ~ 2.9V
|
|
Position Accuracy
|
2.5m CEP
|
|
Timing Accuracy 1PPS
|
10ns
|
|
Operation temperature
|
-40℃ to 85℃
|
|
Storage Temperature
|
-45℃ to 125℃
|
|
Dimensions
|
10.1 x 9.7 x 2.5mm
|
