EG21-G LTE/4G Module
EG21-G LTE/4G Module PCI Express Mini Card standard interface suited for cost-effective, low-power applications
* Perfect Arduino-Compatible!
* CE and FCC certification;
* CE and FCC certification;
Product introduction
What’s this?
EG21-G global version LTE/4G module.
Main Features
The EG21-G Mini PCIe is a LTE Cat 1 wireless communication module developed by Quectel for M2M and IoT applications, utilizing the PCI Express® Mini Card standard interface. It is particularly suitable for cost-effective, low-power scenarios and supports a maximum downlink rate of 10 Mbps and a maximum uplink rate of 5 Mbps.
The EG21-G Mini PCIe is compatible with previous EDGE and GSM/GPRS networks, ensuring operational capability in remote areas with limited 3G and 4G network coverage.
Based on Qualcomm’s advanced IZat™ positioning technology (Gen8C Lite), EG21-G Mini PCIe integrates a multi-constellation GNSS receiver and supports GPS, GLONASS, BDS, Galileo and QZSS positioning technologies to enable faster, more accurate and more reliable positioning. The built-in GNSS also greatly simplifies the design of customer applications.
Specification
- Tab1
|
Parameter
|
Specification
|
|
LTE-FDD
|
B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28
|
|
LTE-TDD
|
B38/39/40/41
|
|
WCDMA
|
B1/2/4/5/6/8/19
|
|
GSM
|
B2/3/5/8
|
|
Interface
|
SIM*1;UART*1;USB 2.0*1;I2C*1;
|
|
UART_DTR*1;W_DISABLE#*1;LED_WWAN#*1;
|
|
|
RESET#*1
|
|
|
Data Transfer Rate
|
LTE-FDD—10Mbps(downstream)/5Mbps(uplink)
|
|
LTE-TDD—8.96Mbps(downstream)/3.1Mbps(uplink)
|
|
|
DC-HSDPA——42Mbps(downstream)
|
|
|
HSUPA—5.76Mbps(uplink)
|
|
|
WCDMA—384kbps(downstream)/384kbps(uplink)
|

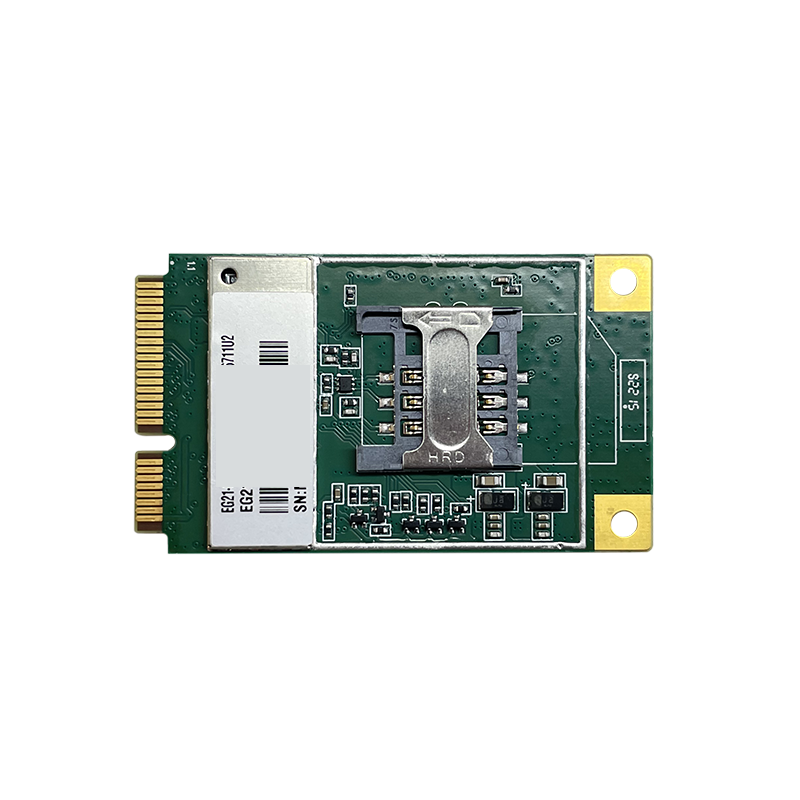

Picture display
