CubeCell Module Plus
Heltect CubeCell Module Plus supports LoRaWAN 1.0.2 with ultra low power for IOT LoRa/LoRaWAN node applications
* Perfect Arduino-Compatible!
* CE and FCC certification;
* Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
* LoRaWAN 1.0.2 support;
* Ultra low power design, 3.5uA in deep sleep;
* 1.27 stamp edge design for SMT;
* Good impendence matching and long communication distance.
Product introduction
What’s this?
HTCC-AM02 is a module that supports AT transparent transmission commands and can be seamlessly integrated into the application circuit.
Main Features
CubeCell (TM) is a newly developed product series created by the Heltec team, specifically designed for LoRa/LoRaWAN node applications. The CubeCell (TM) series is built upon the ASR605x (ASR6501, ASR6502) chips, which are already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have conducted extensive migration and development to ensure seamless support for Arduino®, stable operation of the LoRaWAN protocol, and easy connectivity with lithium batteries and solar panels. HTCC-AM02 is a module that supports AT transparent transmission commands and can be seamlessly integrated into the application circuit.
Specification
- Tab1
|
Parameters
|
Description
|
|
Master Chip
|
ASR6502 (48 MHz ARM® Cortex® M0+ MCU)
|
|
LoRa Chipset
|
SX1262
|
|
Frequency
|
470~510MHz,
|
|
863~923MHz
|
|
|
Max. TX Power
|
21d B ± 1dBm
|
|
Max. Receiving Sensitivity
|
-135dBm
|
|
Hardware Resource
|
UART x 2;
|
|
SPI x 1;
|
|
|
I2C x 1;
|
|
|
SWD x 1;
|
|
|
12-bit ADC input x 3;
|
|
|
8-channel DMA engine;
|
|
|
general-purpose GPIO x 16
|
|
|
Memory
|
128Kbites FLASH; 16Kbites SRAM
|
|
Power Consumption
|
Deep Sleep 3.5uA
|
|
Operating Temperature
|
-20 ~ 70 ℃
|
|
Dimensions
|
20.4 * 20.4 * 3 mm
|
|
Interface
|
LoRa Antenna Interface (IPEX) x 1;
|
|
12 x 1.27 Stamp Hole x 2 +11 x 1.27 Stamp Hole x 1
|
Product Description

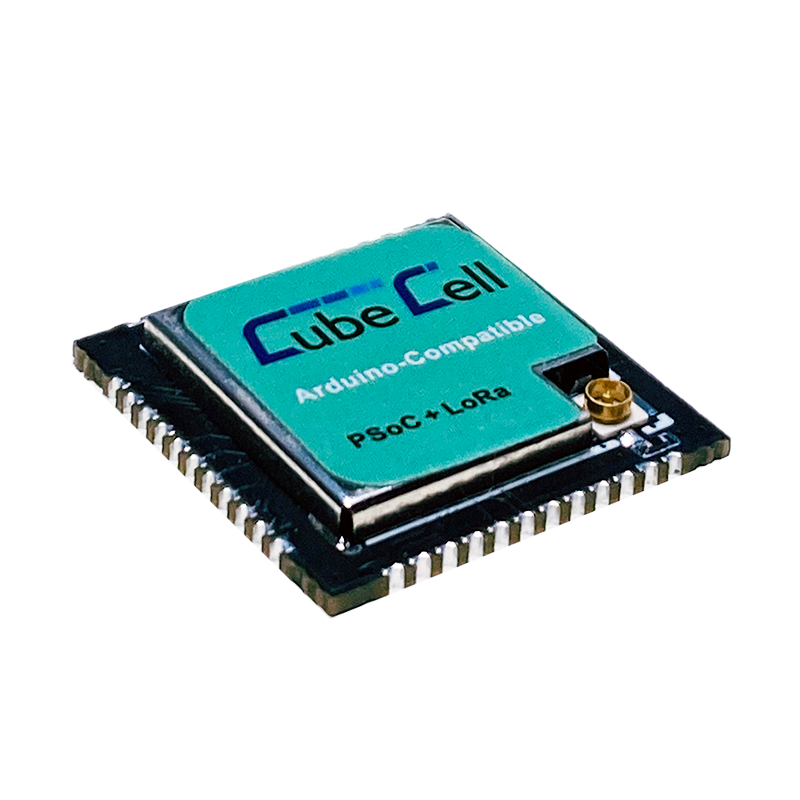

Arduino-Compatible
We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably.

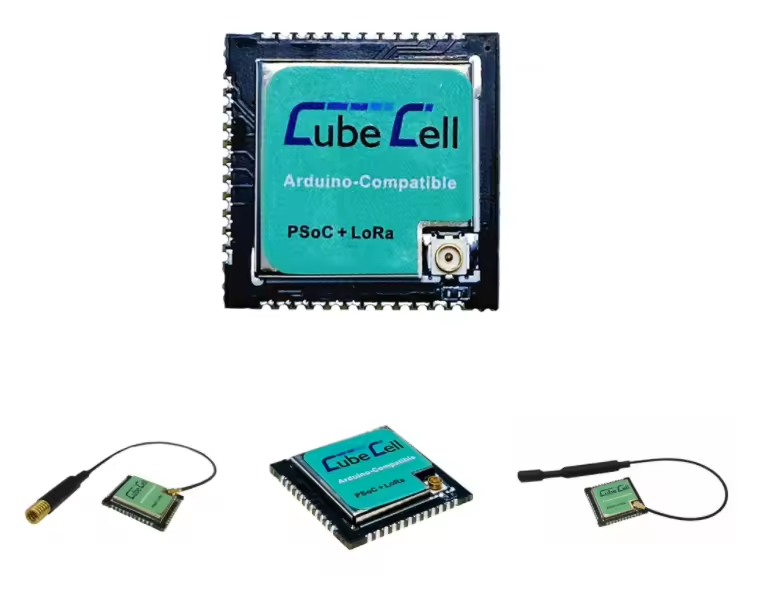

Stamp edge design
1.27 x 11 stamp edge design, can be directly integrated into the application circuit, can work as a MCU master unit or LoRa transceiver.
