CubeCell GPS-6502 (HTCC-AB02S)
Heltec Cubecell LoRa Node Dev-baord AB02S AIR530Z GPS-6502 Dev-board ASR650X ESP32 OLED Display Arduino communication solutions
*CE and FCC certification;
*Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® *Cortex® M0+ Core) and SX1262;
*LoRaWAN 1.0.2 support;
*Ultra low power design, 3.5uA in deep sleep;
*1/2 AA battery shell, use 1/2 AA Lithium chlorine sulfite battery (this battery can’t charge, but onboard USB / battery *power automatic switching allows connect USB when the battery is assembled);
*Good impendence matching and long communication distance.
*Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
*Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
Product introduction
CubeCell (TM) is a new product series made by Heltec team, mainly for LoRa/LoRaWAN node applications.
CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably, can easily connect lithium batteries and solar panels.
HTCC-AB02S is a Dev-Board. Already integrated AIR530Z GPS module, friendly designed for developers, easy to verify communication solutions.
Specification
- Tab1
|
Parameters
|
Description
|
|
Master Chip
|
ASR6502 (48 MHz ARM® Cortex® M0+ MCU)
|
|
LoRa Chipset
|
SX1262
|
|
Frequency
|
470~510MHz,
|
|
863~928MHz
|
|
|
Max. TX Power
|
22 ± 1dBm
|
|
Max. Receiving Sensitivity
|
-135dBm
|
|
Hardware Resource
|
UART x 2;
|
|
SPI x 2;
|
|
|
I2C x 2;
|
|
|
SWD x 1;
|
|
|
12-bits ADC input x 3;
|
|
|
8– channel DMA engine;
|
|
|
GPIO x 16
|
|
|
Memory
|
128Kbites FLASH;
|
|
16Kbites SRAM
|
|
|
Power Consumption
|
Deep Sleep 21uA
|
|
Operating Temperature
|
-20 ~ 70 ℃
|
|
Dimensions
|
55.9 x 27.9 x 9.5 mm
|
|
Interface
|
Micro USB x 1;
|
|
LoRa Antenna interface(IPEX) x 1;
|
|
|
18 x 2.54 pin x 2
|
|
|
Battery
|
3.7V lithium battery power supply and charging
|
|
Solar Energy
|
VS pin can be connected to 5.5 ~ 7V solar panel
|
|
USB to Serial Chip
|
CP2102
|
|
Battery
|
3.7V Lithium（SH1.25 x 2 socket）
|
|
Display Size
|
0.96-inch OLED
|

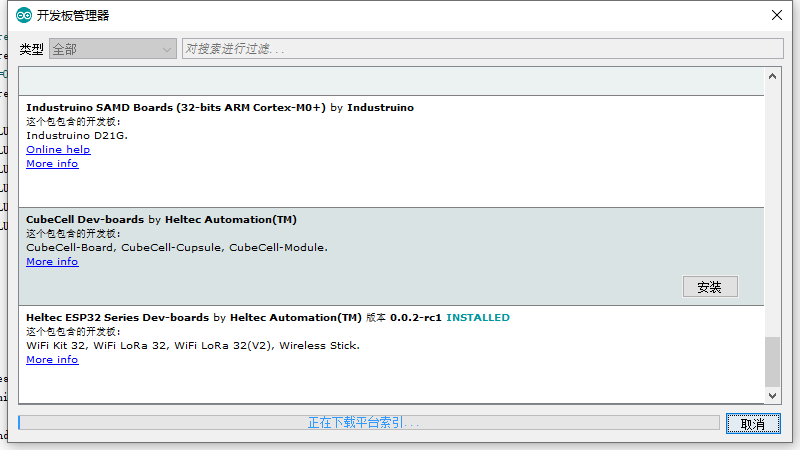

Arduino-Compatible
We have done a lot of migration and development, made it perfectly supportArduino®, can run the LoRaWAN protocol stably.
OLED display
Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other informatio
GPS supported
Use Air530 GPS module, GPS/Beidou Dual-mode position system support.

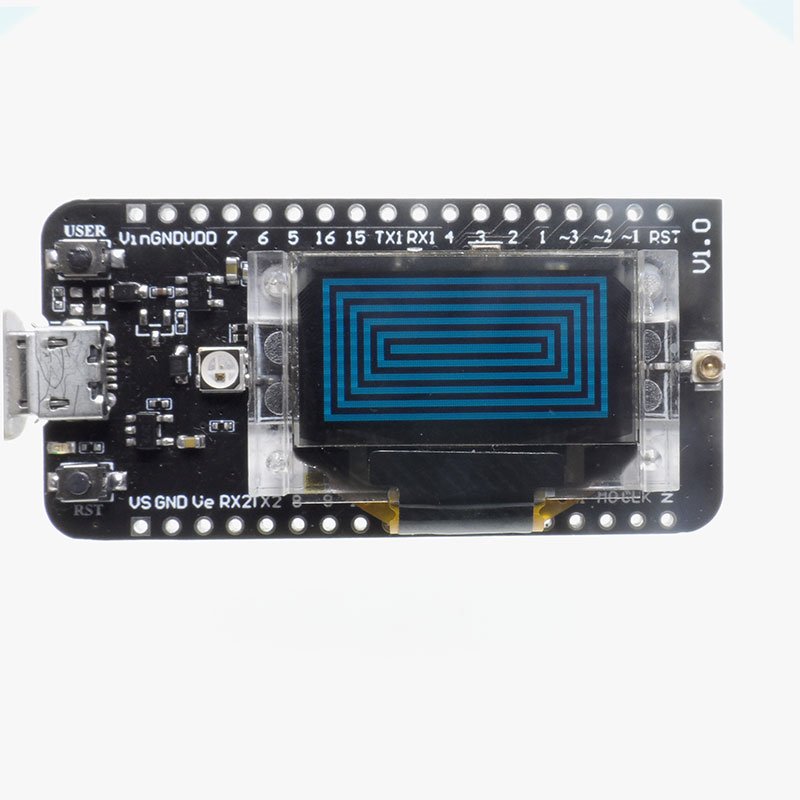

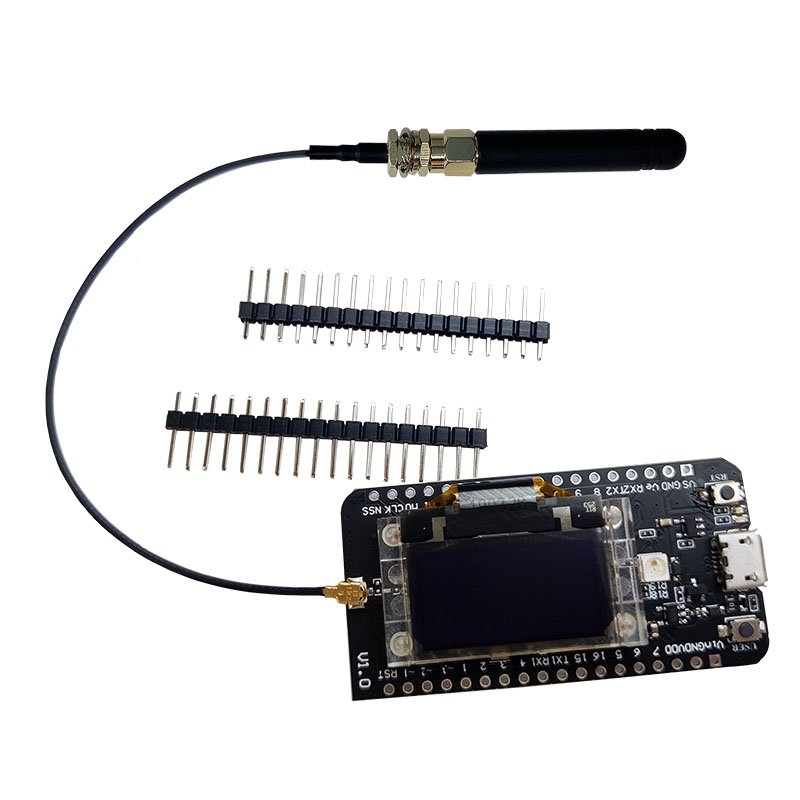

Picture display
