CubeCell GPS-6502 Development Boards
Heltec CubeCell GPS-6502 LoRa Dev-board ASR650X 0.96 inch OLED Display Compatible with Arduino
* Perfect Arduino-Compatible!
* CE and FCC certification;
* Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and
SX1262;
* LoRaWAN 1.0.2 support;
* Ultra low power design, 21uA in deep sleep;
* Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge
protection, battery power detection, USB / battery power automatic switching);
* Good impendence matching and long communication distance.
* Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
* Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
* Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
* Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other
information
* Ultra low power design, 21uA in deep sleep;

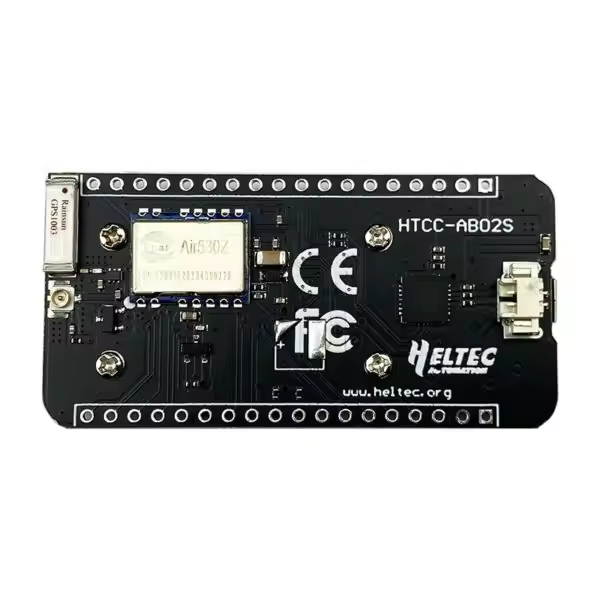

* Use Air530 GPS module, GPS / Beidou Dual-mode position system support;
Product introduction
Specification
- Tab1
|
Parameters
|
Description
|
|
Master Chip
|
ASR6502 (48 MHz ARM® Cortex® M0+ MCU)
|
|
LoRa Chipset
|
SX1262
|
|
Frequency
|
470~510MHz,
|
|
863~928MHz
|
|
|
Max. TX Power
|
22 ± 1dBm
|
|
Max. Receiving Sensitivity
|
-135dBm
|
|

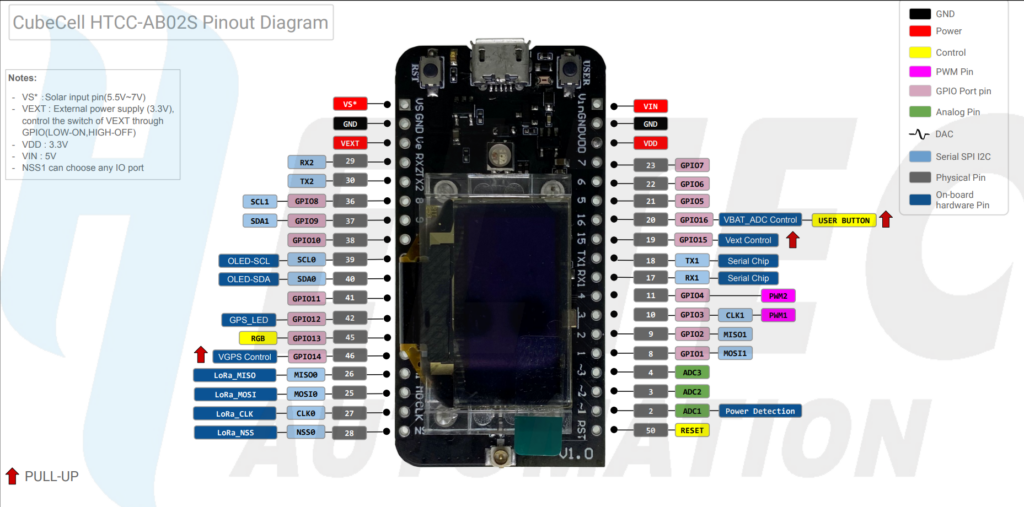

Hardware Resource
|
UART x 2;
|
|
SPI x 2;
|
|
|
I2C x 2;
|
|
|
SWD x 1;
|
|
|
12-bits ADC input x 3;
|
|
|
8– channel DMA engine;
|
|
|
GPIO x 16
|
|
|
Memory
|
128Kbites FLASH;
|
|
16Kbites SRAM
|
|
|
Power Consumption
|
Deep Sleep 21uA
|
|
Operating Temperature
|
-20 ~ 70 ℃
|
|
Dimensions
|
55.9 x 27.9 x 9.5 mm
|
|
Interface
|
Micro USB x 1;
|
|

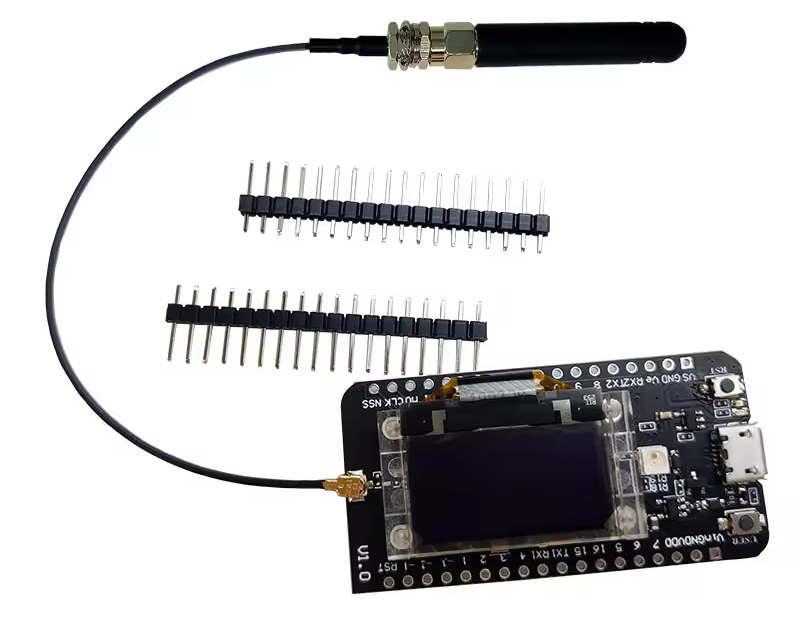

LoRa Antenna interface(IPEX) x 1;
|
|
|
18 x 2.54 pin x 2
|
|
|
Battery
|
3.7V lithium battery power supply and charging
|
|
Solar Energy
|
VS pin can be connected to 5.5 ~ 7V solar panel
|
|
USB to Serial Chip
|
CP2102
|
|
Battery
|
3.7V Lithium（SH1.25 x 2 socket）
|
|
Display Size
|
0.96-inch OLED
|
Product Description
Arduino-Compatible
OLED display
Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used todisplay debugging information, battery power, and other informatio
GPS supported
Use Air530 GPS module, GPS/ Beidou Dual-mode position system support.
Picture display
