CubeCell Dev-Board Plus

Heltec LoRa CubeCell Dev-Board Plus ASR6502 SX1262 Arduino Compatible LoRaWAN LoRa IoT solar CP2102 communication

* Perfect Arduino-Compatible!
* CE and FCC certification;
* Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
* LoRaWAN 1.0.2 support;
* Ultra low power design, 3.5uA in deep sleep;
* Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
* Good impendence matching and long communication distance.

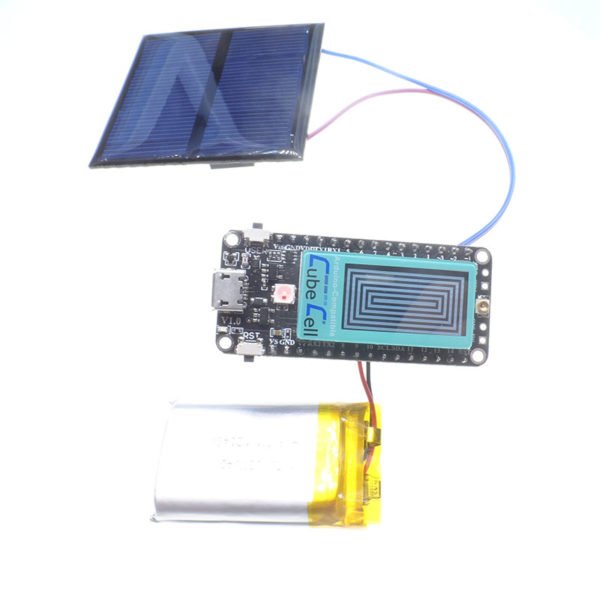

* Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
* Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
* Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
* Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power, and other information

PRODUCT DETAILS

Send Your Inquiry

Section1
Section2
Section3
Section4
Top

Product introduction

What’s this?

HTCC-AB02 is a developer-friendly designed Dev-Board, facilitating easy verification of communication solutions.

Main Features

CubeCell (TM) is a newly developed product series created by the Heltec team, specifically designed for LoRa/LoRaWAN node applications. The CubeCell (TM) series is built upon the ASR605x (ASR6501, ASR6502) chips, which are already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have conducted extensive migration and development to ensure seamless support for Arduino®, stable operation of the LoRaWAN protocol, and easy connectivity with lithium batteries and solar panels. HTCC-AB02 is a developer-friendly designed Dev-Board, facilitating easy verification of communication solutions.

Specification

Tab1

Parameters	Description
Master Chip	ASR6502 (48 MHz ARM® Cortex® M0+ MCU)
LoRa Chipset	SX1262
Frequency	470~510MHz,
Frequency	863~923MHz
Max. TX Power	22 ± 1dBm
Max. Receiving Sensitivity	-135dBm

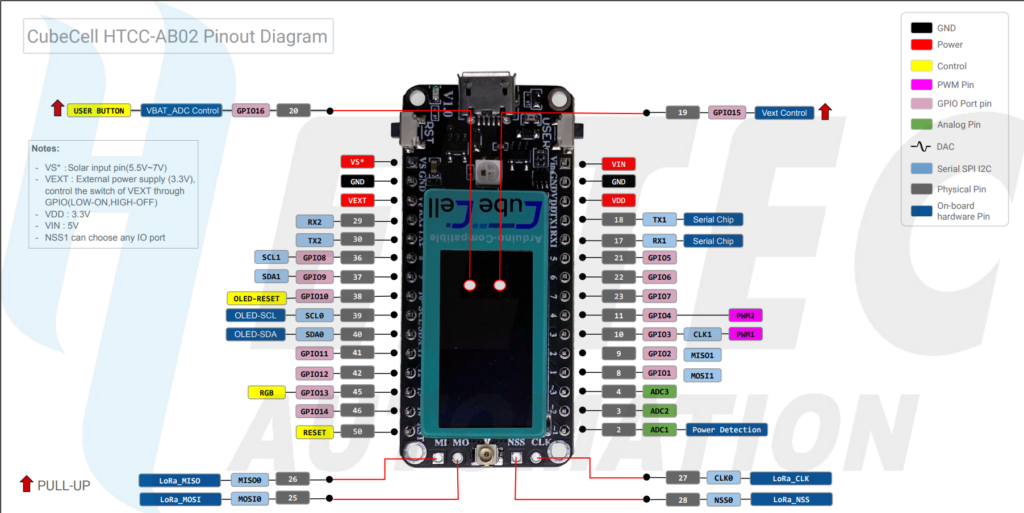

Hardware Resource	UART x 2;
	SPI x 1;
	I2C x 2;
	SWD x 1;
	12-bits ADC input x 3;
	8– channel DMA engine;
	GPIO x 16
Memory	128Kbites FLASH;
Memory	16Kbites SRAM
Power consumption	Deep Sleep 3.5uA
Operating temperature	-20 ~ 70 ℃
Dimensions	51.9 x 25 x 8 mm
Interface	Micro USB x 1;
	LoRa Antenna interface(IPEX) x 1;
	15 x 2.54 pin x 2+2 x 2.54 pin x 3
Battery	3.7V lithium battery power supply and charging
Solar Energy	VS pin can be connected to 5.5 ~ 7V solar panel
USB to Serial Chip	CP2102
Battery	3.7V Lithium（SH1.25 x 2 socket）
Display Size	0.96-inch OLED
