CubeCell – AM01 Module (V2)
Heltec CubeCell-AM01 Module (V2) with SX1262 and ASR6502 Chip Support Arduino and LoRaWAN Protocol Communication
* Perfect Arduino-Compatible!
* CE and FCC certification;
* Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and
SX1262;
* LoRaWAN 1.0.2 support;
* Ultra low power design, 3.5uA in deep sleep;
* 1.27 stamp edge design for SMT;
* Good impendence matching and long communication distance.
Product introduction
What’s this?
HTCC-AM01 is a compact, stamp-hole packaged module that facilitates AT transparent transmission commands and can be seamlessly integrated into the application circuit.
Main Features
HTCC-AM01 is a member of the Cubecell(TM) Series developed by the Heltect team, specifically designed for LoRa/LoRaWAN node applications. It boasts long-range communication, high receive sensitivity, low power consumption, and cost-effectiveness. HTCC-AM01 is built on the ASR6052 platform, with integrated PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262 chip. On the software side, extensive migration and development have been undertaken to ensure seamless support for Arduino®. HTCC-AM01 is a compact, stamp-hole packaged module that facilitates AT transparent transmission commands and seamless integration into the application circuit.
Specification
- Tab1
|
Parameters
|
Description
|
|
Master Chip
|
ASR6502 (48 MHz ARM® Cortex® M0+ MCU)
|
|
LoRa Chipset
|
SX1262
|
|
Frequency
|
470~510MHz,
|
|
863~928MHz
|
|
|
Max. TX Power
|
21d B ± 1dBm
|
|
Max. Receiving Sensitivity
|
-134dBm
|
|
Hardware Resource
|
1*SPI; 1*I2C;
|
|
1*UART;
|
|
|
1*12-bit ADC;
|
|
|
1*SWD;
|
|
|
8*GPIO;
|
|
|
2*PWM;
|
|
|
8-Channel DMA engine
|
|
|
Memory
|
128Kbites FLASH; 16Kbites SRAM
|
|
Power Consumption
|
Deep Sleep 3.5uA
|
|
Operating temperature
|
-40 ~ 85 ℃
|
|

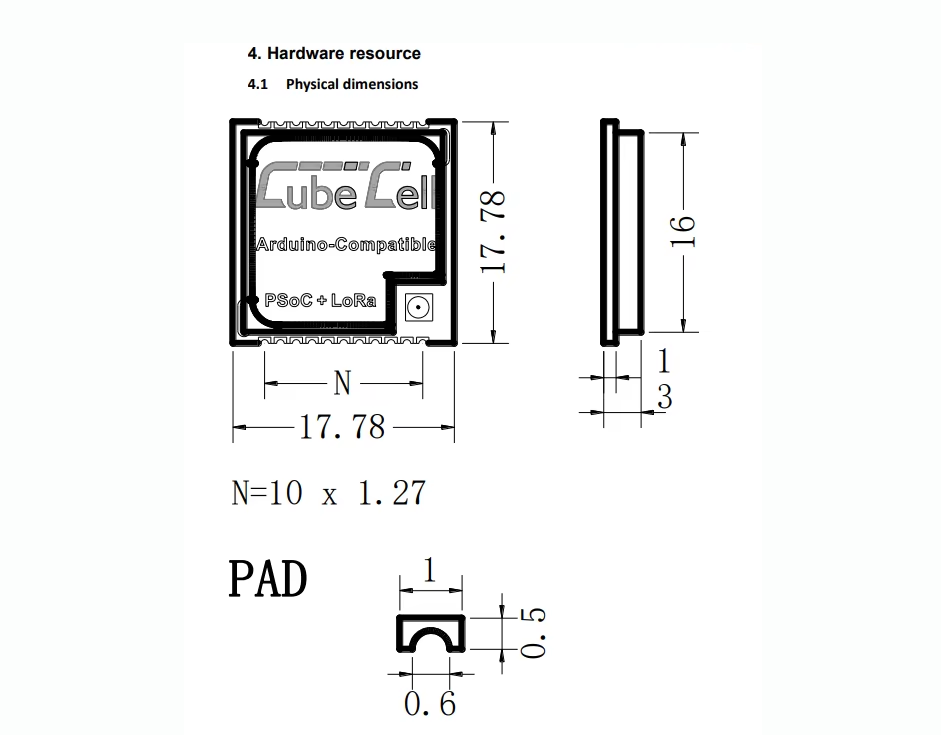

Dimensions
|
18 * 18 * 3 mm
|
|
Interface
|
LoRa ANT (IPEX 1.0);
|
|
1.27 spacing Stamp hole
|
Product Description
Arduino-Compatible
We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably.
Stamp edge design
1.27 x 11 stamp edge design, can be directly integrated into the application circuit, can work as a MCU master unit or LoRa transceiver.

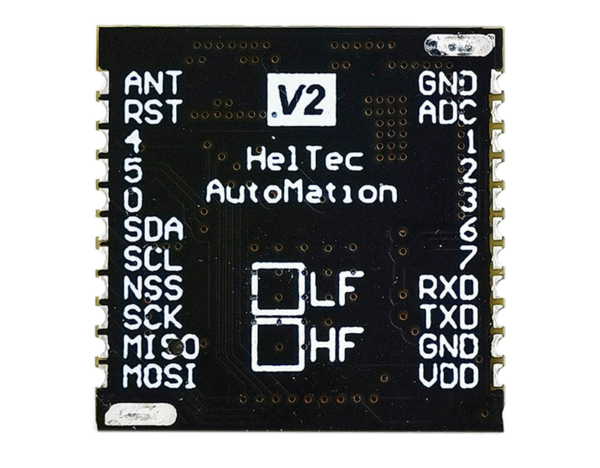

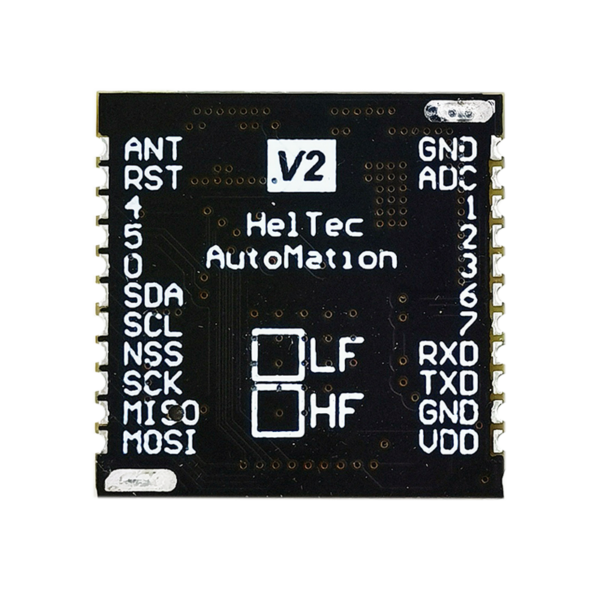

Picture display
