1/2 AA battery shell, use 1/2 AA Lithium chlorine sulfite battery (this battery can’t charge, but onboard USB / battery power
automatic switching allows connect USB when the battery is assembled).
CubeCell 1/2AA Node
Heltec LoRa LoRaWAN CubeCell 1/2AA Node development board with ultra low power IOT for industrial application
* Perfect Arduino-Compatible!
* CE and FCC certification;
* Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and
SX1262;
* LoRaWAN 1.0.2 support;
* Ultra low power design, 3.5uA in deep sleep;
* 1/2 AA battery shell, use 1/2 AA Lithium chlorine sulfite battery (this battery can’t charge, but onboard USB / battery power
automatic switching allows connect USB when the battery is assembled);
* Good impendence matching and long communication distance.
* Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
* Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
Product introduction
What’s this?

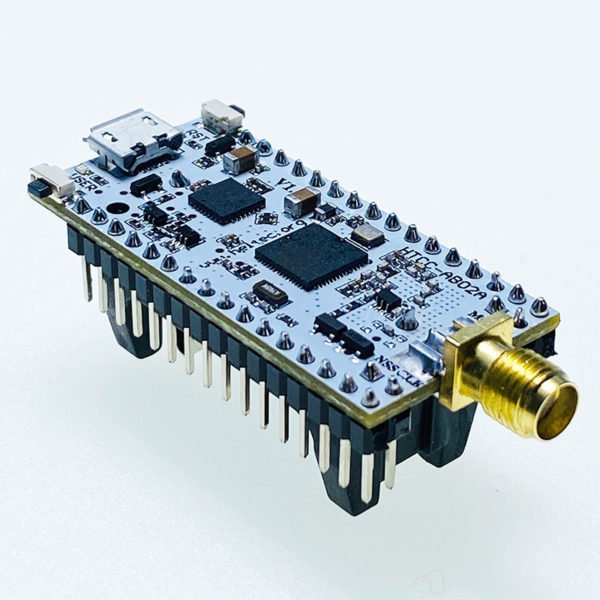

HTCC-AB02A is a developer-friendly designed Dev-Board, tailored for easy verification of communication solutions.
Main Features
CubeCell (TM) is a newly developed product series created by the Heltec team, specifically designed for LoRa/LoRaWAN node applications. The CubeCell (TM) series is built upon the ASR605x (ASR6501, ASR6502) chips, which are already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. Through extensive migration and development efforts, we have achieved full Arduino compatibility and stable support for the LoRaWAN protocol. Additionally, the on-board 1/2 AA battery holder facilitates easy battery usage for users. HTCC-AB02A is a developer-friendly designed Dev-Board, facilitating easy verification of communication solutions.
Specification
- Tab1
|
Parameters
|
Description
|
|
Master Chip
|
ASR6502 (48 MHz ARM® Cortex® M0+ MCU)
|
|
LoRa Chipset
|
SX1262
|
|
Frequency
|
470~510MHz, 863~928MHz
|
|
Max. TX Power
|
22 ± 1dBm
|
|
Max. Receiving Sensitivity
|
-135dBm
|
|
Hardware Resource
|
UART x 2;
|
|
SPI x 2; I2C x 2;
|
|
|
SWD x 1;
|
|
|
12-bits ADC input x 3;
|
|
|
8– channel DMA engine;
|
|
|
GPIO x 16
|
|
|
Memory
|
128Kbites FLASH;
|
|
16Kbites SRAM
|
|
|
Power consumption
|
Deep Sleep 3.5uA
|
|
Operating Temperature
|
-20 ~ 70 ℃
|
|
Dimensions
|
56.6 x 24 x 21.5 mm
|
|
Interface
|
Micro USB x 1;
|
|
LoRa Antenna interface(SMA) x 1;
|
|
|
16 x 2.54 pin x 2+2 x 2.54 pin x 2
|
|
|
Battery
|
1/2AA Lithium
|
|
USB to Serial Chip
|
CP2102
|
