CubeCell 1/2AA Node (HTCC-AB02A)
Heltec LoRa LoRaWAN Dev-Board CubeCell 1/2AA Node HTCC-AB02A ASR6502 SX1262 CP2102 Arduino compatible for industrial application
*CE and FCC certification;
*Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® *Cortex® M0+ Core) and SX1262;
*LoRaWAN 1.0.2 support;
*Ultra low power design, 3.5uA in deep sleep;
*1/2 AA battery shell, use 1/2 AA Lithium chlorine sulfite battery (this battery can’t charge, but onboard USB / battery *power automatic switching allows connect USB when the battery is assembled);
*Good impendence matching and long communication distance.
*Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
*Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
Product introduction
CubeCell (TM) is a new product series made by Heltec team, mainly for LoRa/LoRaWAN node applications.
CubeCell (TM) series is based on ASR605x (ASR6501, ASR6502), those chips are already integrated with the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262. We have done a lot of migration and development, making it perfectly Arduino-Compatible®, can run the LoRaWAN protocol stably, on-board 1/2 AA battery holder allow users use a battery easily.
HTCC-AB02A is a Dev-Board. Friendly designed for developers, easy to verify communication solutions.
Specification
- Tab1
|
Parameters
|
Description
|
|
Master Chip
|
ASR6502 (48 MHz ARM® Cortex® M0+ MCU)
|
|
LoRa Chipset
|
SX1262
|
|
Frequency
|
470~510MHz, 863~928MHz
|
|
Max. TX Power
|
22 ± 1dBm
|
|
Max. Receiving Sensitivity
|
-135dBm
|
|
Hardware Resource
|
UART x 2;
|
|
SPI x 2; I2C x 2;
|
|
|
SWD x 1;
|
|
|
12-bits ADC input x 3;
|
|
|
8– channel DMA engine;
|
|
|
GPIO x 16
|
|
|
Memory
|
128Kbites FLASH;
|
|
16Kbites SRAM
|
|
|
Power consumption
|
Deep Sleep 3.5uA
|
|
Operating Temperature
|
-20 ~ 70 ℃
|
|
Dimensions
|
56.6 x 24 x 21.5 mm
|
|
Interface
|
Micro USB x 1;
|
|
LoRa Antenna interface(SMA) x 1;
|
|
|
16 x 2.54 pin x 2+2 x 2.54 pin x 2
|
|
|
Battery
|
1/2AA Lithium
|
|
USB to Serial Chip
|
CP2102
|

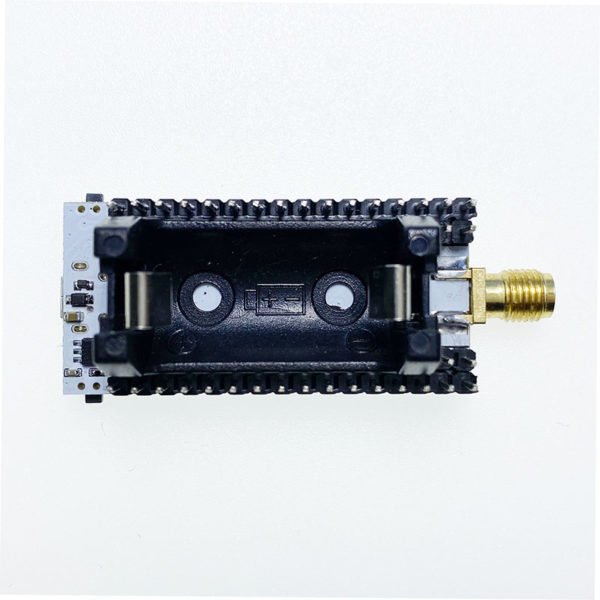

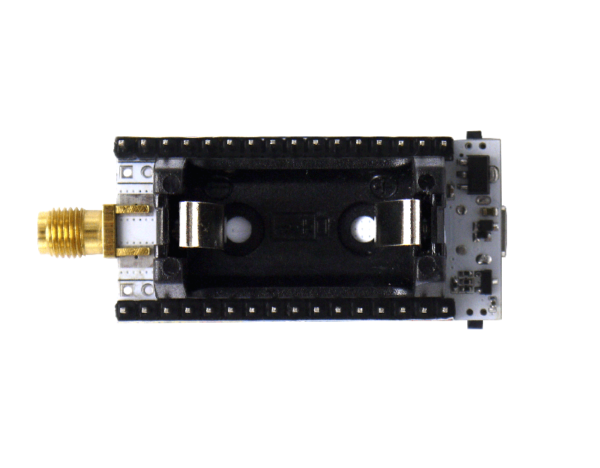

1/2 AA battery shell
1/2 AA battery shell, use 1/2 AA Lithium chlorine sulfite battery (this battery can’t charge, but onboard USB/battery power
automatic switching allows connect USB when the battery is assembled).
Arduino-Compatible
We have done a lot of migration and development, made it perfectly support Arduino®, can run the LoRaWAN protocol stably.
Solar panels
Easily connect lithium batteries and solar panels.

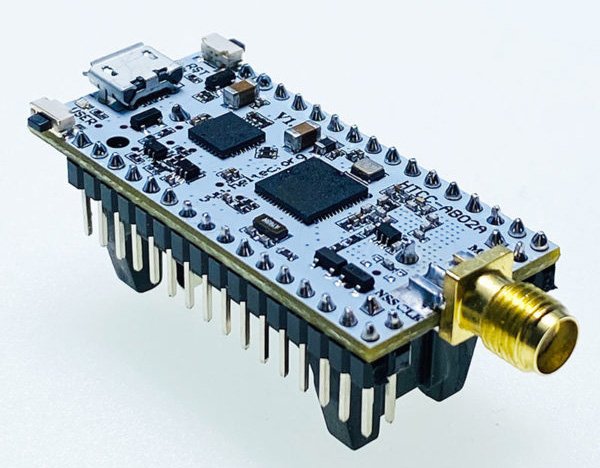

Picture display
