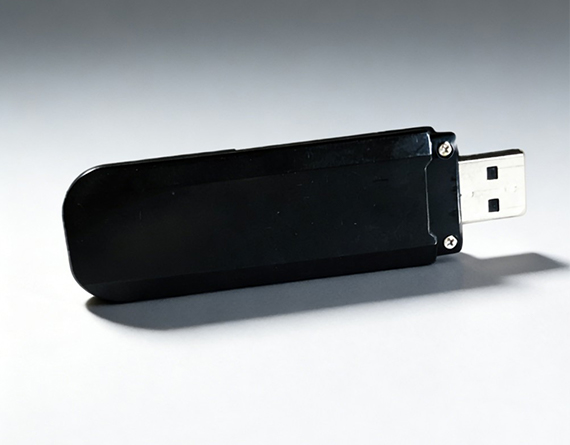

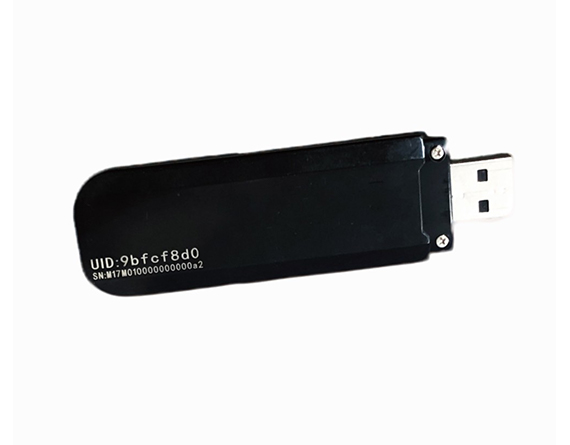

UWB Dongle Sniffer
UWB Dongle Sniffer Detection Analyzer TOF/TDOA Localization Debug Tool for Wireless Ranging
Product introduction
Key Functional Advantages
Fast Scanning & Real-Time TrackingRapidly scan nearby UWB devices, track, listen, analyze and count UWB frames under specific group sounds; achieve ultra-low 1ms interval for listening/transmitting, ensuring real-time data capture.
Dual-Mode Operation: Listen & TransmitSupport receiving UWB frames for protocol analysis, and transmit customized UWB frames with configurable physical layer/Quick Start Listen parameters for scenario simulation. Intelligent RF Analysis Tools
Power Estimation: Calculate UWB transmit power based on RSSI history data for device performance optimization. Frame Length Calculation: Precisely compute frame duration via frame structure configuration, independent of protocol parameters for pure technical calculation.
Hardware & Software Superiority

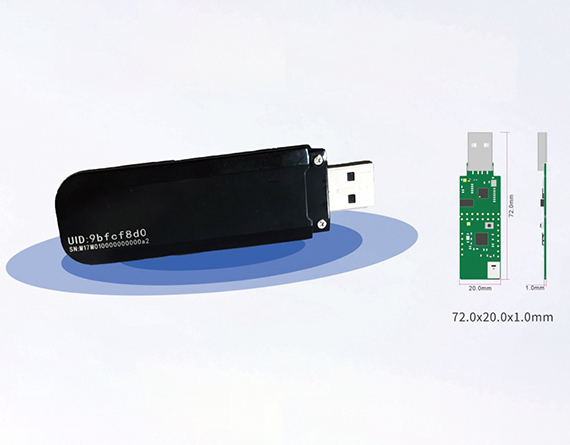

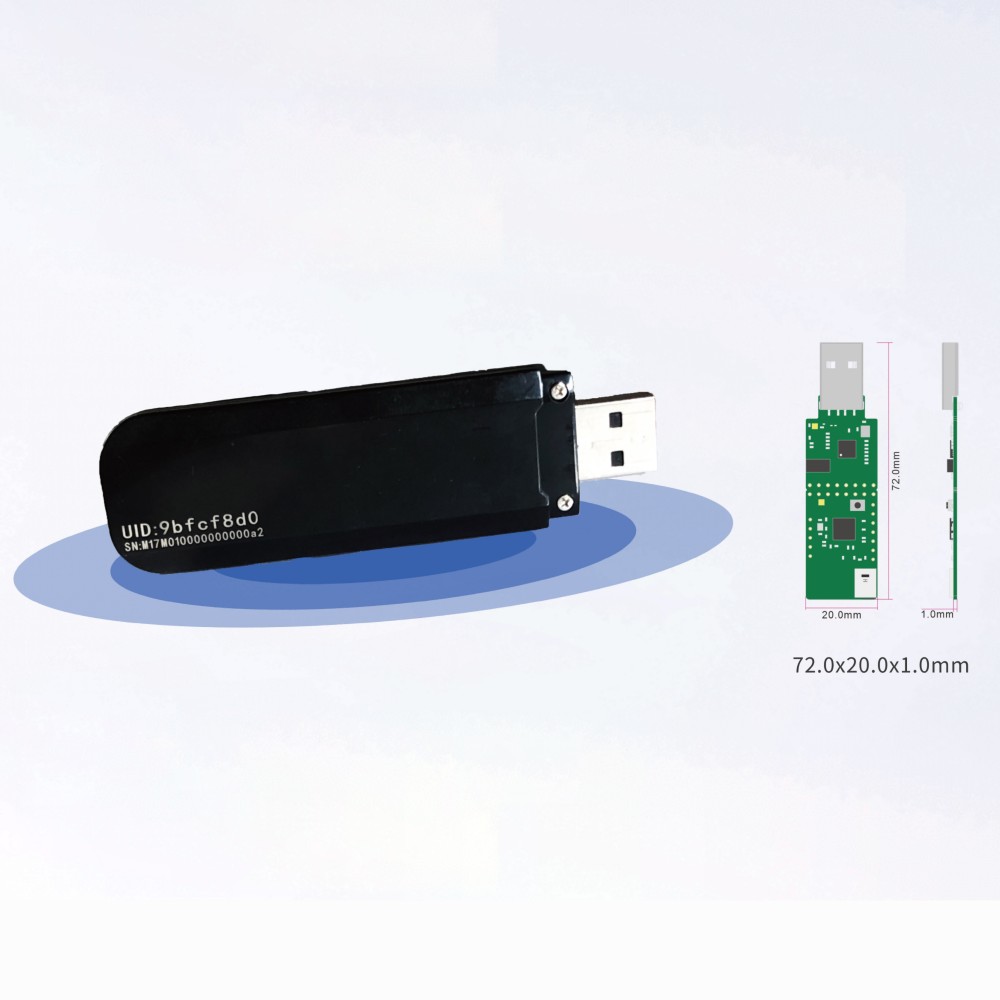

Hardware Highlights Compact form factor (72.0×20.0×1.0mm) for easy integration and portability.
Robust performance: -20℃~60℃ operating temperature, low power consumption (≤450mA operating current), and 100m engineering coverage (without obstruction). High-performance ARM Cortex-M32 32-bit processor for stable and efficient data processing.
Software Support Compatible with Windows PC; supports online upgrade and firmware package encryption for security. Require only UWB Dongle Sniffer module (optional with UWB module/Apple UWB device) for quick deployment.
Technical & Protocol Edge
Compliant with IEEE Std 802.15.4™-2020 (backward compatible) and supports FIRA/CCC support protocols. Wide frequency band (5.9GHz-8.5GHz), high transmission data rate (6.8M/18.8Mbps), and ultra-high receiving sensitivity (≤-95dBm) for reliable long-distance detection. TOF/TDOA ranging/localization method ensures centimeter-level positioning accuracy.
Versatile Application Scenarios
Ideal for Intelligent Logistics, Intelligent Industry, Smart Home, Drone Positioning, and Robot Navigation – the perfect tool for UWB product R&D, testing, and performance verification.
Specification
- Tab1
|
Operating temperature
|
-20℃~60℃
|
Wireless format
|
IEEE Std 802.15.4TM-2020,backward compatible
|
|
Storage temperature
|
-40℃~85℃
|
Supported frequency Bands
|
5/9(6.0G~8.5G)
|
|
Operating current
|
≤150mA
|
Positioning typical transmit power
|
-41.3dbm/MHz
|
|
Operating voltage
|
4.5-5.5V
|
Maximum transmit power
|
-23dbm/MHz
|
|
CPU core
|
ARM®Cortex-M3332-bit processor
|
Transmission data rate
|
6.8M/7.8Mbps
|
|
Online upgrade
|
Support
|
Receiving sensitivity
|
≤-95dbm (this parameter refers to the
configuration under PRF64M,leading code length 64,data rate 6.8M) |
|
Firmware package encryption
|
Support
|
Support protocol
|
FiRa、CCC
|
|
Ranging/Localization method
|
TOF/TDOA
|
Engineering coverage (without
obstruction) |
100m
|
