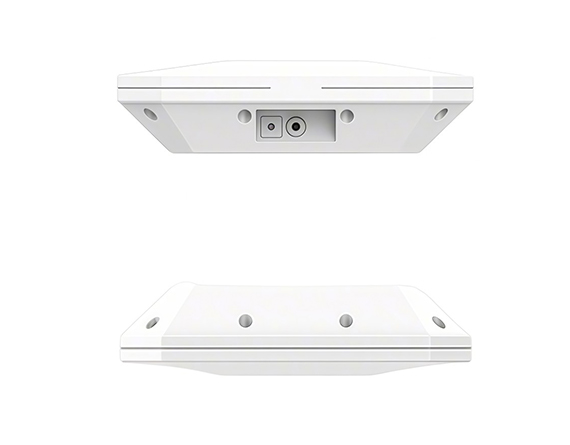

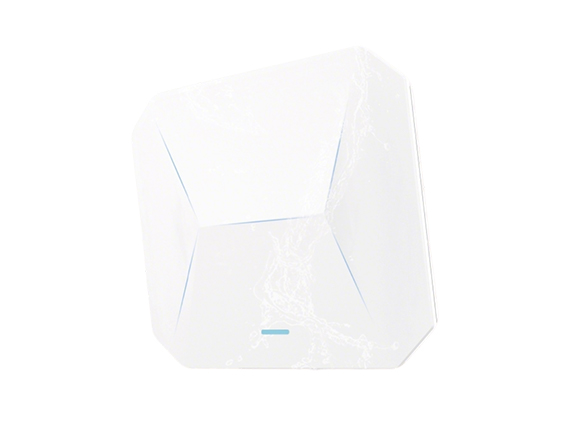

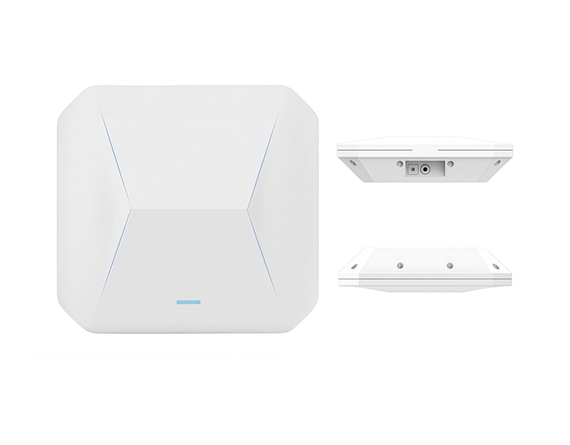

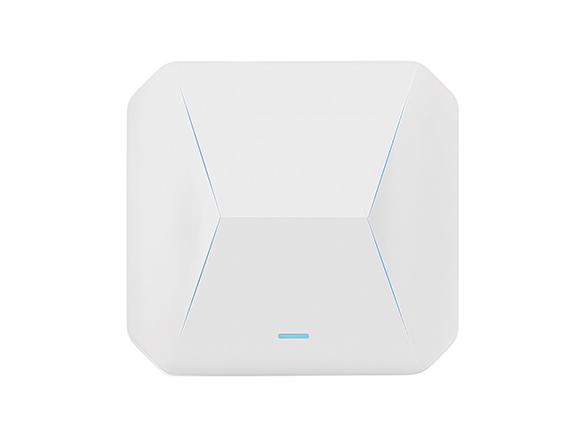

ANUB67 Indoor Positioning Base Station
IP67 Waterproof Outdoor UWB+BLE AOA Positioning Base Station Centimeter-level High Precision for Factory Prison ConstructionSite
Product introduction

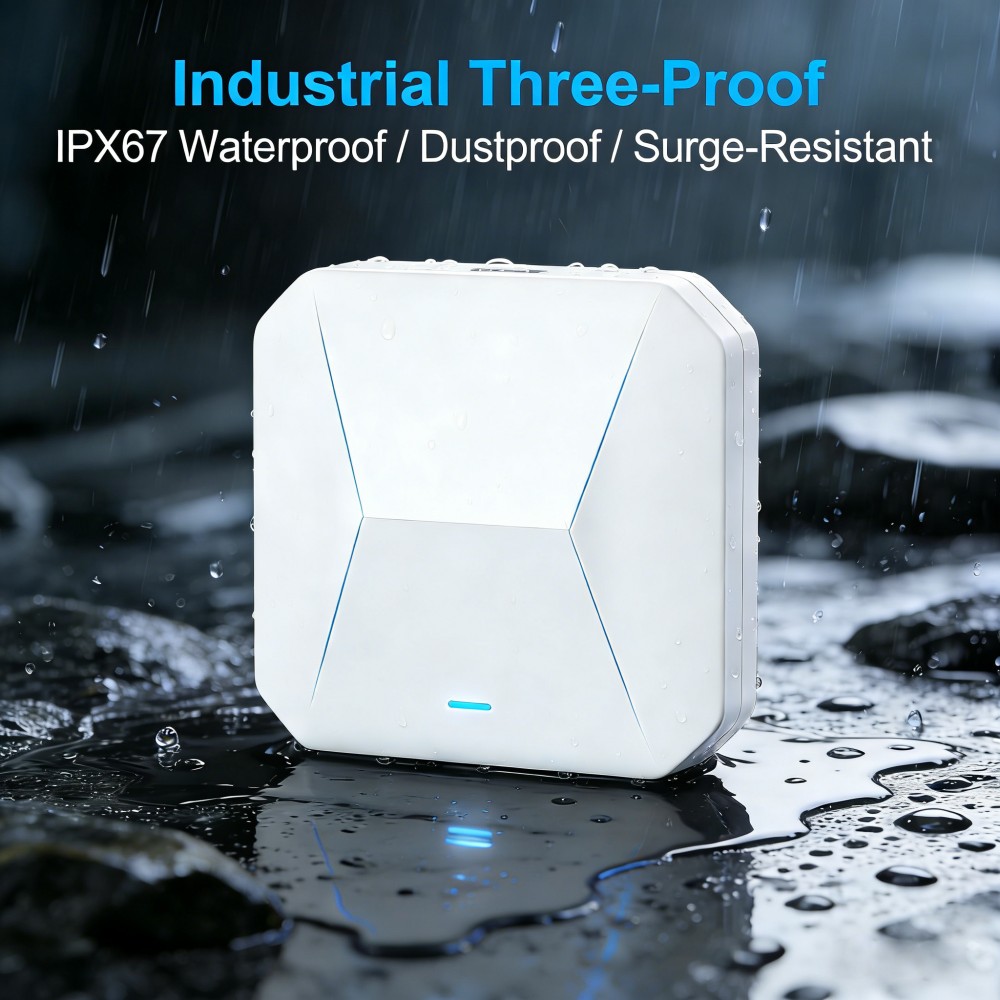

✅ Industrial-grade protection: IP67 high-level waterproof, dustproof, and surge-resistant, ensuring stable and reliable operation even in harsh outdoor or industrial environments.
✅ Centimeter-level positioning: Adopts UWB+BLE AOA technology, delivering centimeter-level positioning accuracy to meet precise personnel/asset tracking requirements.
✅ Flexible power supply: Supports dual power supply modes of POE (IEEE802.3at) and DC (9-24V), adapting to different deployment scenarios and reducing installation costs.
✅ Intelligent management: Built-in LED smart signal lights, supporting functions such as tag emergency call, battery level monitoring, “group call”, “individual paging”, etc., to improve management efficiency.
✅ Multi-scenario adaptation: Compatible with wireless communication standards like Zigbee and WiFi, with a wired LAN port supporting 10M/100M adaptive rate, and can be widely used in indoor and outdoor scenarios such as prisons, hospitals, factories, and construction sites.
Specification
- Tab1
|
Positioning technology
|
UWB+BLE AOA
|
Positioning wireless standard
|
802.15.4_2011 UWB
|
|
Power supply method
|
POE/DC
|
Communication wireless standard
|
Zigbee_802.15.4_2.4GHz
|
|
Rated power
|
2.4W
|
Wired communication data interface
|
10M/100M LAN adaptive
|
|
Rated supply voltage
|
48V standard POE (IEEE 802.3at) / DC connector 9-24V
|
Wireless communication data interface
|
WIFI_802.11b/g/n@2.4G
|
|
Rated current
|
55mA@POE48V, 210mA@DC12V
|
Product dimensions
|
86.6×86.6×36.0mm
|
|
Basic functions
|
Priority is given to receiving emergency distress messages from the tag cards, monitoring the battery power of the tag cards,
conducting “group calls”, “individual calls” for the tag cards, and resetting parameters, etc. |
||

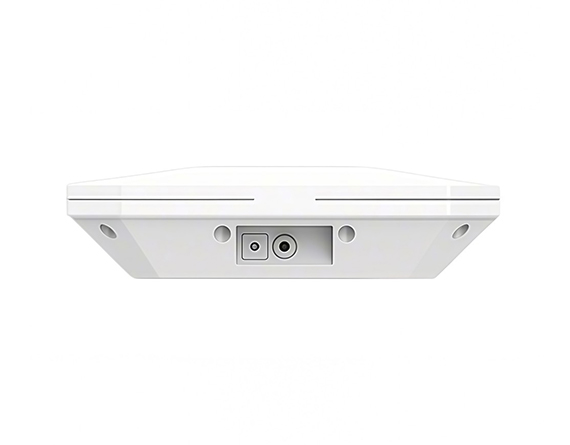

Picture display
