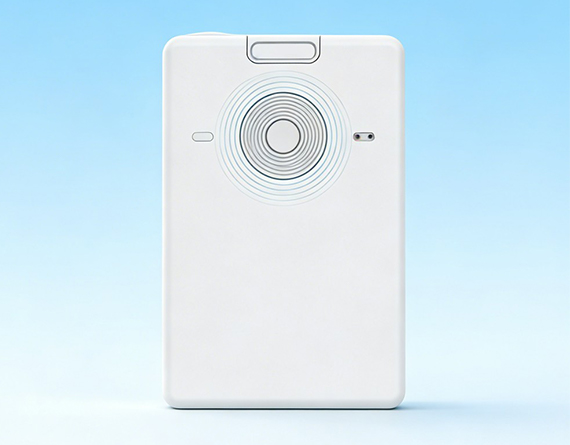

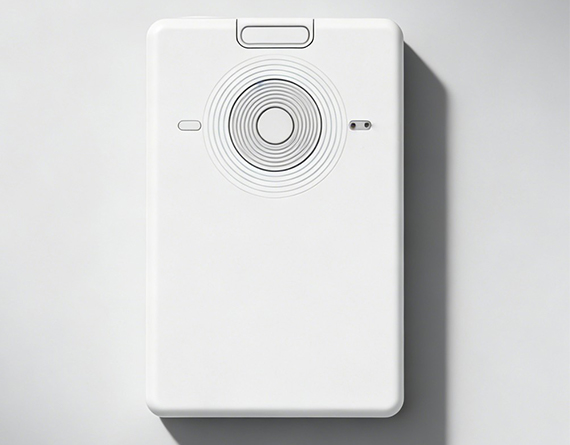

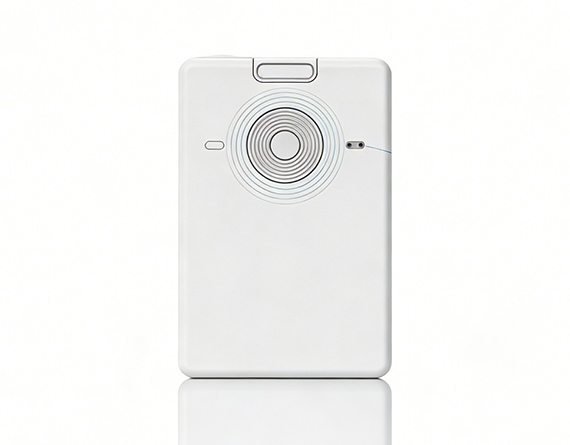

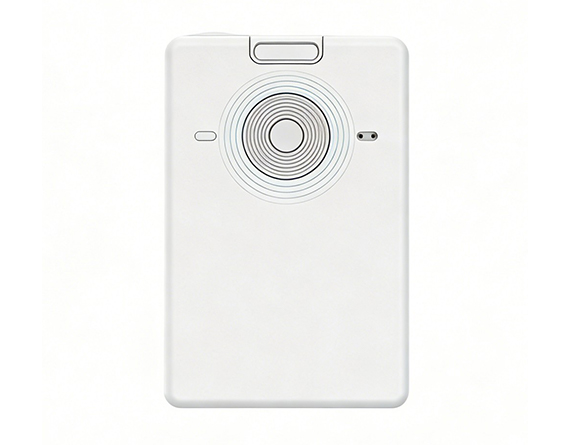

TUB01a Employee ID Positioning Tag
UWB+BLE AOA Positioning Tag Exib IIC T4 Explosion-Proof Employee ID Badge 14+ Days Battery, IP68 Waterproof SOS Tag for Chemical
Product introduction
≥14 Days Long Battery Life: Ensures uninterrupted operation for extended periods, reducing the frequency of charging and maintenance.
Precise Personnel Location Locking: Leverages UWB+BLE AOA/Beacon technology to deliver accurate, real-time positioning of employees in industrial environments.
Automatic Danger Behavior Monitoring: Proactively detects and alerts on high-risk activities, enhancing on-site safety management.
Rugged & Certified Design Explosion-Proof Rating: Exib IIC T4 Gb for explosive gas environments, and Ex ibD 20 IP68 T130°C for dust explosion-proof conditions, enabling safe operation in high-risk industrial zones.
IP68 Waterproof and Dustproof: Withstands harsh environmental conditions, including water immersion and heavy dust exposure.
Built-in Barometer: Supports altitude measurement and pressure monitoring, ideal for applications in construction sites, and other elevation-variable workspaces. Versatile Industrial Applications
Tailored for use in: Chemical Plants Oil Wells Construction Sites Coal Mines
Key Technical Features Positioning Technology: UWB+BLE AOA/Beacon for high-precision tracking.
Wireless Protocols: Supports 802.15.4 UWB/BLE 4.0+ and optional 802.15.4g FSK (900MHz Zigbee) / 2.4GHz Zigbee for flexible connectivity.
Function Configuration: Equipped with an SOS button, sound/vibration/LED reminders, low-battery alerts, built-in NFC, and one-card system compatibility for seamless integration.
Compact Form Factor: Measures 88x58x8mm, powered by a 930mAh lithium-polymer battery (charged via magnetic Pogo Pin-4 at 5V/270mA).
Specification
- Tab1
|
Positioning Technology
|
UWB+BLE AOA/Beacon
|
Product Size
|
88x58x8mm
|
|
Charging/Power Interface
|
Pogo Pin-4(Magnetic Type)
|
Battery Type
|
Lithium Polymer Battery
|
|
Battery Capacity
|
930mAh
|
Charging Voltage/Current
|
5V/270mA
|
|
Positioning Wireless Protocol
|
802.15.42011 UWB/BLE 4.0 and above
|
||
|
Communication Wireless Protocol
|
802.15.4g FSK(900MHz Zigbee)and 802.15.4(2.4GHz Zigbee)available
|
||
|
Shell Air Discharge Protection
|
ESD Protection IEC61000-4-2:15kV(air)
|
||
|
POGO PIN Interface
|
ESD Protection IEC61000-4-2:8kV(contact)
|
||
|
Function Configuration
|
Pressure Measurement,SOS Button,Sound Reminder,Vibration Reminder,LED Flashing
Reminder,Low Battery Reminder,Built-in NFC,Supports One-Card System |
||
