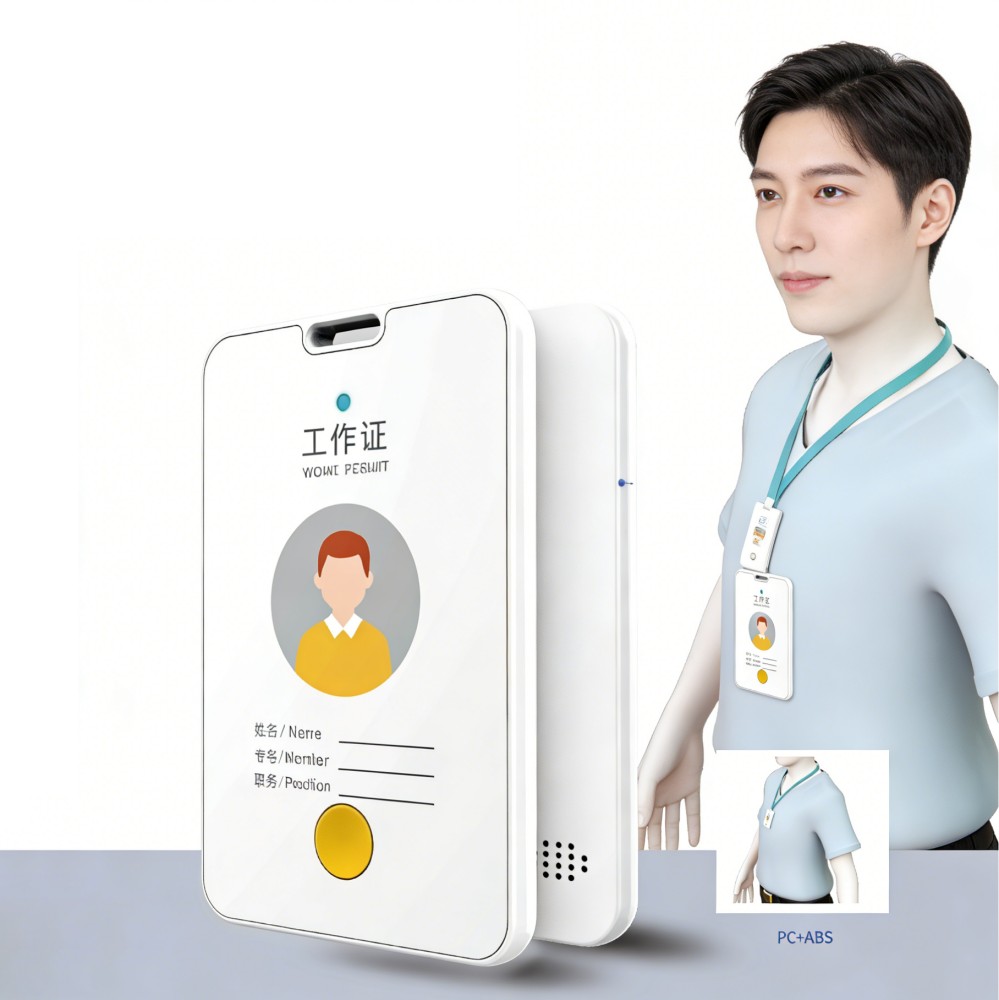

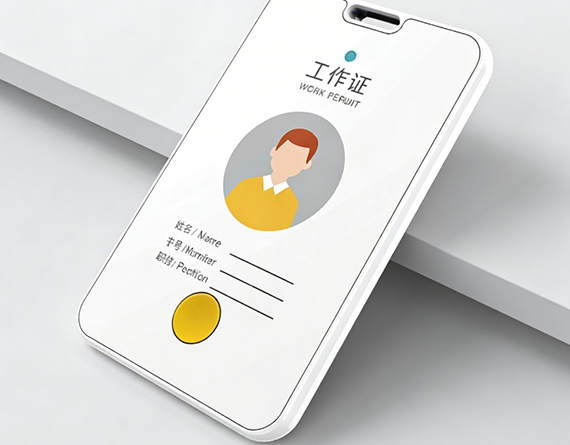

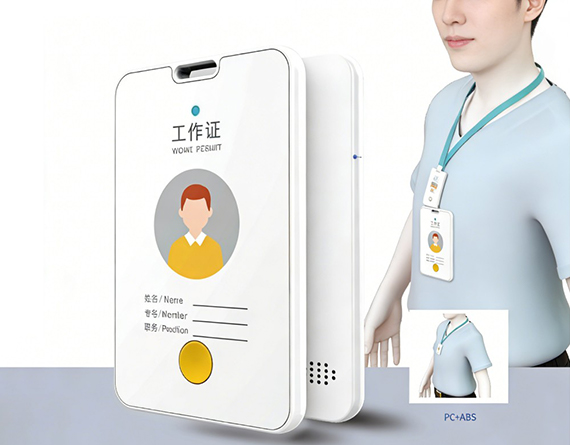

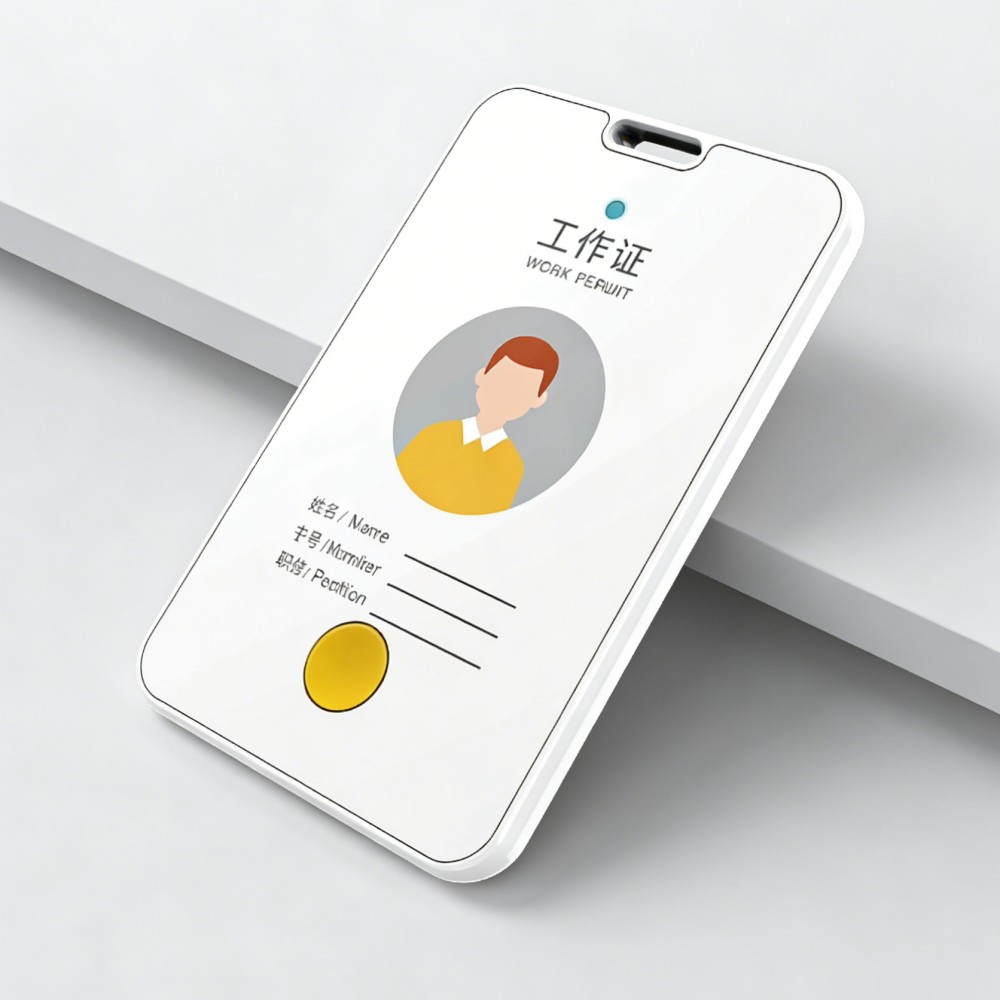

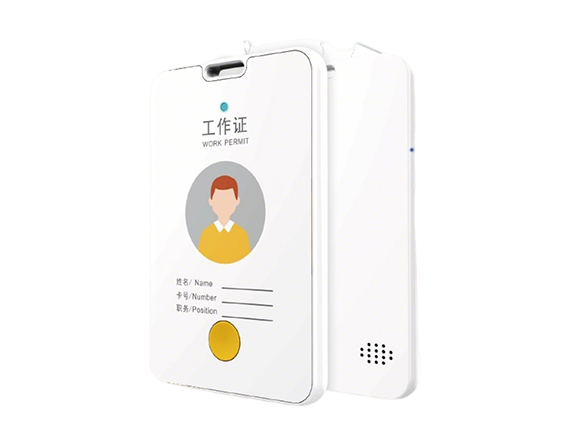

TUB01 Employee ID Positioning Tag

UWB BLE AOA Employee ID Badge with Real-time Location Tracking & One-click SOS for Hospital, Prison, Office

Section1
Section2
Section3
Section4
Top

Product introduction

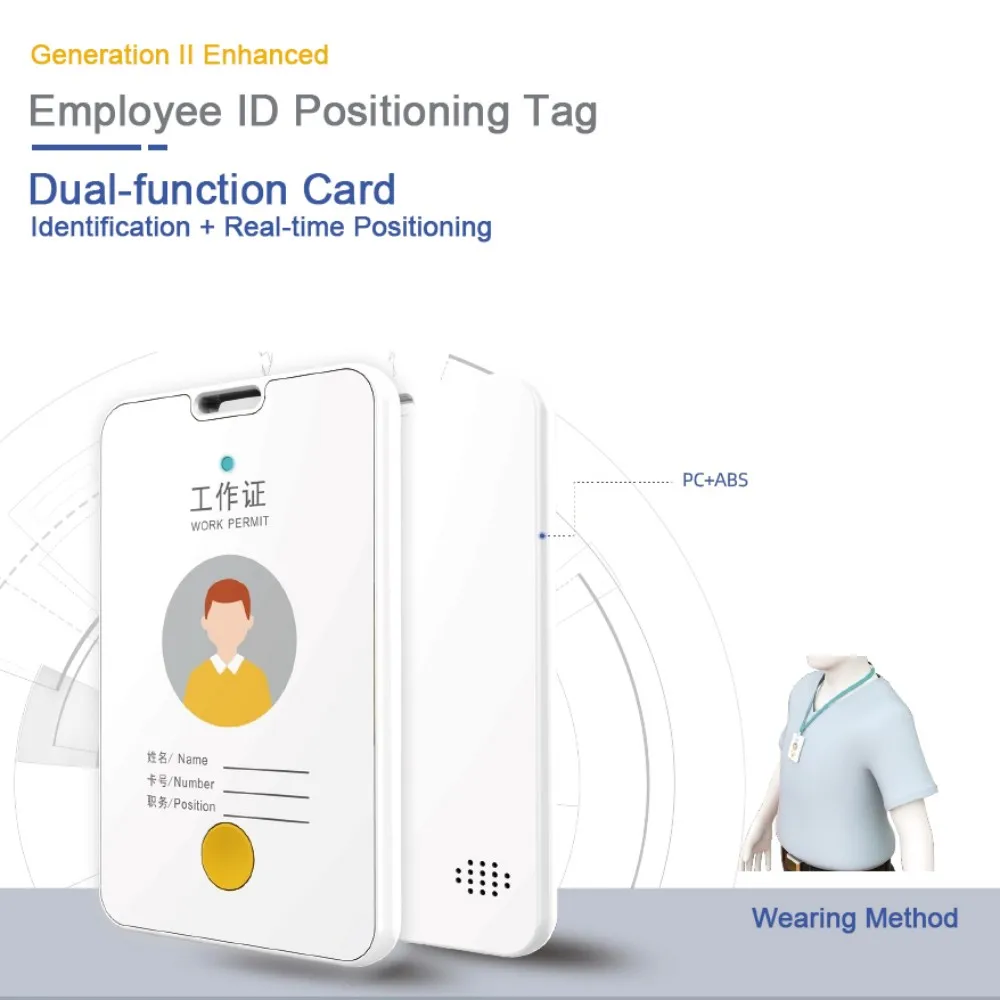

Dual-function Card: Both ID & Positioning

Combines identity and positioning functions in one device.It serves as a daily work ID card that stores identity information such as name and employee ID, while also providing professional positioning capabilities, realizing integrated management of identity identification + real-time positioning.

Centimeter-Level Ultra-High Precision Positioning

Adopts UWB + BLE AOA positioning technology with TOF operating mode, delivering centimeter-level positioning accuracy to meet high-precision location requirements in scenarios such as prisons and case-handling centers.

Multiple Security Protections & Alarms

One-Touch SOS Emergency Call: Built-in SOS button for quick emergency assistance. Full-Scenario Alerts: Supports audible, vibration, and LED flashing reminders, plus low-battery alerts and hazard early warning functions.

One-Card Compatibility: Built-in RFID module for seamless integration with existing access control and attendance systems.

Ultra-Long Battery Life for Various Work Schedules

Equipped with a 500mAh lithium-polymer battery, delivering outstanding performance across different modes: 1Hz mode: Battery life ≥ 66 days (2 months and 6 days) 0.3Hz mode: Battery life ≥ 116 days (3 months and 26 days) TOF mode: 1Hz: Battery life ≥ 35 days (1 month and 5 days) 0.3Hz: Battery life ≥ 116 days (3 months and 26 days) Supports micro-USB charging with 5V/270mA specification for convenient recharging.

Portable Design for Multi-Scenario Application

Hanging Wear Style: Slim dimensions of 86×55×6 mm (PC+ABS material), comfortable and lightweight to wear. Wide Application: Suitable for prisons, case-handling centers, hospitals, courts, procuratorates, nursing homes, and other places requiring personnel management and safety monitoring.

Dual Wireless Communication Standards

Supports both 802.15.4_2011 UWB and Zigbee_802.15.4_2.4GHz dual wireless protocols, ensuring stable and reliable communication to meet deployment needs in different environments.

Specification

Tab1

Positioning Technology	UWB+BLE AOA	Product Dimensions	86×55x6mm
Charging/Power Interface	micro-USB	Battery Type	Lithium polymer battery
Battery Capacity	500mAh	Charging Voltage/Current	5V/270mA
Location Wireless Standard	802.15.4_2011UWB	Communication Wireless Standard	Zigbee_802.15.4_2.4GHz
Battery Life	TDOA: 1Hz for 22 months and 6 days of battery life; 0.3Hz for 23 months and 26 days of battery life.	TOF: (TOF operating mode for positioning tags and one station) 1Hz: 21 months 5 days; 0.3Hz: 23 months 26 days
Features	SOS button, sound alert, vibration alert, LED flashing alert, low battery alert, button interaction, built-in RFID (compatible with smart cards)
