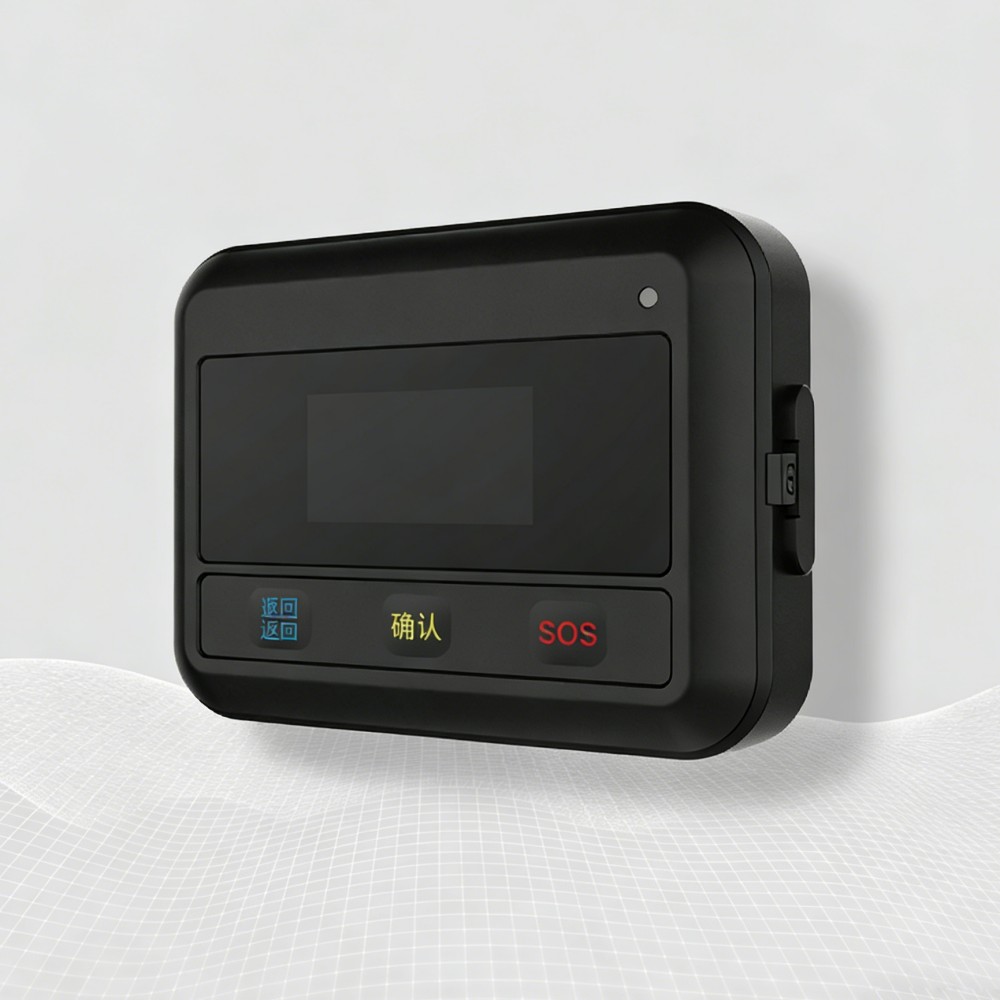

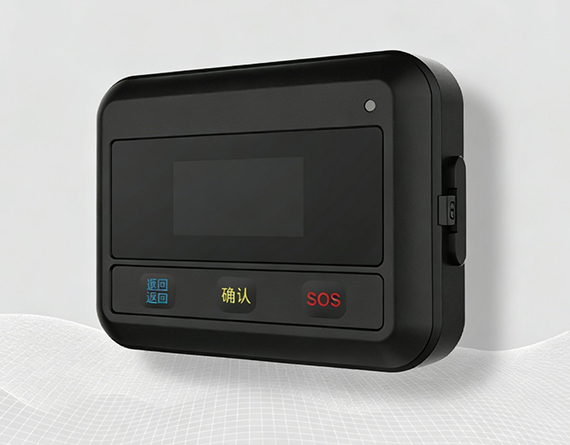

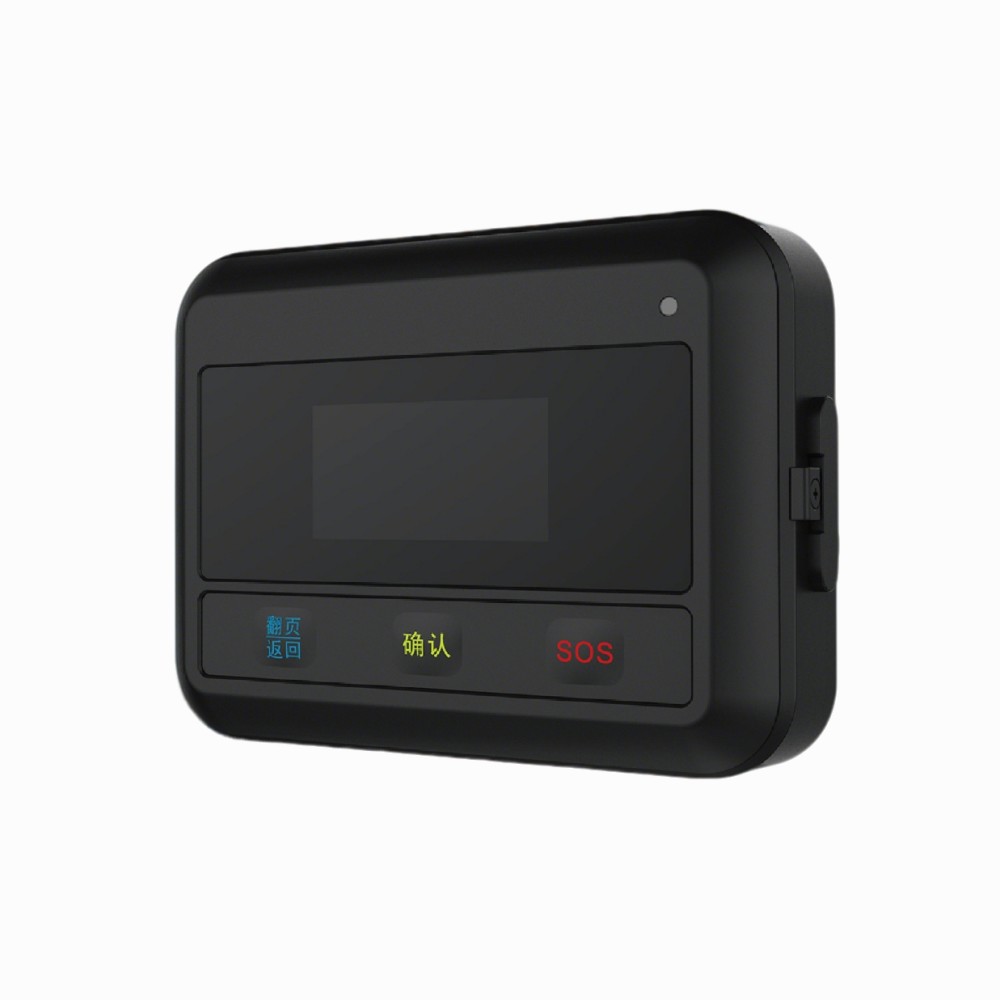

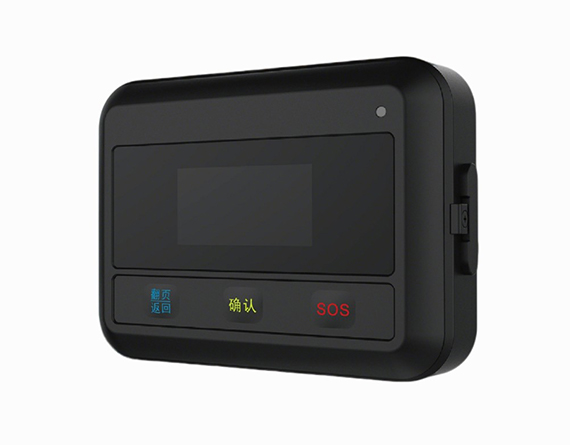

TUB36 Screen-Equipped Positioning Tag

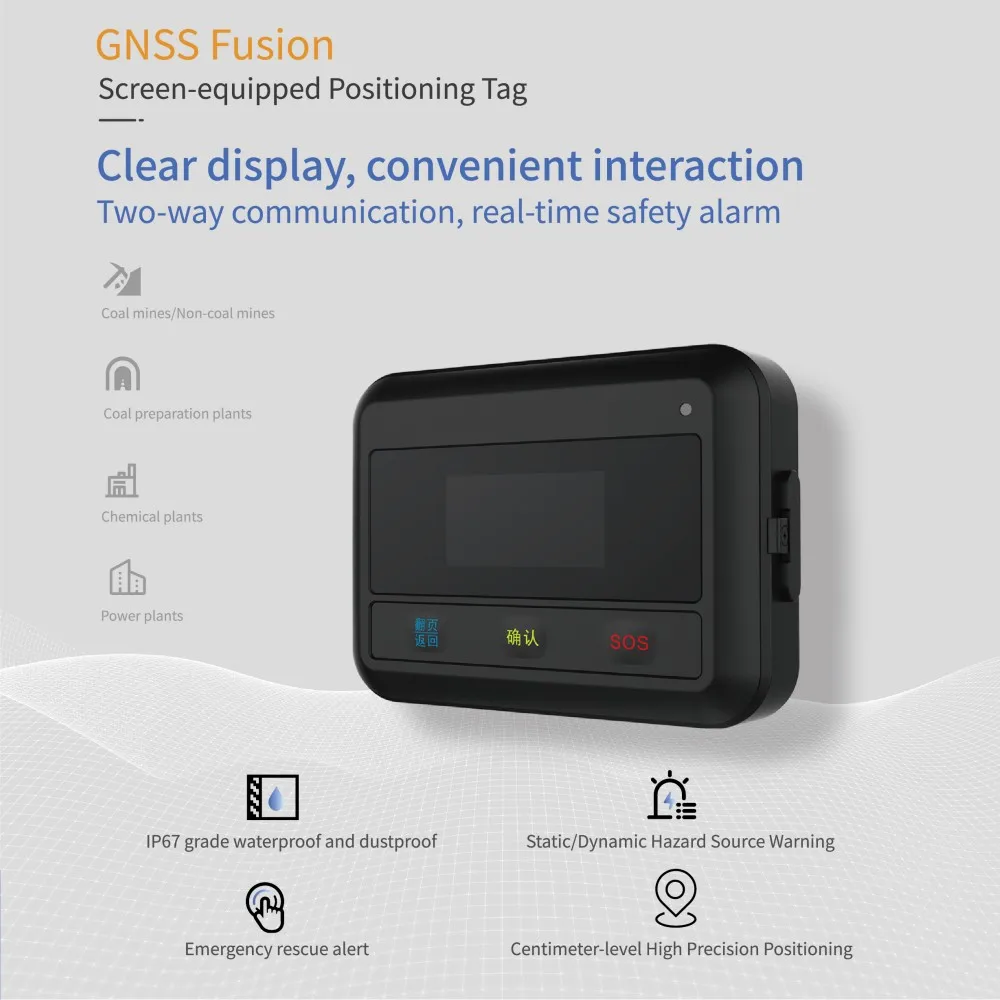

GNSS Fusion Screen-equipped Positioning Tag UWB+BLE High Precision SOS Alarm IP67 Waterproof Personnel Locator

Section1
Section2
Section3
Section4
Top

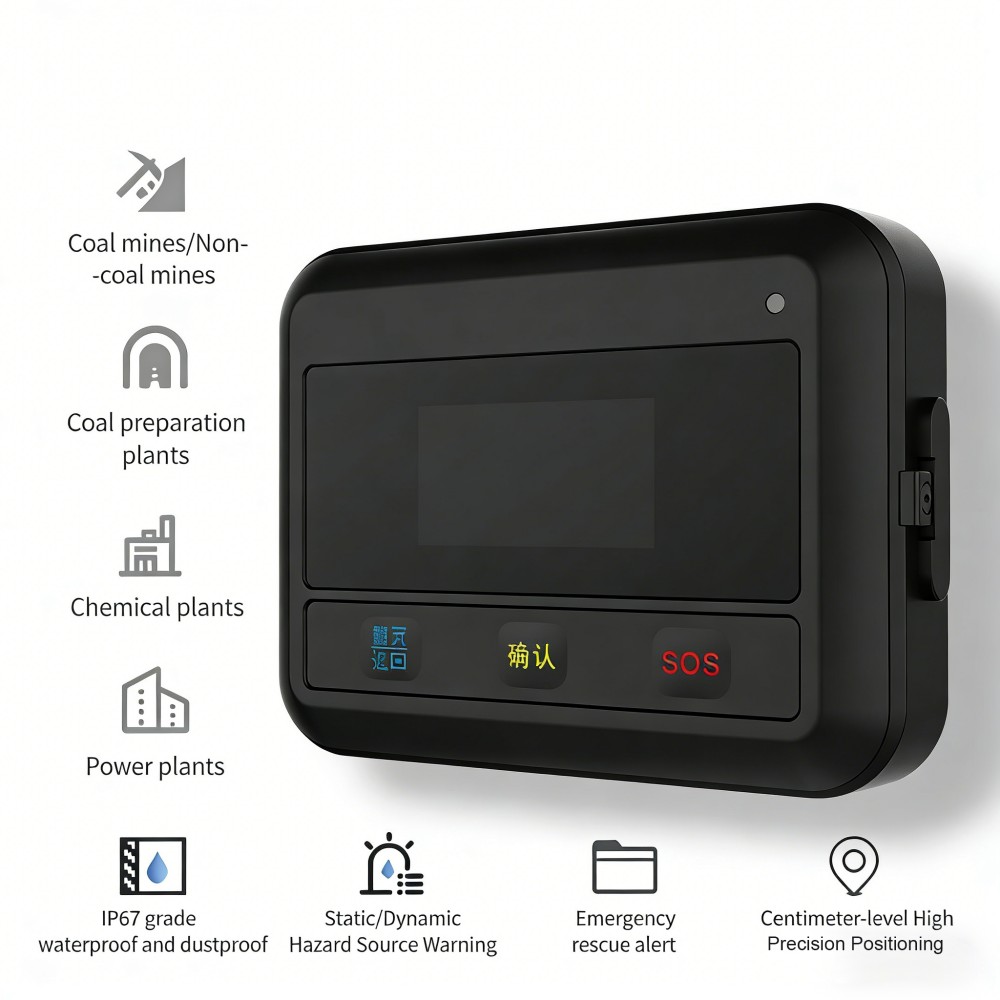

Product introduction

Proactive & Emergency Safety Alerts

Static/Dynamic Hazard Source Warning: Delivers proactive notifications for potential static and dynamic hazards to prevent accidents before they occur. One-click SOS Emergency Alert: A dedicated SOS button enables instant emergency calls, triggering immediate rescue response in critical situations. Multi-modal Reminders: Supports sound, vibration, and LED flashing alerts to ensure personnel never miss critical notifications.

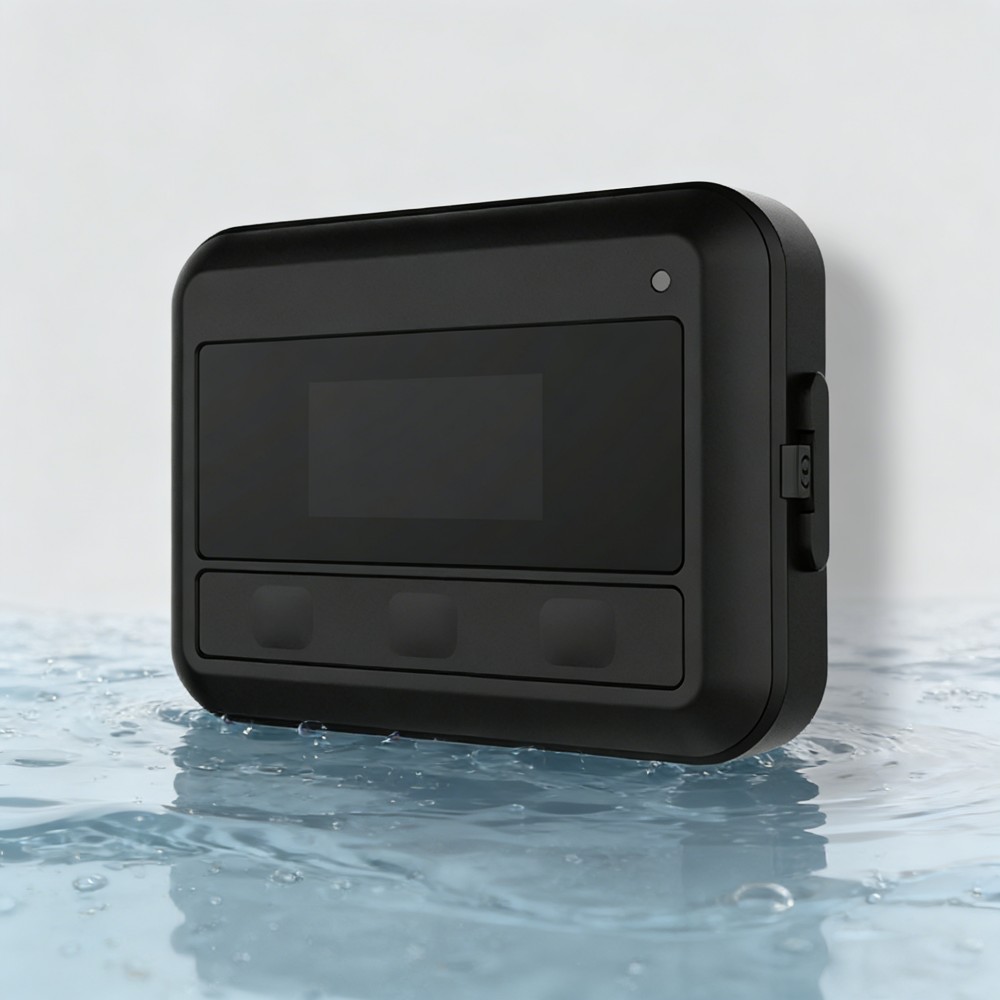

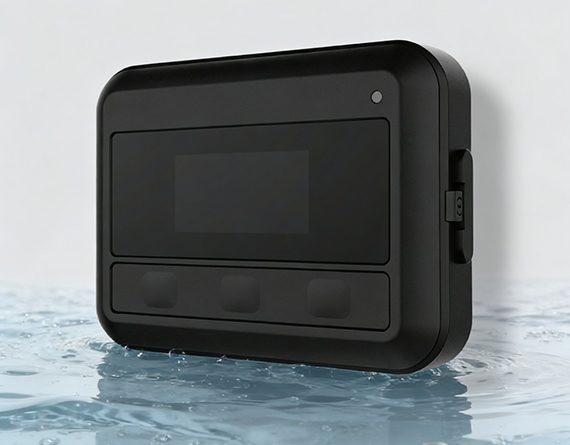

IP67 Waterproof & Dustproof Durability

With an IP67-rated enclosure, the tag is fully resistant to dust ingress and can withstand immersion in water up to 1 meter deep for 30 minutes, ensuring reliable operation in wet, dusty, and harsh industrial conditions.

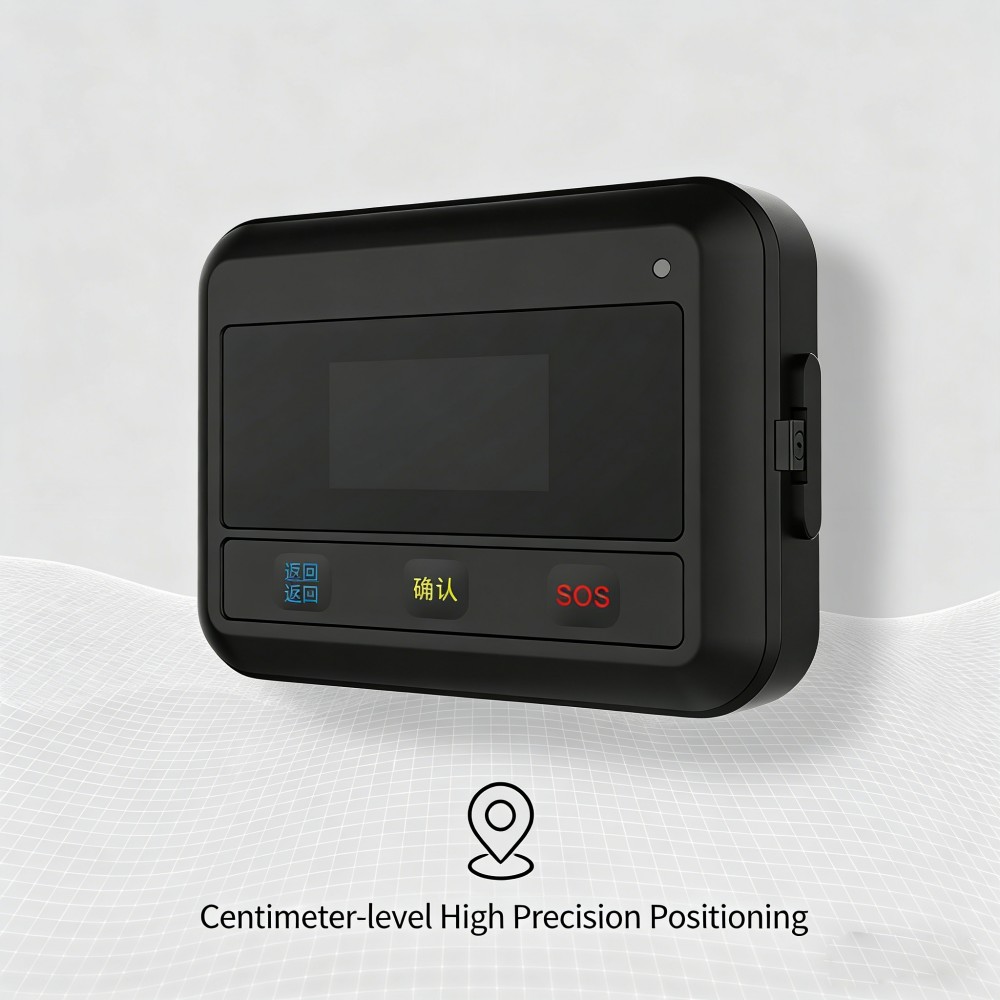

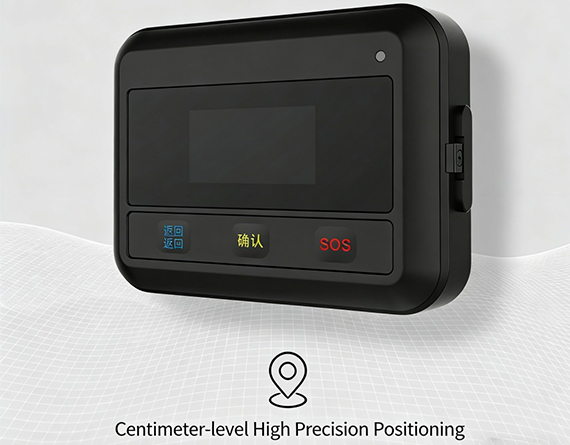

Centimeter-level High Precision Positioning

Powered by UWB+BLE AOA/Beacon+BD/GPS satellite positioning technology, it provides ultra-accurate real-time tracking to enable precise personnel and asset management in complex industrial settings.

Intuitive Interaction & Two-way Communication

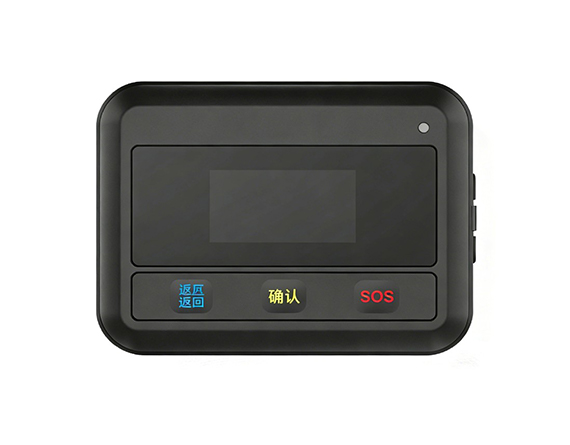

Features a 1.3-inch OLED (128×64) display for clear information presentation, paired with physical operation buttons (Return, Confirm, SOS) for user-friendly control. It supports two-way communication, enabling seamless real-time interaction between on-site personnel and control centers.

Reliable Power & Robust Protectio

Powered by a long-lasting lithium polymer battery, with convenient magnetic charging via Pogo Pin-4 (5V input). It also incorporates IEC61000-4-2:15kV (air) ESD protection for enhanced operational reliability.

Versatile Industrial Compatibility

Supports multiple wireless protocols (802.15.4g FSK 900MHz Zigbee & 802.15.4 2.4GHz Zigbee) and includes built-in RFID (smart card compatible), motion detection, and flexible function configurations to integrate seamlessly with industrial IoT systems.

Specification

Tab1

Positioning Technology	UWB+BLE AOA/Beacon+BD/GPS Satellite Positioning
Charging/Power Supply Interface	Pogo Pin-4(magnetic charging)	Battery Type	Lithium polymer battery
Display Screen	1.3-inch OLED(128×64)	Charging/Power Supply Voltage	5V
Charging Current	450mA	Air Discharge ESD Protection	IEC61000-4-2:15kV(air)
Communication Wireless Protocol	802.15.4g FSK(900MHz Zigbee)and 802.15.4(2.4GHz Zigbee)available
Function Configuration	Precise positioning,SOS button,sound reminder,vibration reminder,button interaction, LED flashing reminder,motion detection,built-in RFID(compatible with smart cards)
