Product introduction

Designed for high-risk industrial scenarios such as coal mines, tunnels, chemical plants, power plants, and coal preparation plants, this vehicle identification device integrates precise positioning, intrinsically safe explosion-proof, and intelligent control capabilities, enabling precise vehicle location management and violation boundary crossing alerts.

Core Selling Points 1. Multi-mode Fusion for Precise Positioning, Full Coverage Control Adopts multi-mode fusion positioning technology

UWB + BLE AOA/Beacon + BeiDou/GPS satellite positioning, enabling seamless coverage in both indoor and outdoor scenarios. Supports precise control of vehicle location and automatically triggers alerts for boundary crossing violations, effectively improving operational safety and scheduling efficiency.

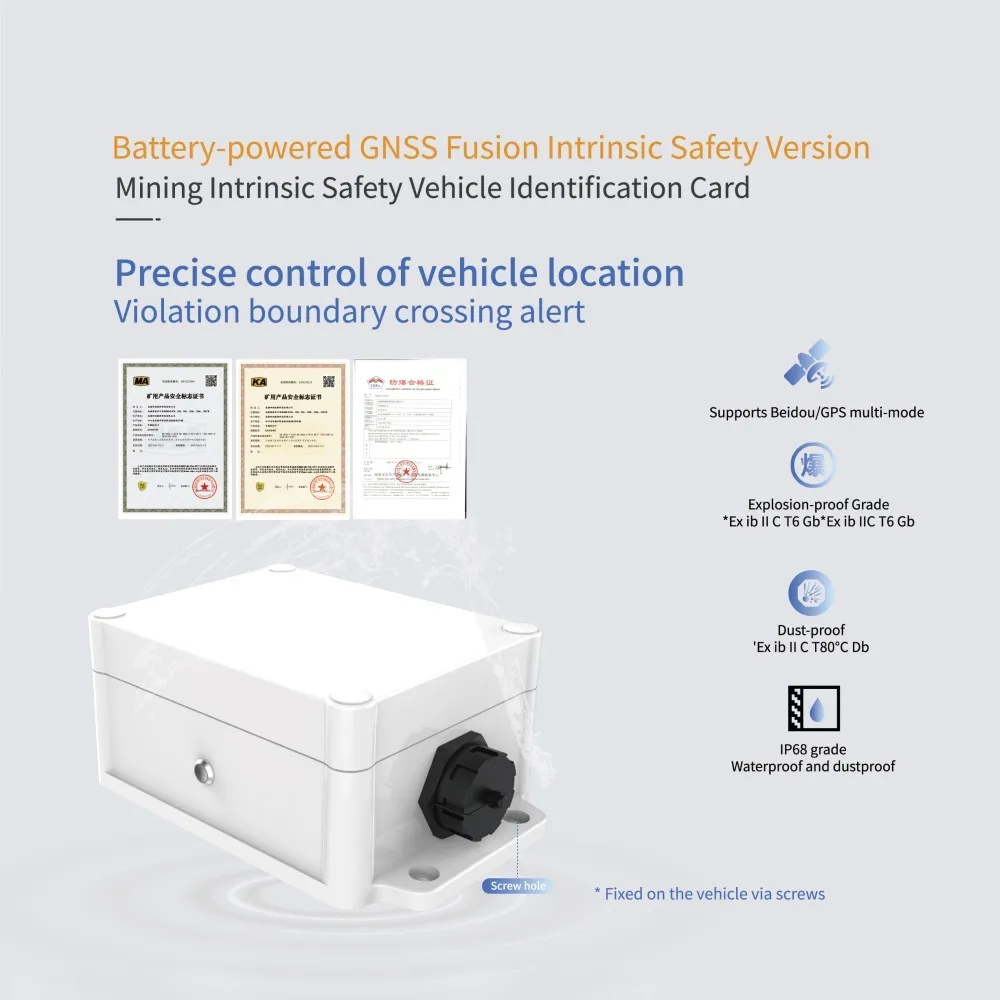

2. Intrinsically Safe Explosion-proof and High Protection, Adaptable to High-risk Environments Explosion-proof grade

Ex ib II C T6 Gb; Dust-proof grade: Ex ib II C T80°C Db, meeting safety requirements for explosive environments such as mining and chemical industries. With IP68 waterproof and dustproof rating, it operates stably under harsh conditions like humidity and dust.

3. Convenient Power Supply and Intelligent Reminders, Hassle-free Operation and Maintenance

Built-in rechargeable battery, charged via USB (Type A) interface, supporting 5V/450mA power supply. Features low battery reminder and LED flashing reminder functions. The charging interface supports 8kV contact discharge / 15kV air discharge electrostatic protection, ensuring safe usage.

4. Flexible Communication and Stable Installation, Adaptable to Various Vehicles

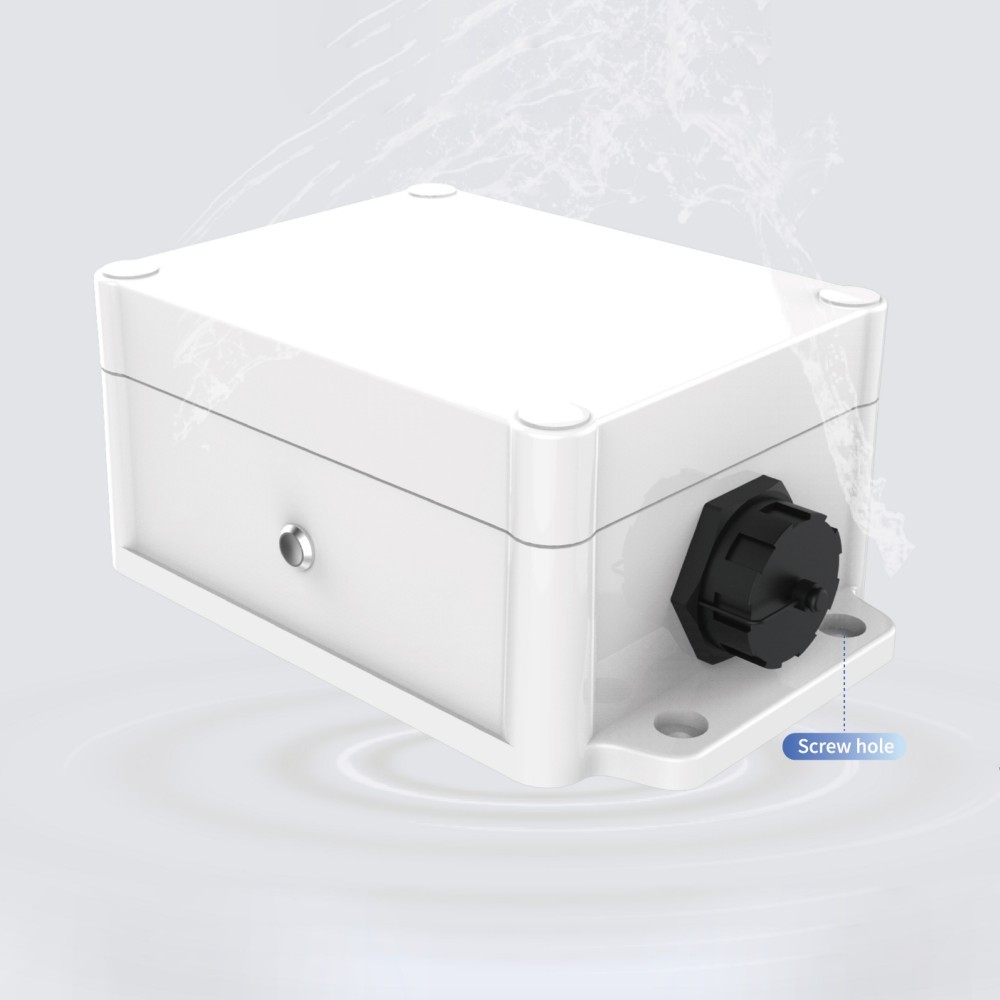

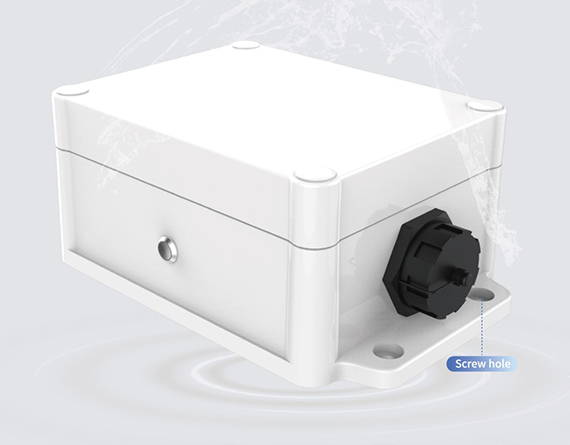

Wireless communication protocols support 802.15.4g FSK (900MHz Zigbee) and 802.15.4 (2.4GHz Zigbee), adapting to industrial field network environments. Installed via screw fixation, with product dimensions of 148×94×61 mm, the compact structure is suitable for deployment on various mining vehicles

Applicable Scenarios

Vehicle scheduling and safety control in underground coal mines Positioning and boundary crossing management for vehicles in tunnel construction Vehicle operation path monitoring in chemical plant areas Vehicle identification and scheduling in industrial scenarios such as power plants and coal preparation plants

Specification

Tab1

Positioning Technology	UWB+BLE AOA/Beacon+BD/GPS Satellite Positioning
				Charging/Power Supply Interface	USB (Type A)	Product Dimensions	148×94×61mm
Battery Type	Rechargeable battery	Power Supply Voltage/Current	5V/450mA
				Charging Interface Static Protection	8kV(contact discharge)/15kV (air discharge)
Communication Wireless Protocol	802.15.4g FSK(900MHz Zigbee)and 802.15.4(2.4GHz Zigbee)available
				Function Configuration	Precise positioning,LED flashing reminder,low battery reminder
