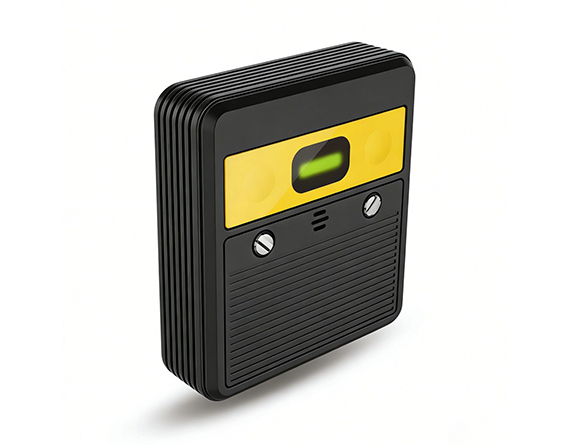

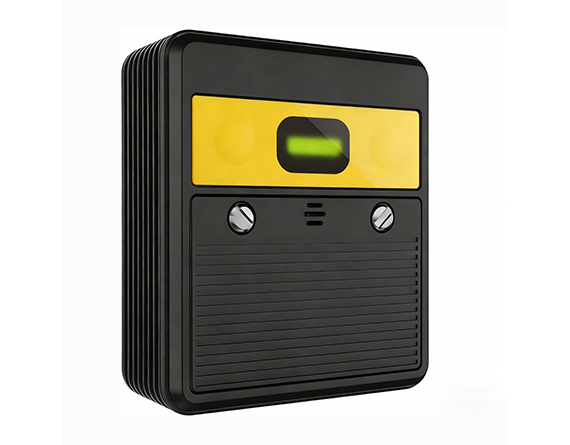

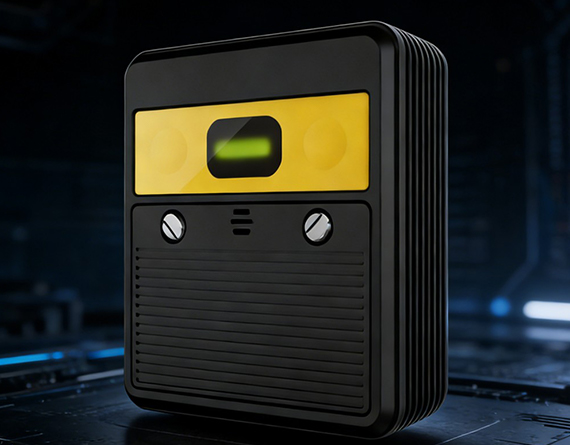

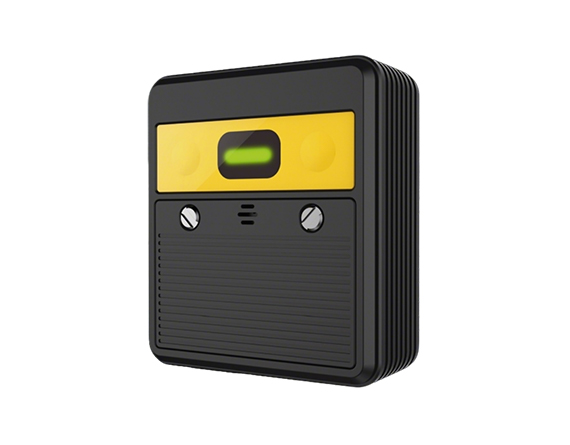

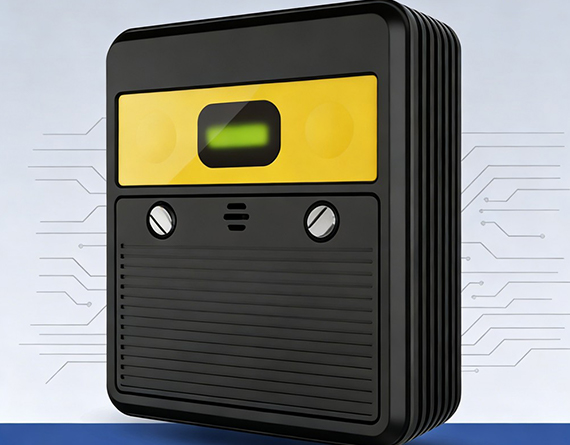

TUB08 Material Positioning Tag

Material Tracking Tag 6500mAh Large-Capacity Battery Solves the Challenge of Long-Term Material Management

PRODUCT DETAILS

Send Your Inquiry

Section1
Section2
Section3
Section4
Top

Product introduction

♦Centimeter-level High Precision Positioning

♦Secure Mechanical Tamper-Proof Structure

♦Audio-Visual Assisted Quick Object Finding

♦IP68 Waterproof & Dustproof Rating

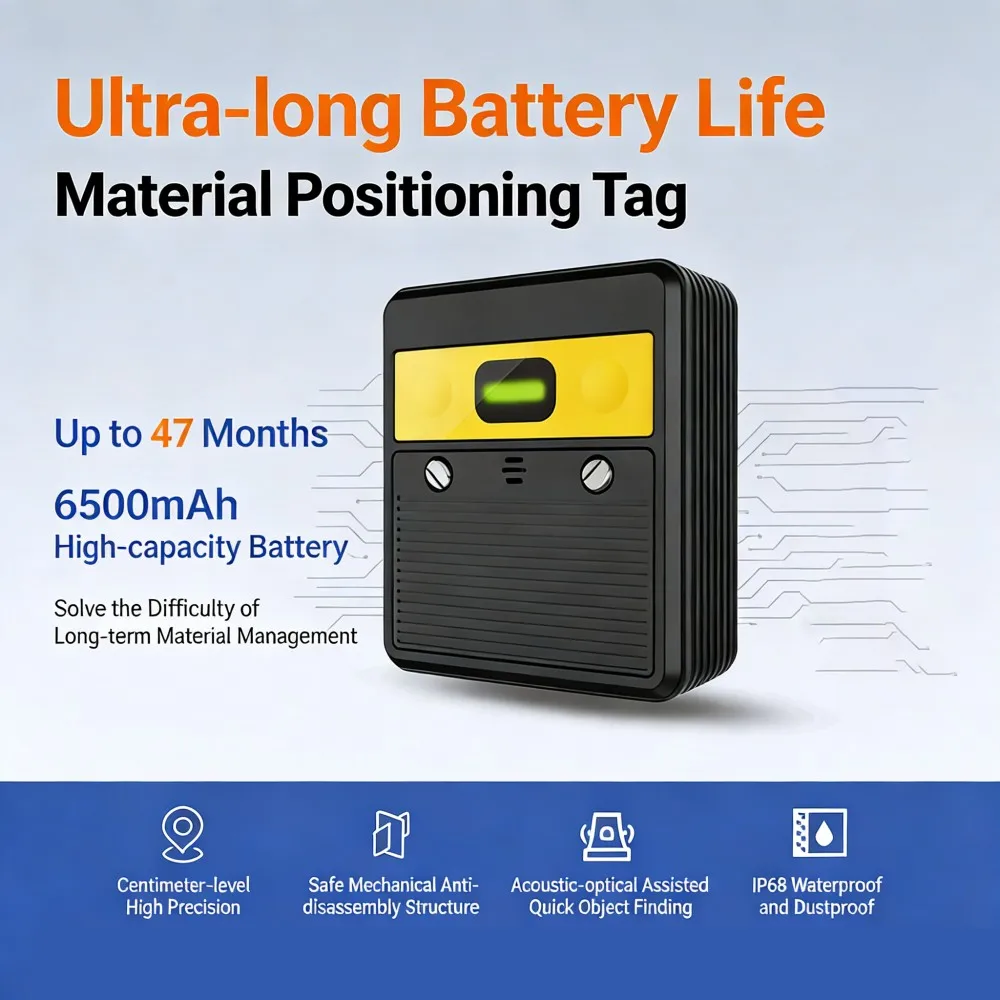

Ultra-long Battery Life for Long-term Management

Equipped with a 6500mAh lithium sub-battery, delivering an ultra-long battery life of up to 47 months, effectively solving the challenge of long-term material management. The battery can be easily replaced, and the magnetic charging interface design ensures convenient maintenance.

Centimeter-level High Precision Positioning

Adopts UWB+BLE AOA positioning technology, supporting multiple working modes (TDOA/TOF) to achieve centimeter-level positioning accuracy. Dual wireless systems (UWB+Zigbee) ensure stable and reliable positioning, adapting to complex scenarios.

Safe and Durable with Full Protection

IP68-rated waterproof and dustproof, making it resistant to harsh environments. Features a secure mechanical anti-tamper structure and electrostatic protection for the charging interface (8kV contact discharge / 15kV air discharge), providing dual security for the device and data.

Intelligent and Convenient for Efficient Management

Supports sound and light assisted quick item finding (SOS button, sound/vibration/LED flashing alerts), with intelligent low battery and button interaction prompts. Built-in RFID compatible with one-card solutions, seamlessly integrating with existing enterprise management systems.

Specification

Tab1

Positioning Technology	UWB+BLE AOA
Product Dimensions	78×70×30 mm
Charging/Power Supply Interface	Pogo Pin-4 (Magnetic)
Battery Type	Lithium-ion battery
Battery Capacity	6500mAh
Charging/Power Supply Voltage	5V
Charging/Power Supply Current	450mA (Normal Mode) / 1A (Adapter Mode)
Charging Interface Electrostatic Protection	8kV (Contact Discharge) / 15kV (Air Discharge)
Positioning Wireless Standard	802.15.4_2011UWB
Communication Wireless Standard	Zigbee_802.15.4_2.4GHz
Battery Life	TDOA: 1Hz battery life ≥ 25 months; 0.3Hz battery life ≥ 47 months TOF (TOF operating mode for a positioning tag and a station): 1Hz battery life ≥ 13 months; 0.3Hz battery life ≥ 31 months
Features and Configuration	SOS button, sound alert, vibration alert, LED flashing alert, low battery alert, button interaction, built-in RFID (compatible with smart cards)
