High-precision Low-cost UWB & Bluetooth Fusion Positioning System
UWB+Wireless Fusion Positioning System Explosion-proof Sub-meter Level Personnel Location for Substation/Power Plant
Product introduction
Key selling points:
✅ Sub-meter Level High Precision Positioning
✅ Explosion-proof & IP68 Waterproof
✅ Wireless & No Wiring
✅ Long Battery Life
✅ 3D Visualization & Intelligent Linkage
Industry Pain Points：
* High investment in safety supervision
Traditional operation and maintenance requires more human and financial resources.
* Non-closed-loop management of hidden dangers and violations
Closed-loop management of hidden dangers and their locations cannot be implemented.
* Difficulty in safety accident traceability
Incomplete historical data of safety accidents leads to difficulties in traceability.
* Non-real-time safety assurance
No real-time alerts or early warnings for violations such as boundary crossing, entering restricted areas, and operational errors.
* Low utilization of video surveillance
Surveillance videos can only be replayed after incidents, with difficult retrieval and low utilization.
* Lack of data integration
Information silos exist without systematic data support for process supervision and review, making data linkage analysis
impossible.
Core Values of the Solution
* Linkage of Personnel Position and On‑Duty Information Real‑time confirmation of personnel positions and verification of on‑duty status to ensure no unapproved absence or post‑crossing.
* Risk Area Security Linkage Real‑time statistics of personnel in the workshop to trigger over‑crowding alarms, with data transmitted to the integrated display platform in real time.
* Incident Traceability Management Real‑time recording and storage of personnel tracks and key video footage for convenient inquiry and retrieval after incidents.
* Major Hazard Source Monitoring Linkage Connect to major hazard source monitoring data and implement regional defense in combination with personnel positioning.
* Patrol and Two‑Ticket Operation Linkage Standardize patrol and two‑ticket operation behaviors to ensure operational safety.
* Regional Defense Linkage Manage personnel access permissions, conduct real‑time statistics of personnel numbers in production and high‑risk areas, and transmit data to electronic screens in real time.
Solutions – UWB High and Low Precision Fusion Positioning System
Technical Features of the Solution High Precision: Adopts UWB positioning technology to achieve sub-meter high-precision positioning.
Low Cost: Compared with traditional UWB positioning products, the hardware cost of UWB beacons is greatly reduced while ensuring high precision. Integrates the Wireless iBeacon system to improve engineering deployment flexibility and further lower the overall project implementation cost. The iBeacon positioning system can be used in the initial stage, and UWB beacons can be added later as needed to upgrade to high-precision positioning without repeated system construction.
Cable-Free Installation: Beacon devices are powered by internal batteries and transmit wireless signals externally. No wiring is required during deployment, enabling fast installation and convenient operation & maintenance.
Long Battery Life: UBeacon beacons have a service life of more than 5 years, and iBeacon beacons have a service life of more than 7 years.
Solution – System Networking

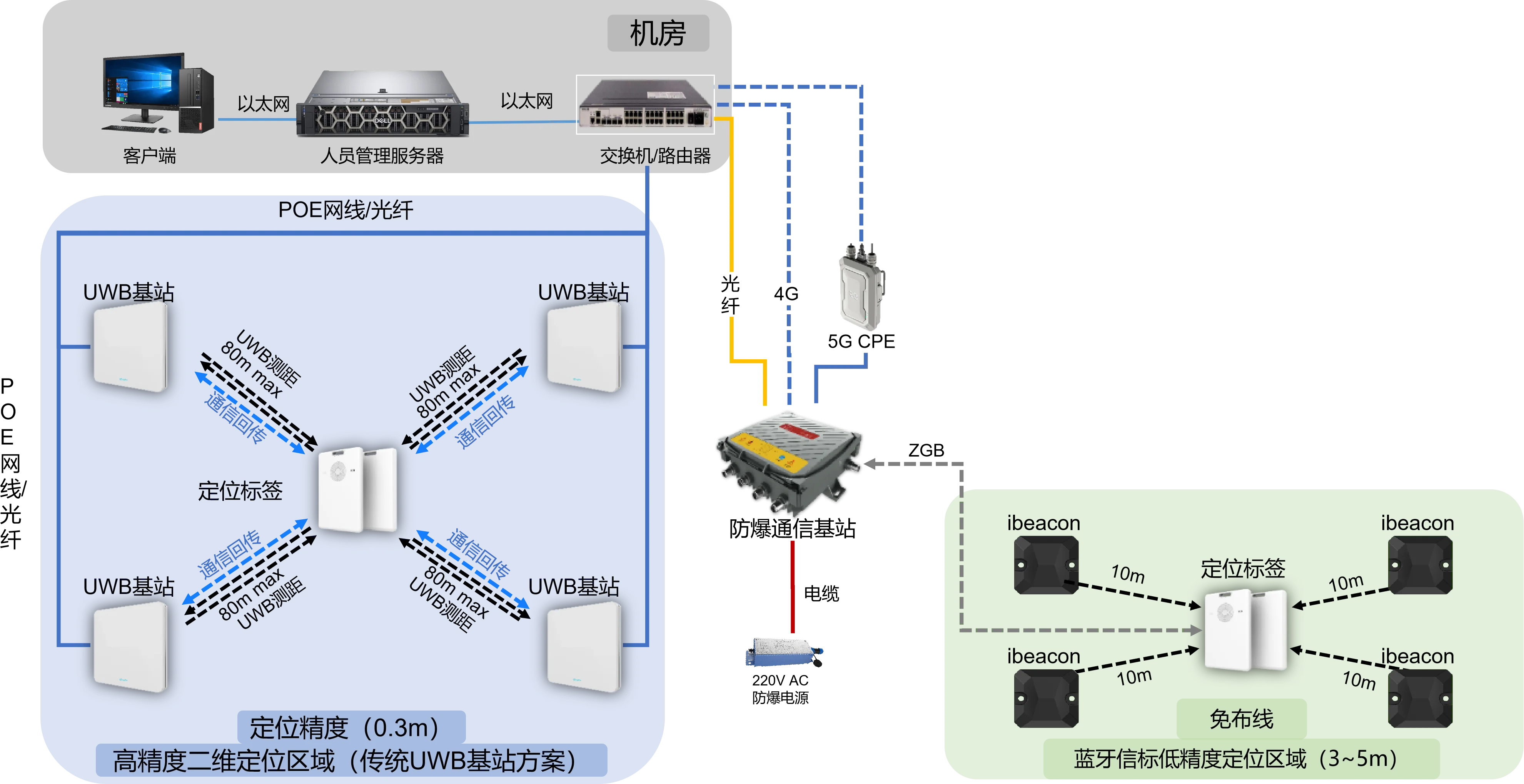

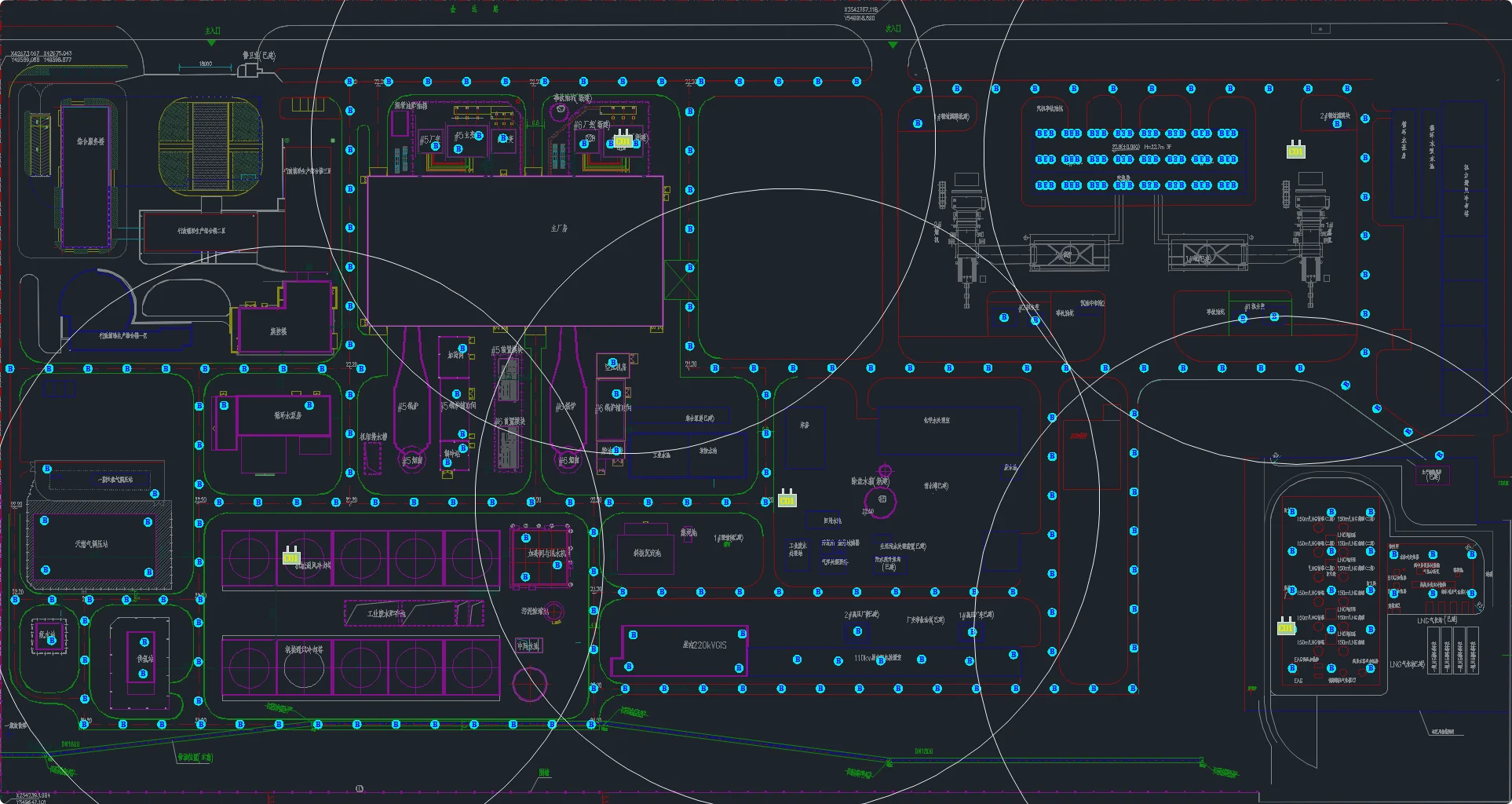

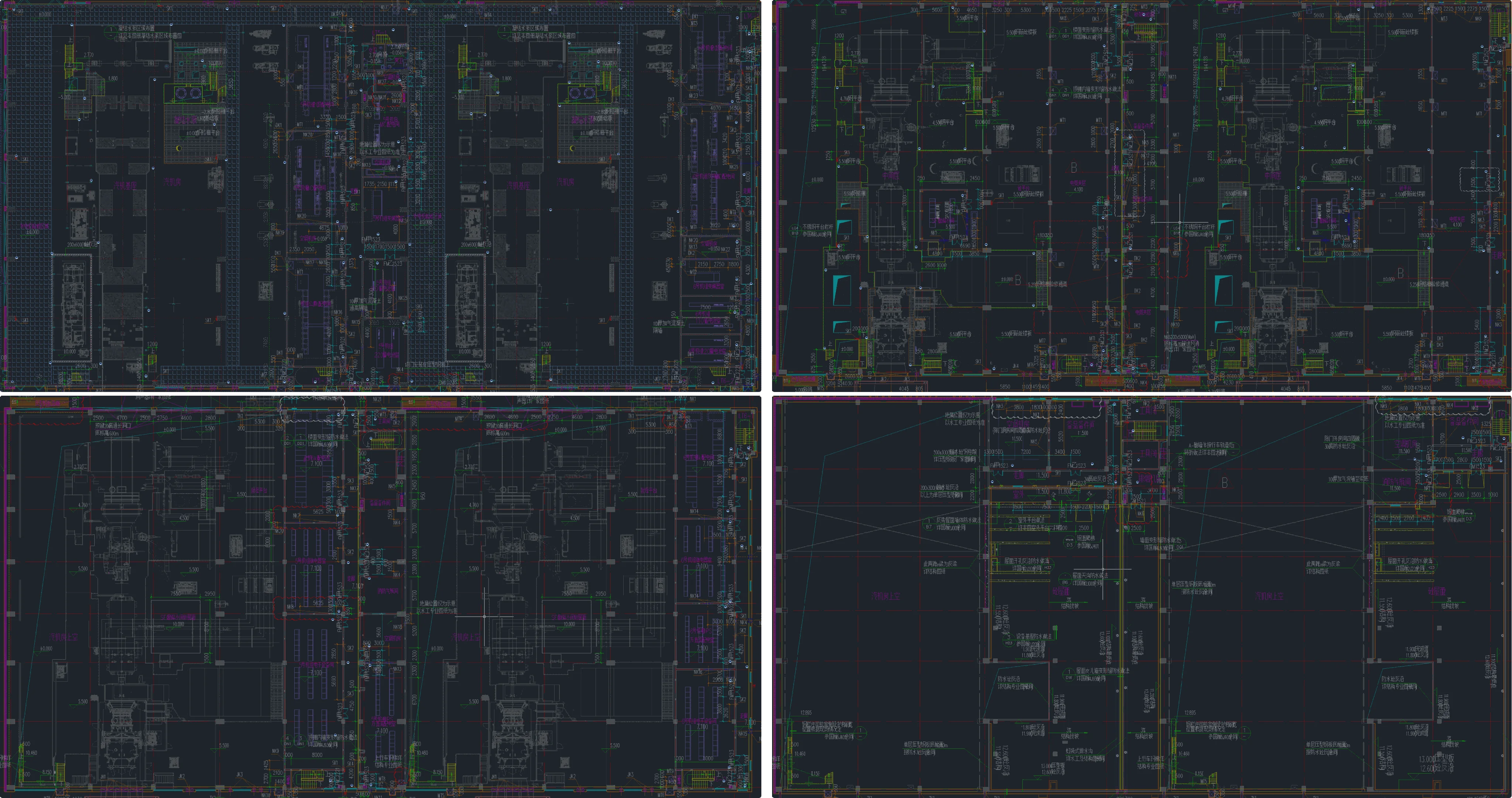

Solution – UWB Deployment in Main Workshop
Solution – iBeacon Deployment
Specification
- Tab1
|
Model Specifications
|
CF-EU03
|
|
4G Transmission Speed
|
3GPP Cat.4 LTE, Downlink: 150 Mbps / Uplink: 50 Mbps
|
|
SIM Card
|
Standard SIM card interface, 1.8/3V
|
|
WLAN
|
IEEE 802.11 b/g/n/ 2.4GHz 1T1R WLAN; WiFi hotspot, supports up to eight devices.
|
|
Operating Frequency (Customizable)
|
FDD LTE: B1/B3/B5/B8
TDD LTE: B34/B38/B39/B40/B41 WCDMA: B1/B5/B8 |
|
Interface
|
USIM or ESIM; USB Type A interface TF card
|
|
General Functions
|
SMS, USSD, APN management in network search mode, wireless network management, access device management, traffic statistics,
router settings, automatic network time synchronization |
|
Power Saving Mode
|
WiFi coverage settings, WiFi sleep mode settings
|
|
Firewall
|
Port filtering, port mapping, port forwarding, UPnP, DMZ
|
|
Operating System
|
Win7/WinXP/MAC OS/Windows8/Windows10/Android/LINUX
|
|
Product Dimensions
|
97*34*13.4mm
|
|
Version Upgrade
|
Via USB or FOTA
|
|
Usage Environment
|
Operating temperature: 0℃～40℃; Storage temperature: -40℃～70℃
Operating humidity: 10%～90%RH (non-condensing); Storage humidity: 5%～90%RH (non-condensing) |
Solution - Core Products
Three-Proof Enhanced Communication Base Station (Fiber Optic Version)
Gas Explosion Protection: Ex ib IIC T4 Gb (100% self-developed + certified compliant)
Dust Explosion Protection: Ex ib IIIC T130 Db (100% self-developed + certified compliant)
Power Supply Voltage: 12Vdc, intrinsically safe
Transmission Interface: Single-mode fiber, supports interface cascading
Coverage Radius: ≥1 km
Protection Grade: IP68

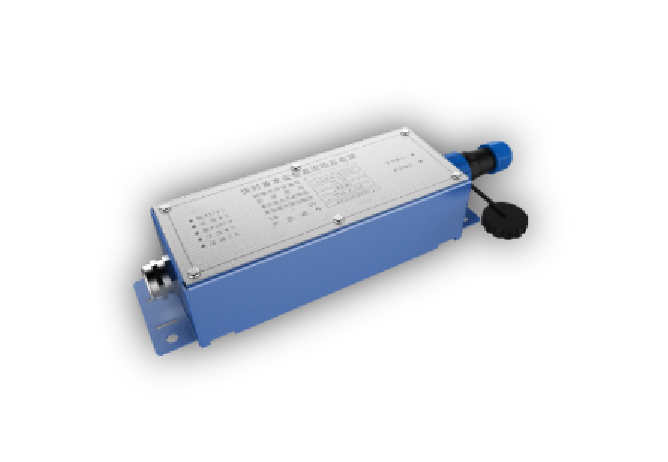

Encapsulated and Intrinsically Safe DC Regulated Power Supply
Encapsulated Intrinsically Safe Type
Explosion-proof Grade: Ex ib mb IIB T4 Gb (100% self-developed + certified compliant)
Operating Ambient Temperature: -20℃ ~ +55℃
Enclosure Protection Grade: IP68

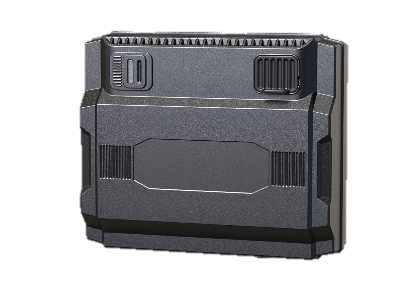

High-precision UWB Beacon Base Station
Gas Explosion Protection: Ex ib IIC T4 Gb (100% self-developed + certified compliant)
Dust Explosion Protection: Ex ib IIIC T130 Db (100% self-developed + certified compliant)
Operating Ambient Temperature: -40℃ ~ 85℃
Enclosure Protection Grade: IP68
Battery Power Supply: Service life ≥ 5 years
Deployment Mode: No wiring required
Installation Mode: Wall-mounted, pole-mounted; suitable for harsh outdoor environments; supports fast deployment and O&M via APP

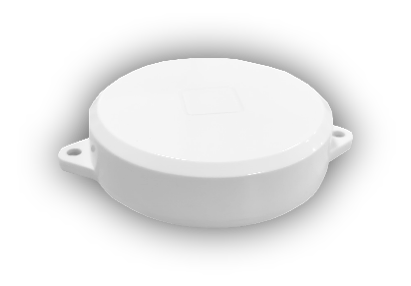

Wireless Beacon Base Station (iBeacon) (Non-explosion-proof)
Operating ambient temperature: -20℃ ~ 60℃ Ingress protection rating: IP54 (non-explosion-proof) Battery power supply: ≥ 5 years Replaceable battery: Supported (2 × AA batteries) Wireless protocol: BLE 5.0 or above Deployment method: Indoor wall and ceiling mounting Supports fast deployment and O&M via APP

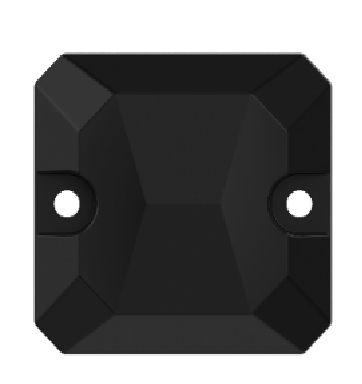

Wireless Beacon Base Station (iBeacon) (Explosion-proof)
Explosion-proof Grade: Ex ia IIC T4 Ga (100% self-developed + certified compliant)
Dust Explosion Protection: Ex iaD 20 IP68 T130℃ (100% self-developed + certified compliant)
Operating Ambient Temperature: -40℃ ~ 85℃
Enclosure Protection Grade: IP68
Battery Power Supply: Service life ≥ 7 years
Wireless Protocol: BLE 4.0 or above; supports fast deployment and O&M via APP

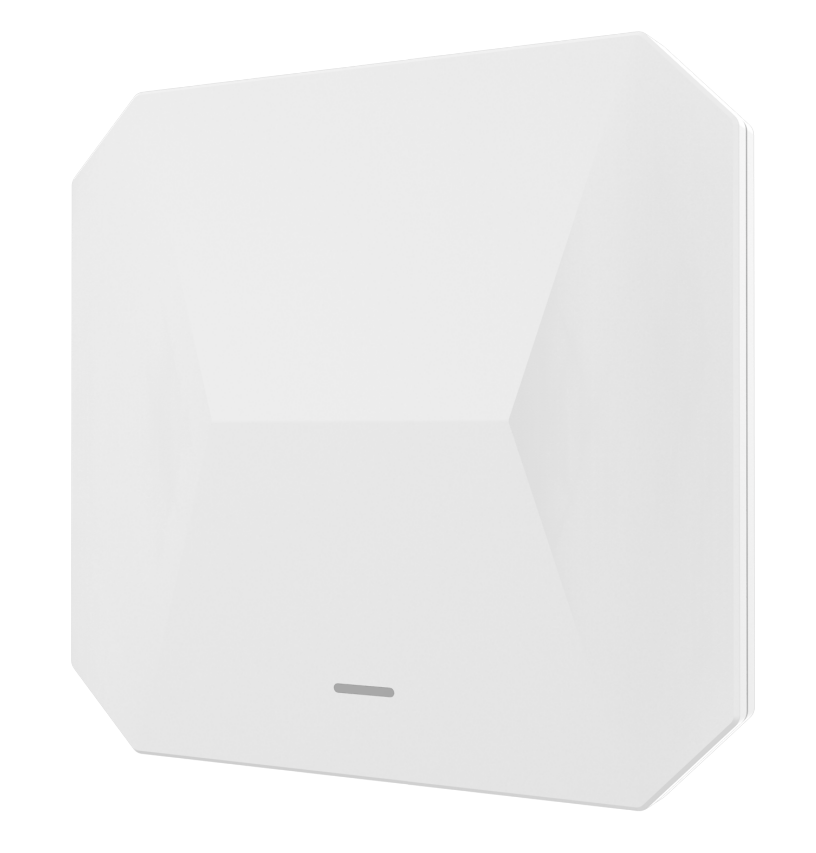

UWB Outdoor Three-Proof Positioning Base Station
Product Dimensions: 210 × 200 × 55 mm
Data Transmission: 10M/100M auto-adaptive LAN / WIFI 802.11b/g/n @ 2.4G
Power Interface: PoE
Rated Power Supply Voltage / Current: 48V standard PoE / 55 mA @ 48V
Maximum Wireless Positioning Coverage (without fading margin): ≥ 300 m
Wireless Positioning Coverage for Engineering (25 dB fading margin): ≥ 100 m
Operating Temperature: -20℃ ~ 75℃
Ingress Protection Rating: IP67

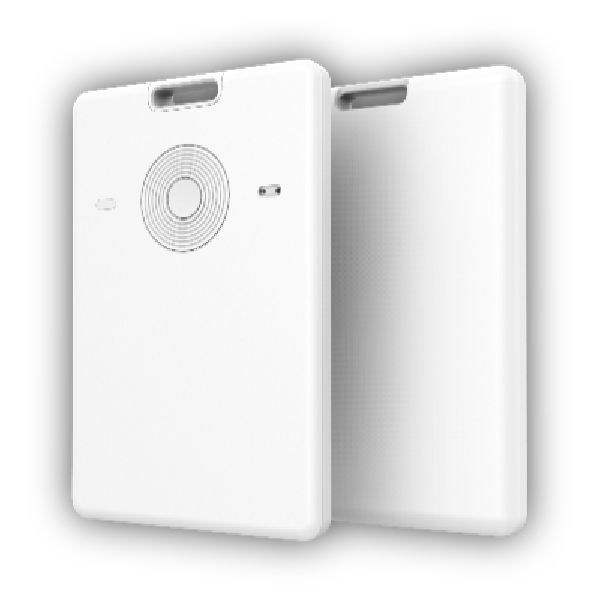

Positioning ID Badge Card
Positioning Mode: UWB + Wireless Fusion Positioning
Explosion-proof Grade: Ex ib IIC T4 Gb (100% self-developed + certified compliant)
Dust Explosion Protection: Ex ibD A21 T135℃ Db (100% self-developed + certified compliant)
Transmission Interface: Sub-1G
Battery Life: ≥ 15 days
Maximum Positioning Distance: 100 m
Ingress Protection Rating: IP68
SOS Alarm: Supported
Built-in barometer for altitude measurement
Built-in NFC, supports one-card pass function
Wearing Mode: Lanyard or chest clip

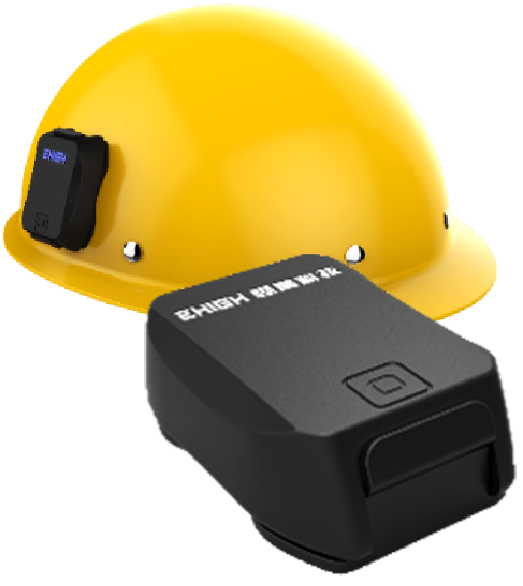

Safety Helmet Positioning Tag
Positioning Mode: UWB + Wireless Fusion Positioning
Explosion-proof Grade: Ex ib IIC T4 Gb (100% self-developed + certified compliant)
Dust Explosion Protection: Ex ibD A21 T135℃ Db (100% self-developed + certified compliant)
Operating Ambient Temperature: -20℃ ~ 60℃
Ingress Protection Rating: IP67
Battery Life: ≥ 7 days
Maximum Positioning Distance: 100 m
SOS Alarm: Supported

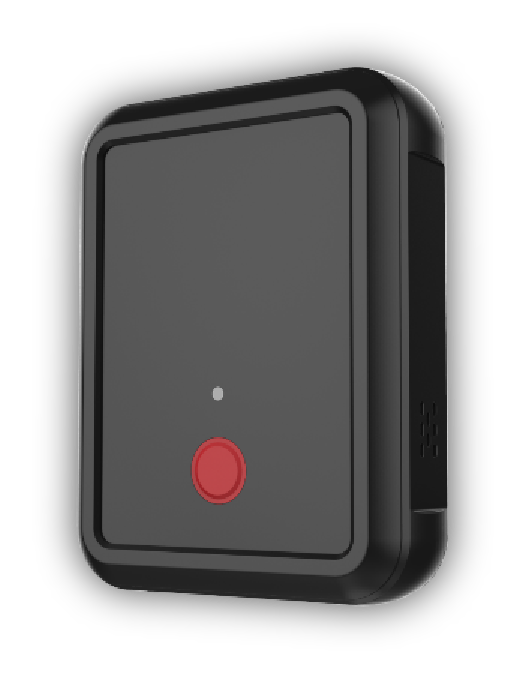

Asset Positioning Tag
Positioning Mode: UWB + Fusion Positioning
Explosion-proof Grade: Ex ib IIC T6 Gb (100% self-developed + certified compliant)
Dust Explosion Protection: Ex ib IIIC T80 Db (100% self-developed + certified compliant)
Ingress Protection Rating: IP68
Battery Life: ≥ 15 days (@1Hz positioning frequency)
SOS Alarm: Supported
Interaction Mode: Physical buttons + LED indicators
Alarm Notification: Buzzer + Vibration
Built-in three-axis acceleration sensor
Built-in RFID, supports one-card pass function
Housing Material: ABS + PC
Installation Method: Clip-on, magnetic fixation

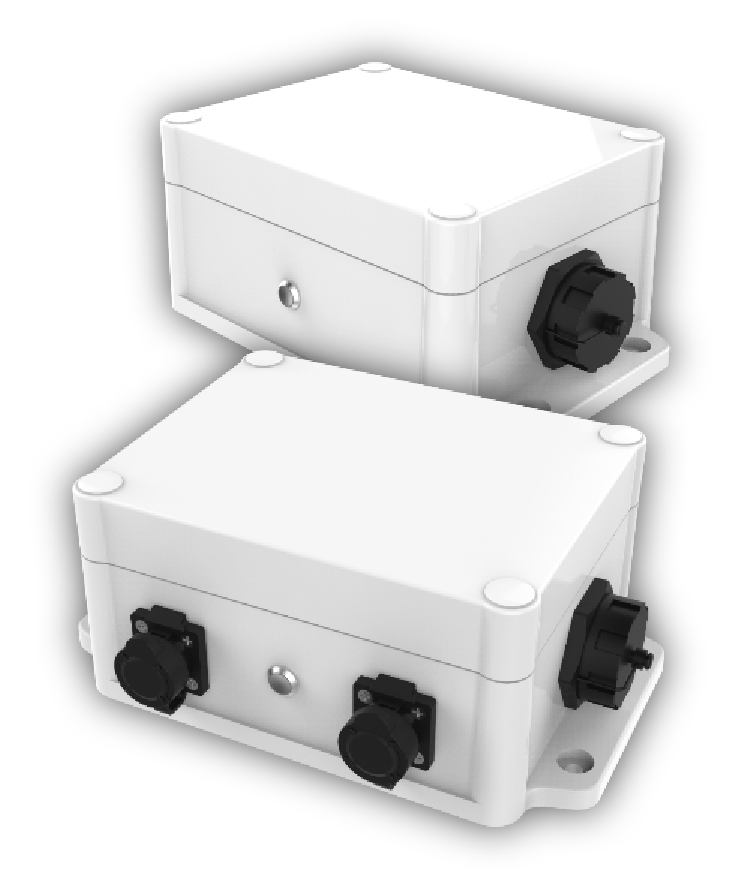

Vehicle Positioning Tag
Positioning Mode: UWB + Wireless
Version: External Power / Battery Power
Explosion-proof Grade: Ex ib IIC T6 Gb (100% self-developed + certified compliant)
Dust Explosion Protection: Ex ib IIIC T80 Db (100% self-developed + certified compliant)
Ingress Protection Rating: IP68
Battery Life: ≥ 30 days (@1 Hz positioning frequency, battery version, UWB positioning only)
Alarm Notification: LED indicator
Low Battery Alert: Supported
Housing Material: ABS + PC
Installation Method: Bolt fixation, magnetic fixation
Power Interface: USB-A

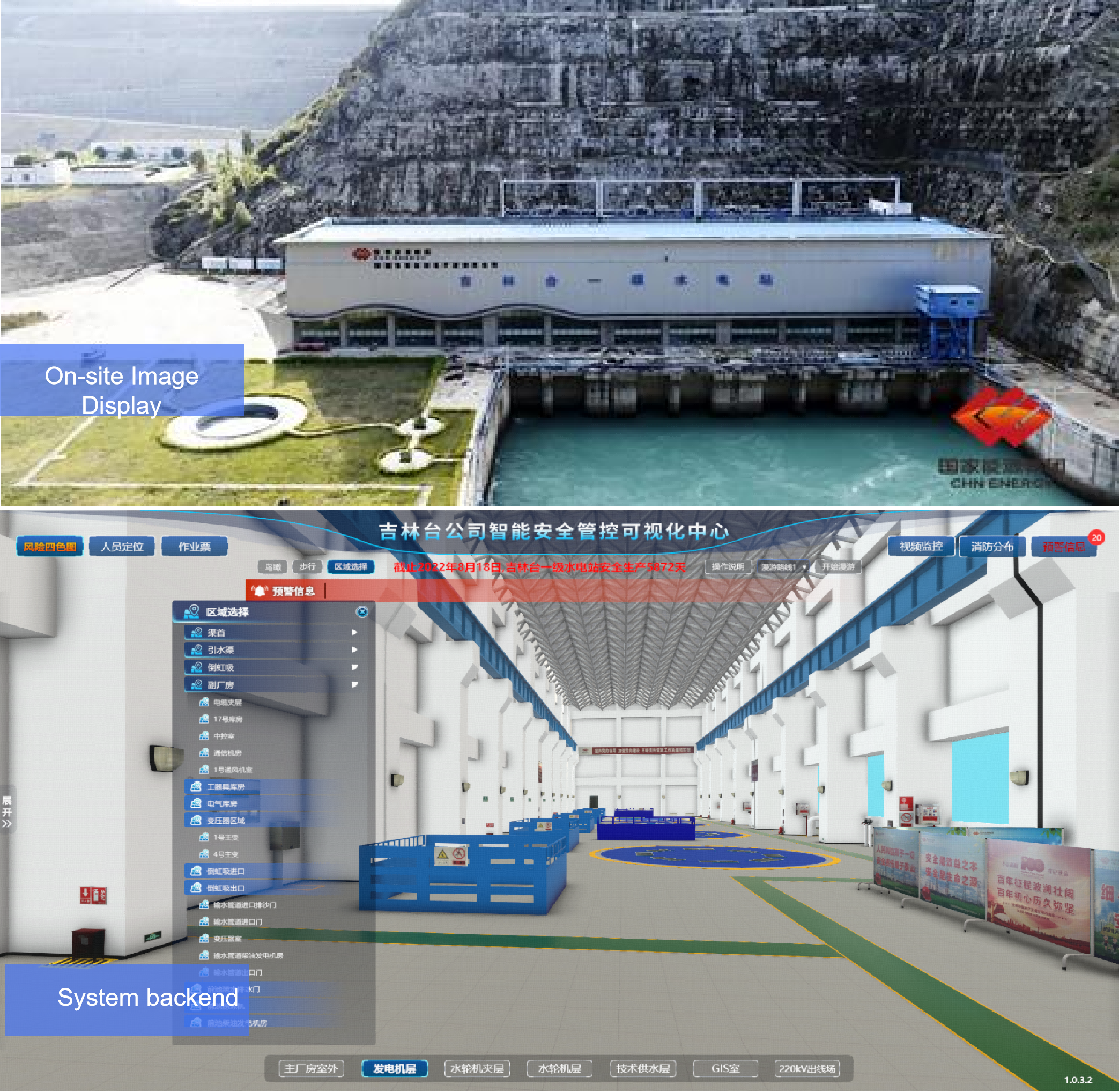

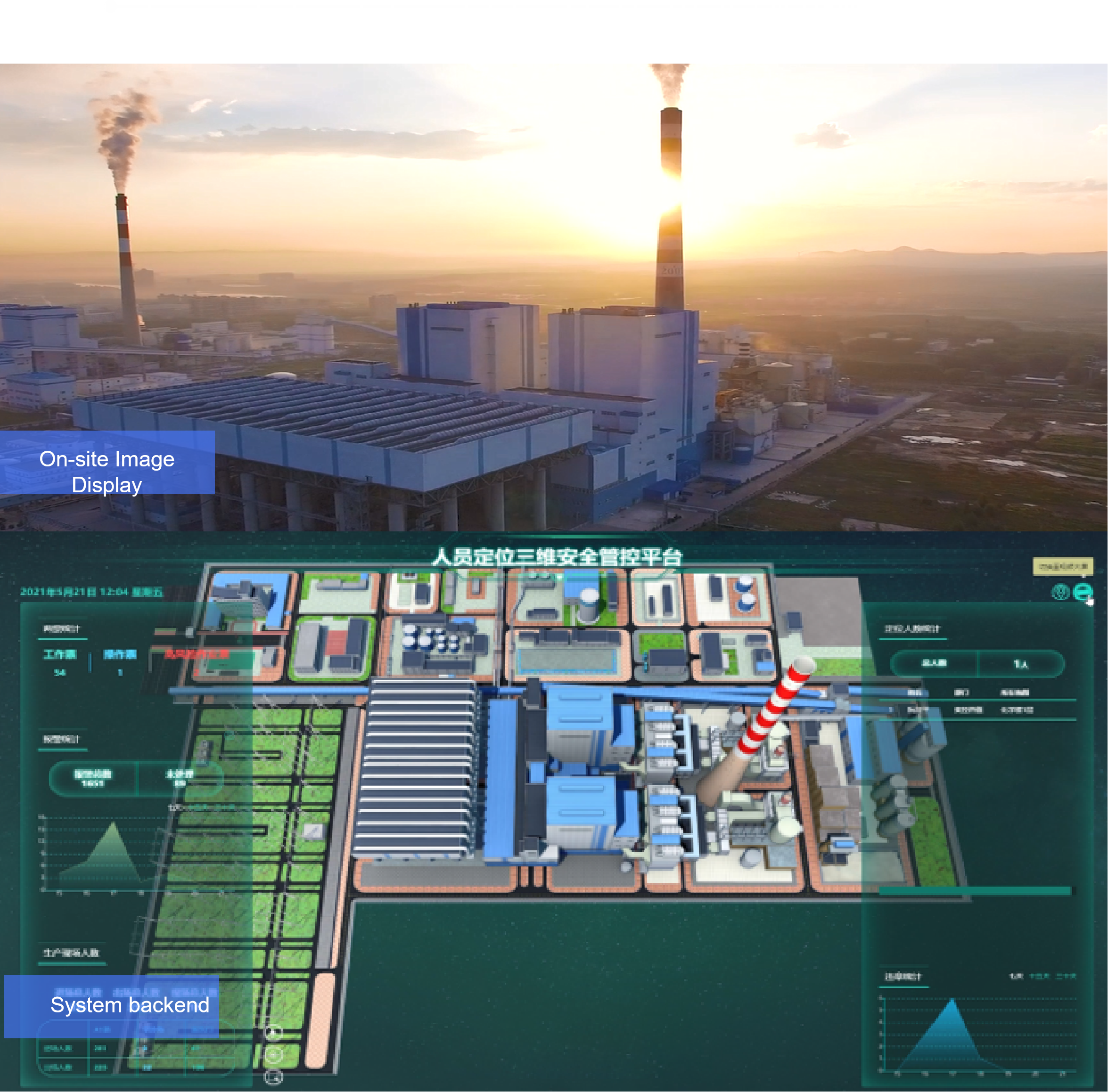

Typical Cases (2)
-
Functions Implemented:
3D Visualization Display of Personnel, Violations, Hazards, and Operations in the Plant Area
Full Plant Area 0D, 1D, 2D, 3D UWB Positioning
Integrated with Access Control and Visitor System for Visitor Management
Integrated with Operation System for Operation Monitoring
Integrated with Violation System for Positioning-Based Violation Monitoring
Integrated with SIS System for 3D Visualization of On-site Equipment Operation StatusResults: Integration with PMS system, integration with SIS system, standardized on-site personnel management, security electronic
fence management, access control management, trajectory tracking and playback, and personnel location distribution display. -
Functions Implemented:
* 3D Visualization of Personnel, Inspection and Operations in the Plant Area
* Full Plant Area 0D, 1D, 2D, 3D UWB Positioning
* Integrated with the Operation System for Operation Monitoring
* Integrated with the Violation System for Position‑based Violation Monitoring
