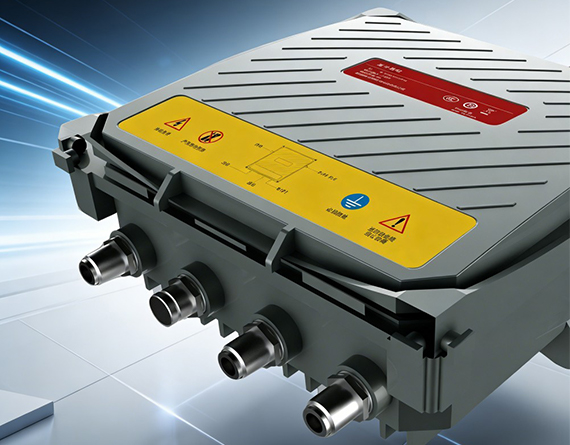

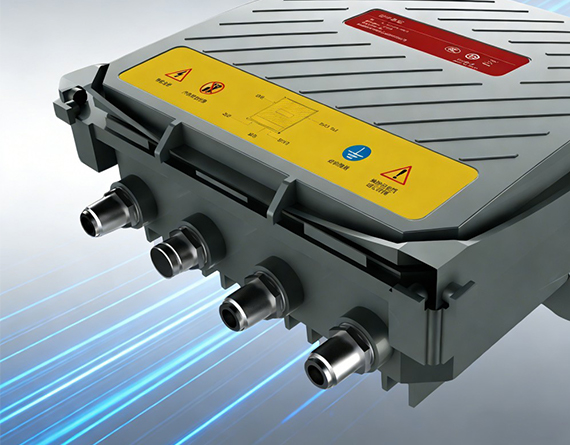

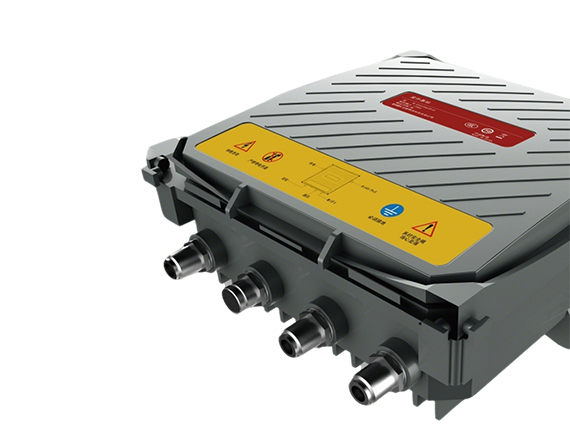

AUB15B Dual-Channel Positioning Base Station

UWB BLE Dual Channel Positioning Base Station 800m LOS, IP67, Cm-level Accuracy for Industrial, Port, Mining & Construction

Section1
Section2
Section3
Section4
Top

Product introduction

Breakthrough Positioning Performance

Superior Long-range Capability: Equipped with an upgraded algorithm, it achieves a maximum visual range of 800 meters. With a 25dB fading margin and a 3dBi omnidirectional antenna, the wireless positioning engineering coverage distance is ≥400 meters. Paired with dedicated long-range positioning tags, it delivers unlimited long-range positioning performance.

Centimeter-level High Precision: Adopting UWB+BLE AOA positioning technology, it reaches centimeter-level positioning accuracy to meet high-precision positioning requirements.

Wide Scene Adaptability

Support for large-scale wide-area deployment, covering diverse scenarios including UAV operations, parking lots, ports, factories, tunnels, construction sites, coal mines, etc. It is fully adapted to complex industrial and outdoor environments.

High Protection & High Reliability

IP67 High-grade Protection: Features dustproof and waterproof performance, capable of withstanding harsh environments such as humidity and dust, and adapting to the stringent operating conditions of outdoor and industrial scenarios.

Flexible Power Supply & Stable Communication: Supports dual-interface power supply via standard POE (IEEE802.3af) and DC 5.5/2.5mm; meanwhile, it is compatible with multi-standard communication including Zigbee, WIFI, and 10M/100M adaptive LAN port, ensuring stable data transmission with rich interfaces.

Practical & Rich Functions Basic functions include: priority reception of emergency distress signals from positioning tags, real-time monitoring of tag battery levels, group calling, individual calling and parameter reset for tags, fully meeting the needs of safety management and equipment operation & maintenance. Excellent Upgraded Experience As an upgraded product, algorithm optimization brings a leap in performance, and the dual-channel design further improves positioning efficiency and coverage capability, making it adaptable to more complex positioning scenarios.

Specification

Tab1

Positioning Technology	UWB+BLE AOA	Wireless positioning standard	802.15.4_2011UWB
Power Supply Interface	Standard PoE (IEEE 802.3at); DC 5.5/2.5mm interface	Wireless communication standard	Zigbee_802.15.4_2.4GHz
Rated Power	10W	Wired communication data interface	10M/100M LAN Adaptive
Rated Supply Voltage	48V Standard PoE (802.3at) / 9-24VDC	Wireless communication data interface	WIFI_802.11b/g/n@2.4G
Rated Current	210mA@POE48V/900mA@DC12V	Coverage distance for wireless positioning engineering	(25dB fading margin, 3dBi omnidirectional antenna): ≥400m
Antenna Type	External antenna, N-type external screw internal interface	Product dimensions	225x225x102mm
Basic Functions	Prioritize receiving emergency distress messages from tags, monitor tag battery levels, perform group calls and individual paging, and reset parameters for tags.
