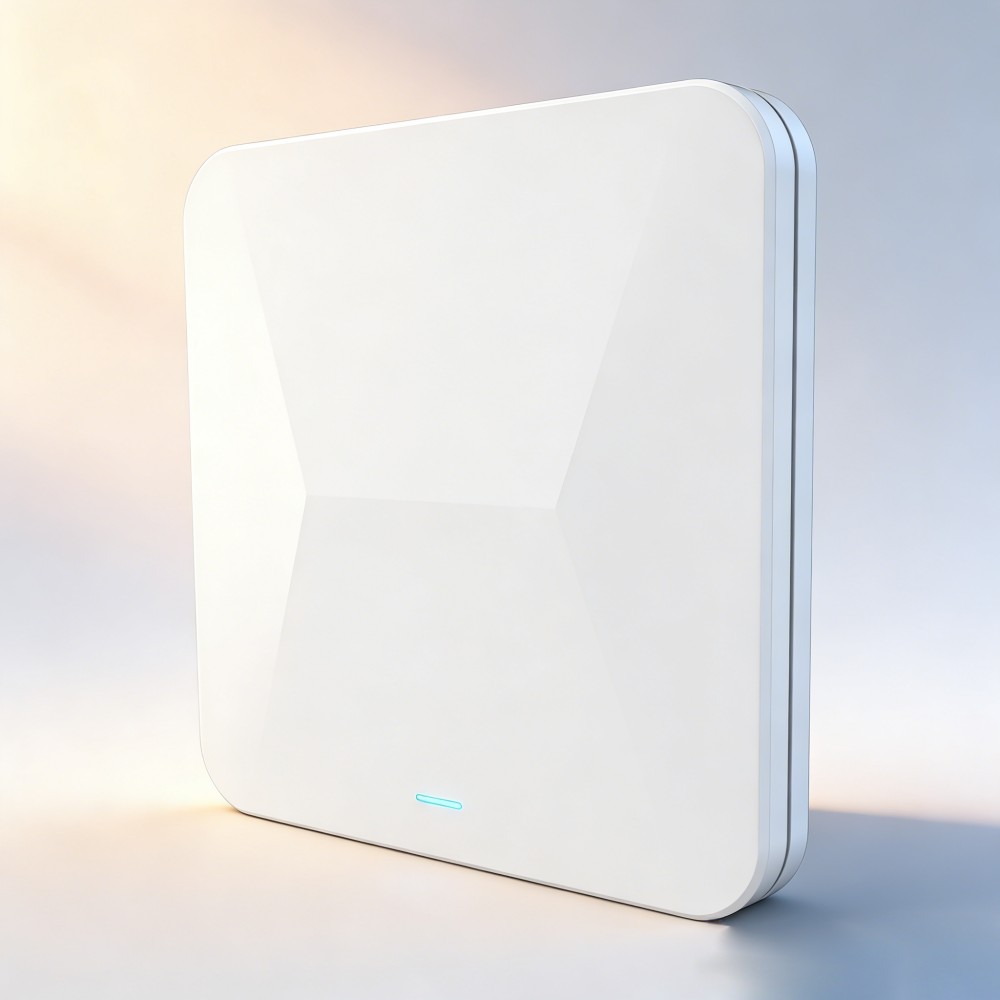

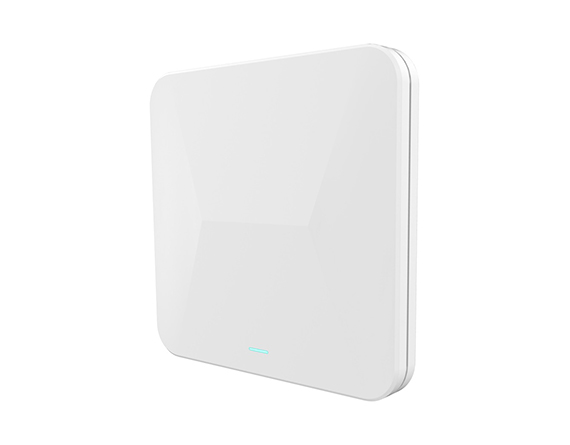

AOB04 BLE Precise Positioning Base Station

BLE Precise Positioning Base Station High Accuracy AOA Location Device for Real-Time Locating System

Section1
Section2
Section3
Section4
Top

Product introduction

AOB04 BT wireless Precision Positioning Base Station is one of the devices constituting a precision positioning system. Deployed within the positioning coverage area, it identifies matching positioning tags (BT wireless version 4.0 or above required) based on the BLE AOA positioning principle to achieve high-precision positioning.

This base station is a radio frequency identification device for electronic tag positioning, capable of identifying mobile tags within its coverage area with high recognition accuracy. It supports priority reception of emergency distress signals from tag cards and battery level monitoring of tag cards. Additionally, it features functions such as “group paging” and “individual paging” of tag cards, as well as reconfiguration of tag card parameters.

Product Installation Introduction

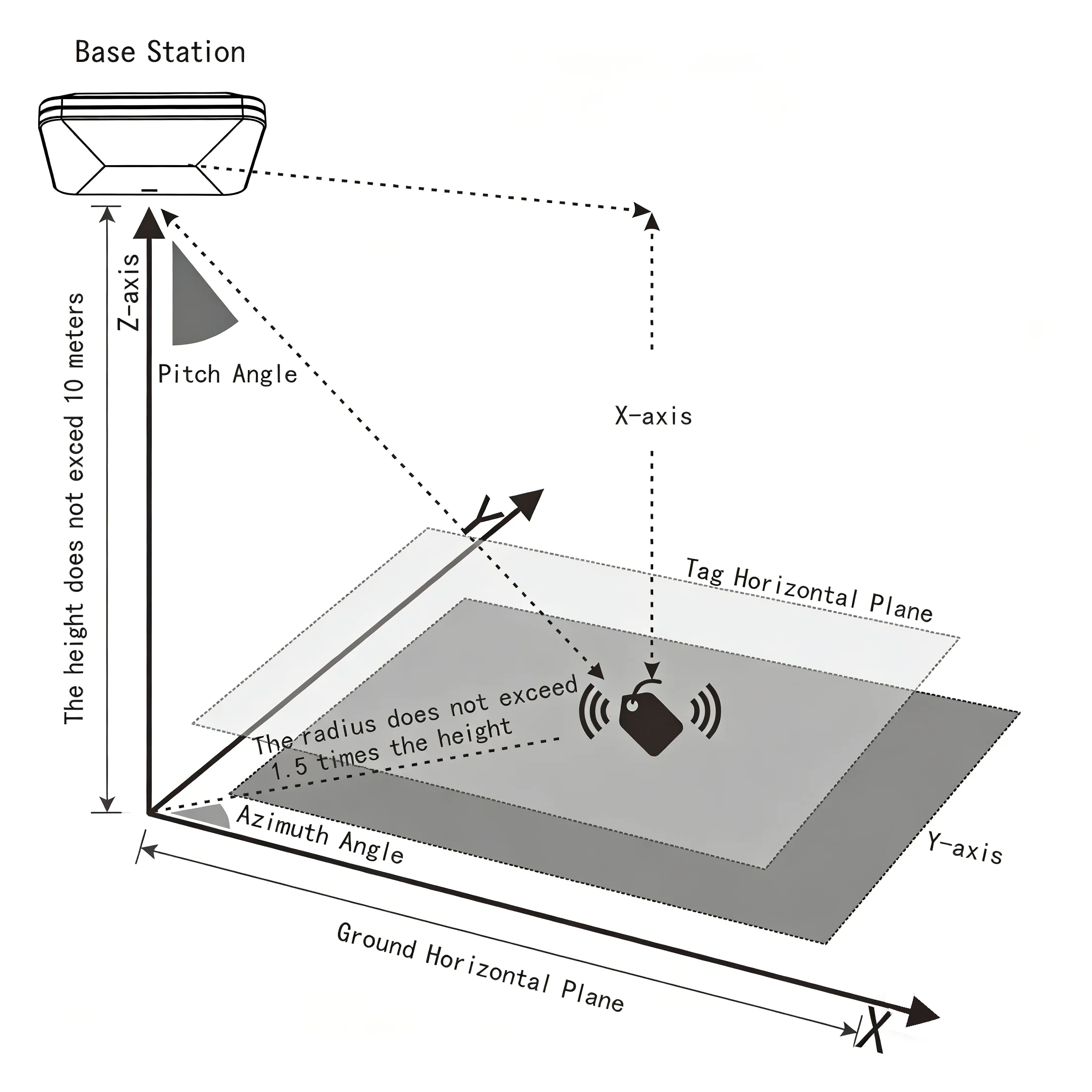

The AOB04 positioning base station is installed on the ceiling. It receives wireless signals from tags, transmits positioning information to the positioning engine. The positioning engine calculates the pitch angle and azimuth angle of the tag relative to the base station, and then computes the tag coordinates combined with the known height information of the tag. The coverage distance of the positioning base station is related to its installation height. Based on a typical indoor height estimation, when the base station is installed at a height of 3–5 meters, its high-precision coverage radius is also 3–5 meters.

Specification

Tab1

Power Interface: POE

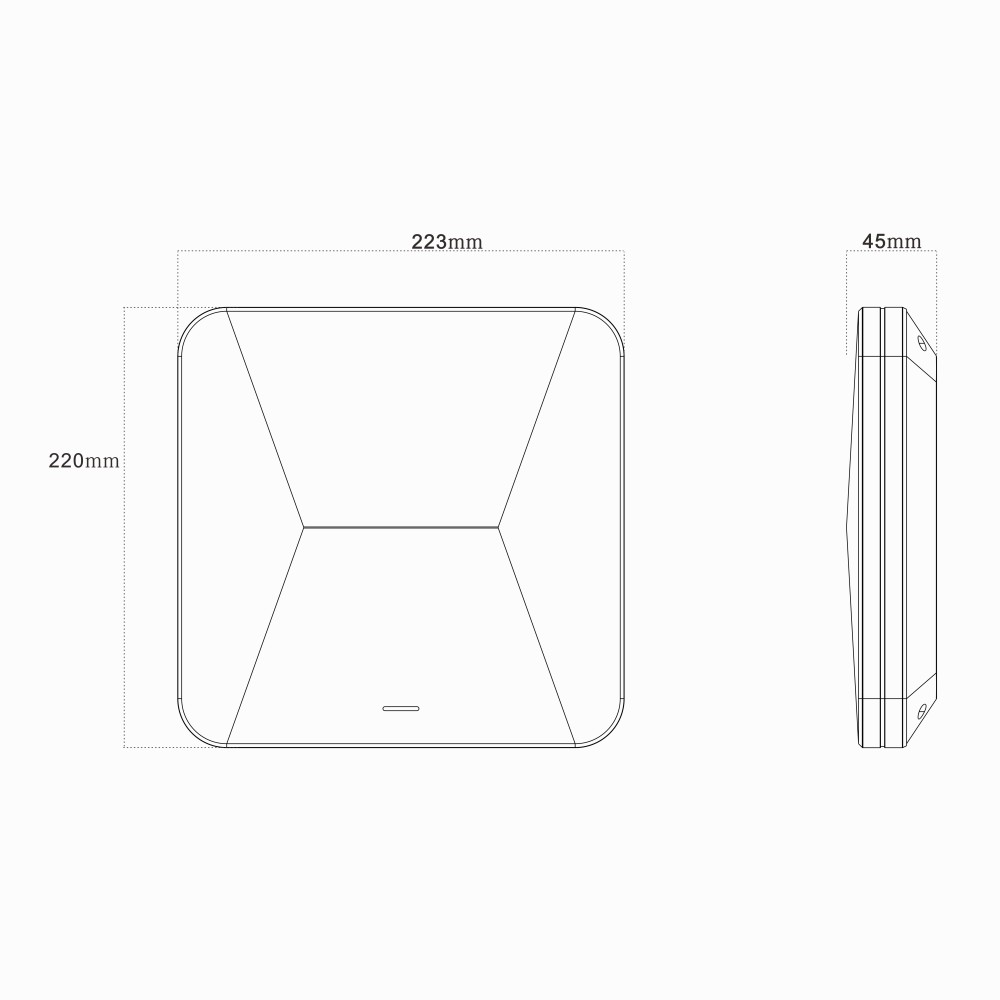

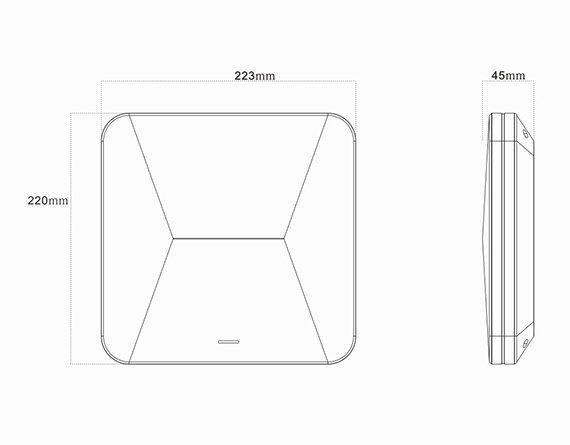

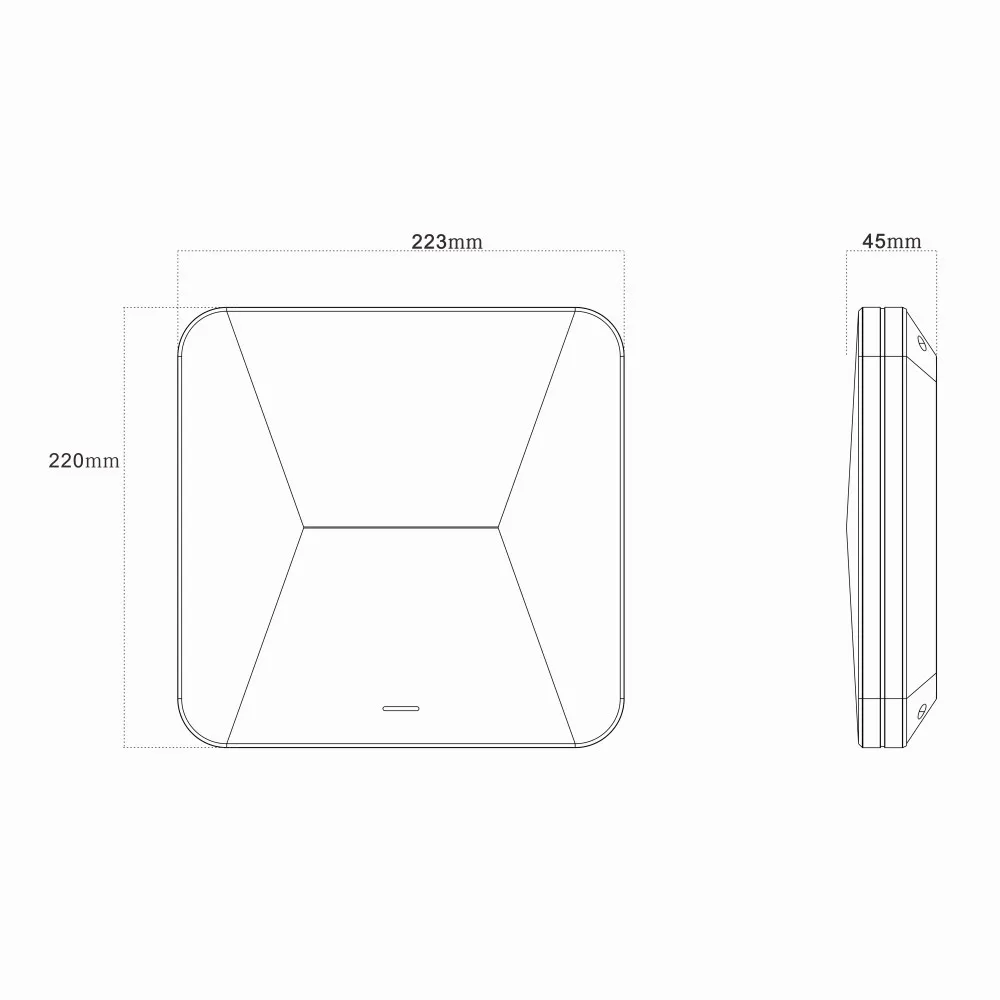

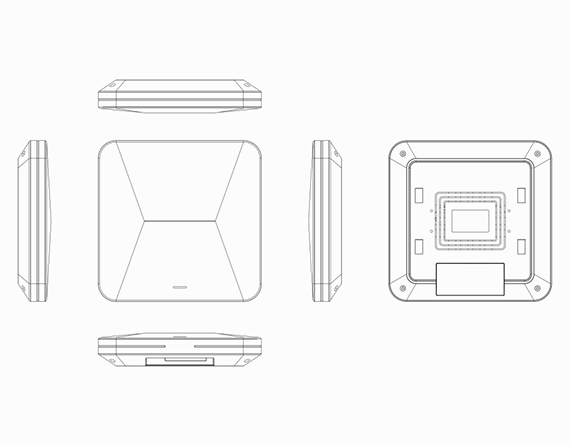

Dimensions: 223×220×45 mm

Weight: ≤0.8 kg

Peak Power: 2.4 W

Operating Temperature: -40℃ ~ 80℃

Storage Temperature: -40℃ ~ 80℃

Operating Humidity: 0~95% non-condensing

Protection Level: IP54

Housing Material: PC + ABS

POE Input Voltage: 802.3at, 36–58 V

POE Output Voltage (3 ports): POE input voltage -1.4 V

Wired Communication Interface: LAN port (10M/100M auto-negotiation)

Wireless Positioning Standard: BLE4.0 or above, 1 Mbps rate

Positioning Frequency Band: 2.4 GHz – 2.483 GHz

Wireless Receiving Sensitivity: ≥ -87 dBm

Typical Wireless Transmit Power: ≥ 0 dBm

2D Positioning Accuracy (LOS): 30 cm

2D High-Precision Positioning Coverage (30 cm accuracy, terminal with 0 dBi omnidirectional antenna):Coverage radius = (Base
station installation height – Target positioning height), and ≤5 m

2D Low-Precision Positioning Distance (1–5 m accuracy, terminal with 0 dBi omnidirectional antenna): ≤20 m

Wireless Communication Standard: ZigBee_802.15.4_2.4 GHz

Wireless Communication Frequency Band: IEEE 802.15.4 Channels 11~26

Wireless Receiving Sensitivity: ≥ -92 dBm

Wireless Communication Maximum Coverage (no fading margin, terminal with 0 dBi omnidirectional antenna): ≥200 m

Wireless Communication Engineering Coverage (25 dB fading margin, terminal with 0 dBi omnidirectional antenna): ≥100 m

Ethernet Port ESD Protection: 8 kV (contact discharge)

Ethernet Port Surge Protection: 2 kV (1.2/50 μS open-circuit voltage waveform)
