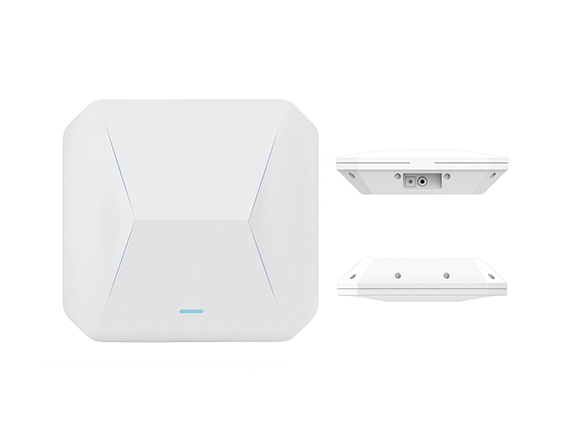

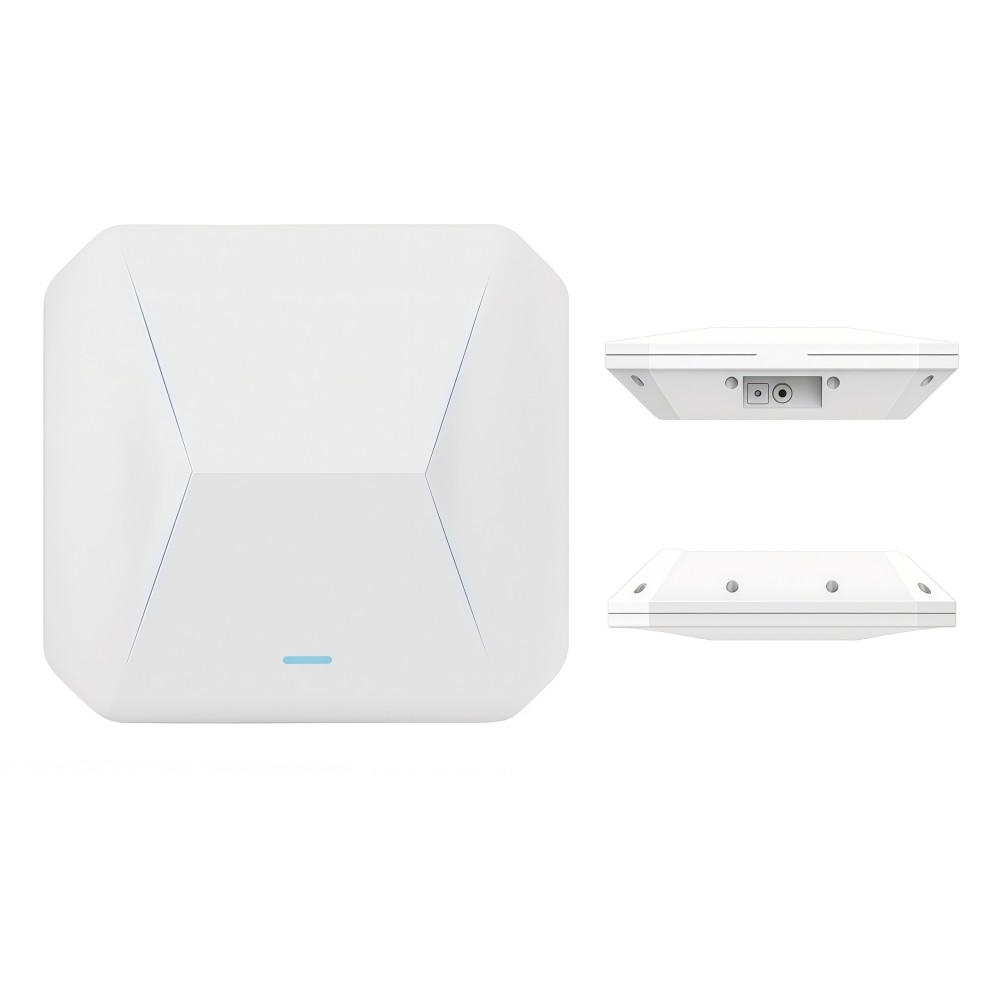

ANUB86 Indoor Positioning Base Station

Mini 86Box UWB+BLE AOA Location Base Station, High Precision RTLS Anchor with LED Indicator, Multi-Scenario Indoor Positioning Device

Section1
Section2
Section3
Section4
Top

Product introduction

Centimeter-Level Ultra-High Precision Positioning

Adopting a dual-technology fusion algorithm of UWB + BLE AOA, the positioning accuracy reaches the centimeter level, far surpassing traditional Bluetooth/Wi-Fi positioning. It meets the demand for accurate tracking of personnel and assets.

Full-Protocol Compatibility for Full-Scenario Deployment

Compatible with three major communication protocols: UWB (802.15.4 2011), Zigbee (802.15.4 2.4GHz), and Wi-Fi (802.11b/g/n @ 2.4G). Supports wired (10M/100M LAN) + wireless dual transmission, enabling seamless integration with existing RTLS systems.

Low-Power & High-Efficiency Operation

With a rated power of only 2.4W and a rated current of 55mA @ POE 48V, it features energy efficiency, low power consumption, stable long-term operation without overheating, and is ideal for 24/7 uninterrupted scenarios.

Industry’s Smallest 86-Series Wall-Mounted Design

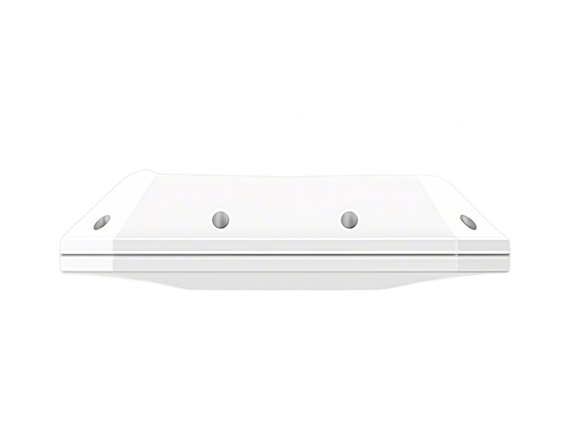

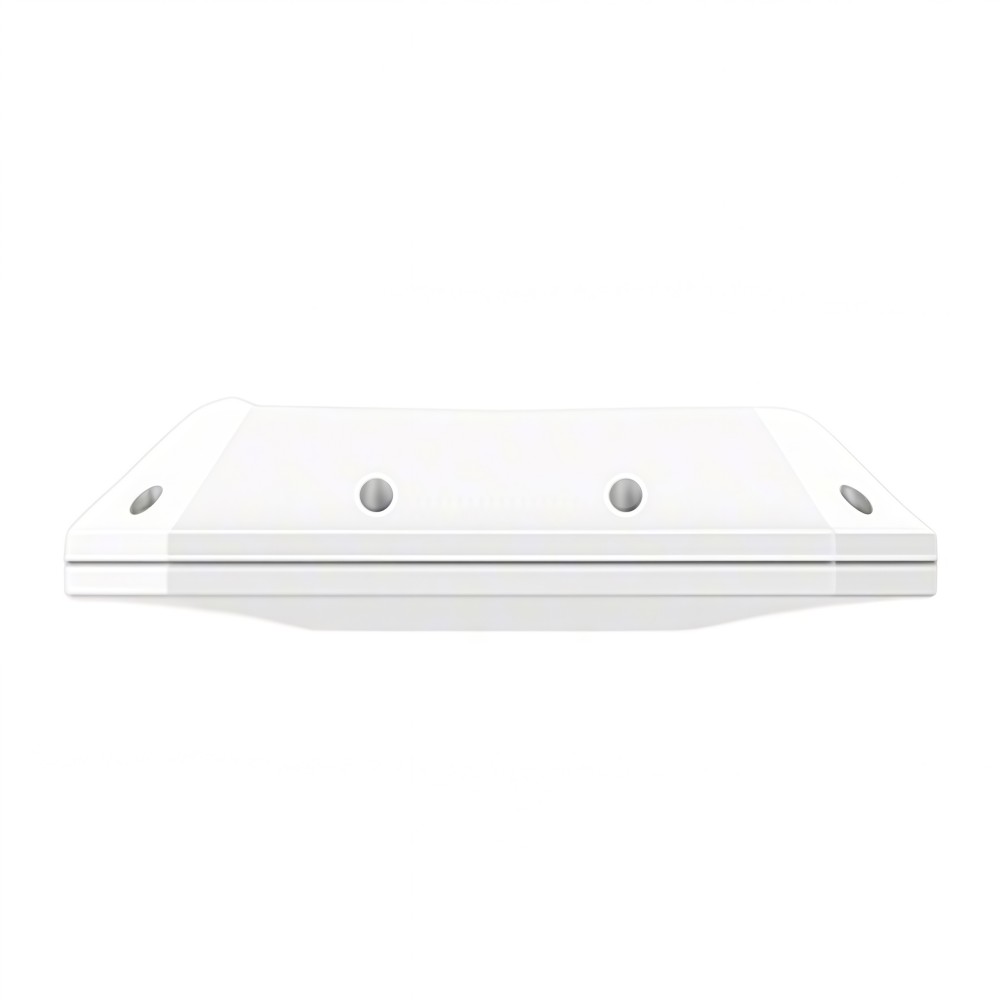

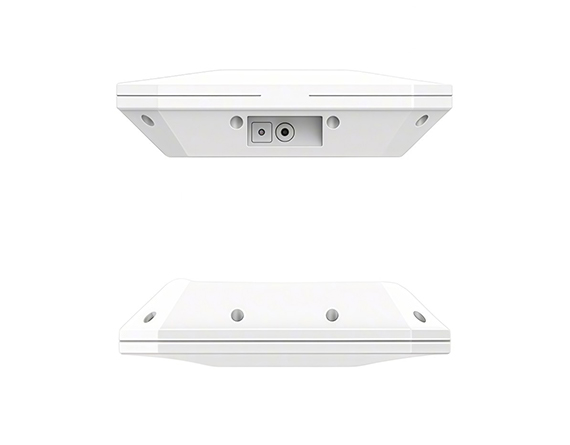

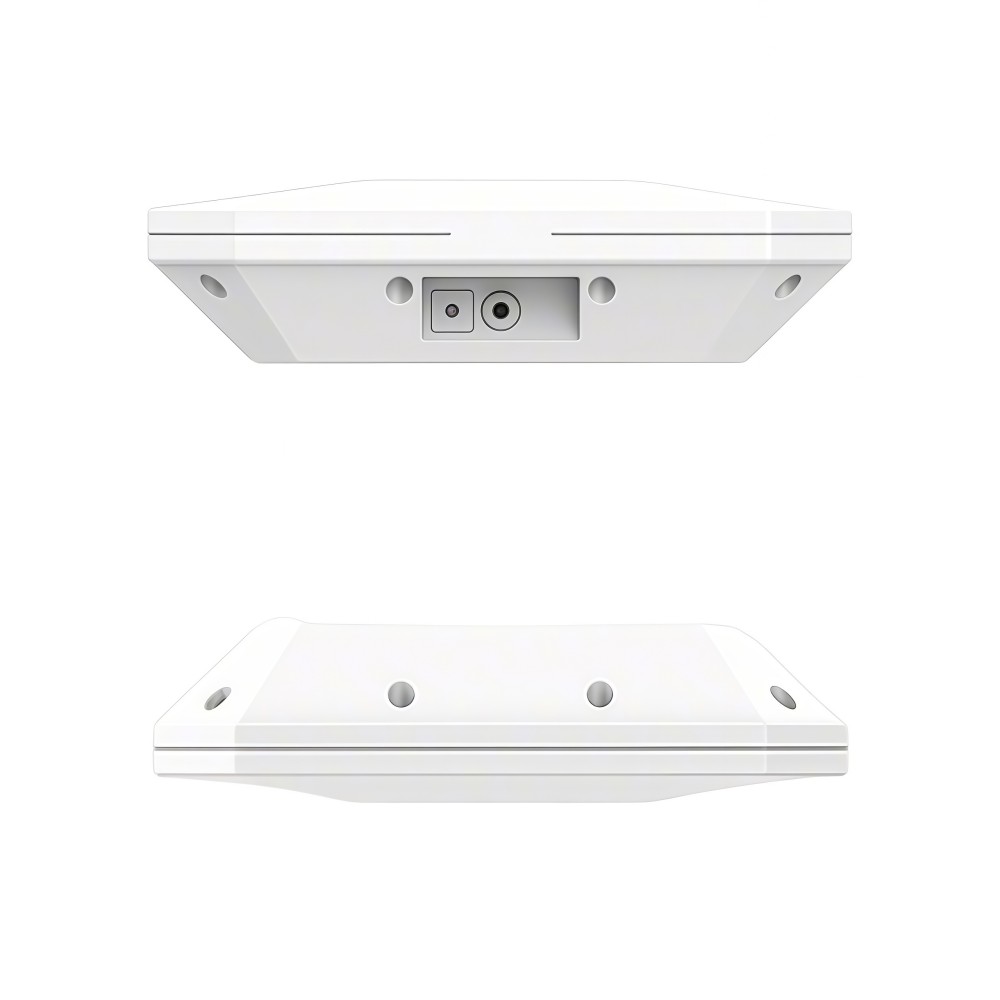

With dimensions of only 86.6×86.6×36.0mm, it is the industry’s smallest wall-mounted indoor positioning base station. Its minimalist appearance adapts to various decoration styles and saves installation space.

Convenient POE Power Supply, Worry-Free Wiring

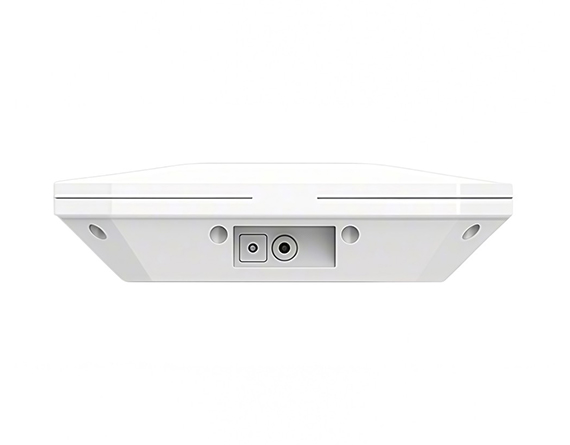

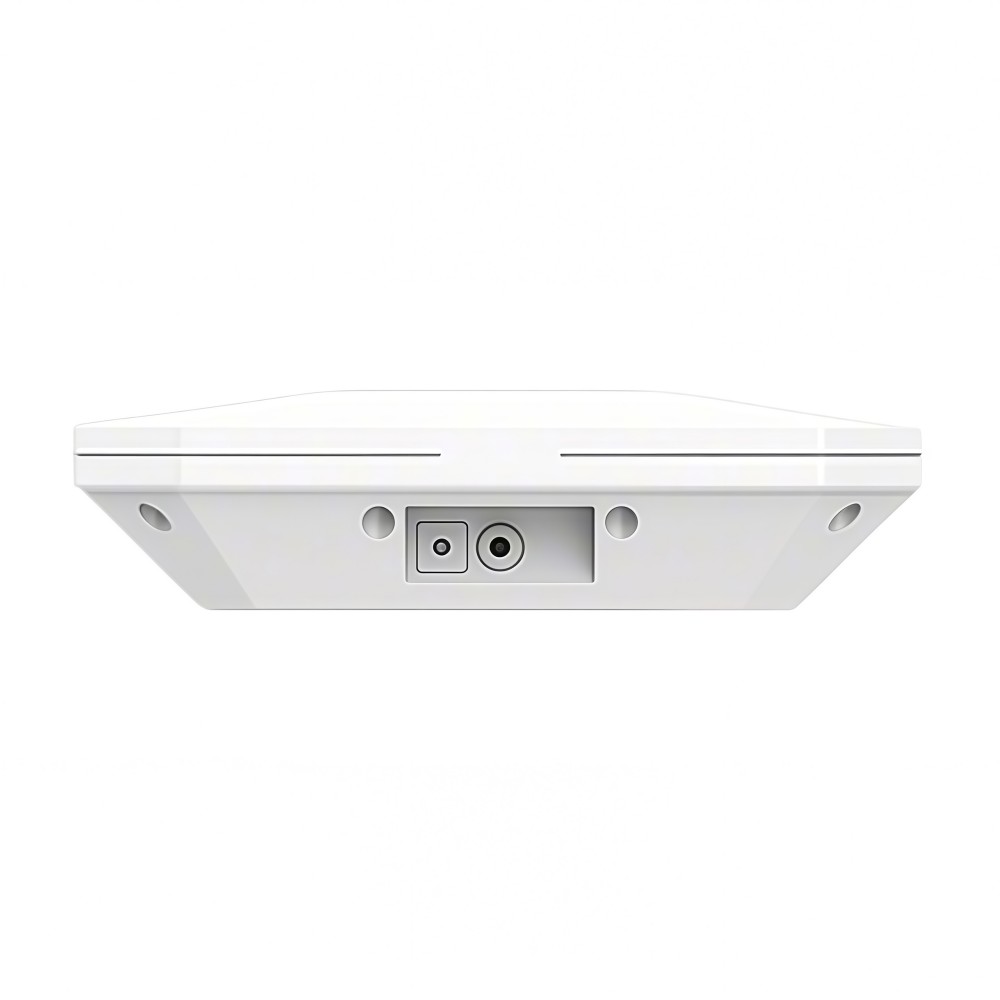

Supports 48V standard POE power supply, eliminating the need for an additional power adapter. A single network cable enables both power supply and data transmission, simplifying installation and reducing wiring costs.

Full-Scenario Adaptability, One-Stop Solution

Customized for scenarios such as prisons, case-handling centers, hospitals, courts/procuratorates, nursing homes, and factories. It covers all requirements including personnel positioning, asset tracking, and emergency management.

Intelligent Visualization + Emergency Response Function

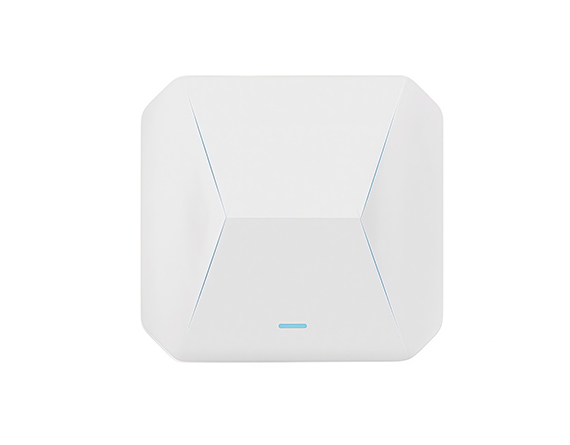

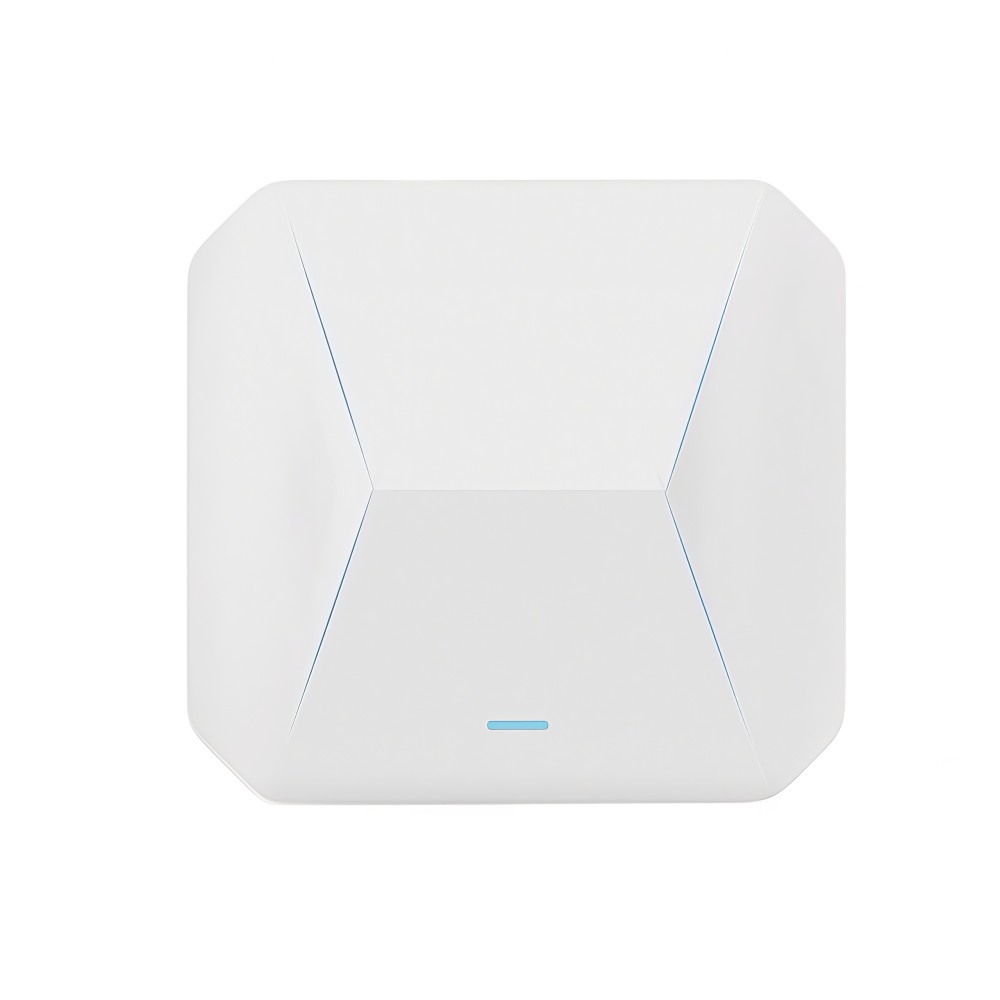

Equipped with an LED intelligent signal light to real-time display the device’s working status. Supports tag emergency SOS, battery level monitoring, group/individual paging of tags, and quick parameter reset. It prioritizes receiving distress signals for more efficient emergency response.

Specification

Tab1

Positioning technology	UWB+BLE AOA	Positioning wireless standard	802.15.4_2011 UWB
Power supply method	POE	Communication wireless standard	Zigbee_802.15.4_2.4GHz
Rated power	2.4W	Wired communication data interface	10M/100M LAN adaptive
Rated supply voltage	48V Standard POE	Wireless communication data interface	WIFI_802.11b/g/n@2.4G
Rated current	55mA @ POE 48V	Product dimensions	86.6×86.6×36.0mm
Basic functions	Prioritize receiving emergency distress signals from tag cards, monitor tag card battery levels, and perform group calls, individual calls, and parameter resets on tag cards.
