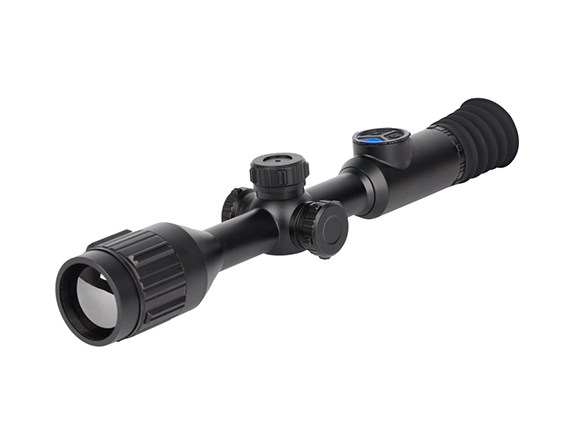

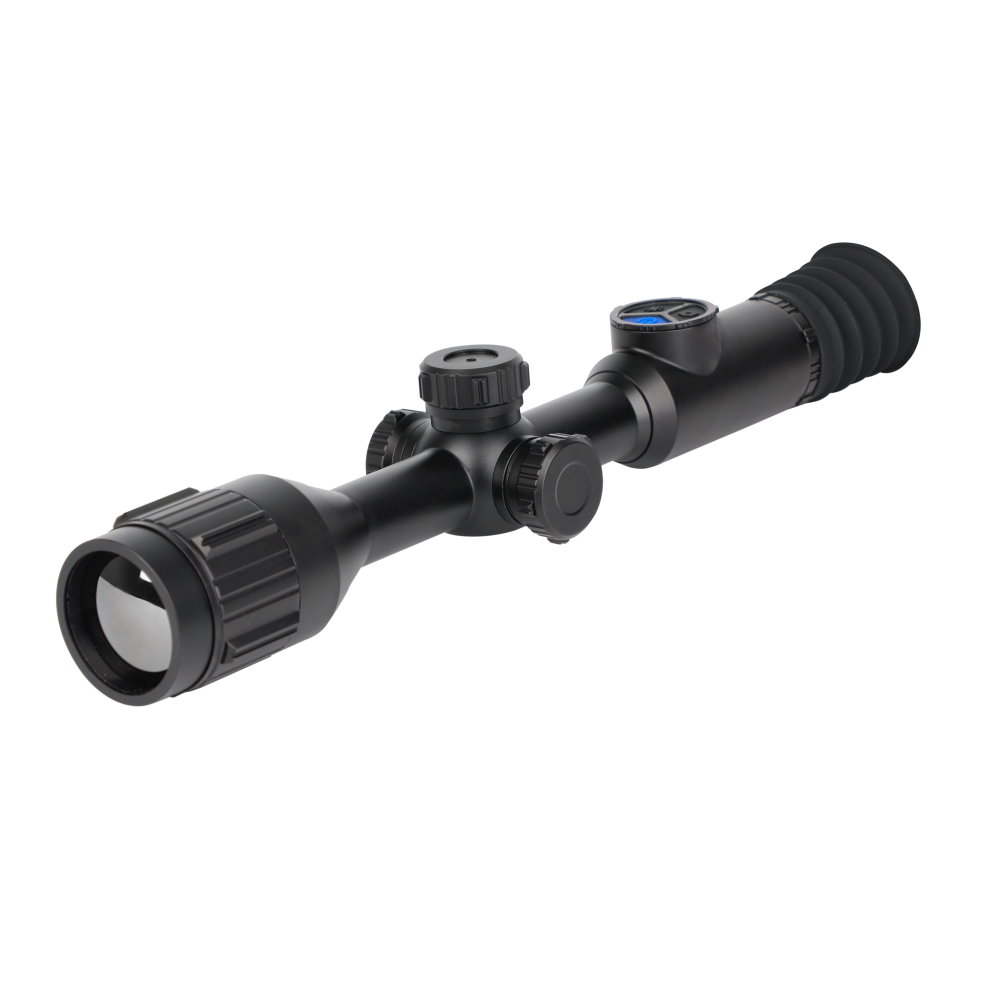

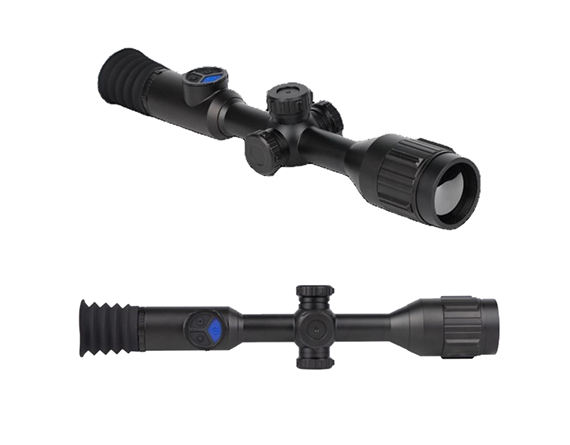

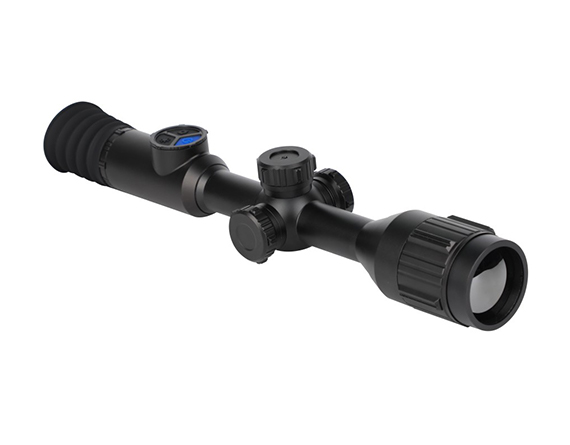

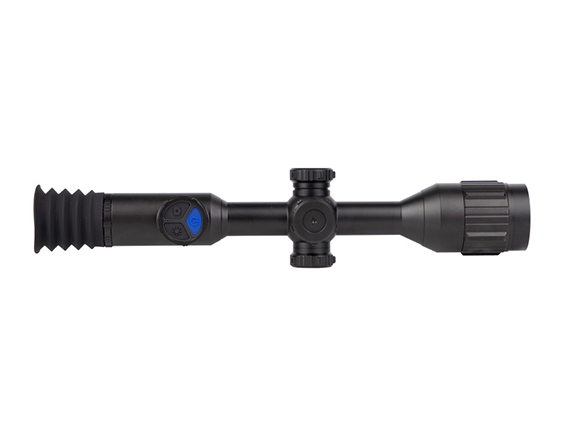

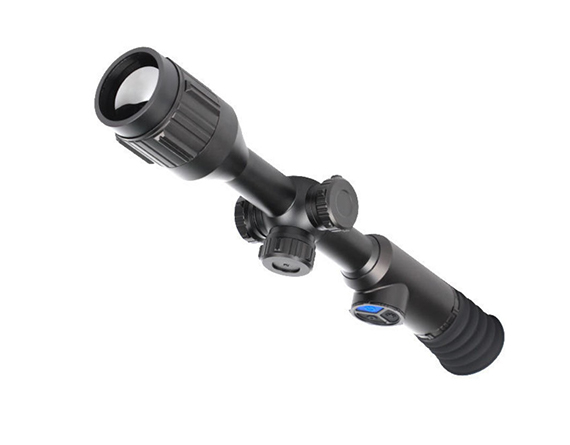

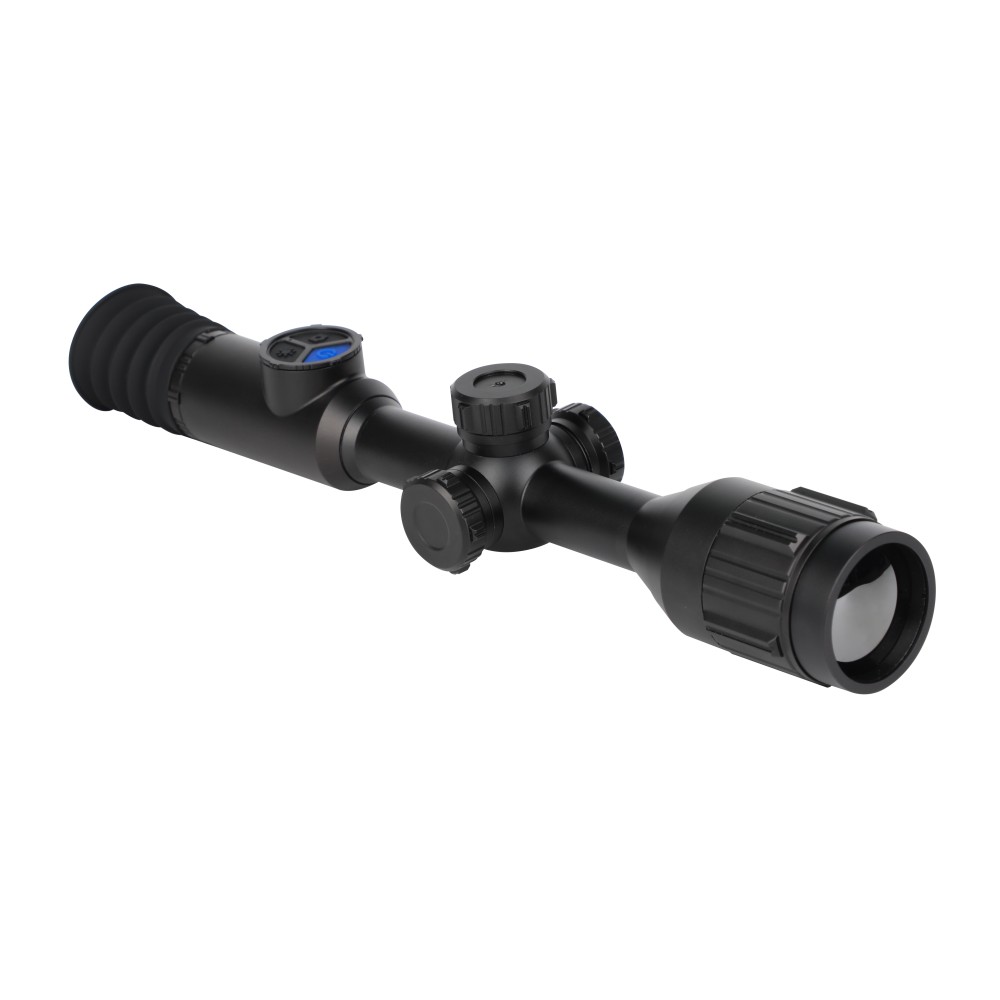

TMRS7 Thermal Imaging Device
TMRS Night Vision Monocular 35mm 384×288 Resolution 1-8x Optical Zoom Image Stabilized for Outdoor Hunting
Product introduction
◆35mm/50mm lens Options ,12μm pixel pitch，384/640 pixels Array
◆0.49 inch OLED 1440*1080 resolution display
◆Alloy housing ,protection IP67,meet requirement in harsh environment
◆Shock Resistance Up to 800g/ms ,and Impact resistance up to 6000J
◆Clip-On mode or standalone mode
◆Ten types of reticles + bad pixel repair function, suitable for observation in different environments.
◆Core Detector Upgrade: 384×288/640×512 Pixels, Upgraded to 12μm, Uncooled Focal Plane Vanadium Oxide Infrared Detector – Professional Strength Inside Out
◆50Hz High Frame Rate：Delivers a comfortable and high-quality viewing experience for moving targets, with sensitive and smooth dynamic image capture free of lag.
◆Supports image WiFi transmission: WiFi has two modes, namely AP and WLAN. Built-in video recording/photography functions.
◆5 Color Modes: Black Hot/White Hot/Green Hot/Iron Red/Red Hot – Adaptable to Different Observation Scenarios in Complex Environments and Changing Weather
◆30mm Tube Diameter, Compatible with Universal Fixture Brackets: Alloy Housing, IP67 Overall Protection Rating – Resistant to Harsh Environments
◆1.0 ~ 8.0X Electronic Zoom: Magnifies image details for clearer local information
◆Picture-in-Picture and Hotspot Tracking: The central area is magnified 2x, allowing you to view target details without losing the field of view
◆Built-in Storage: 32GB large-capacity built-in storage for capturing more wonderful moments.
◆Long Battery Life: Dual Power Management, with Built-in Rechargeable Lithium Battery + External Battery (CR123×1), Enabling Continuous Operation for ≥15 Hours
◆Built-in Rangefinder: Detection range up to 3000m+, Identification distance up to 1600m, enabling exploration of longer distances
Specification
- Tab1
|
Model
|
RS735-384
|
RS750-384
|
RS735-640
|
RS750-640
|
|
|
Detector Performance
|
Detector Type
|
Uncooled focal plane vanadium oxide
|
|||
|
Pixels
|
384×288
|
384×288
|
640×512
|
640×512
|
|
|
Pixel Pitch
|
12μm
|
||||
|
NETD
|
≤20mk(25 °C, F#=1.0)
|
||||
|
Image Performance
|
Focal Length
|
35mm
|
50mm
|
35mm
|
50mm
|
|
Field of View (±5%)
|
7.5°*5.7°
|
5.3°*4.0°
|
12.6°*10.1°
|
8.8°*7.0°
|
|
|
Minimum Focusing Distance
|
2m
|
5m
|
2m
|
5m
|
|
|
Lens Aperture
|
F1.0
|
||||
|
Frame Rate
|
50HZ
|
||||
|
Focusing Method
|
Manual operation
|
||||
|
Image Display
|
Display
|
0.49-inch color OLED, 1440*1080 resolution
|
|||
|
Exit Pupil Diameter
|
6mm
|
||||
|
Exit Pupil Distance
|
65mm
|
||||
|
Eyepiece Magnification
|
11.2X
|
||||
|
Base Magnification
|
X3.25
|
X4.65
|
X1.91
|
X2.72
|
|
|
Diopter
|
Adjustable, -5D~+5D
|
||||
|
Thermal Imaging Operation
|
Brightness/Contrast
|
Adjustable
|
|||
|
Image Correction Mode
|
Automatic/Manual
|
||||
|
Polarity Conversion
|
Black Hot/White Hot/Green Hot/Iron Red/Red Hot
|
||||
|
Electronic Zoom
|
X1.0~8.0
|
||||
|
Retrieval
|
Yes, ten modes
|
||||
|
Hotspot Tracking
|
Yes
|
||||
|
Picture-in-Picture
|
Yes
|
||||
|
Dead Pixel Repair
|
Yes
|
||||
|
WIFI
|
Yes, AP and WLAN modes
|
||||
|
Image Storage
|
Built-in
|
32G
|
|||
|
Recording
|
Yes
|
||||
|
Reverse Activation Recording
|
Yes
|
||||
|
Storage Method
|
Video recording, photo taking
|
||||
|
Power Supply
|
Battery Type
|
Dual power management, built-in rechargeable lithium battery + external battery (CR123*1)
|
|||
|
Battery Capacity Display
|
Yes
|
||||
|
Operating Time
|
≥15 hours
|
||||
|
Environmental Parameters
|
Shock Resistance
|
800g/ms
|
|||
|
Vibration Resistance
|
2g, GB/T2423.10 (IEC60068-2-6)
|
||||
|
Electromagnetic Compatibility
|
Compliant with CE requirements
|
||||
|
Humidity
|
0~95%
|
||||
|
Operating Temperature
|
-30℃~+55℃ (-22 °F to 131°F)
|
||||
|
Physical Characteristics
|
Casing Color
|
Black
|
|||
|
Interface
|
30mm diameter, compatible with universal clamp bracket
|
||||
|
Protection Rating
|
IP67
|
||||
|
Dimensions
|
351×84×76.2mm (excluding goggles)
|
||||
|
Weight
|
≤950g
|
||||
|
Interface
|
Power Input
|
Type-C interface (charging, data transfer, external analog image output)
|
|||
|
Detection Range
|
Person (1.8×0.5) m
|
1600m
|
2300m
|
1600m
|
2300m
|
|
Vehicle (2.3×2.3) m
|
2200m
|
3200m
|
2200m
|
3200m
|
|
|
Recognition Range
|
Person (1.8×0.5) m
|
800m
|
1150m
|
800m
|
1150m
|
|
Vehicle (2.3×2.3) m
|
1100m
|
1600m
|
1100m
|
1600m
|
|
