Equipped with a powerful built-in infrared illuminator, the helmet mounted 1x24mm Night Vision Monocular enables clear viewing in low-light conditions and even total darkness.

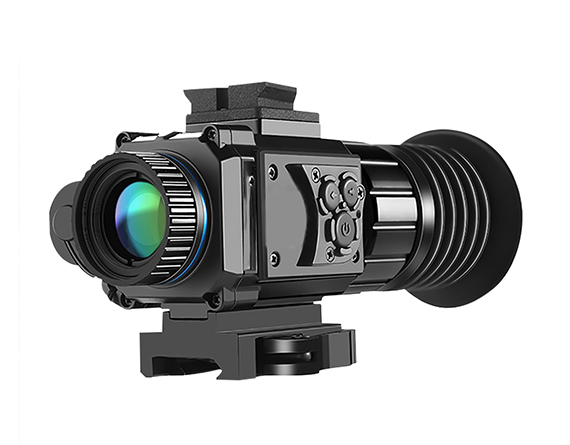

TMHM19 Night Vision Monocular
3 in 1 Handheld infrared night vision Helmet thermal Scope for laser aim scope 5 crosshair reticle options
①Most advanced uncooled sensor+passive IR thermal Imaging Tech
②3 in 1 Multi-purpose: Handheld/helmet/aim scope
③5 crosshair reticle options
④4 kinds imaging modes for different environment
⑤1024×768 OLED HD display for viewing comfort
⑥Smooth Zoom from1x to 8x
⑦50Hz High Frame Rate
⑧Recognition distance:up to 1500m, Detection distance: up to 3000m
Product introduction
Equipped with a powerful built-in infrared illuminator, the helmet mounted 1x24mm Night Vision Monocular enables clear viewing in low-light conditions and even total darkness.
The infrared-sensitive complementary-metal-oxide-semiconductor (CMOS) sensor provides edge-to-edge resolution and outstanding image quality, while the fully multi-coated optics increase light transmission and decrease glare for a clear, illuminated image.
With optical 3x magnification and a 24mm objective lens, this compact night vision monocular lets you effectively view objects up to 300m away in night mode when the infrared illumination level is set to high.
If you love spotting wildlife or keep a watch out for intruders during the night, the designed the most efficient digital IR night vision binoculars. This night vision device is equipped with infrared lighting, suitable for use in pitch dark environment.
Specification
- Tab1
|
The main parameters
|
sensor
|
384*288 @ 17µm
|
|
objective lens
|
φ19mm
|
|
|
Magnification (x)
|
1-8X
|
|
|
Detection range (meters)
|
1000
|
|
|
sensor
|
Types of
|
uncolded
|
|
Resolution (pixels)
|
384×288
|
|
|
Pixel pitch (microns)
|
12
|
|
|
Frame rate (Hz)
|
50
|
|
|
Optical parameters
|
objective lens
|
φ19mm
|
|
Magnification (x)
|
1-8X
|
|
|
Exit pupil distance (mm)
|
28mm
|
|
|
Display
|
Types of
|
AMOLED HD
|
|
Resolution (pixels)
|
1024×768
|
|
|
Detection distance
|
Detection range (meters)
|
1000
|
|
Product Features
|
Multi-lingual
|
yes（English & chinese）
|
|
Image correction
|
yes
|
|
|
Brightness adjustment
|
yes
|
|
|
contrast adjustment
|
yes
|
|
|
Image detail enhancement
|
yes
|
|
|
noise reduction
|
yes
|
|
|
Digital zoom
|
1x 2x 4x 8x
|
|
|
Color mode
|
Black Hot, White Hot, Red Hot, Fusion
|
|
|
Type of reticle
|
5 types
|
|
|
Reticle adjustment
|
yes
|
|
|
Way of use
|
Mount on helmet
|
yes
|
|
Environmental parameters
|
Protection class (IP code) (IEC60529)
|
IPX6 (waterproof)
|
|
Operating temperature, °С
|
-25 – +50
|
|
|
power supply
|
Output voltage (V)
|
3.0 – 4.2
|
|
Battery Type
|
18350、16340、CR123A rechargeable lithium battery
|
|
|
Battery operating time (at 22°C) (unit: hours)
|
More than 4 hours
|
|
|
External power supply, V
|
Micro USB type B (5V)
|
Product Description
Equipped with a powerful built
The infrared
The infrared-sensitive complementary-metal-oxide-semiconductor (CMOS) sensor provides edge-to-edge resolution and outstanding image quality, while the fully multi-coated optics increase light transmission and decrease glare for a clear, illuminated image.
With optical 3x magnification and a 24mm objective lens
With optical 3x magnification and a 24mm objective lens, this compact night vision monocular lets you effectively view objects up to 300m away in night mode when the infrared illumination level is set to high.
If you love spotting wildlife or keep a watch out for intruders during the night
If you love spotting wildlife or keep a watch out for intruders during the night, the designed the most efficient digital IR night vision binoculars. This night vision device is equipped with infrared lighting, suitable for use in pitch dark environment.
Picture display
