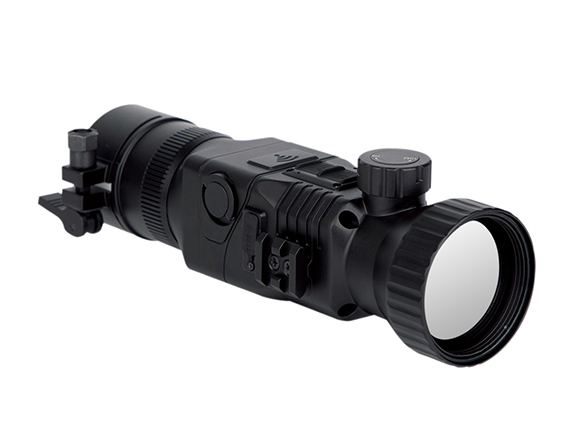

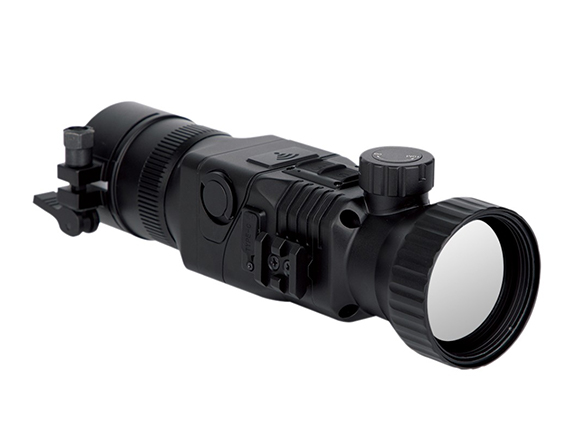

TMRS6 Thermal Imaging Device
TMRS6 Thermal Scope Thermal Vision Thermal Monocular Night Vision 640×512 CMOS Sensor 1-8x Optical Zoom Image
Product introduction
◆35mm/50mm lens Options ,12μm pixel pitch，384/640 pixels Array
◆Built-in Photos/videos recording functions and also support WIFI transmission
◆0.49 inch OLED 1440*1080 resolution display
◆Alloy housing ,protection IP67,meet requirement in harsh environment
◆Shock Resistance Up to 800g/ms ,and Impact resistance up to 6000J

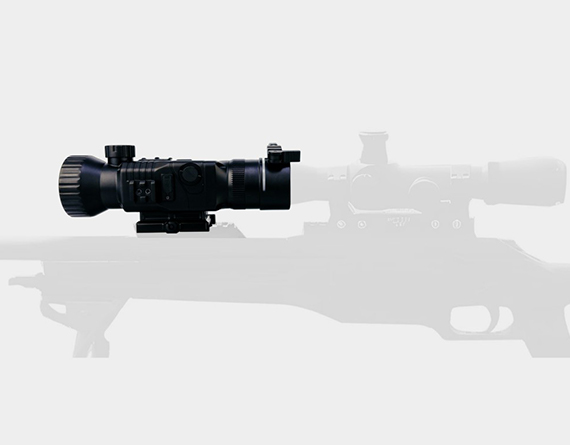

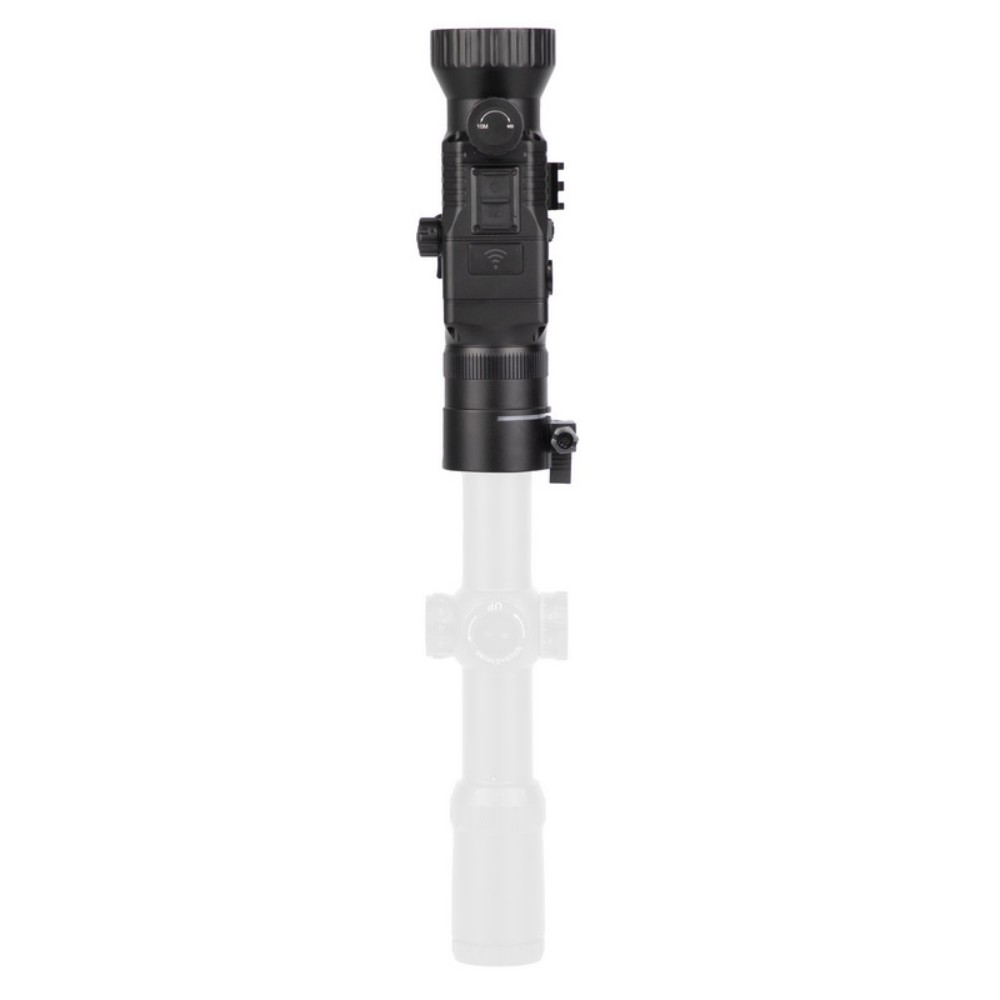

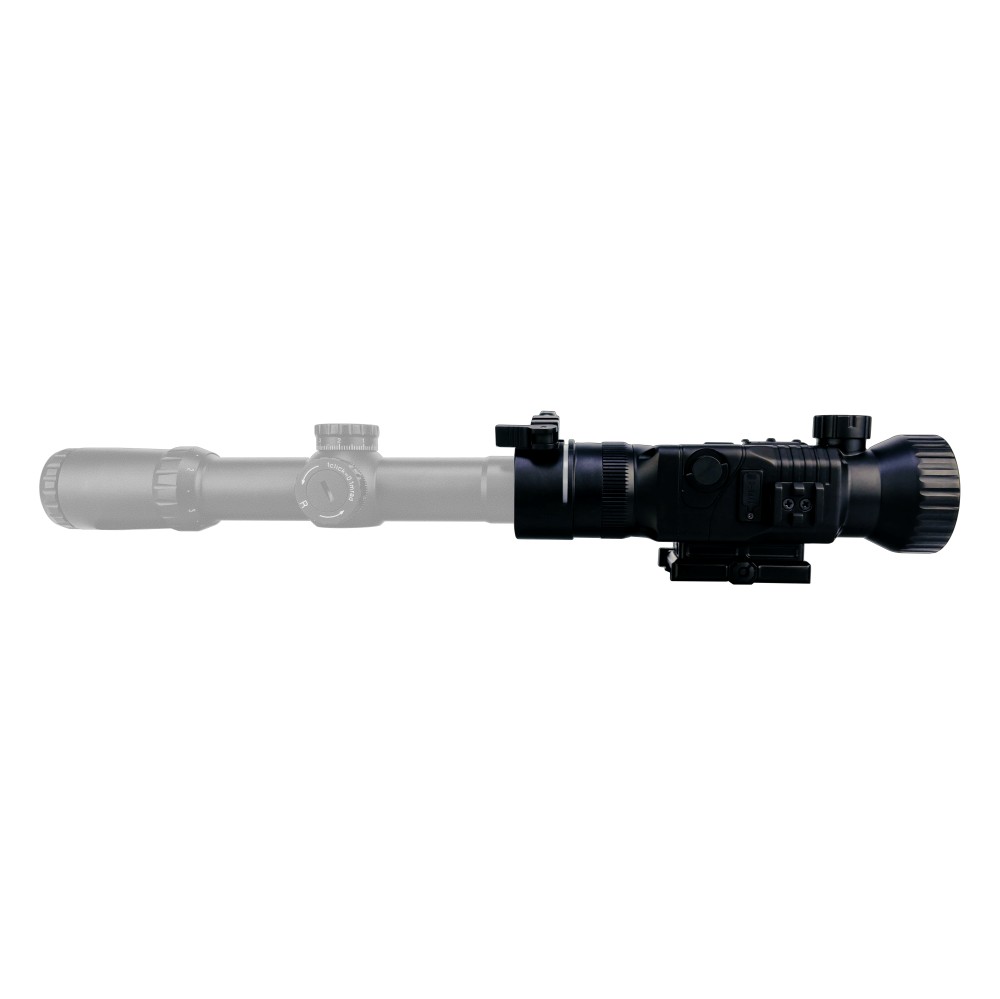

◆Clip-On mode or standalone mode
◆Core Detector Upgrade: 384×288/640×512 Pixels, Upgraded to 12μm, Uncooled Focal Plane Vanadium Oxide Infrared Detector – Professional Strength Inside Out
◆50Hz High Frame Rate：Delivers a comfortable and high-quality viewing experience for moving targets, with sensitive and smooth dynamic image capture free of lag.
◆5 Color Modes: Black Hot/White Hot/Green Hot/Iron Red/Red Hot – Adaptable to Different Observation Scenarios in Complex Environments and Changing Weather
◆10 optional reticle types + hotspot tracking function: suitable for observation in different environments
◆1.0 ~ 8.0X Electronic Zoom: Magnifies image details for clearer local information
◆Picture-in-Picture and Hotspot Tracking: The central area is magnified 2x, allowing you to view target details without losing the field of view
◆Bad Pixel Repair Function：It detects “bad pixels” on the sensor or screen through algorithms, and compensates for or masks the bad pixels using information from surrounding normal pixels to ensure image integrity.
◆Built-in Storage: 32GB large-capacity built-in storage for capturing more wonderful moments.
◆Long Battery Life: Dual Power Management, with Built-in Rechargeable Lithium Battery + External Battery (CR123×1), Enabling Continuous Operation for ≥4 Hours
◆Built-in Rangefinder: Detection range up to 3000m+, Identification distance up to 1600m, enabling exploration of longer distances
Specification
- Tab1
|
Model
|
RS635-384
|
RS650-640
|
|
|
Detector Performance
|
Detector Type
|
Uncooled focal plane vanadium oxide
|
|
|
Pixels
|
384×288
|
640×512
|
|
|
Pixel Pitch
|
12μm
|
||
|
NETD
|
≤20mk(25 °C, F#=1.0)
|
||
|
Image Performance
|
Focal Length
|
35mm
|
50mm
|
|
Field of View (±5%)
|
7.5°*5.7°
|
8.8°*7.0°
|
|
|
Minimum Focusing Distance
|
2m
|
5m
|
|
|
Lens Aperture
|
F1.0
|
F1.0
|
|
|
Frame Rate
|
50HZ
|
||
|
Focus Mode
|
Manual
|
||
|
Image Display
|
Display
|
0.49-inch color OLED with 1440*1080 resolution
|
|
|
Exit pupil diameter
|
Forward-facing: 10mm
|
Forward-facing: 10mm
|
|
|
Standard sight: 6mm
|
Standard sight: 6mm
|
||
|
Exit pupil distance
|
Forward-facing: 46mm
|
Forward-facing: 40mm
|
|
|
Standard sight: 50mm
|
Standard sight: 50mm
|
||
|
Eyepiece Magnification
|
3x magnification
|
3x magnification
|
|
|
Base Magnification
|
Forward-facing mode: X1
|
Forward-facing mode: X1
|
|
|
Diopter
|
Adjustable, -5D~+5D
|
||
|
Thermal Imaging Operation
|
Brightness/Contrast
|
Adjustable
|
|
|
Image Correction Mode
|
Auto/Manual
|
||
|
Polarity Conversion
|
Black Heat/White Heat/Green Heat/Iron Red/Red Heat
|
||
|
Electronic Zoom
|
X1.0~8.0
|
||
|
Retrieval
|
Yes, ten modes
|
||
|
Hotspot Tracking
|
Yes
|
||
|
Picture-in-Picture
|
Yes
|
||
|
Dead Pixel Repair
|
Yes
|
||
|
Wi-Fi
|
Yes, AP and WLAN modes
|
||
|
Image Storage
|
Built-in
|
32G
|
|
|
Audio recording
|
Yes
|
||
|
Reverse-activated recording
|
Yes
|
||
|
Storage method
|
Video recording, photo taking
|
||
|
Power Supply
|
Battery type
|
Dual power management, built-in rechargeable lithium battery + external battery (CR123*1)
|
|
|
Battery capacity display
|
Yes
|
||
|
Operating time
|
≥4 hours
|
||
|
Environmental Parameters
|
Shock resistance
|
800g/ms
|
|
|
Vibration resistance
|
2g，GB/T2423.10（IEC60068-2-6）
|
||
|
Electromagnetic compatibility
|
Meets CE requirements
|
||
|
Humidity
|
0~95%
|
||
|
Operating temperature
|
-30℃~+55℃ (-22 °F to 131°F)
|
||
|
Physical Characteristics
|
Casing color
|
Black
|
|
|
Interfaces
|
Standard 40mm white light scope adapter ring (front view mode), with standard 20mm Picatinny rail
|
||
|
Protection rating
|
IP67
|
||
|
size
|
Front view mode: 187.5×70×83.4mm
|
||
|
Standard viewing mode: 220×70×83.4mm
|
|||
|
Weight (Front-facing mode)
|
≤515g
|
≤575g
|
|
|
Interface
|
Power Input
|
Type-C interface (for charging, data transfer, and external analog image output)
|
|
|
Detection Range
|
Person (1.8×0.5) m
|
1600m
|
2300m
|
|
Car (2.3×2.3) m
|
2200m
|
3200m
|
|
|
Recognition Range
|
Person (1.8×0.5) m
|
800m
|
1150m
|
|
Car (2.3×2.3) m
|
1100m
|
1600m
|
|
