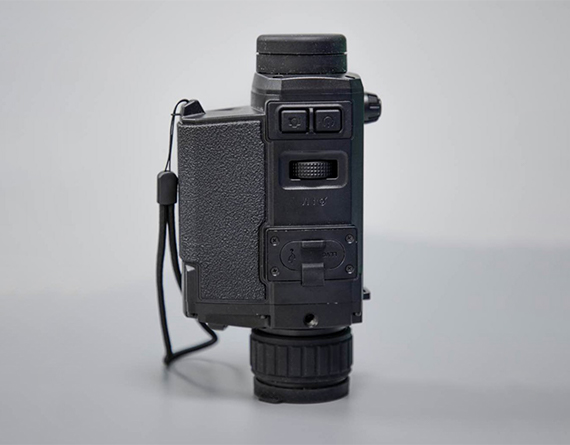

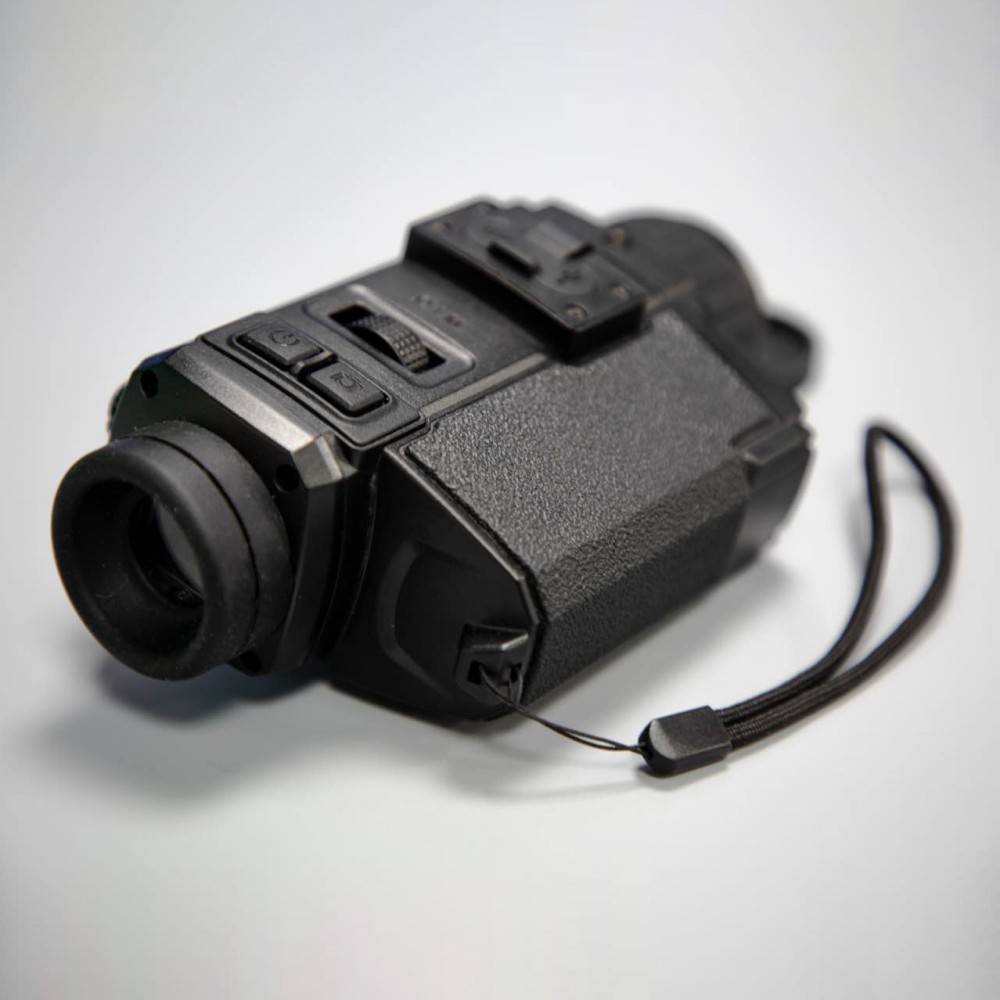

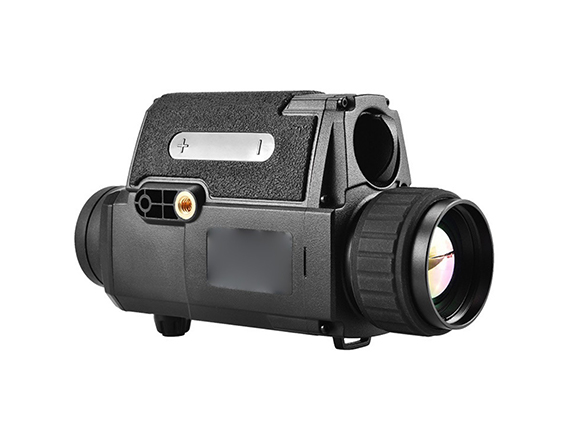

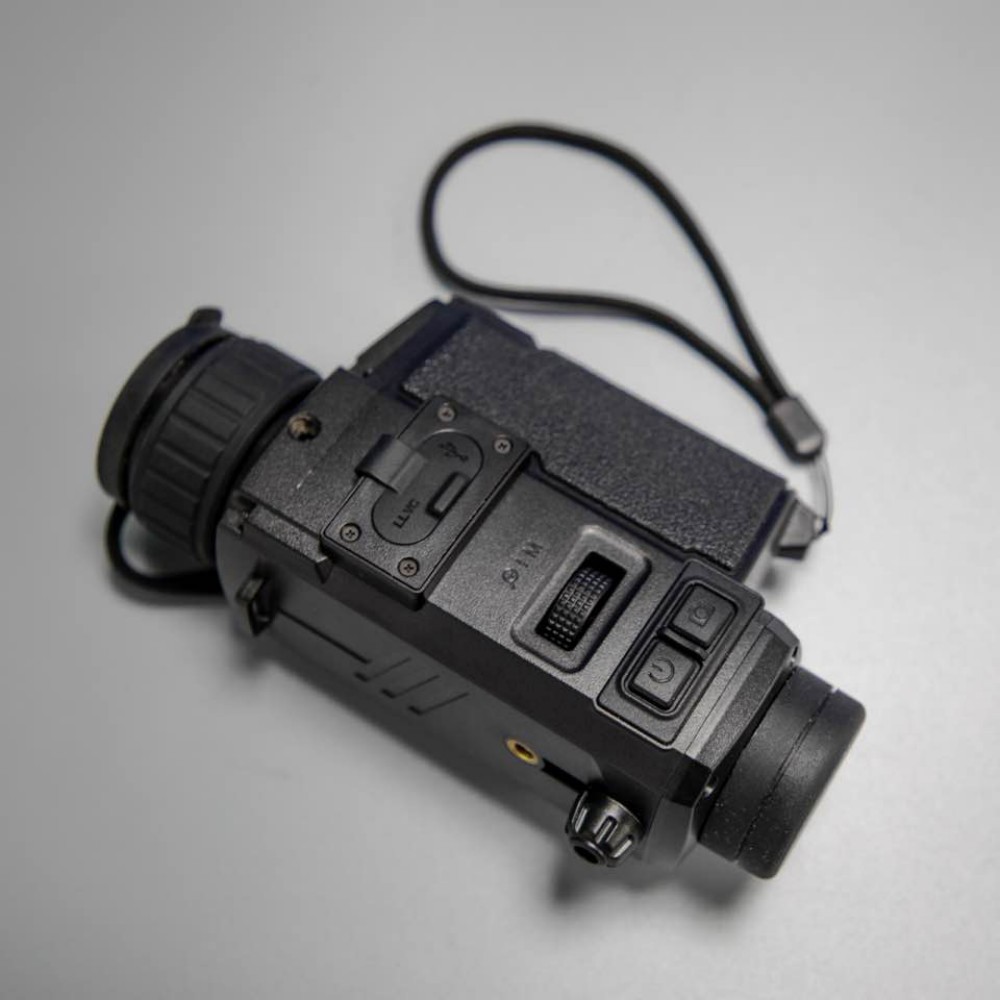

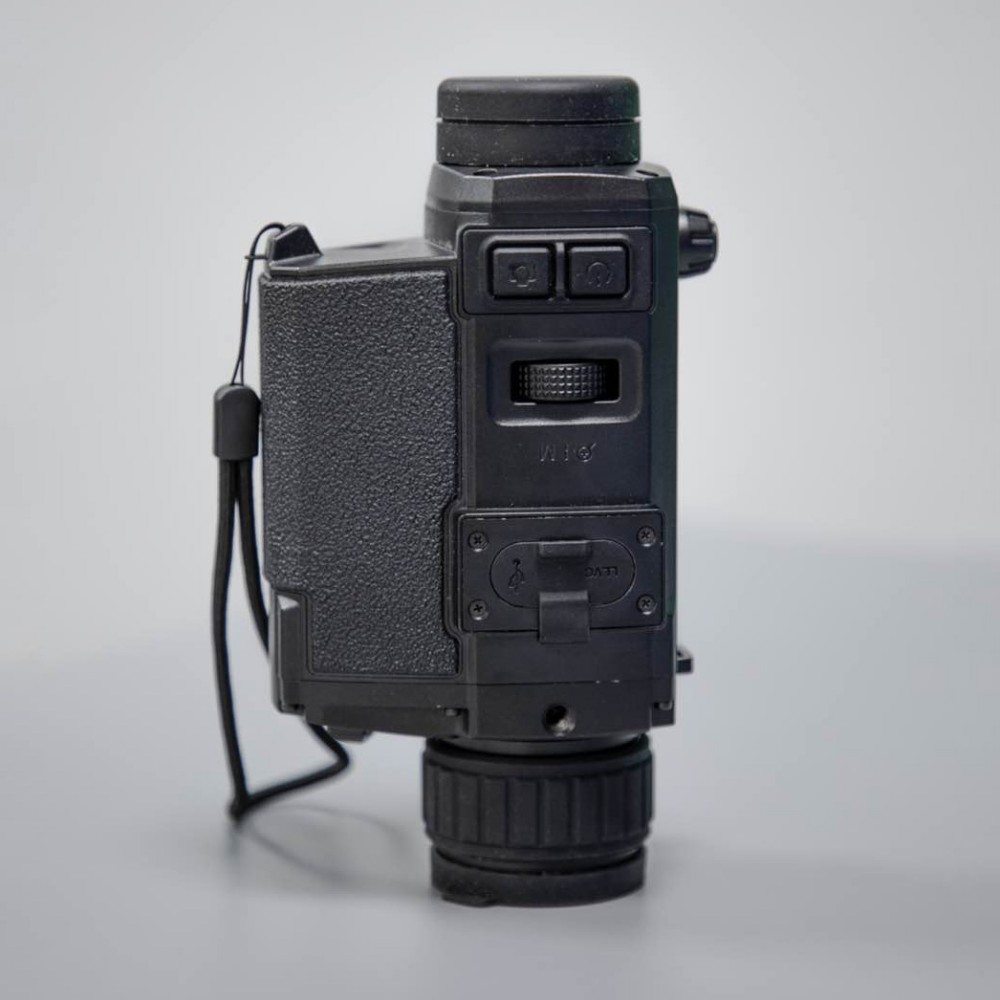

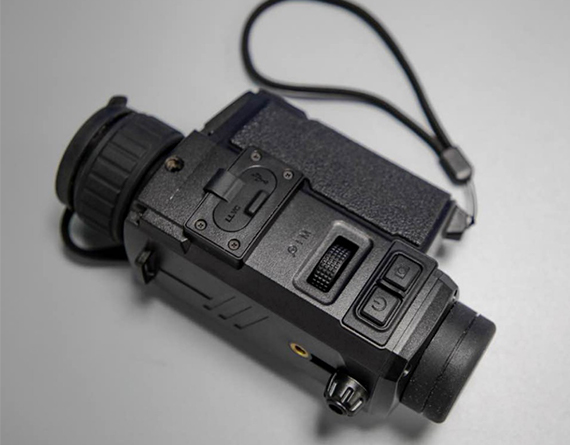

TMRS3 Night Vision Monocular
TMRS3 Series Multifunctional Thermal Imaging Monocular Outdoor Handheld Laser Range Thermal Hunting Scope

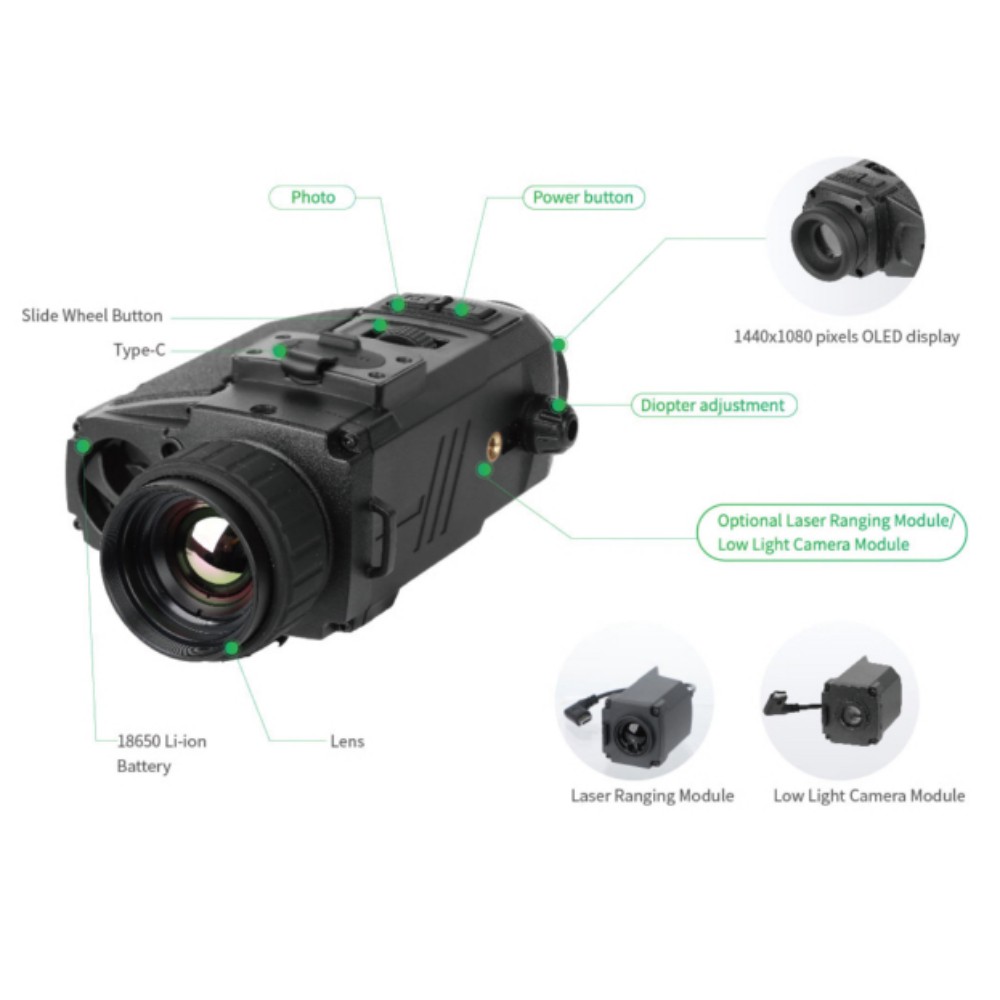

Product introduction
◆0.49-inch 1440×1080 Resolution OLED Display: Features a large screen with ultra-high definition, delivering finer and more detailed images.
◆Equipped with an Electronic Compass and Motion Sensor: Real-time detects and senses direction.
◆Interface: 1/4 tripod thread interface, used for adapter connection.
◆Adopts the Latest Lison III Image Detail Enhancement Algorithm: Renders images clearer.
◆Equipped with Image WIFI Transmission, Built-in Video Recording and Photo Shooting Functions.
◆Multiple optional reticles
◆7-Hour Long Battery Life: Comes with a removable 18650 lithium battery, ensuring worry-free battery life.
◆Core Detector Upgrade:384×288/640×512 Pixels, 35/1.0 large aperture lens, Wide field of view: 10.6°*7.9°/7.5°*5.7°/12.6°*10.1°,Upgraded to 12μm, Uncooled Focal Plane Vanadium Oxide Infrared Detector Demonstrates Professional Strength Inside Out
◆Newly Added Forest Observation Mode: 6 Image Modes (White Hot, Black Hot, Green Hot, Iron Red, Red Hot) for Easily Adapting to Different Scenarios of Complex Environments and Changing Weather
◆-5D ~ +5D Diopter Adjustment: Delivers a visually comfortable and clear field of view
◆1.0 ~ 8.0X Electronic Zoom: Magnifies image details for clearer local information
◆25/35mm Manual Focus: Minimum focusing distance of up to 2m, enabling more precise and flexible lens control
◆50Hz High Frame Rate: Provides a comfortable, high-quality viewing experience for moving targets, with sensitive, smooth dynamic image capture and no lag
◆Laser Pointer + Hotspot Tracking: Quickly and accurately assists in locating target objects
◆Picture-in-Picture (PiP), Instant Clarity: The central area is magnified and displayed, allowing observation of target details without losing the field of view
◆Bad Pixel Repair Function:It detects “bad pixels” on the sensor or screen through algorithms, and compensates for or masks the bad pixels using information from surrounding normal pixels to ensure image integrity.
◆Built-in Storage: 32GB large-capacity built-in storage for capturing more wonderful moments.
◆IP67 Protection Rating: Weather-resistant, one-handed operation supported, 1-meter drop protection, and usable within a temperature range of -20°C to +50°C.
◆Long battery life: A single standard 18650 lithium battery enables 7.5 hours of continuous operation.
◆Built-in Rangefinder: Detection range up to 2000m+, Identification distance up to 1100m, enabling exploration of longer distances
◆Type-C Interface
(LLVC): Expanding the low-light level dim light module
(Power Supply): For external power supply, data transmission, external real-time video, and expanding the laser ranging module
Specification
- Tab1
|
Model
|
S325
|
S335
|
S335P
|
|||
|
Detector Performance
|
Detector Type
|
Vanadium Oxide Uncooled Focal Plane Array
|
||||
|
Pixels
|
384×288
|
640×512
|
||||
|
Pixel Pitch
|
12μm
|
|||||
|
NETD
|
≤35 mK (25°C, F# = 1.0)
|
|||||
|
Image Performance
|
Focal Length
|
25mm/F1.0
|
35mm/F1.0
|
35mm/F1.0
|
||
|
Field of View (±5%)
|
10.6°*7.9°
|
7.5°*5.7°
|
12.6°*10.1°
|
|||
|
Frame Rate
|
50HZ
|
|||||
|
Minimum Focusing Distance
|
2m
|
3m
|
3m
|
|||
|
Focus
|
Manual
|
|||||
|
Image Display
|
Display
|
0.49-inch, color OLED, 1440*1080 resolution
|
||||
|
Exit Pupil Distance
|
25mm
|
|||||
|
Basic Magnification
|
2.33x
|
3.26x
|
1.91x
|
|||
|
Diopter
|
Adjustable from -5D to +5D
|
|||||
|
Thermal Imaging Operation
|
Brightness/Contrast
|
Customizable adjustment
|
||||
|
Image Mode
|
Incandescent, Black-hot, Green-hot, Iron-red, Red-hot, Forest-hot
|
|||||
|
Electronic Zoom
|
X1.0~8.0
|
|||||
|
Picture-in-Picture
|
Yes
|
|||||
|
Hotspot Tracking
|
Yes
|
|||||
|
Uniformity Calibration
|
Manual/Automatic Calibration
|
|||||
|
WIFI
|
Yes
|
|||||
|
Electronic Compass
|
Yes
|
|||||
|
Reticle
|
Multiple Retrieval Types Available
|
|||||
|
Dead Pixel Repair
|
Yes
|
|||||
|
Laser Indicator
|
Yes
|
|||||
|
Image Storage
|
Built-in
|
32G
|
||||
|
Storage Method
|
Video recording and photography
|
|||||
|
Power Supply
|
Battery Type
|
Single standard 18650 lithium battery
|
||||
|
Operating Time (Ambient Temperature)
|
7.5 hours
|
7.5 hours
|
7.5 hours
|
|||
|
Electromagnetic Compatibility
|
Meets CE requirements
|
|||||
|
Humidity
|
0~95%
|
|||||
|
Operating Temperature
|
-30℃~+55℃(-22°F 至 131°F)
|
|||||
|
Storage Temperature
|
-40℃~+70℃
|
|||||
|
Physical Characteristics
|
Casing Color
|
Black
|
||||
|
Interface
|

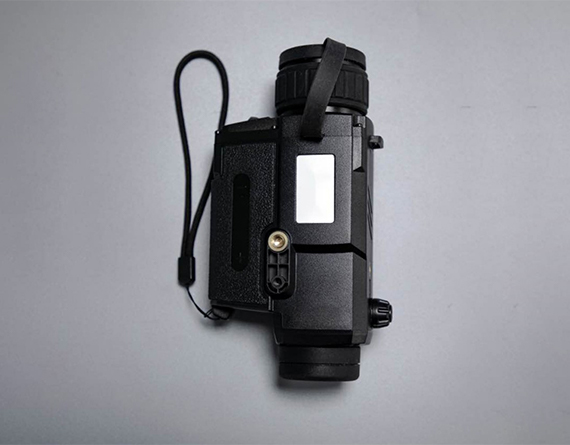

1/4″ tripod threaded connector for adapters
|
|||||
|
Protection Rating
|
IP67
|
|||||
|
Dimensions
|
167*84*62mm
|
167*84*62mm
|
167*84*62mm
|
|||
|
Weight
|
≤420g
|
≤420g
|
≤420g
|
|||
|
Interface
|
Type-C Interface (LLVC)
|
Extended low-light module
|
||||
|
Type-C Interface (Power)
|
External power supply, data transmission, external real-time video, extended laser ranging module
|
|||||
|
Detection Range
|
Person (1.8×0.5) m
|
1100m
|
1600m
|
1600m
|
||
|
Vehicle (2.3×2.3) m
|
1600m
|
2200m
|
2200m
|
|||
|
Recognition Range
|
Person (1.8×0.5) m
|
550m
|
800m
|
800m
|
||
|
Vehicle (2.3×2.3) m
|
800m
|
1100m
|
1100m
|
|||
